Vano3dla SLB SoloLaneBoard for EMU MMU

DREMCSKU: DR-EMU-SLB

Price:
Sale price$45.45 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (10 units), (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

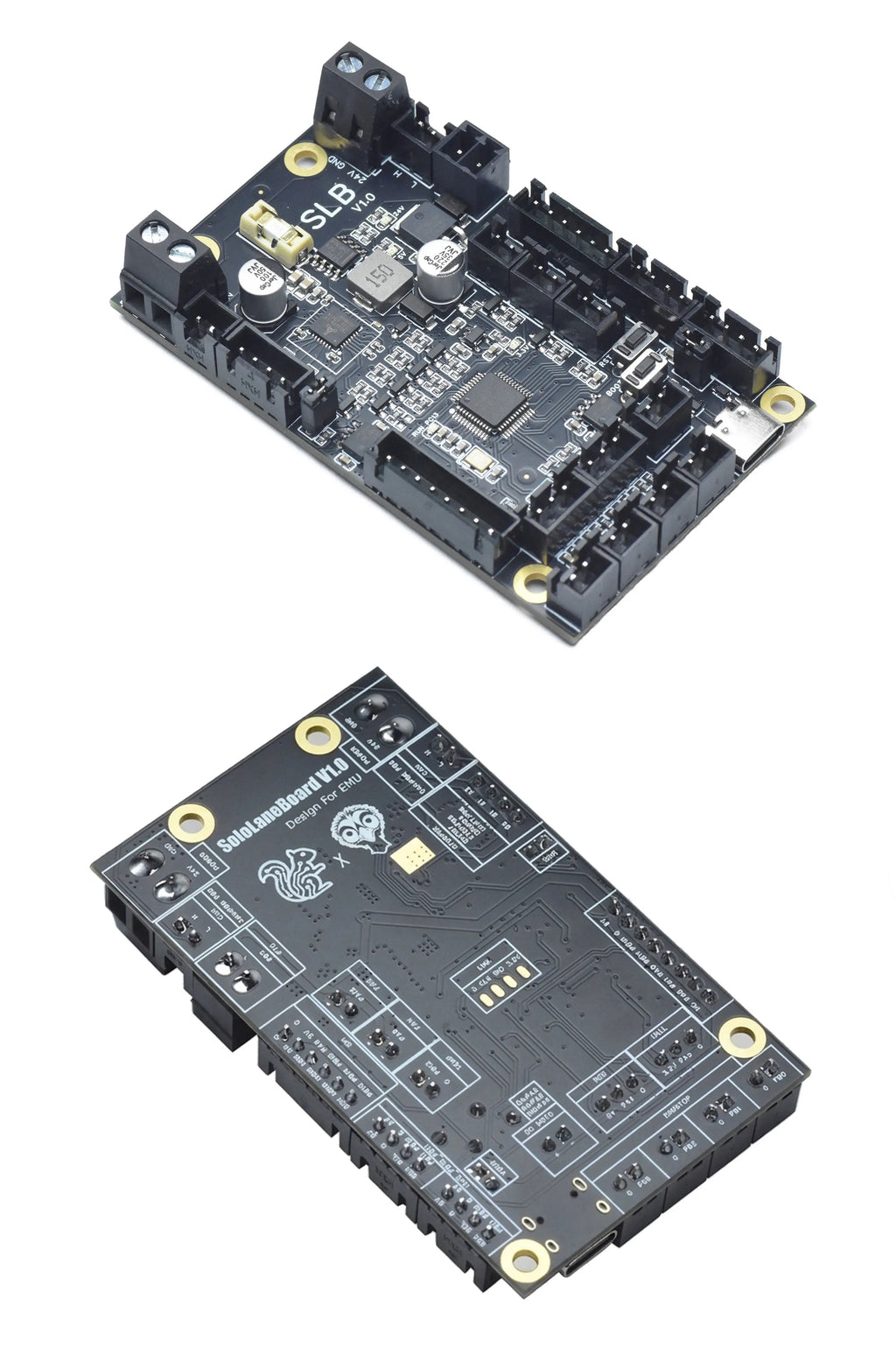

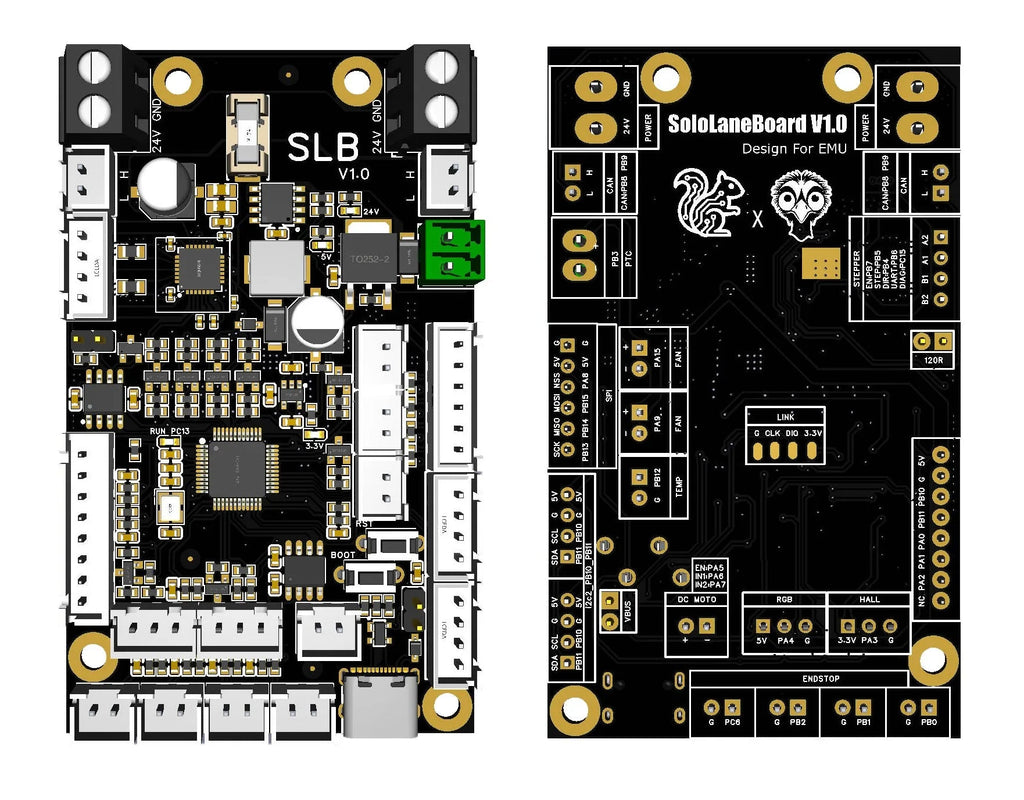

SLB (Solo Lane Board) is a control board designed specifically for EMU-style MMU systems, where each lane is driven by an independent controller board.

Highlights:

  • No WAGO connectors.
  • no LED daisy-chaining.
  • Supports power and CANBUS cascading.
  • Compatible with the EMU_Hatch_Board,  greatly simplifying EMU wiring.
  • Provides enough ports and power for the drying function.
  • A dedicated PSF interface with no voltage drift.
  • Reserved hardware SPI interface for NFC functionality.

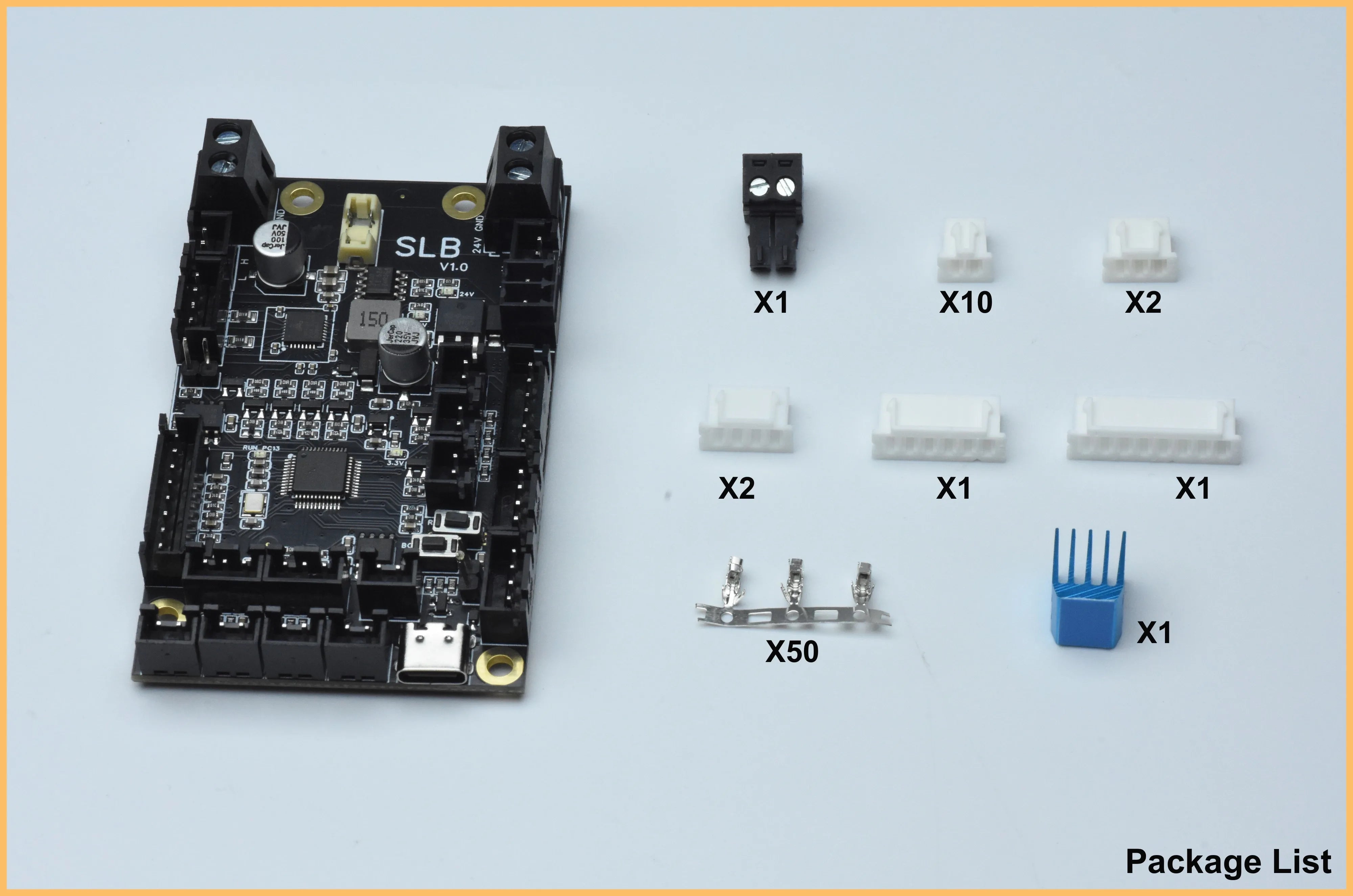

What is Included:

  • 1x SLB SoloLaneBoard

Additional Information:

https://github.com/kashine6/SLB-Board-For-EMU

Notice:

  • Maximum rated current for SLB is 8A. If you plan to use PTC drying, only one unit can be operated at a time. For more than one unit, please use WAGO terminals to connect the power supply in parallel.
  • The SLB is not only suitable for EMU, but can also provide additional channel expansion for systems such as BoxTurtle. The board itself includes built-in support for controlling N20 motors.
  • This board is factory-produced using high-quality electronic components with SMT assembly, ensuring reliable and consistent quality.

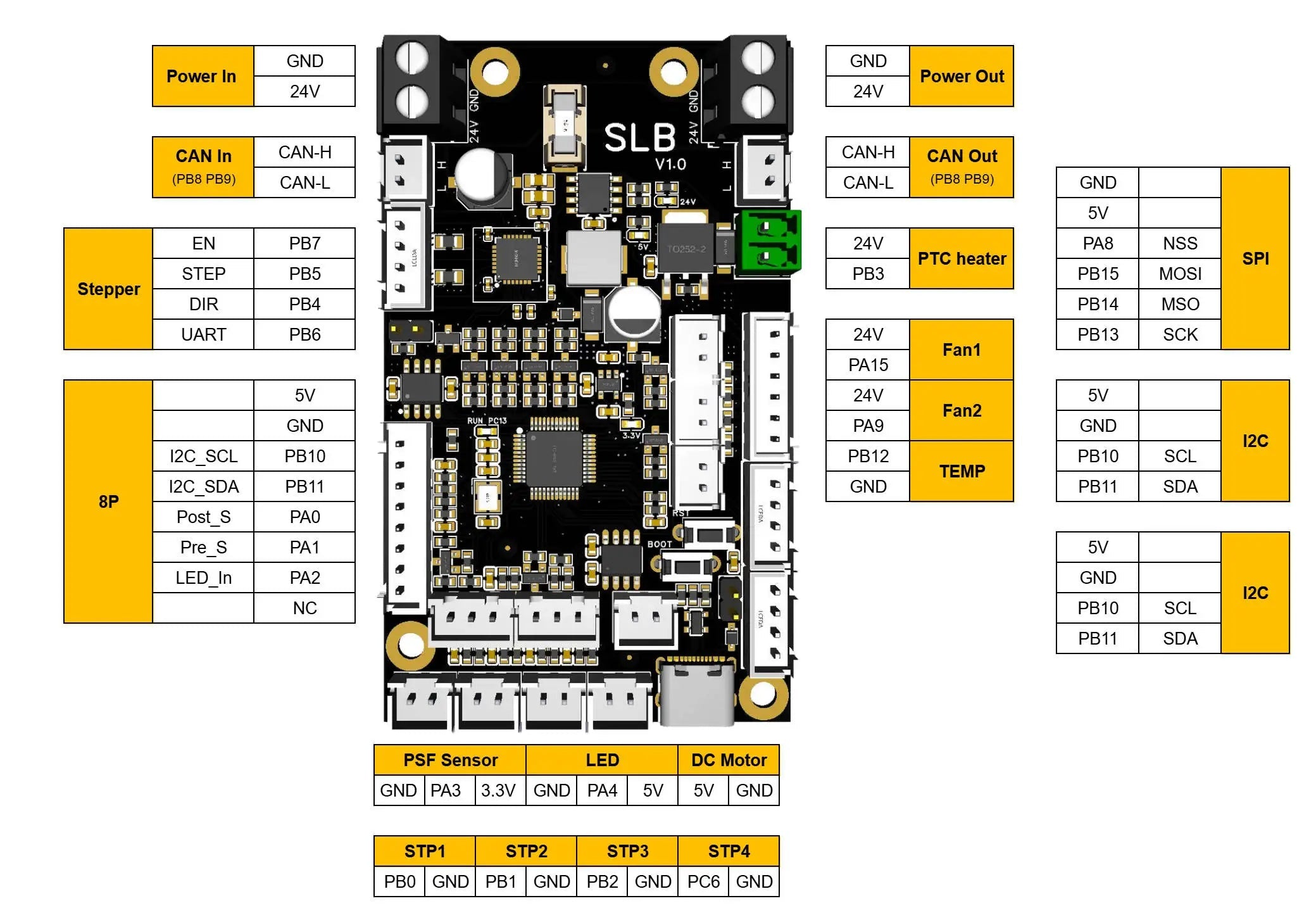

Features:

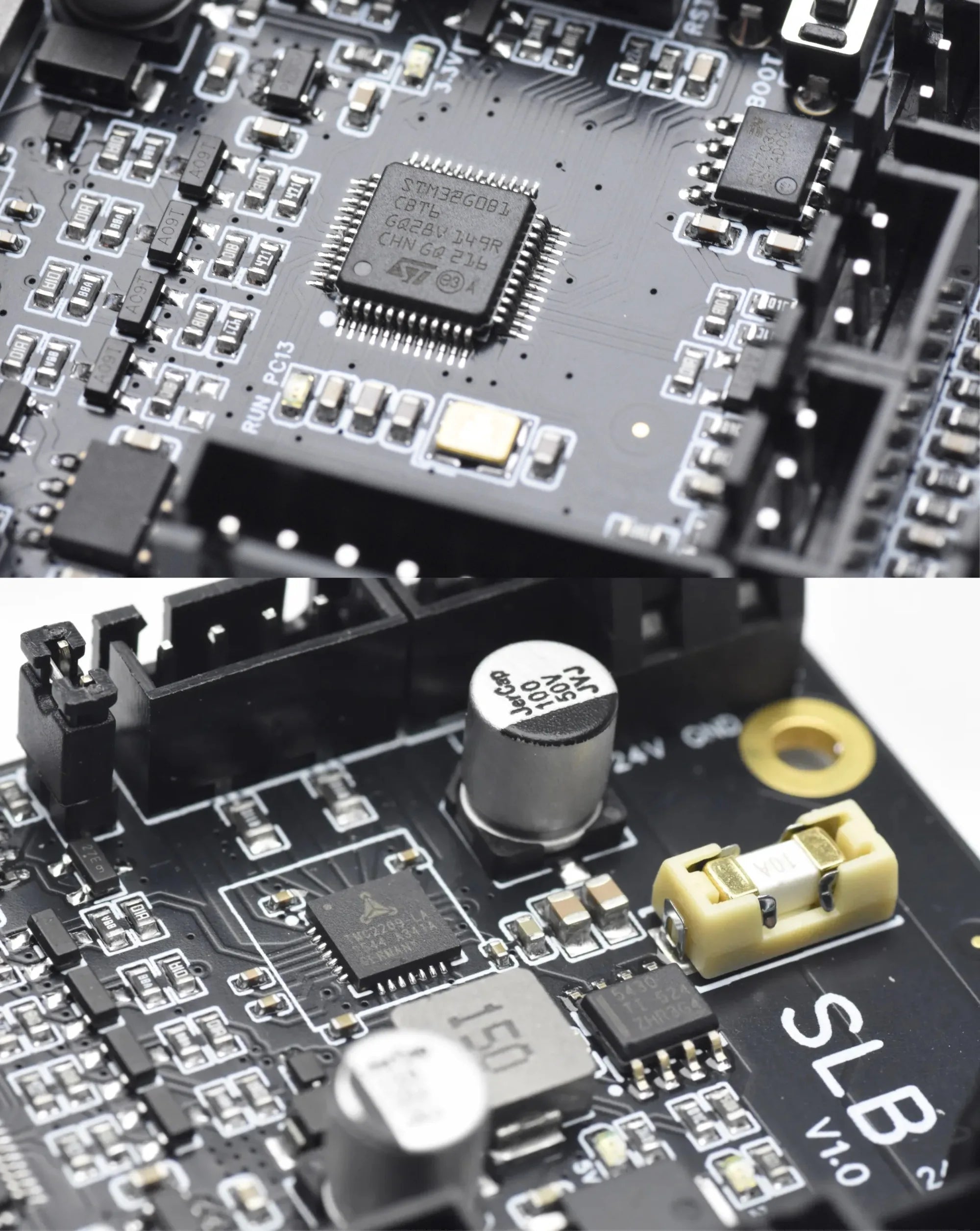

  • Main Chip: STM32G0B1CBT6 MCU.
  • Dual power connectors and dual CAN interfaces for convenient daisy-chaining.
  • 1 x Onboard TMC2209 operating in UART mode, with 5V logic circuitry.
  • 1x 8-pin XH2.54 connector is provided for direct connection to the EMU Hatch Board.
  • 2 × Neo pixel RGB interfaces, one of which is integrated into the 8-pin XH2.54 connector.
  • 6 × I/O connectors, two of which are integrated into the 8-pin XH2.54 connector.
  • 3 × Hardware I2C interfaces, one of which is integrated into the 8-pin XH2.54 connector.
  • 2 × 24V fans with adjustable speed control.
  • 1 × PTC heating interface, 7A max.
  • 1 × NTC temperature sensor interface for temperature monitoring.
  • 1 x Hall ADC interfaces for PSF Sensor.
  • 1 x 5V Brushed DC motor drivers with forward/reverse support, En pin,sleep mode, and hardware PWM.
  • 1 x Hardware SPI interface.
