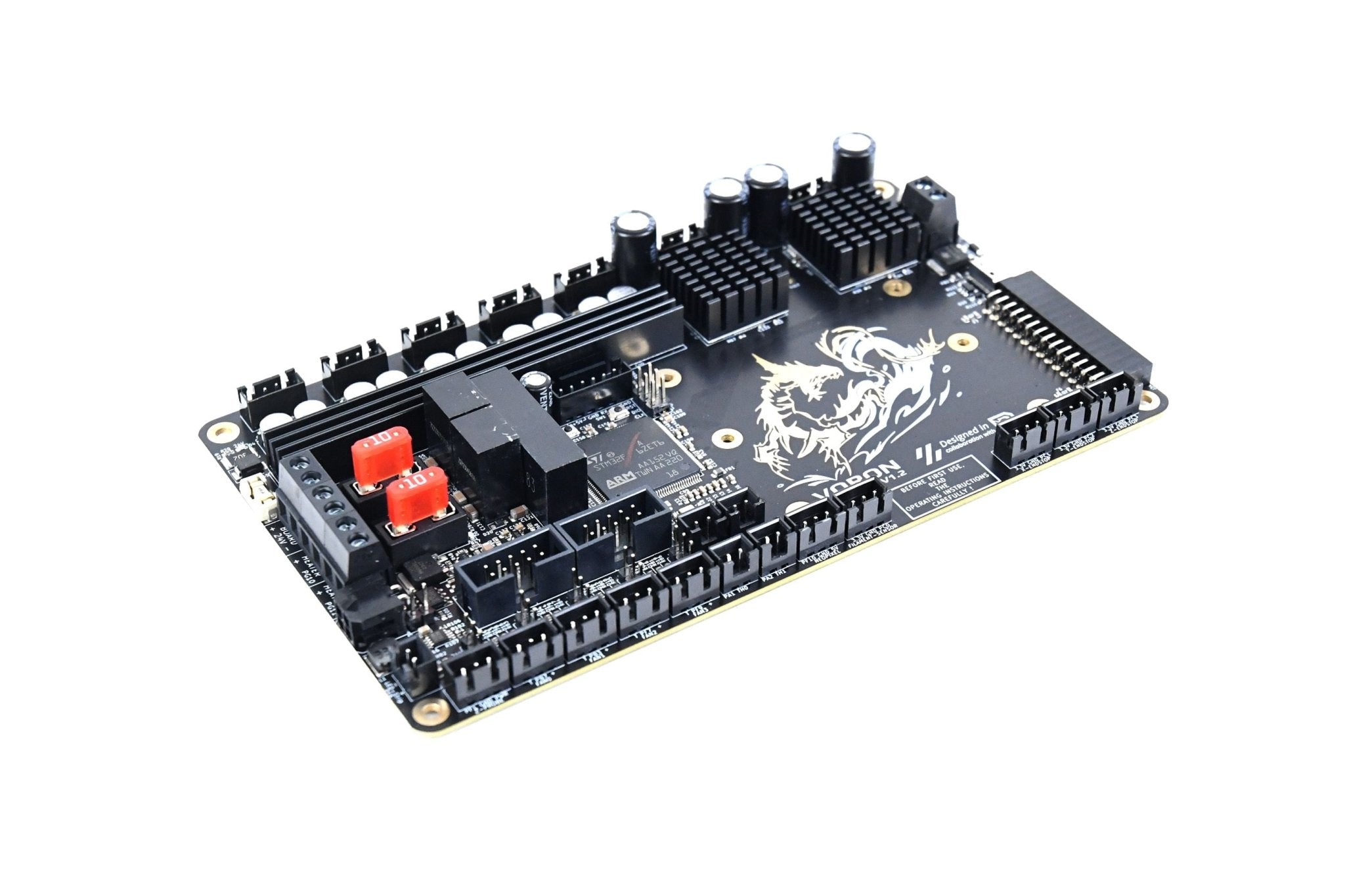

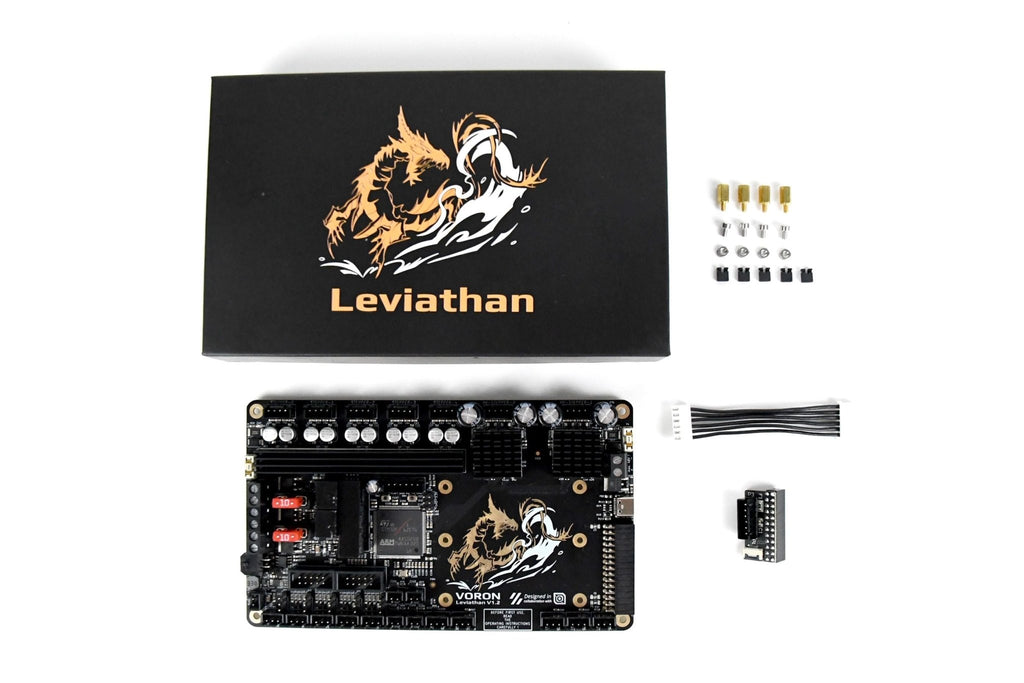

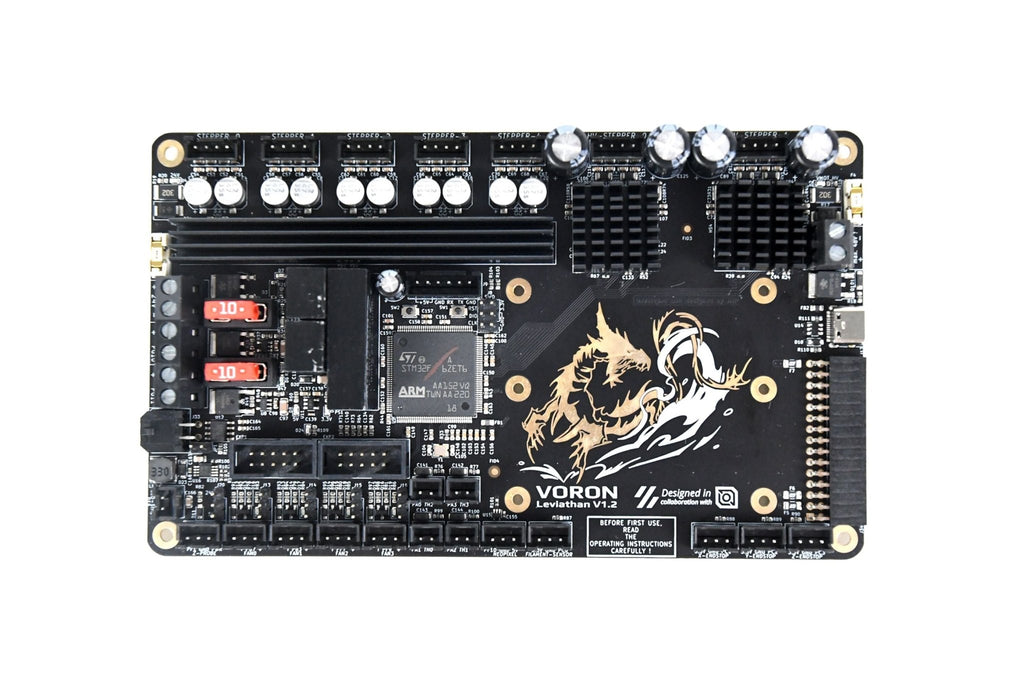

LDO Leviathan V1.3 3D Printer Control Board

LDOSKU: LDO-LEVIATHAN-1.3

Price:
Sale price$185.00 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (3 units), (Australia Stock)

Buy from the experts, who use and repairs 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

The LDO Leviathan V1.3 is a comprehensive control board built on STM32F446 architecture with native Klipper firmware support. It features dual power supplies (24V main, 24-48V for TMC5160 drivers), five TMC2209 and two TMC5160 stepper drivers for advanced motion control, four independent thermistor inputs, four PWM fan outputs with tachometer support, and dedicated heater outputs for hotend (180W) and heatbed (240W) applications. Additional capabilities include probe and filament sensor inputs, addressable RGB lighting control, three endstop inputs, and an expansion port offering ADC, UART, SPI/CAN connectivity with auxiliary power rails, ideal for complex multi-axis printer configurations and advanced sensor integration.

Note: Order after 28/07/2025 are shipping newer V1.3 version.

Documentation:

Resources: Manual Download Link

Features (V1.3): (Changes)

  • STM32H743 MCU (25 MHz crystal)

Features (V1.2):

  • Supports Klipper firmware
  • STM32F446 MCU
  • 1x Vin 24V Mainsupply (polarity and overvoltage protected)
  • 1x Vin 24-48V TMC5160 supply (polarity and overvoltage protected)
  • 5x TMC2209 onboard drivers (24V)
  • 2x TMC5160 onboard drivers (24-48V), onboard 12V source for gate drive
  • 4x Thermistor inputs
  • 4x Fan outputs (with tacho signal support, 5/24V via jumpers)
  • 1x Probe input (5/24V via jumper)
  • 1x Filamentsensor input (5V tolerant)
  • 1x Neopixel output
  • 3x Endstop inputs (5V tolerant)
  • 1x Hotend heater output (max. 180 W, 7.5 A)
  • 1x Heatbed heater output (max. 240 W, 10 A)
  • 1x dimmable LED-strip output (350mA constant current source)
  • 1x EXP1 port
  • 1x EXP2 port
  • 1x Extension port (4x ADC, 1xUART, 1xSPI or 1xCAN, 10GPIO, 3.3V@0.5A, 5V0.5A, 24V@0.5A)
  • 1x STM32 programmer interface (backup)
  • 1x USB-C interface
  • 1x CAN Bus interface (MicroFit 3.0 connector)
  • 1x RPi Powersupply (5-pin JST-XH connector with UART support)
  • Mountig holes for RPi Zero 2W and RPi3/4
  • Better stepper driver cooling

Dimensions

  • 170x100mm, Mounting holes: 160x90m
