KUSBA Pro V1.0/V2.0 USB Accelerometer for Klipper LIS2DW/ADXL

DREMCSKU: DR-KUSBAPRO-BB

Addon: Module Only(V1.0 LIS2DW)
Price:
Sale price$22.45 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (5 units), (AU Stock)

Buy from the experts, who use 3D printers every day. Have a question? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

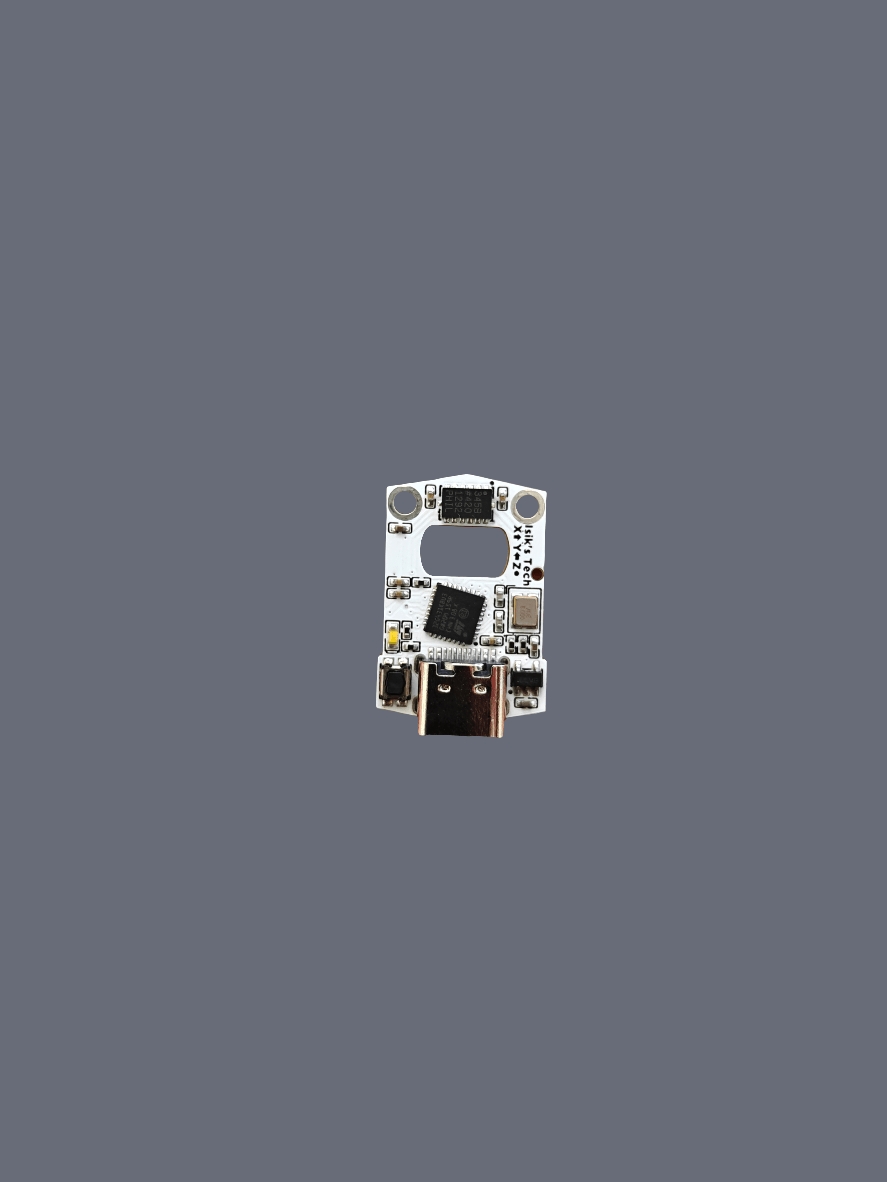

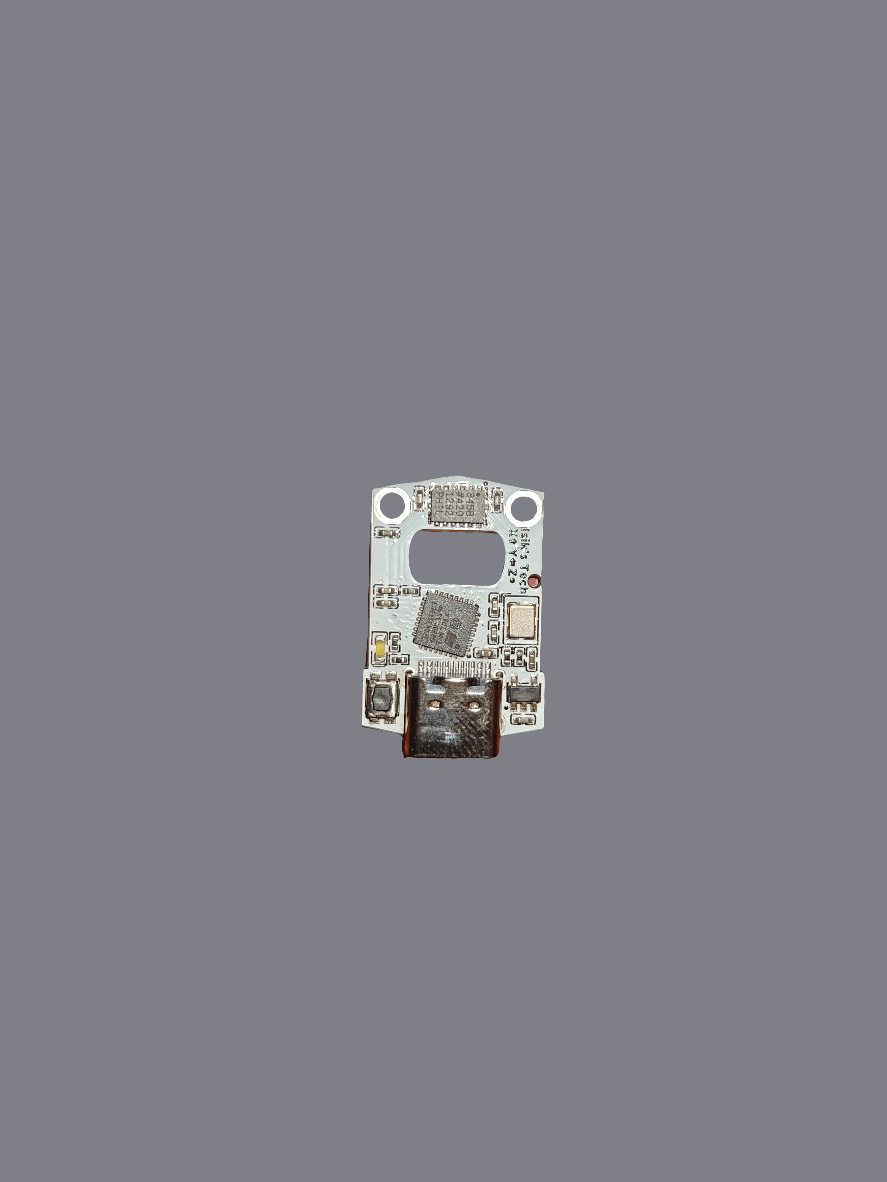

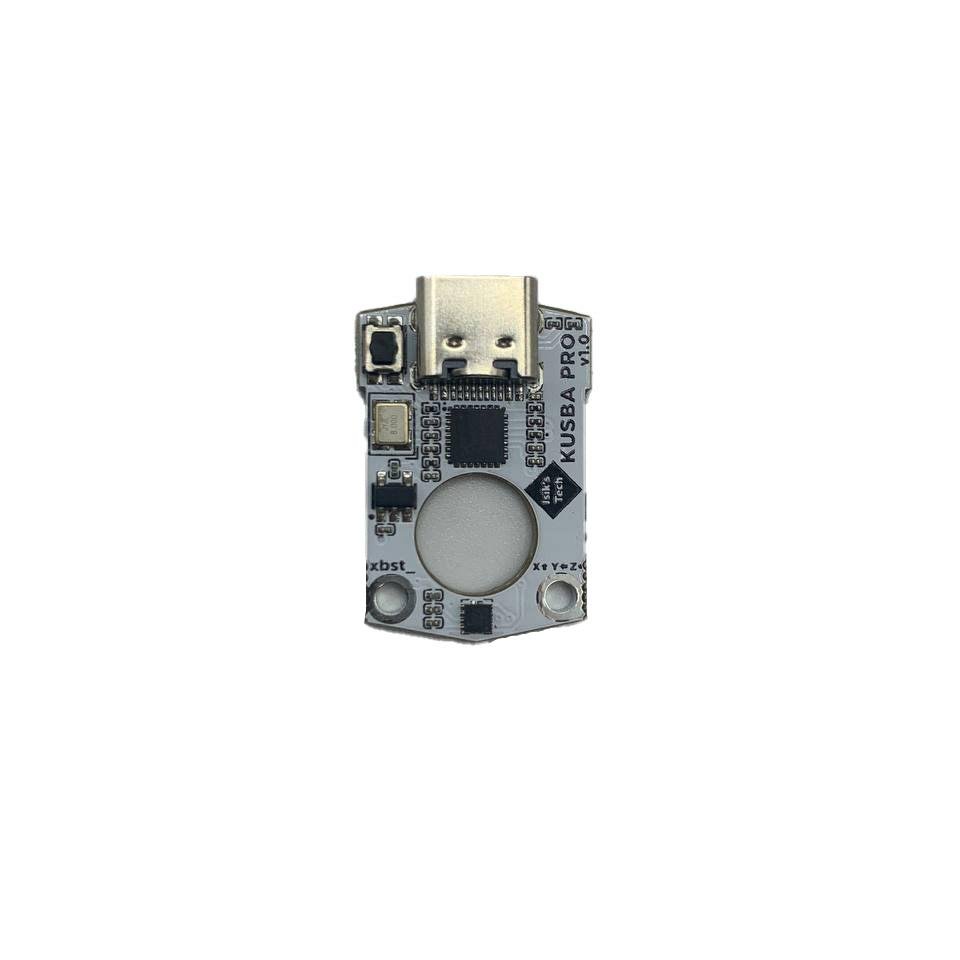

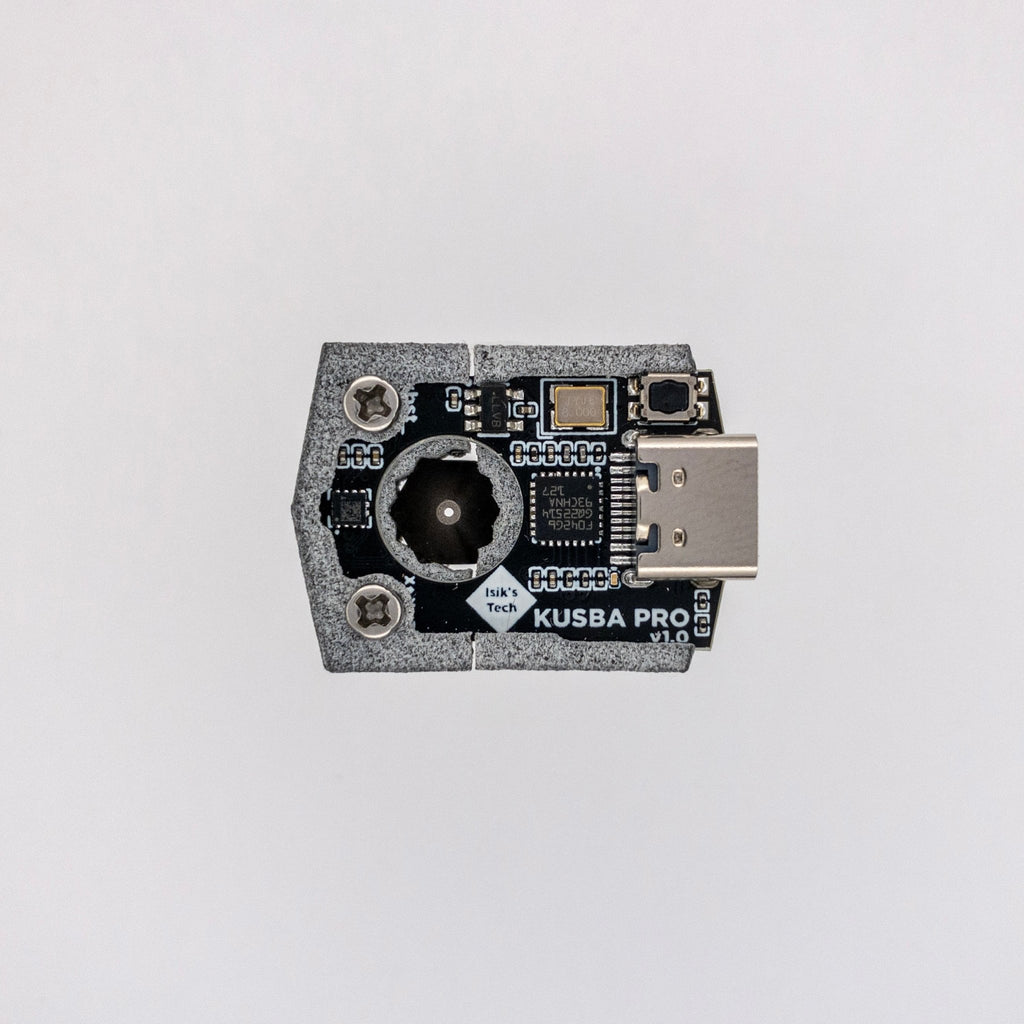

KUSBA PRO is a clamp-style nozzle-mounted USB (type-C) accelerometer for 3D printers running Klipper. Nozzle is theoretically the best place to measure resonances and the clamp-stle nozzle mount makes it very easy to mount this accelerometer on 3D printer nozzles. This accelerometer PCB also uses a LIS2DW accelerometer, which is on paper superior than the commonly used ADXL345 accelerometer.

With an integrated STM mcu and onboard ADXL345 or LIS2DW depending on selection diy wiring and soldering is no longer required – just a USB-C to USB-A cable (Available 1.8m with/without cable).

Designed by xbst / Isik’s Tech – every purchase directly supports his efforts for further research and development into this and other projects.

Board are pre-flashed, if not being detected on klipper please try reset the device and re-flash so it match your klipper version. As there many be compatible changes between different klipper version. (Holding the reset button while plugging in the device).

New board is pre-flashed with "Klipper". More Info: https://github.com/xbst/KUSBA-PRO/blob/master/Docs/Firmware.md

You will need source for Module/Module+USB Cable:

  • Print own nozzle mount for V6 or CHT/Bozzle nozzle or also add MJF + Hardware Kits to your cart.

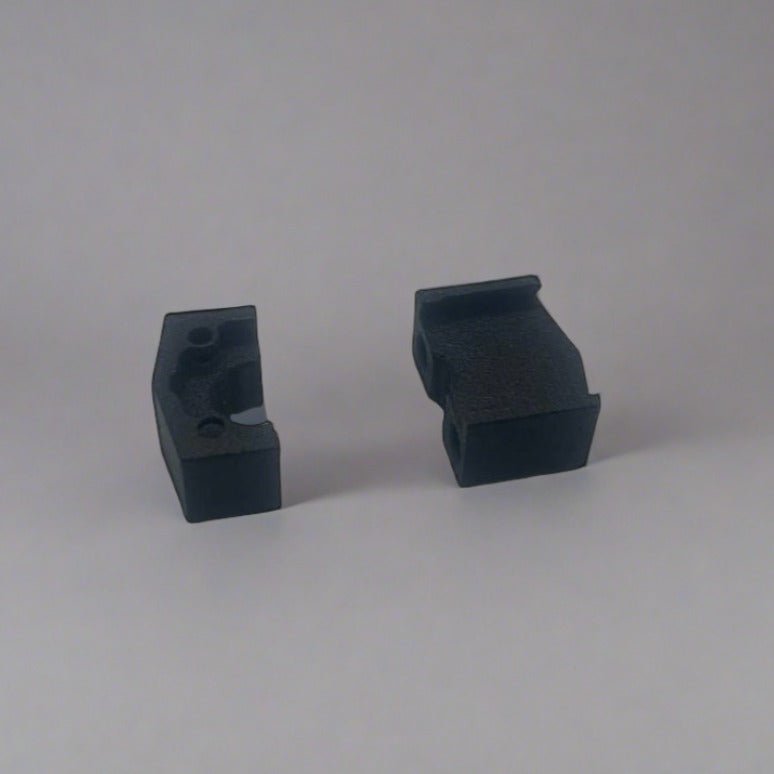

MJF Printed Mounts:

  • V6 or CHT/Bozzle nozzle
  • 2x M3x16 Bolt

Module PCB (Now include Hardware Kit) From 1/04/2024

  • 2x M2x8 Self Tapper Screw
  • 2x M3x12 Bolt
  • 2x M3x5x4 Threaded Insert (Voron Style)

Written Documentation: https://github.com/xbst/KUSBA-PRO

Install Video: https://www.youtube.com/watch?v=ecENeHfXG64

Printed Bracket: https://github.com/xbst/KUSBA-PRO/tree/master/Mount/Standard

Cad: https://github.com/xbst/KUSBA-PRO/tree/master/CAD



How to Configure Klipper

[mcu adxl]
serial: /dev/serial/by-id/xxx

[lis2dw]
cs_pin: adxl:PA4
spi_bus: spi1

[resonance_tester]
accel_chip: lis2dw
probe_points:
0,0,0
# Edit the above line with the correct probe points location. I recommend the center of your bed for X & Y, 20 for Z.
# For 350 mm printers: 175,175,20
# For 300 mm printers: 150,150,20
# For 250 mm printers: 125,125,20
# For 120 mm printers: 60,60,20

# More info: https://www.klipper3d.org/Config_Reference.html#adxl345



Note: Module is available separately without require type c to a cable or with 1.8mm cable which is suitable for most raspberry pi.
