New Version WITH IDGA Shipping Now!
Orders from 1st June 2023 onwards
with new white plastic main gear and integrated drive gear for lower run-out

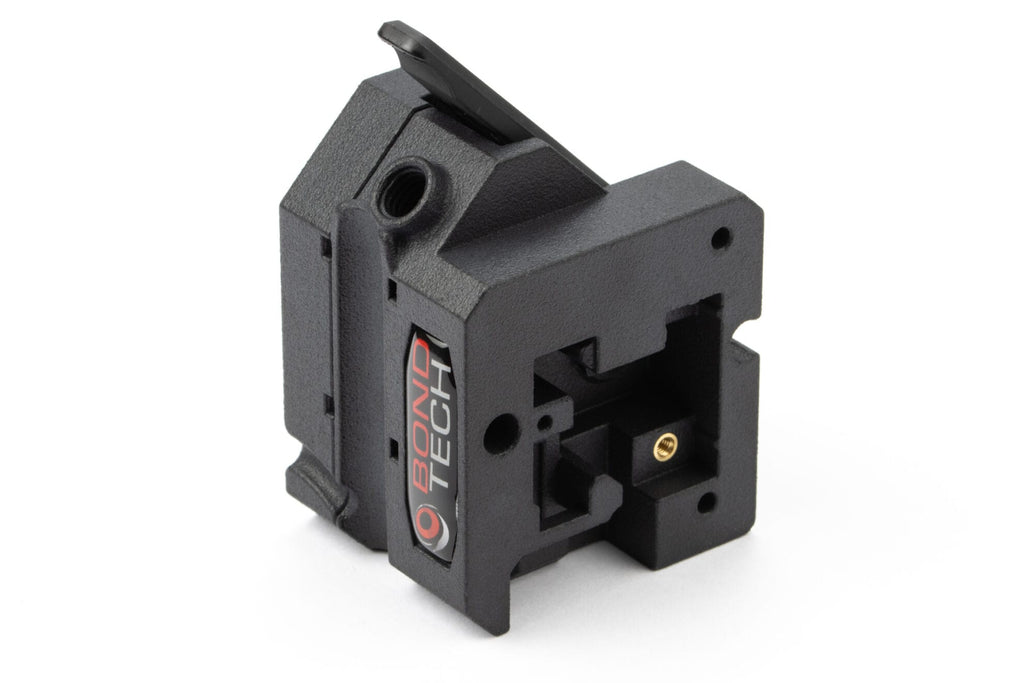

New Bondtech Internal Filament Sensor Extruder
for Prusa Mini.
This extruder is an evolution of our previous high-resolution extruder upgrade for the Prusa Mini.

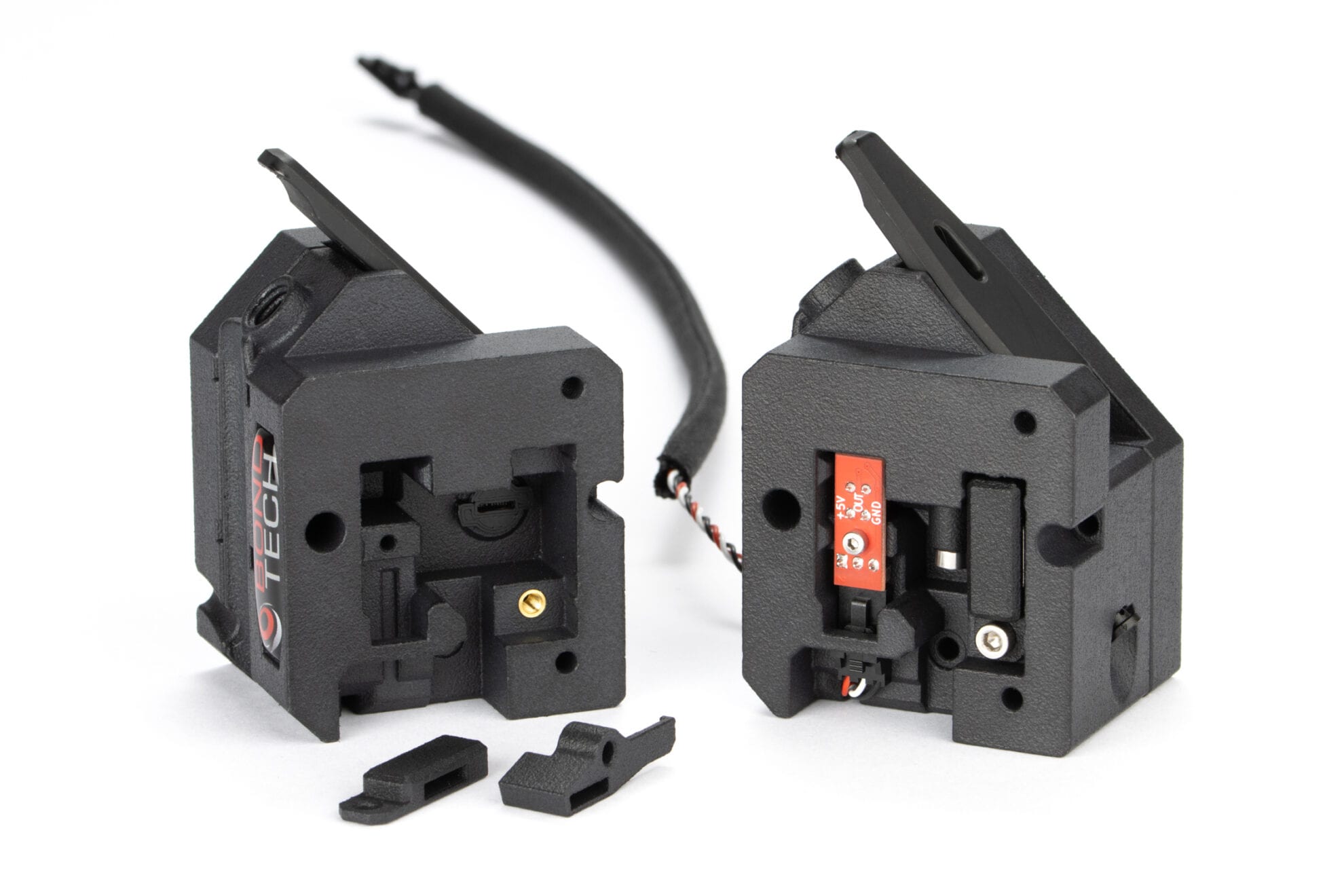

Filament Sensor
The new filament sensor for Prusa Mini/+ may be mounted inside the extruder housing.
The IFS Extruder for Prusa Mini may be used without the filament sensor. With a simple process it is easy to later update it to fit the Prusa Filament Sensor inside.
Install Guide: https://support.dremc.com.au/en/support/solutions/articles/51000366091-ifs-extruder-for-prusa-mini-idga-guide
Upgrade Your Prusa Mini or Mini+
Upgrade your Prusa Mini/+ with a Bondtech Dual Drive extruder designed to seamlessly fit the original setup.
Filament Sensor Compatible
The Bondtech Internal Filament Sensor Extruder for Prusa Mini may embed the new Prusa filament sensor for Mini or Mini+ on its housing.
The extruder may be used with or without the filament sensor.

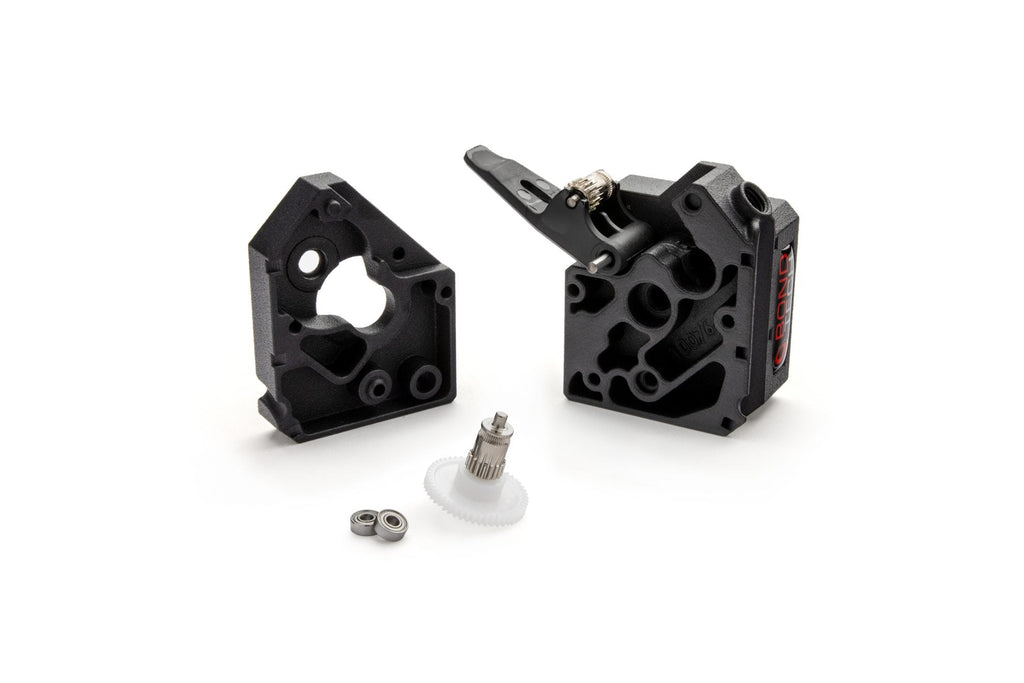

Hardened Drive Gears
Allows to use abrasive materials that would wear out the gears of your original feeder otherwise.
Adjustable tension
The thumbscrew tensioner allows the user to fine-tune the pressure exerted by the drive gears onto the filament. This gives you the power to adjust according to your preferences and to optimize for the type of material you are using.
Quick-Release
To be able to do material changes in a snap, simply activate the Quick-Release lever to release the tension and pull the material to be changed out of the extruder, keep it activated and insert the new material.
More choice of materials
The hardened steel Dual Drive gears allow you to work with common and abrasive materials.
Included in this Kit

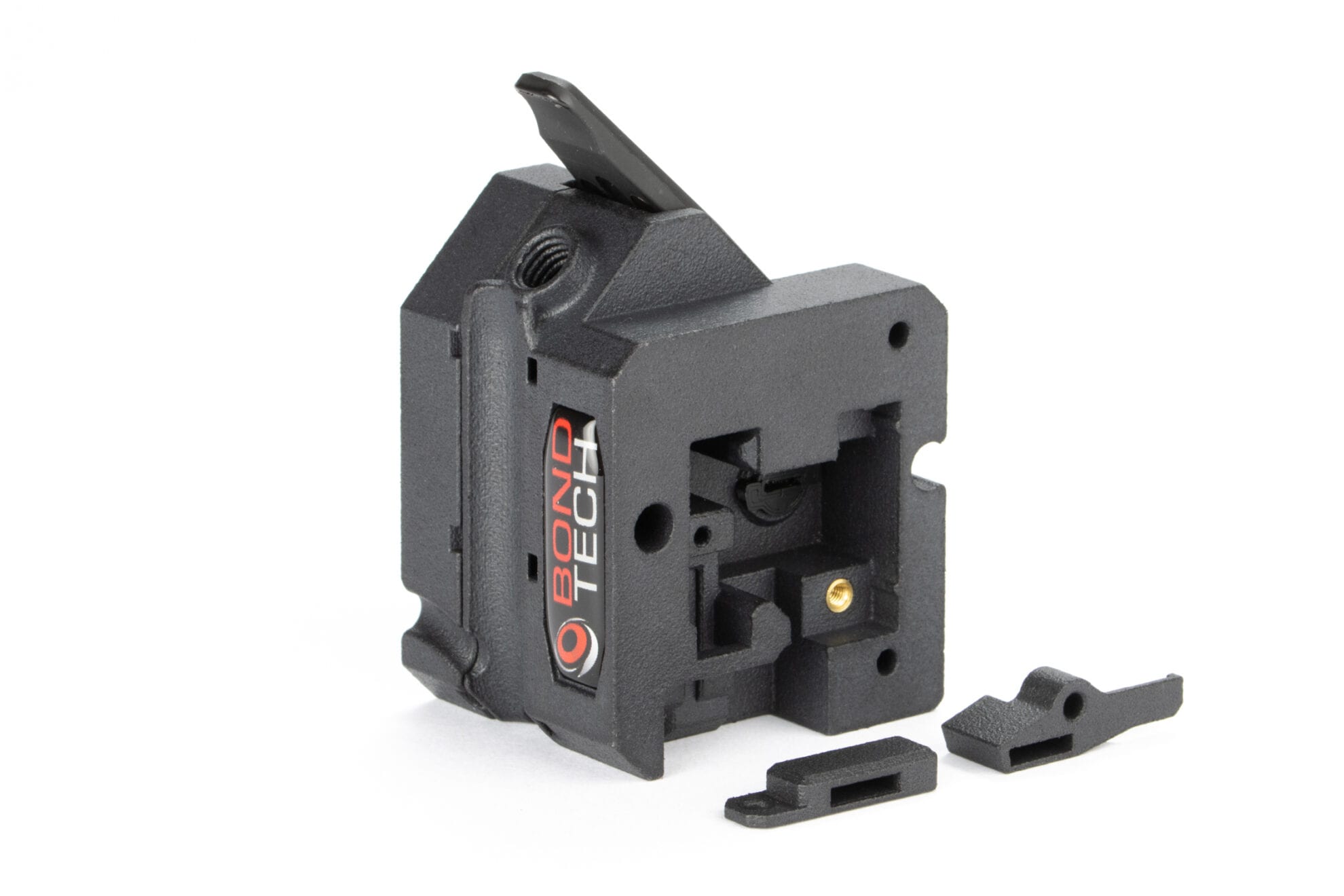

- 1x Bondtech IFS extruder for Prusa Mini
- 1x 10076-4 IFS Magnet Holder (PA12)
- 1x 10076-5 IFS Lever (PA12)
- 1x 15112 IFS Extruder Plug (HT-PLA)
- 3x Black nylon zip-ties
- 4x M3x35 black oxide steel screws
- 1x M3x12 black oxide steel screw
- 1x Brass motor gear
- 1x Thumb Screw assembly
Not included in this Kit
- Prusa Filament Sensor
- Filament Sensor Magnets
- Filament Sensor Steel Sphere
Community Sourced Design
The original Bondtech extruder for Prusa Mini design was proposed to us by Olof Ogland. This new IFS version was developed by Vecko Kojchevski on top of Olof’s work. It’s based on the thoroughly tested BMG (Bondtech Mini Geared) and adjusted to the Prusa Mini original design.
Product Info
Net weight : 114g
Gearing ratio : 3:1
E-steps value : 415
Extruder Housing: SLS Printed parts in PA12;
Hinge: injection molded.
