Fysetc K1 Series Catalyst.K Mainboard + Toolhead Replacement

FysetcSKU: PBN6072

Price:
Sale price$119.95 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (4 units), (Australia Stock)

Buy from the experts, who use and repairs 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

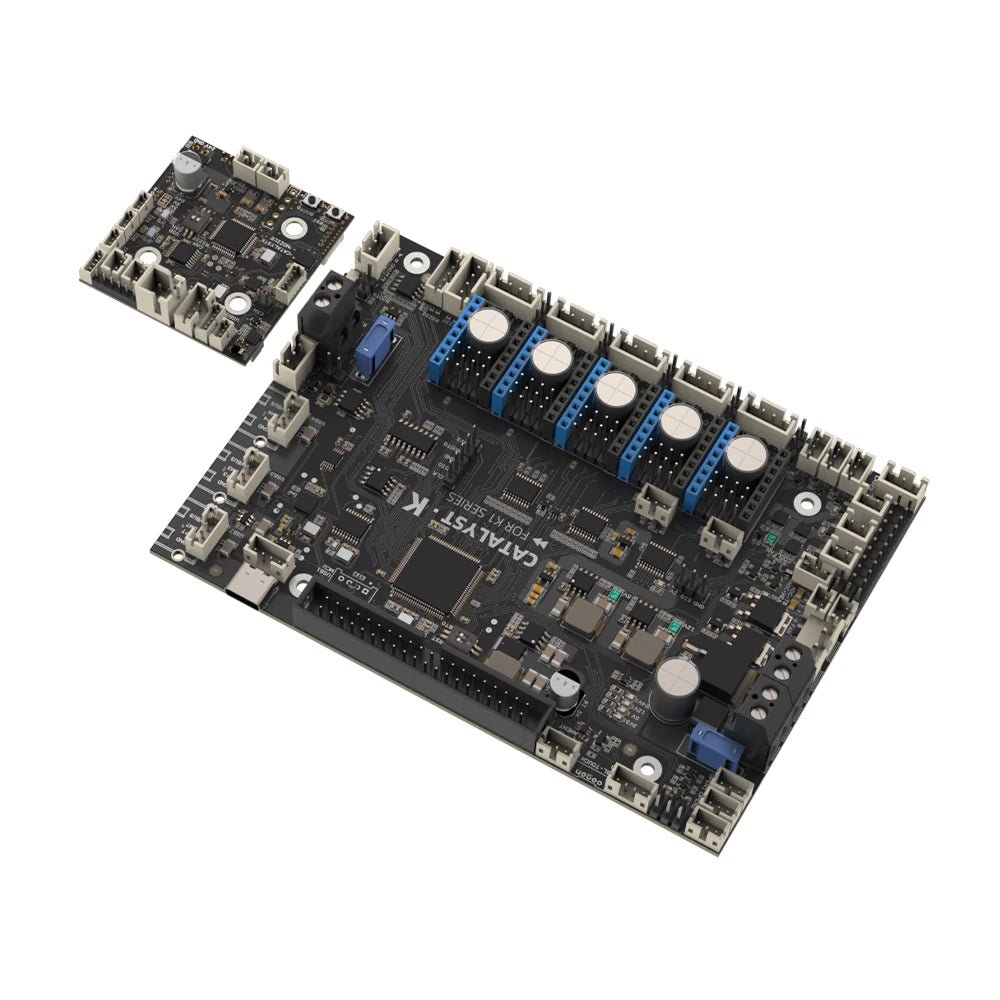

Transform your Creality K1 Series 3D printer with the Fysetc K1 Series Control Board Bundle, a complete mainboard and toolhead board replacement designed for enthusiasts seeking enhanced control, expanded connectivity, and advanced features. Built around powerful STM32 processors, this bundle delivers the performance and flexibility needed for custom firmware (stock klipper), advanced mods, and reliable high-speed printing.

Whether you're building a custom K1, upgrading from the stock board, or replacing a failed controller, this Fysetc bundle provides a robust foundation for your printer's electronics.

Note 1: This is for advance users and step stick and klipper host (Raspberry PI 4/5) are not included and is required.

Compatibility

  • K1 Max
  • K1C
  • K1

Note 2: Installation requires moderate electronics knowledge. Firmware configuration will be needed, community firmware options (like Klipper)

Note 3: Toolhead Board can be connected via CAN, stock RS-232, or USB via jumpers, please ensure you set correct jumper.

Note 4: Toolhead Hotend connector is 2023/2024 verison.

Documentation:

Fysetc: https://github.com/FYSETC/Catalyst.K_Kit

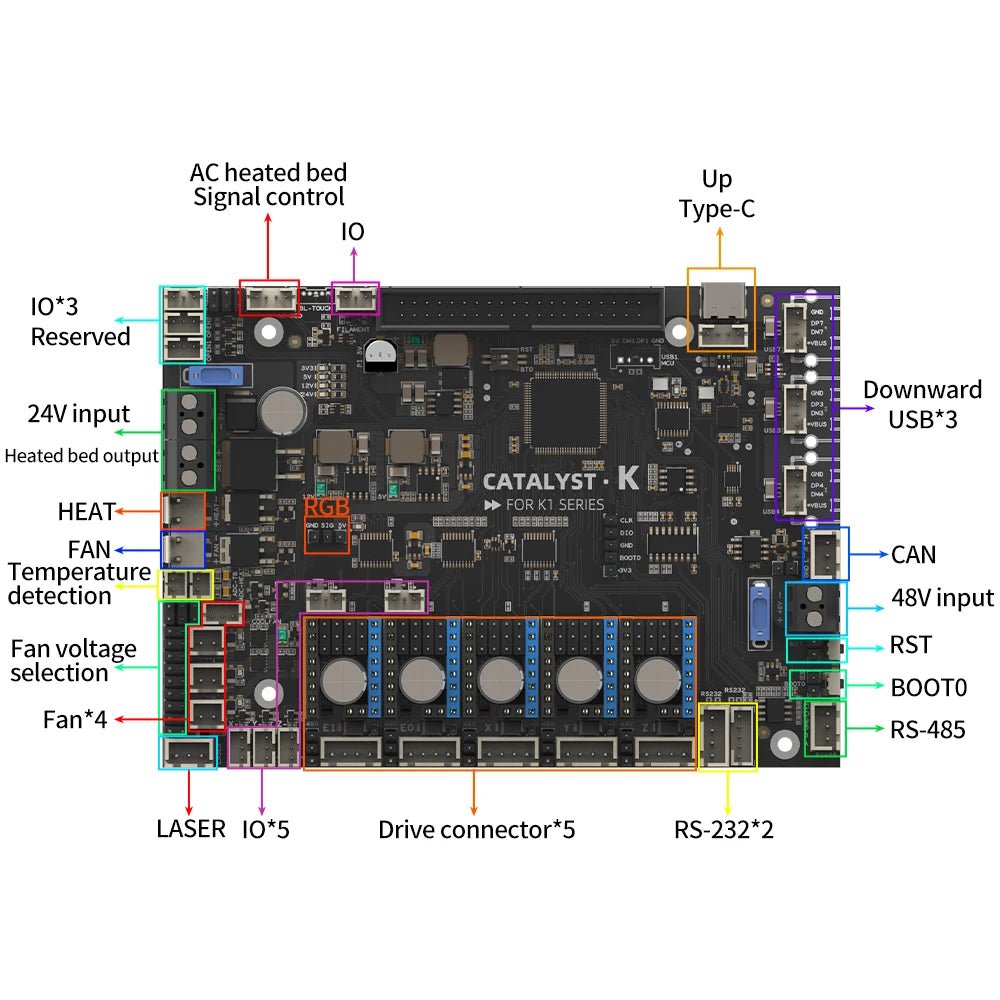

Mainboard Specifications

Parameter Detail
Model Fysetc K1 Series Mainboard
PCB Dimensions 138mm x 98mm
MCU STM32H723 (480 MHz Cortex-M7 core)
Stepper Drivers 5x slots, each with selectable 24V/48V
Driver Modes SPI, UART, Independent (jumper selectable)
Input Voltage 24V (max 28V)
Motor Power 24V or 48V (selectable per driver)
Onboard DC Outputs 12V@3A, 5V@3A, 3.3V@0.8A, 5V@6A (Raspberry Pi power)
Protection Automotive-grade fuse on power input
I/O Ports 9x with voltage converters
Fan Interfaces 5x digital (3x 2-wire, 1x 3-wire); all four have 5V/12V/24V selection
Communication USB, CAN, RS-232, RS-485
RS-232 Ports 2x
Physical Buttons BOOT0, RST
Additional Features 1x LASER interface (reserved)

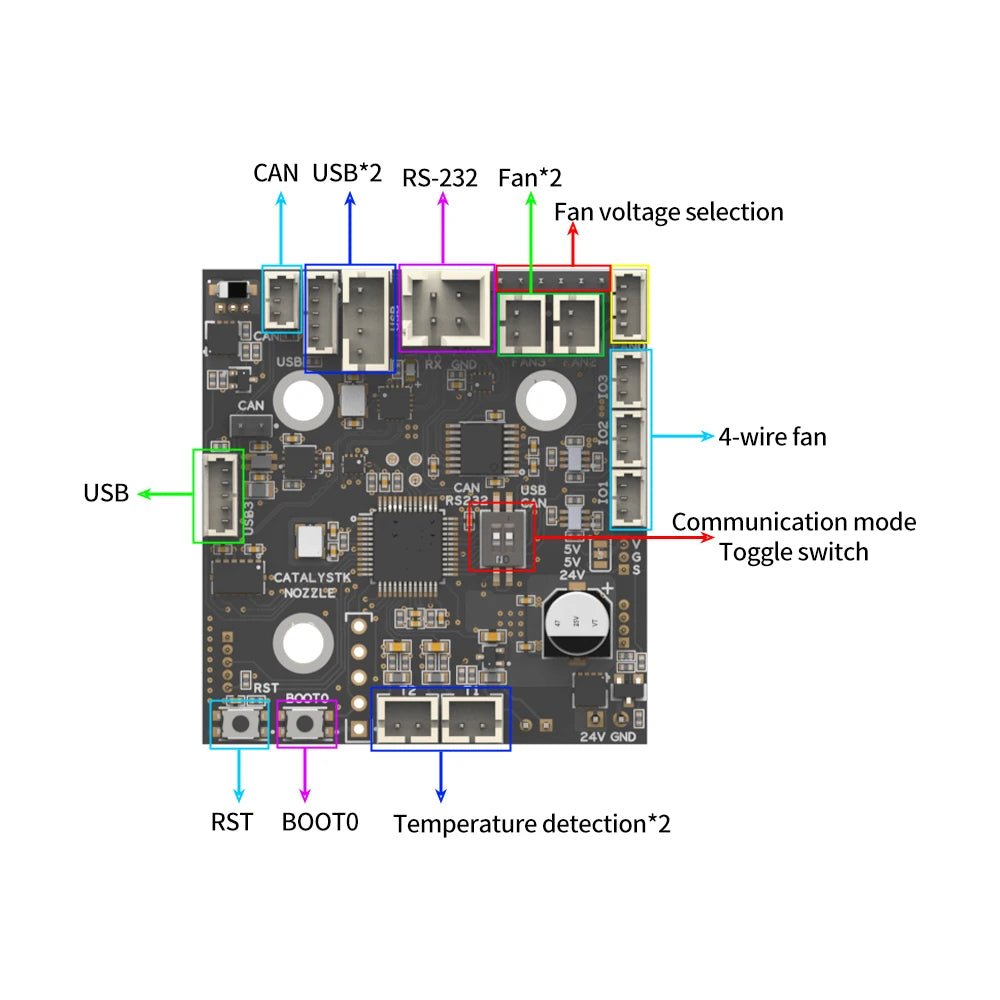

Toolhead Board Specifications

Parameter Detail
Model Fysetc K1 Series Toolhead Board
PCB Dimensions 44mm x 47mm
MCU STM32G431CBT3 (170 MHz, 125°C rated)
Motor Driver Onboard (24V)
Input Voltage 24V (max 28V)
Onboard DC Outputs 5V@3A, 3.3V@0.8A
Sensors 3-axis digital accelerometer (ADXL345)
I/O Ports 4x with voltage converters (selectable via PAD jumpers)
Fan Interfaces 4x digital (2x 2-wire, 5V/24V selectable via jumper caps)
USB Ports 4x (1 connected to MCU)
RS-232 Ports 1x
Communication Modes USB, CAN, RS-232 (switchable via onboard buttons)
Physical Buttons BOOT0, RST
