DRHOTSWAP Thermistor/Heater PCB for Toolhead Breakouts

DREMCSKU: DR-PHH2450

Option: 24v 50w Heater
Price:
Sale price$13.45 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (14 units), (AU Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

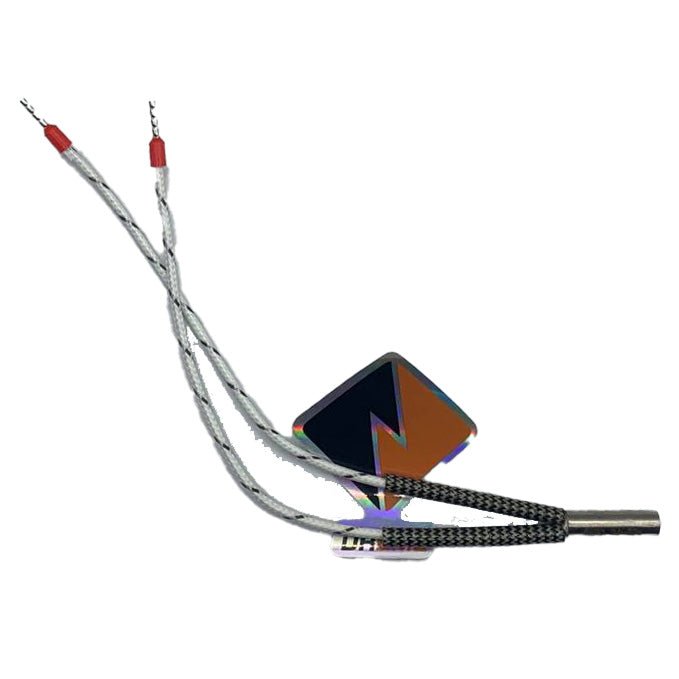

The DRHOTSWAP Thermistor/Heater PCB is the perfect solution for CanBus boards and toolhead breakouts. Featuring plug and play for most PCB breakout boards such as LDO Voron SB/AB  PCB, ensures reliable temperature control and superior performance.

Do Note: This is not compatible with existing hotswap using molex quick connectors.



Note: As PCB can be mounted differently on a toolhead, please ensure wiring is long enough for your setup. Below has been tested on our setup has been tested to be compatible with Voron Afterburner/Stealthburner using BTT SB/LDO 2 part PCB,  afterburner PCB, Dirtybird Roadkill Long PCB


Heater module specifications

24V 60 watts

  • Heater Length: 20mm
  • Heater Material: Stainless Steel
  • Heater Diameter: 6mm
  • Voltage 24v DC
  • Power: 60 Watts

24V 50 watts

  • Heater Length: 20mm
  • Heater Material: Stainless Steel
  • Heater Diameter: 6mm
  • Voltage 24v DC
  • Power: 50 Watts

Thermistor module specifications

104NT-4 Semitec

  • Thermistor Length: 15mm
  • Thermeristor diameter: 3mm
  • Thermistor temperature range: -50 c - 300 c

PT1000

  • Thermistor Length: 15mm
  • Thermeristor diameter: 3mm
  • Thermistor temperature range: -50 c - 450 c



104nt/104gt Firmware Setup:

Marlin Firmware Configuration:

* 5 : 100K thermistor - ATC Semitec 104GT-2/104NT-4-R025H42G(Used in ParCan & J-Head) (4.7k pullup)

#define TEMP_SENSOR_0 5

Repetier:

ATC Semitec 104GT-2

Klipper documentation:

sensor_type: ATC Semitec 104NT-4-R025H42G

Duet 3D:

M305 P1 T100000 B4658 C6.5338987554e-08

https://forum.duet3d.com/topic/7605/semitec-104nt-4r025h42g-solved/8



PT1000 Firmware Setup:

Marlin Firmware Configuration:

Connect directly to the thermal interface of the control board and then determine which one to choose according to the pull-up resistor of the interface. In most cases it is 4.7K ohms, please check your motherboard manual for details.

* 1010 : Pt1000 with 1kΩ pullup

* 1022 : Pt1000 with 2.2kΩ pullup

* 1047 : Pt1000 with 4.7kΩ pullup

https://marlinfw.org/docs/configuration/configuration.html#thermal-settings

Klipper documentation:

Directly connected PT1000 sensor. The following parameters are available in heater sections that use one of these sensors.

sensor_type: PT1000

sensor_pin:

# Analog input pin connected to the sensor. This parameter must be

# provided.

#pullup_resistor: 4700

# The resistance (in ohms) of the pullup attached to the sensor. The

# default is 4700 ohms.

https://www.klipper3d.org/Config_Reference.html.

Duet 3D:

https://docs.duet3d.com/en/User_manual/Connecting_hardware/Temperature_connecting_thermistors_PT1000
