CNC Kitchen Threaded Insert M2 / M2.5 / M3 / M4 / M5 / M6 / M8 / 1.4"

CNC KitchenSKU: 0054047419615

Thread Size: Set (M3 / M4 / M5)
Insert Depth: Short
Price:
Sale price$44.95 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (8 units), (AU Stock)

Buy from the experts, who use 3D printers every day. Have a question? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

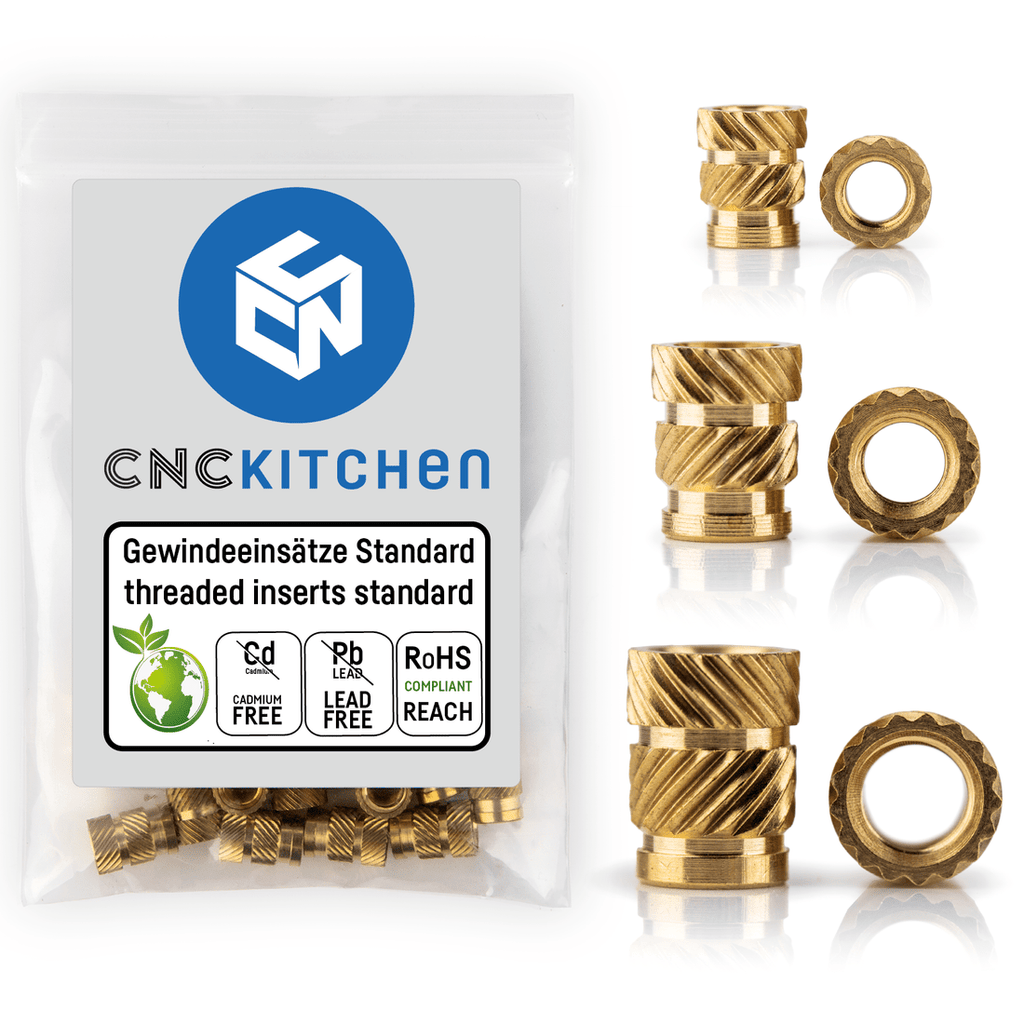

  • PROTECT OUR ENVIRONMENT, 100% LEAD and CADMIUM FREE Brass alloy

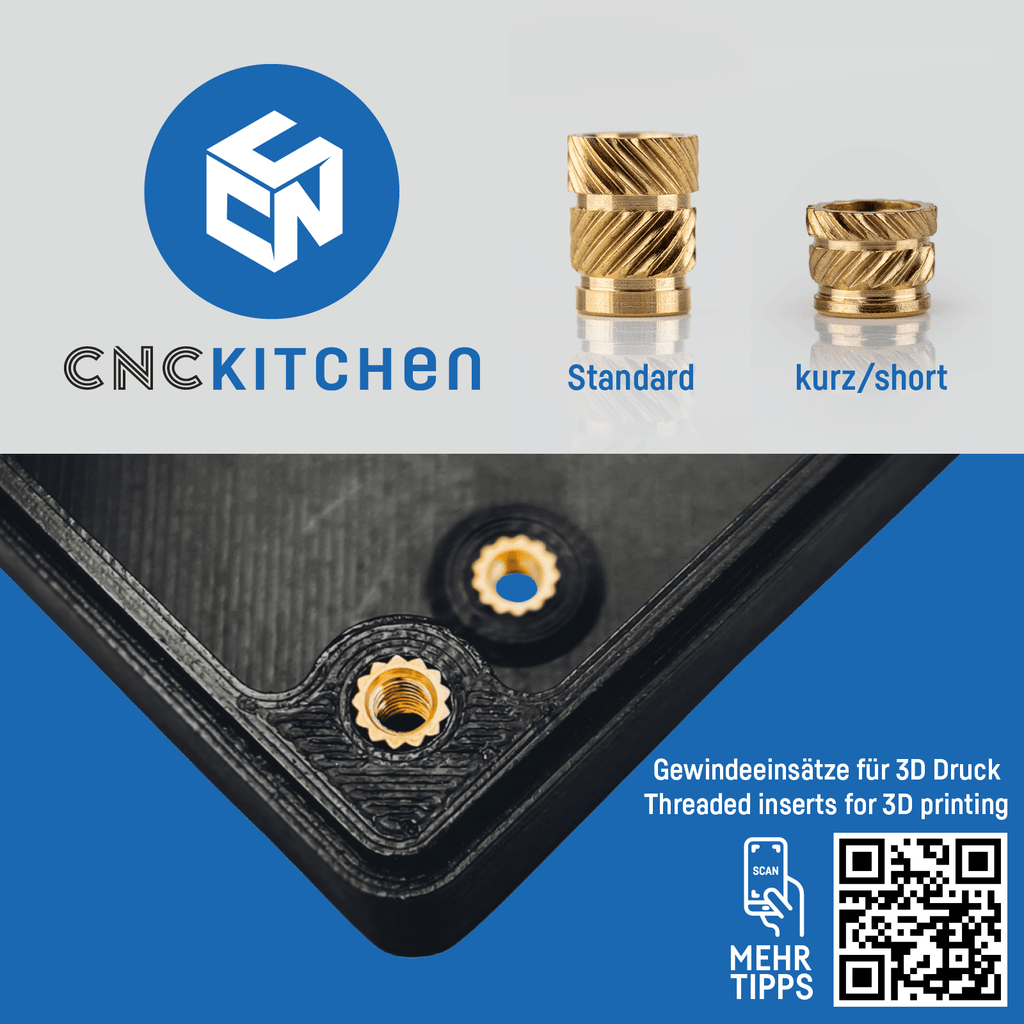

  • ORIGINAL CNC Kitchen threaded inserts for 3D printed parts (PLA, PETG, ABS, etc.),
  • HIGHEST QUALITY, make your printed parts to professional products
  • PRECISE CNC machined inserts made from high-quality Lead and Cadmium free alloy
  • EASY INSTALLATION with a soldering iron. Installation temperature is the printing temperature +10 °C
  • 10% off for bulk order (5+ items of CNC Kitchen Products)

Threaded inserts not only look great in 3D printed parts, but they also have a practical use. Everyone has had a device that was assembled with screws. After disassembling and reassembling it a few times, you realize that if the screws dug directly into the plastic, they won't hold anymore. Each time you screw the parts together, the material gets plastically deformed at the threads, which eventually leaves you with nothing but a ragged hole where nothing can grab. This is where thread inserts come into play. By melting them into your parts, they are positively bonded to the plastic and no longer move. The screws are now turned into durable and also low-friction brass and thus will last forever.

    Specific package contents:

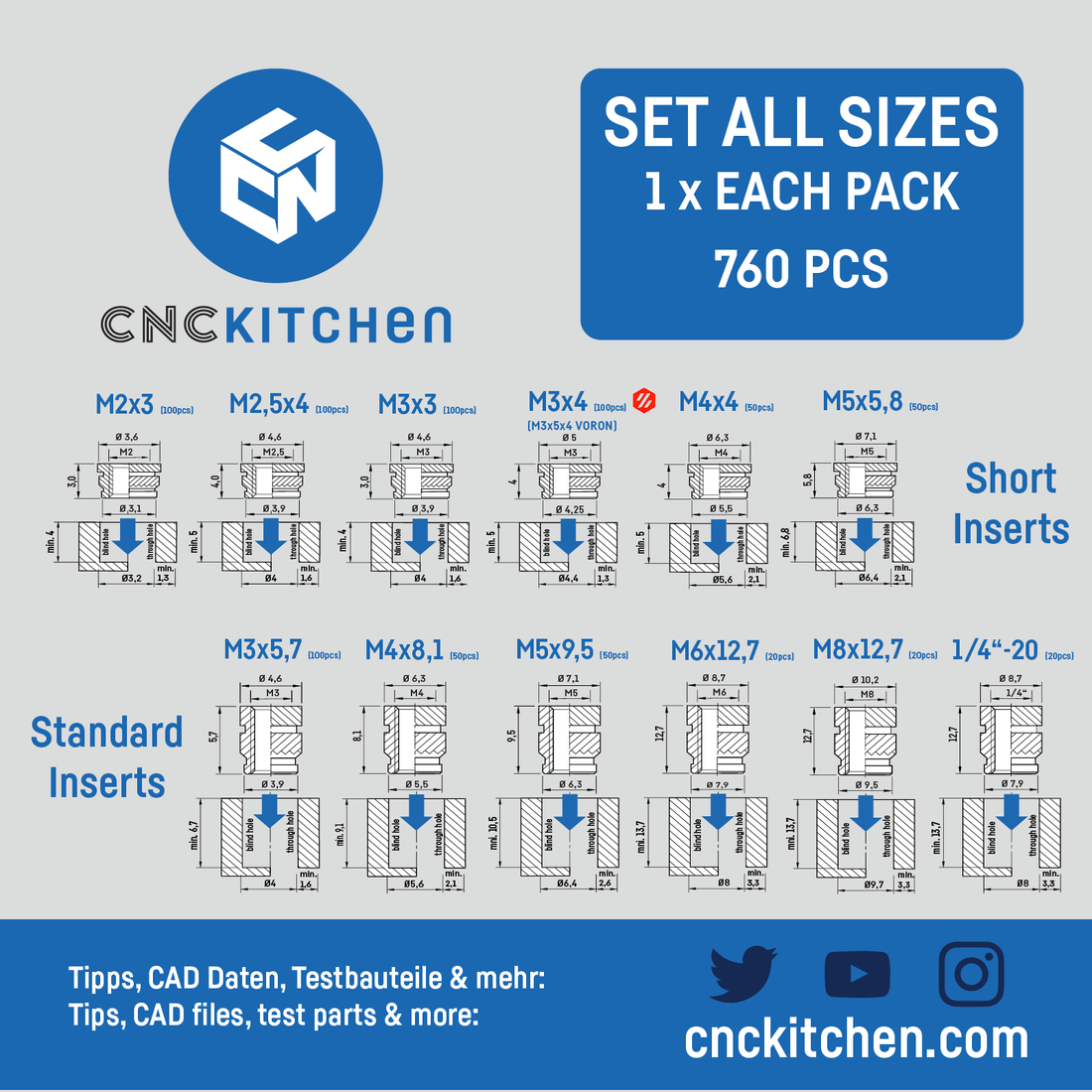

    • All Size Set (760 pcs)

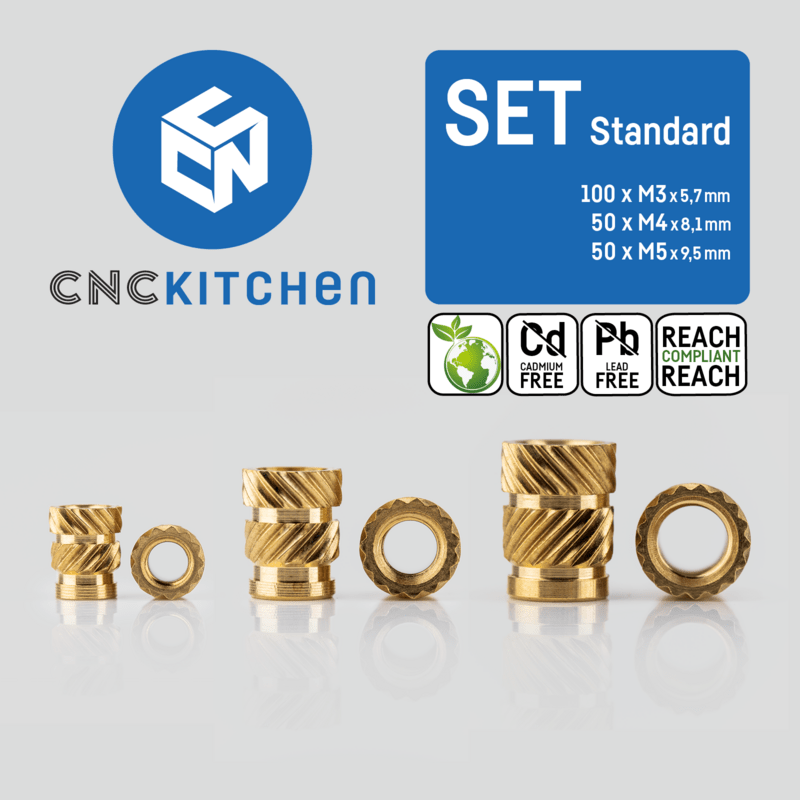

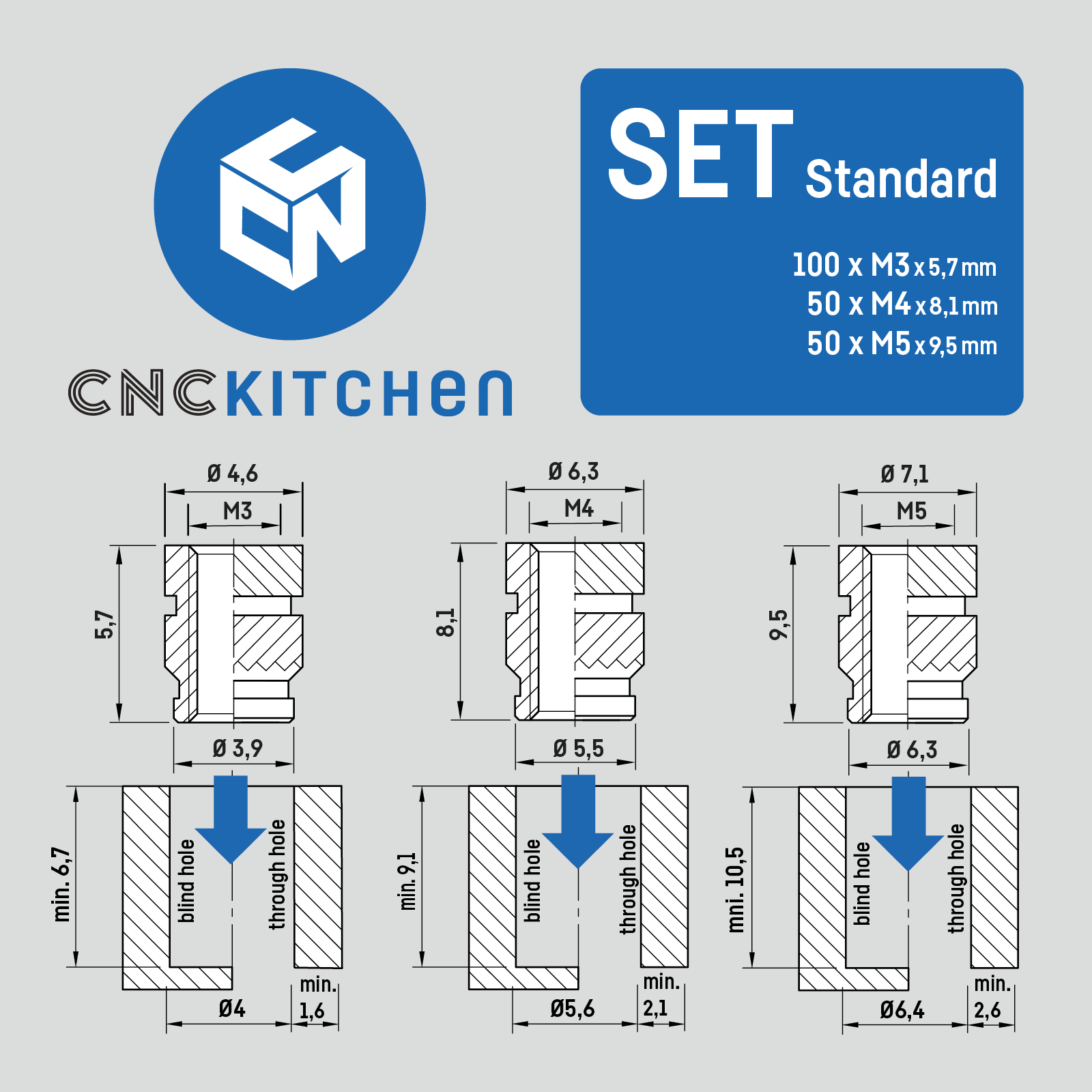

    • Set standard: M3x5,7 mm (100x); M4x8,1 mm (50x); M5x9,5 mm (50x) pcs

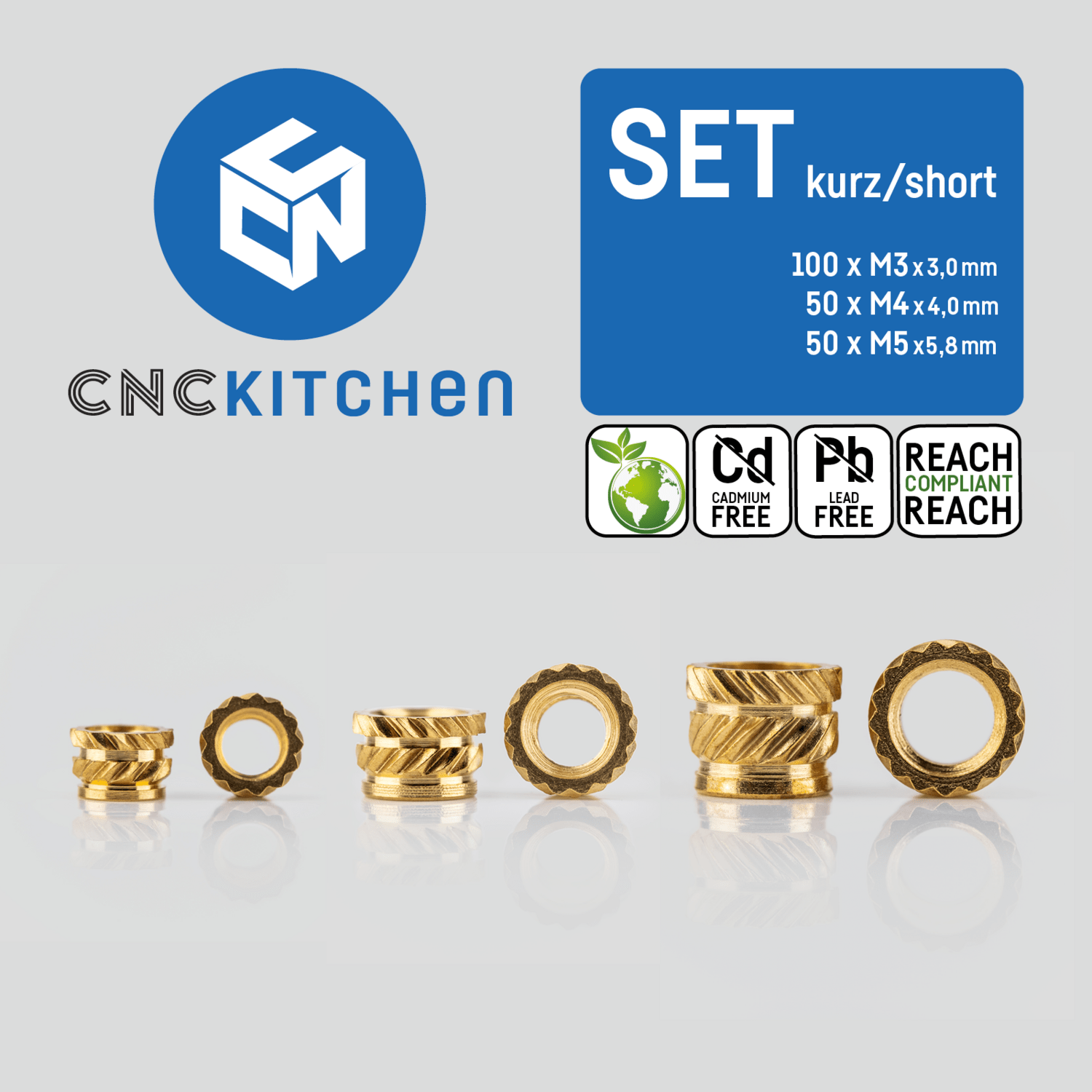

    • Set short: M3x3 mm (100x); M4x4 mm (50x); M5x5,8 mm (50x) pcs
    • M2 standard (100x) pcs
    • M2.5 standard (100x) pcs
    • M3 standard (100x) pcs

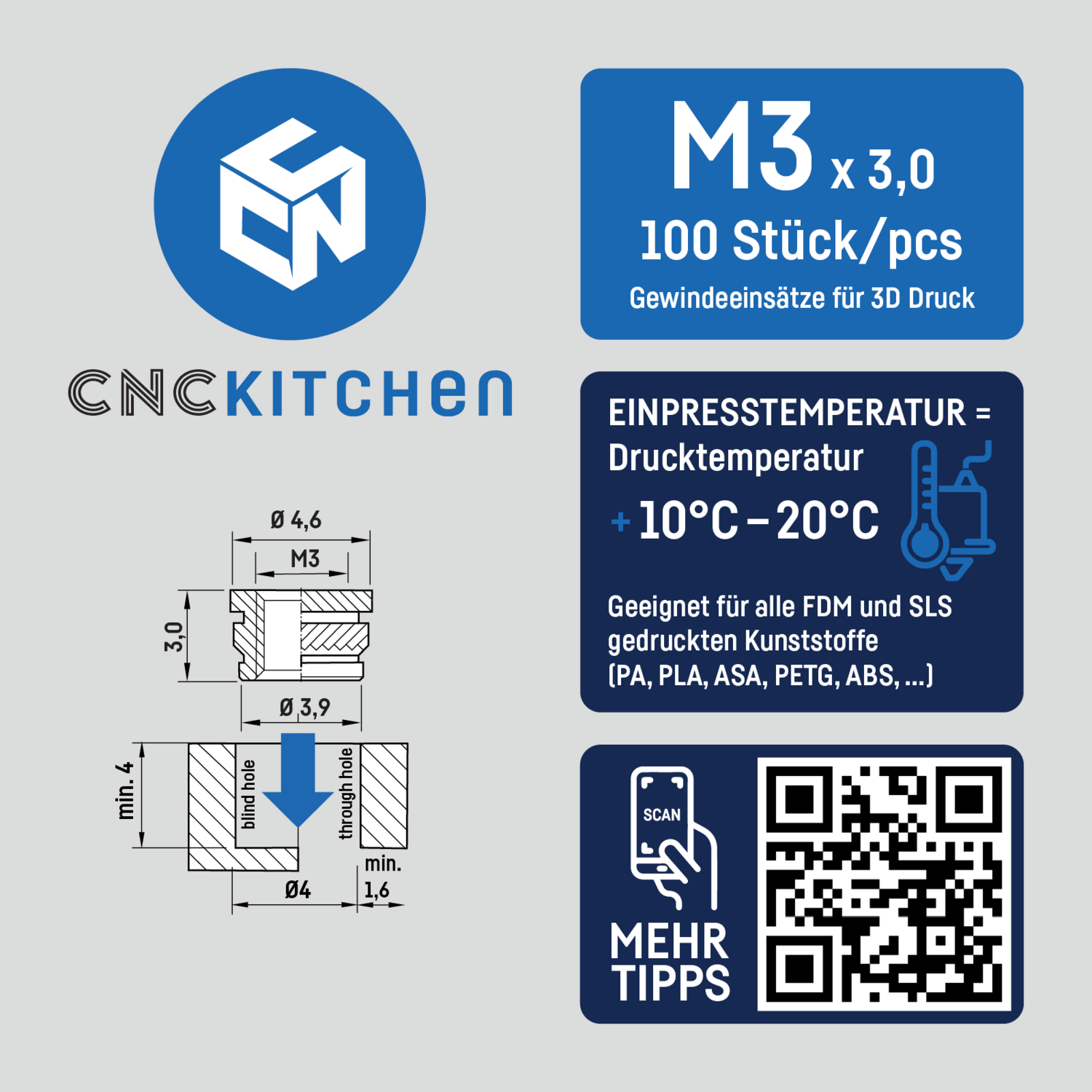

    • M3 short (100x) pcs
    • M4 standard (50x) pcs
    • M4 short (50x) pcs
    • M5 standard (50x) pcs
    • M5 short (50x) pcs
    • M6 (20x) pcs

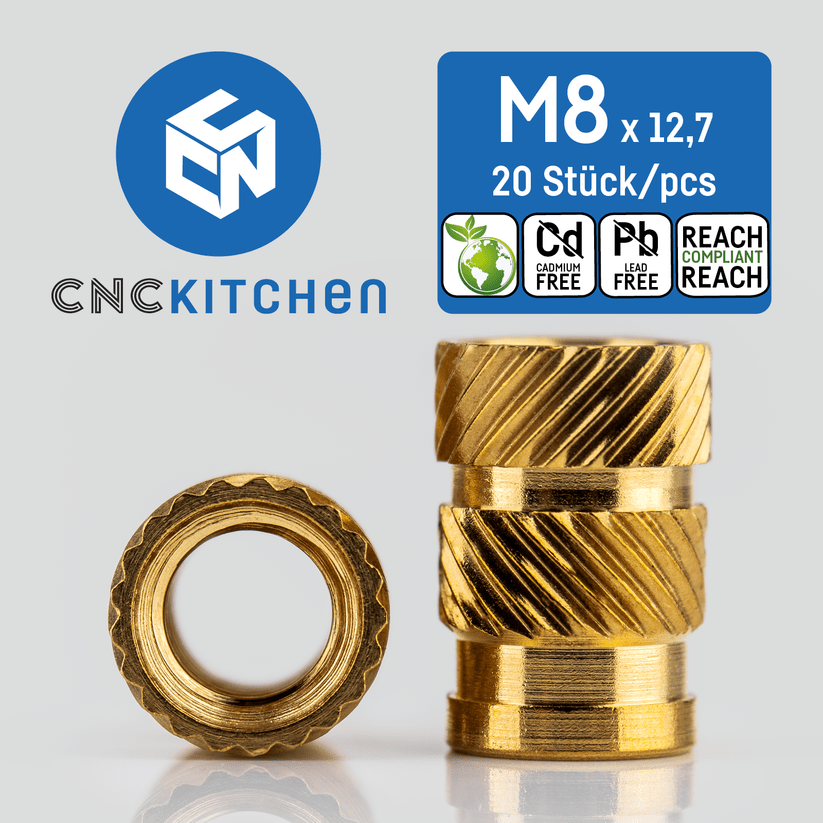

    • M8 (20x) pcs

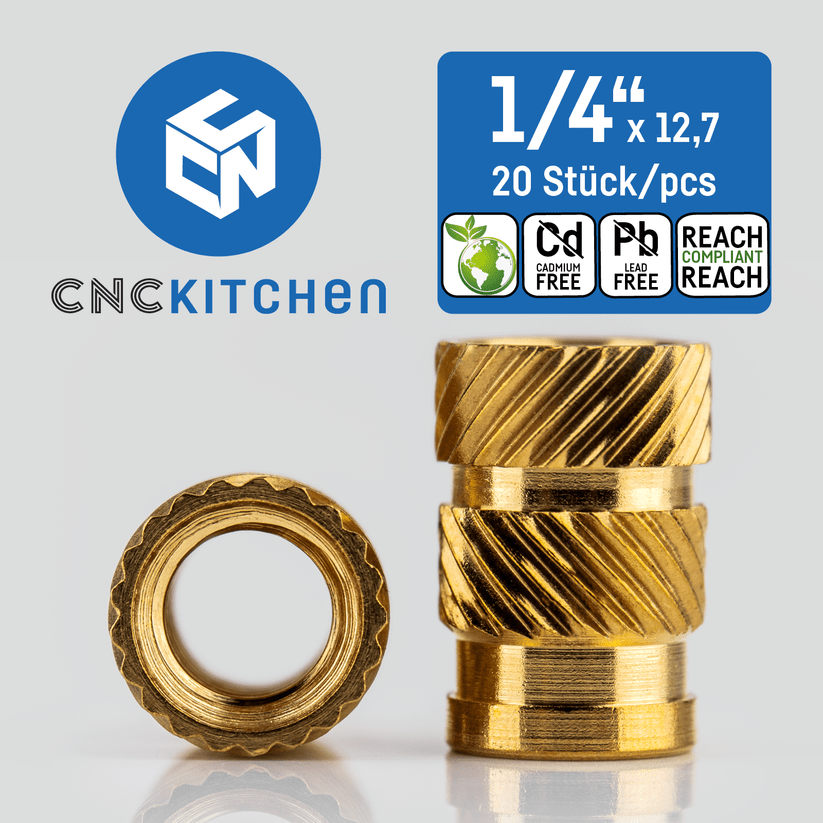

    • 1/4" (20x) pcs

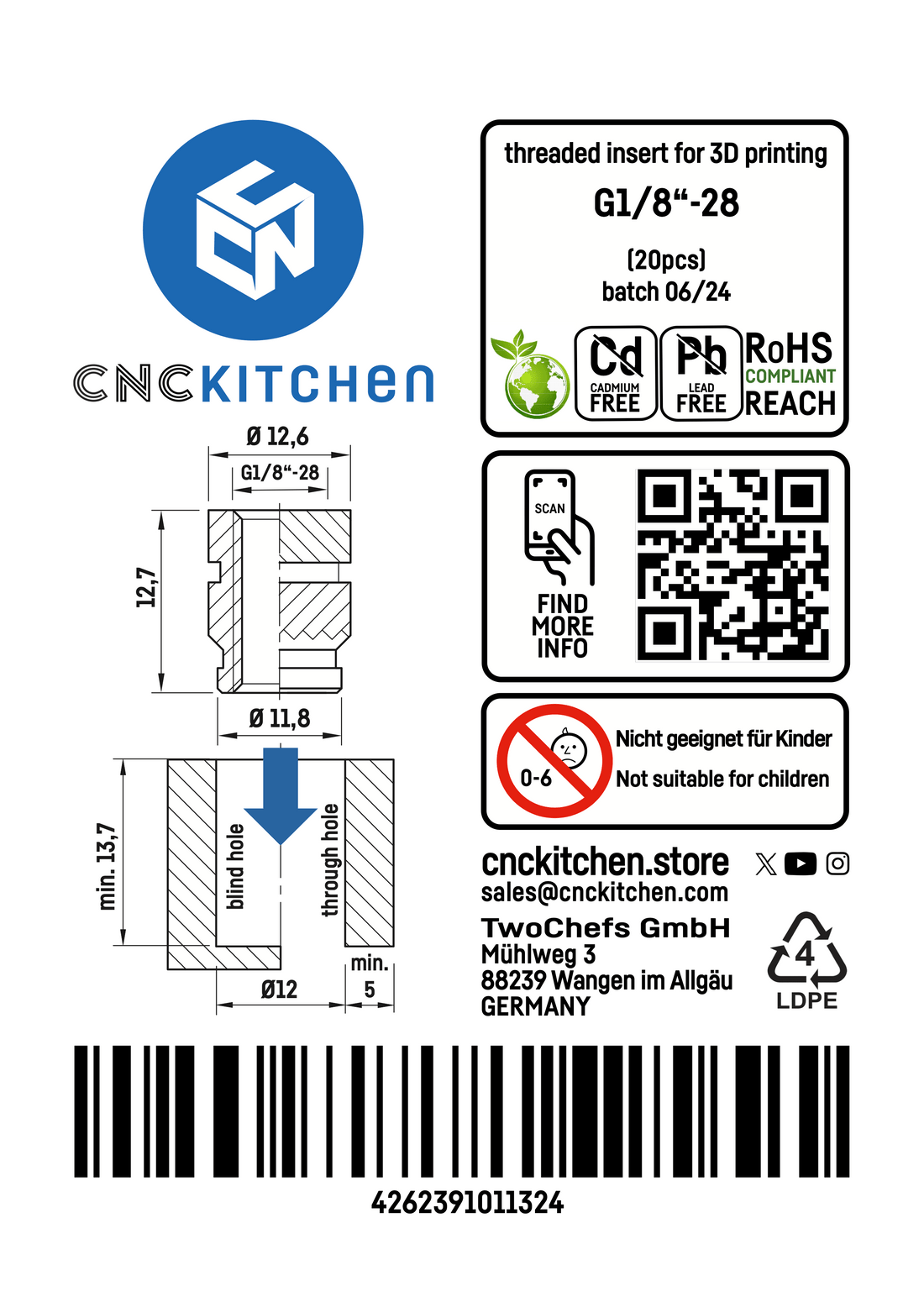

    • G1/8-28x12.7 (20x) pcs
    • 3/8"-16x12.7 (20x) pcs





    Installation

    You can install heat-set inserts by pushing them into the plastic with a soldering iron. The printed plastic will melt and reflow around the knurled external surface. This creates a secure bond between the insert and the plastic and ensures a strong pull-out resistance and torque-out rating. When preheating your soldering iron, use the print temperature for the specific filament that was used to print the plastic part increased by 10°C - 20°C.

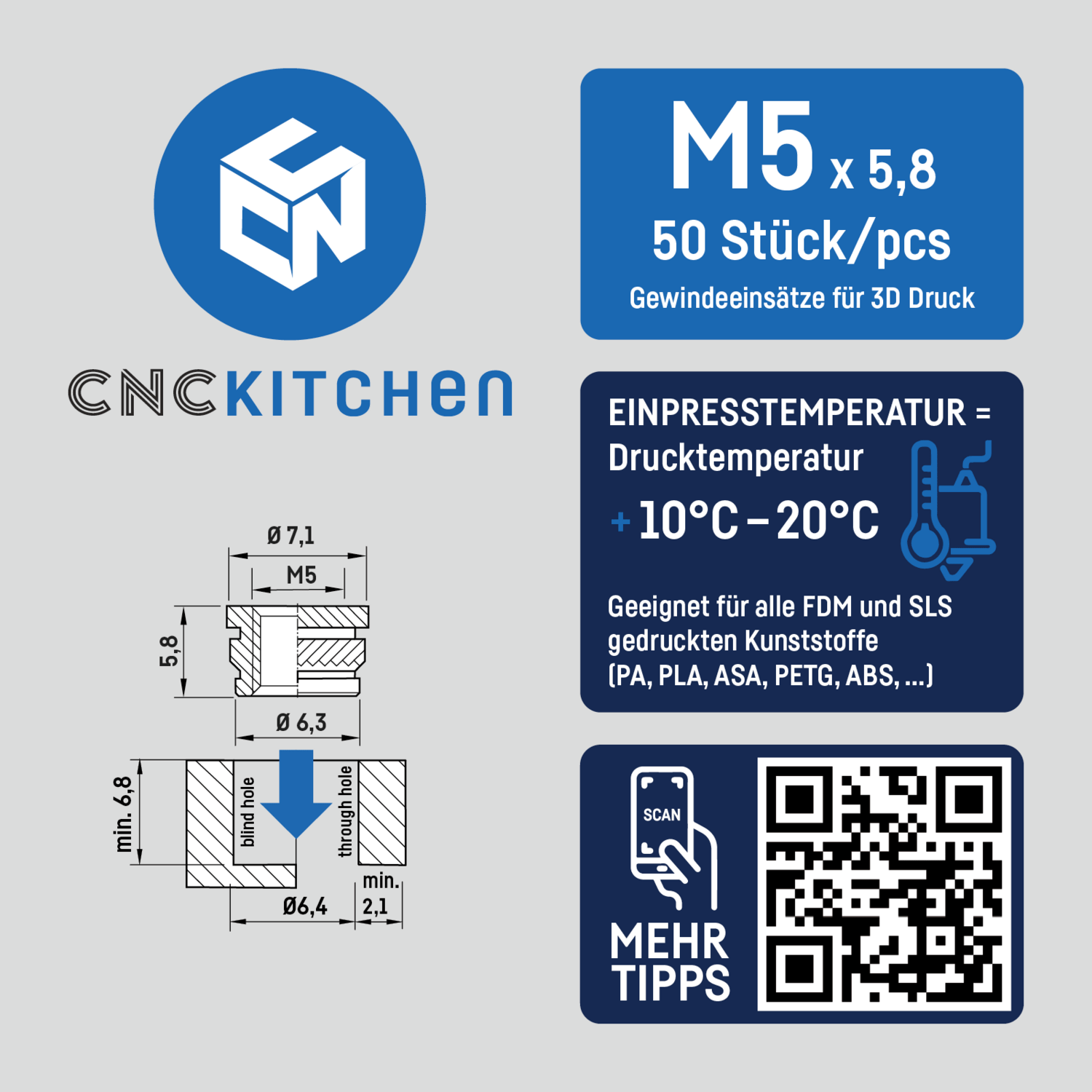

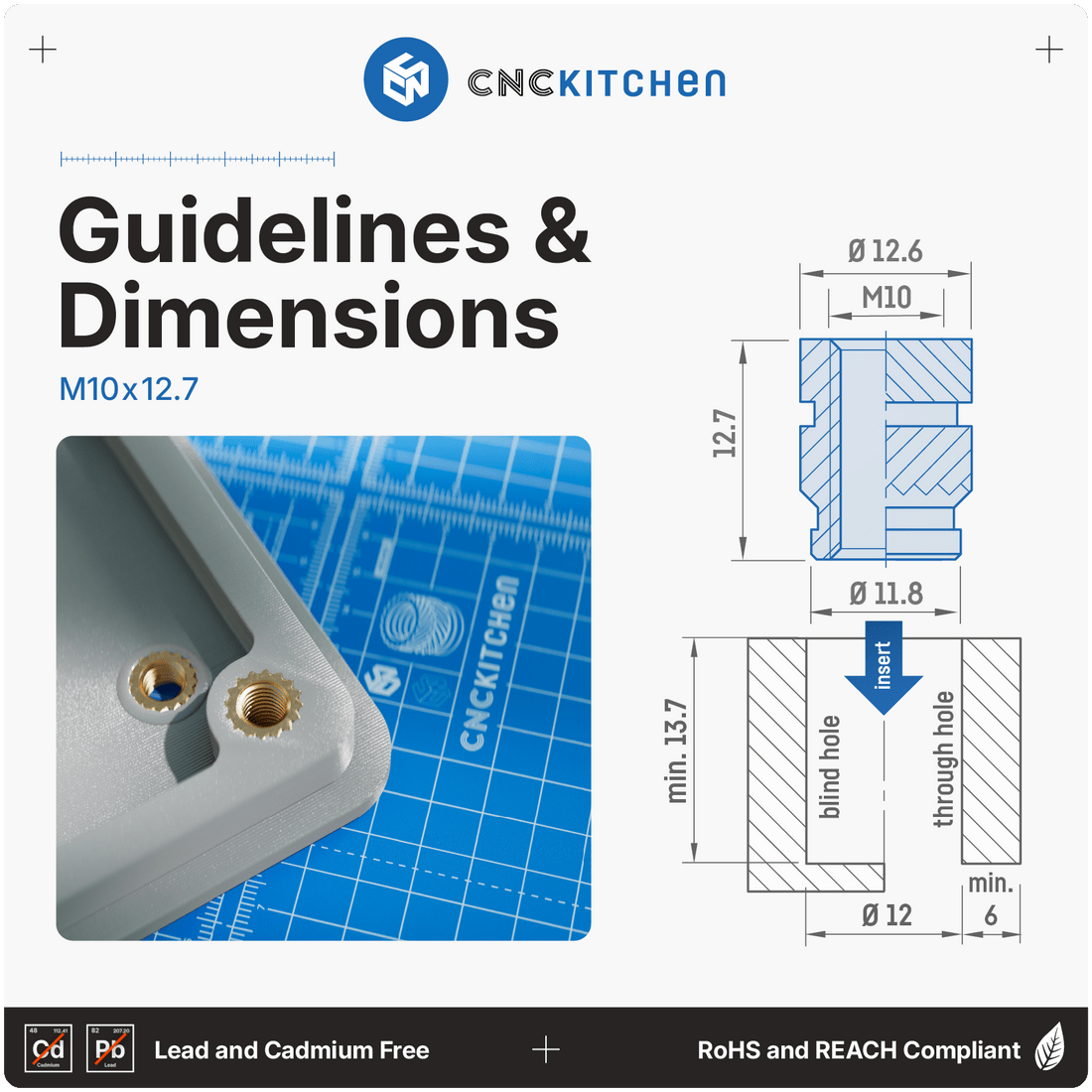

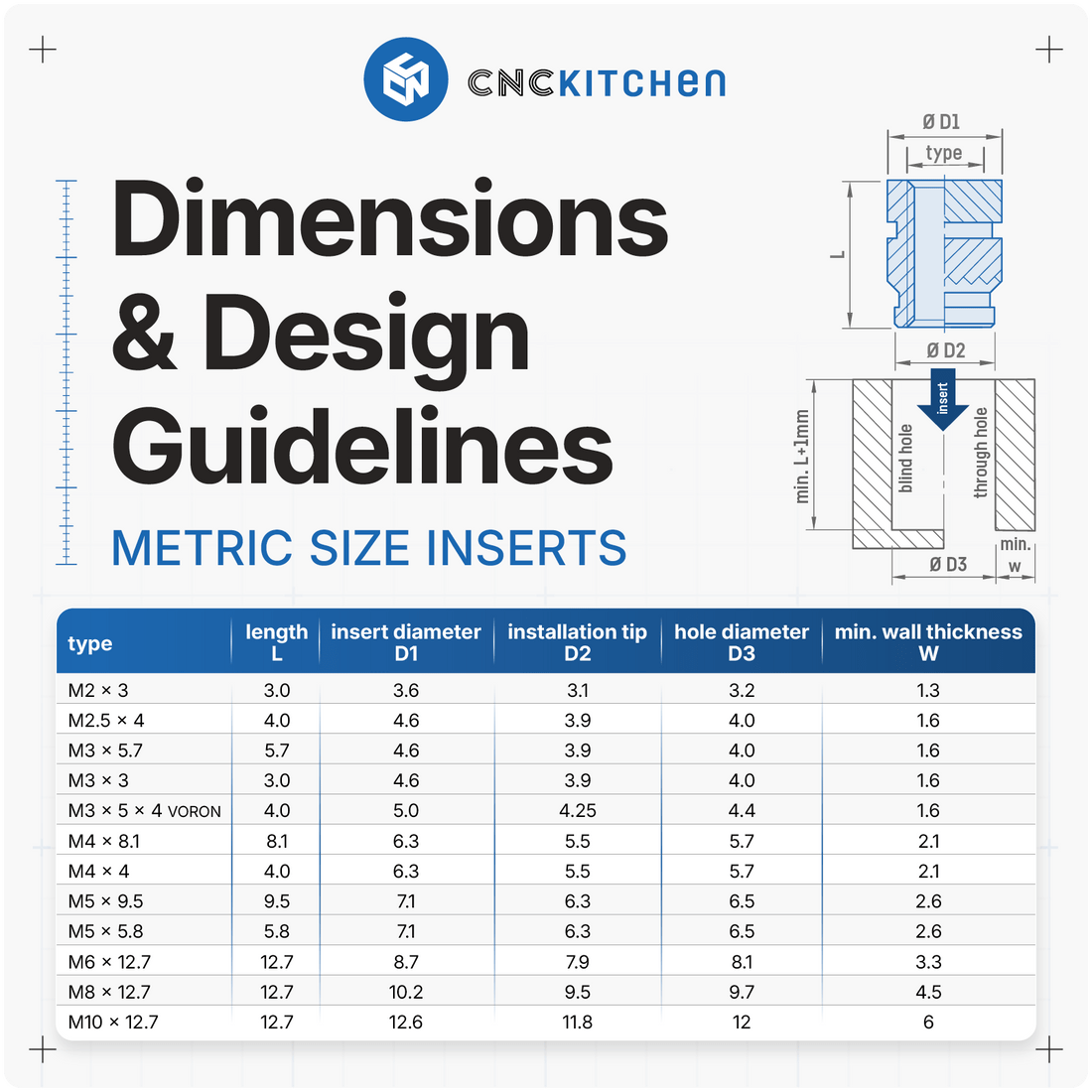

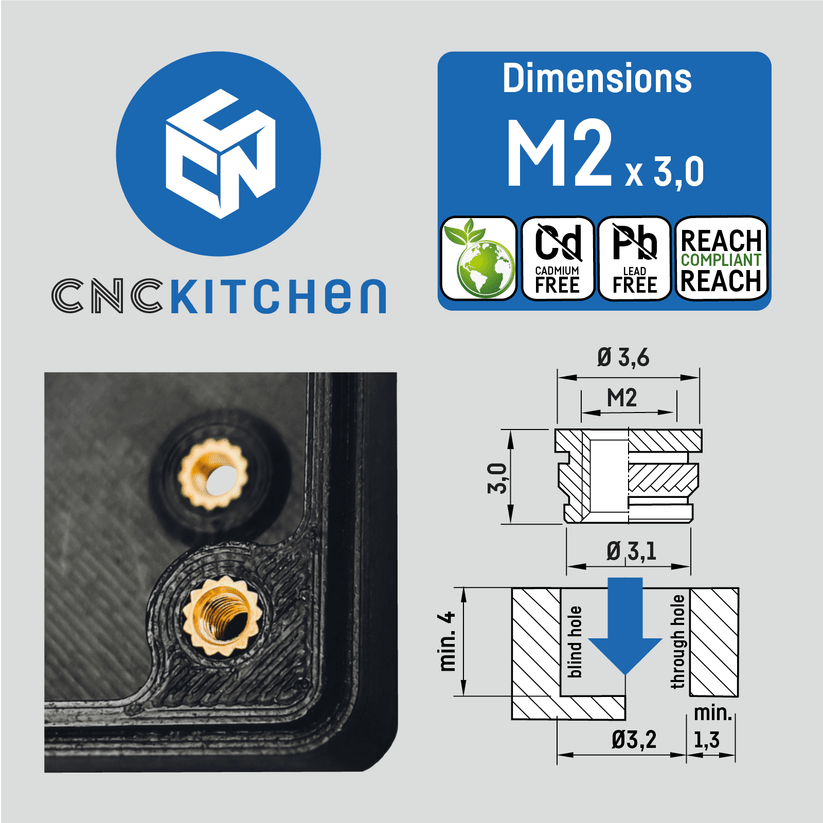

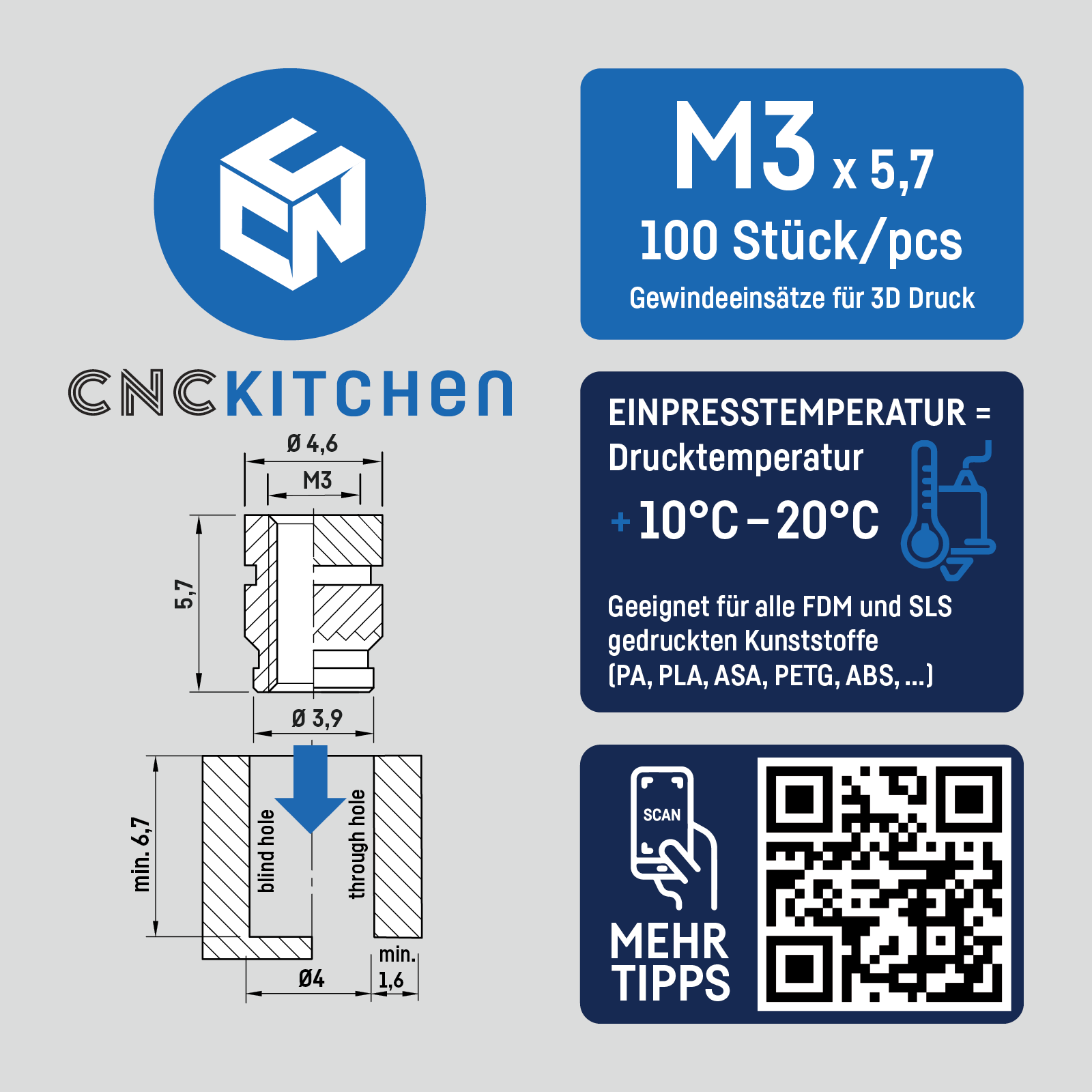

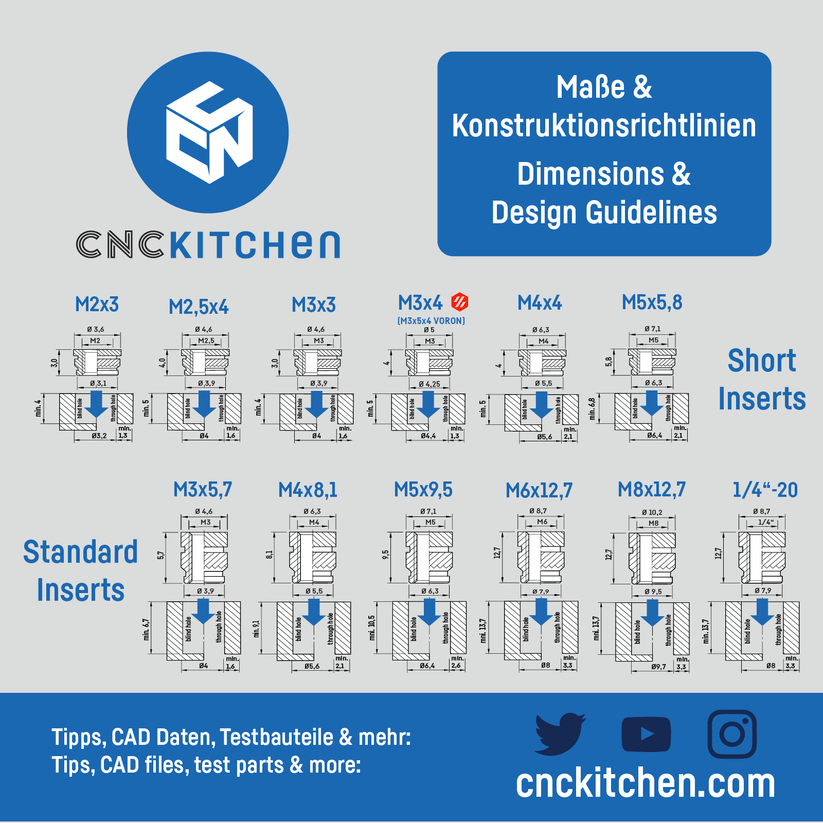

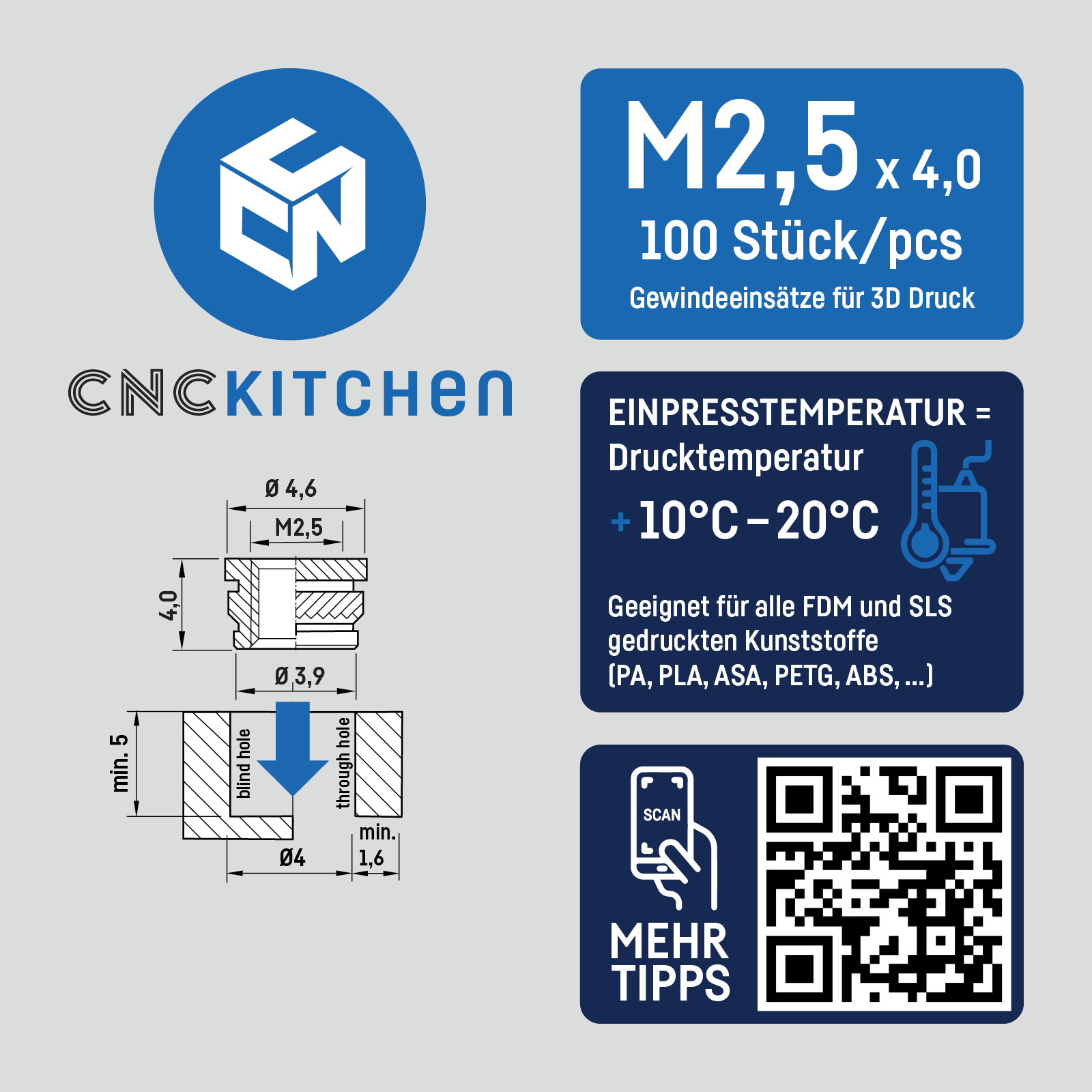

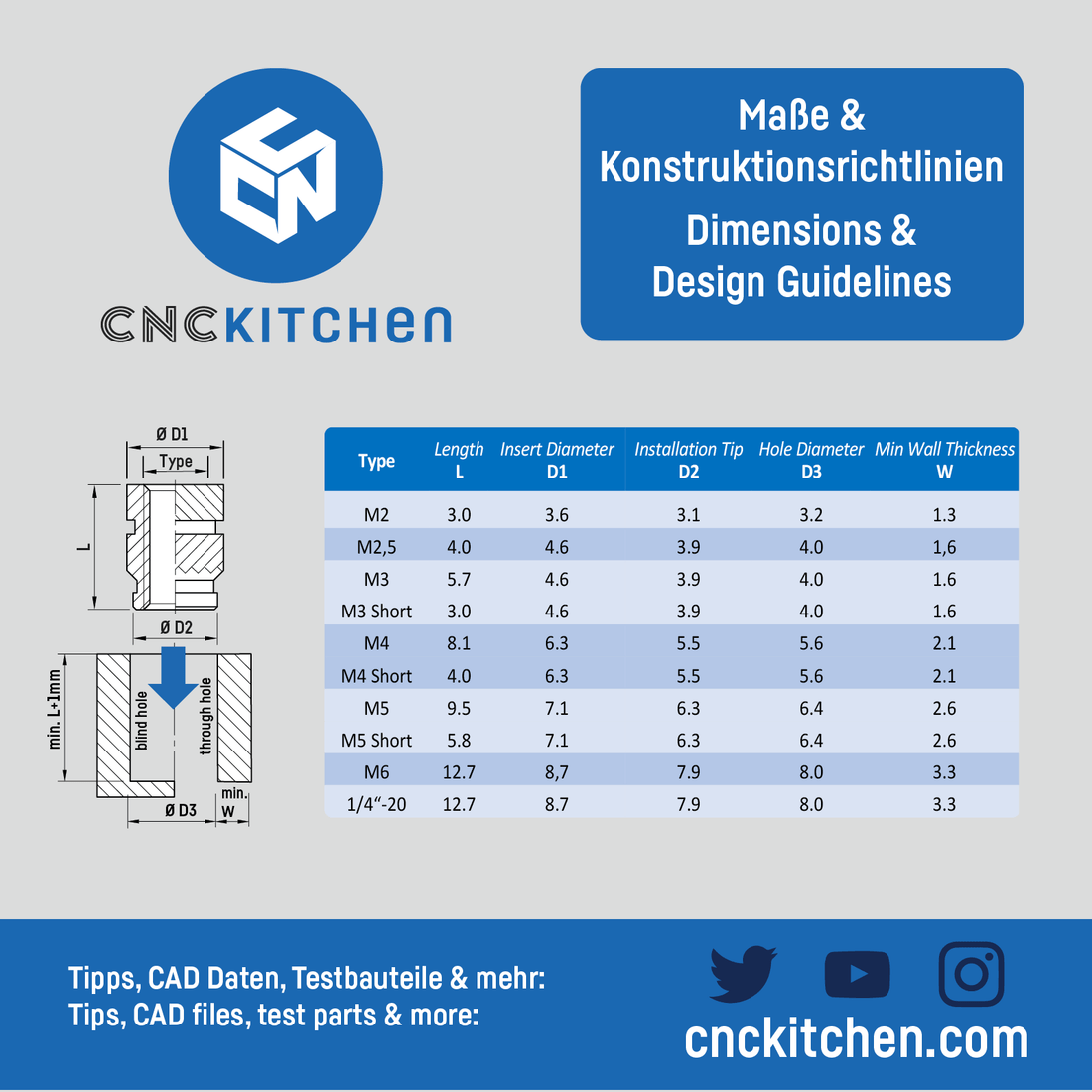

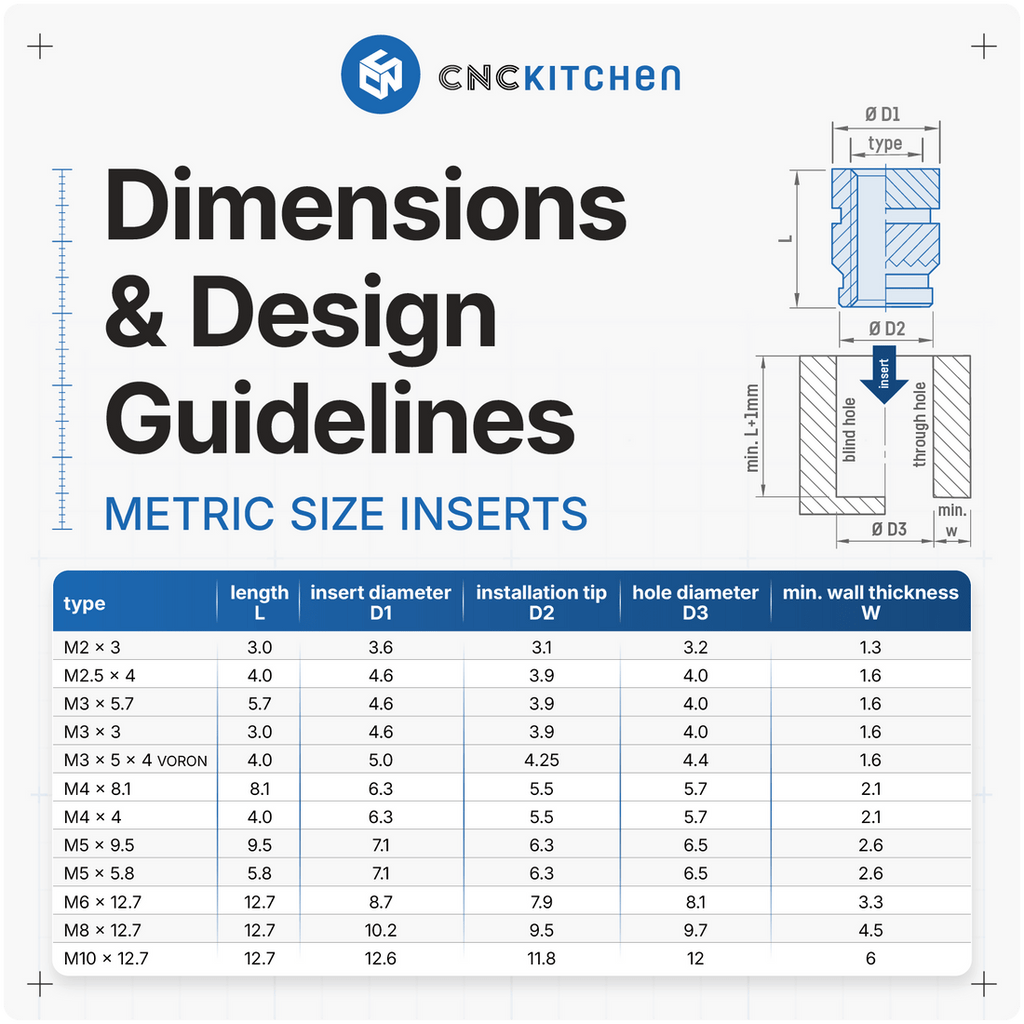

    Hole Dimensions

    Use the drawing below to reference the ideal dimensions of holes for the insert. The hole should be just large enough so that the insert can be easily pushed in and that no burr remains under the insert after melting.
