Description
This latest version allows for you to switch between using either CAN or USB via Firmware, no need to re-solder anything. [Include both Can and USB wiring]
Note - board are pre-flashed with CANBUS or USB Firmware depending on variant selection so you may have to re-flash yourself to suit your installation if you wish to use in USB/CAN mode, instructions on how to do this are available at cartographer3d documentation site https://docs.cartographer3d.com
Specification:
- MCU: stm32f042f6p6
- Connectivity: CAN via 4 pin JST-PH 2.0 connector.
- Firmware Requirement: Klipper
What is included?

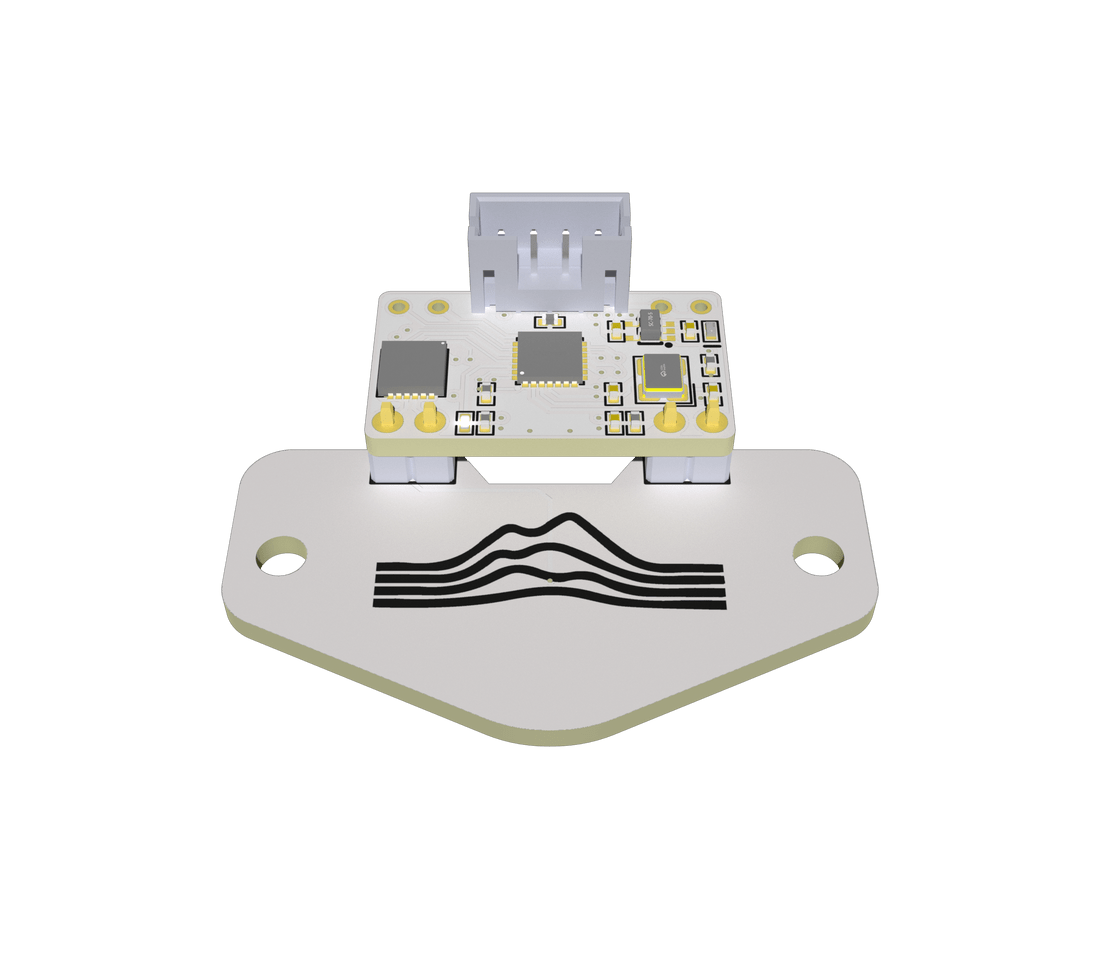

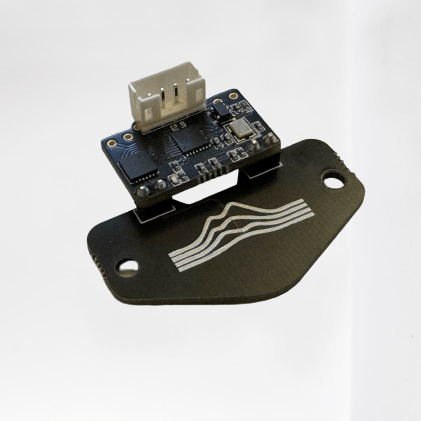

- 1 x Cartographer Probe with CAN and Input Shaping
- 1 x Can Cable - 20cm JST-PH to DuPont Cable PTFE Cable for CAN
- 1 x USB Cable - 1.8m USB Cable (not cable chain rated, umbilical setup only)
- 6 x JST-PH Crimps and Connector
Which version should I buy?
- Standard Edition - Ideal for Voron StealthBurner, Annex etc

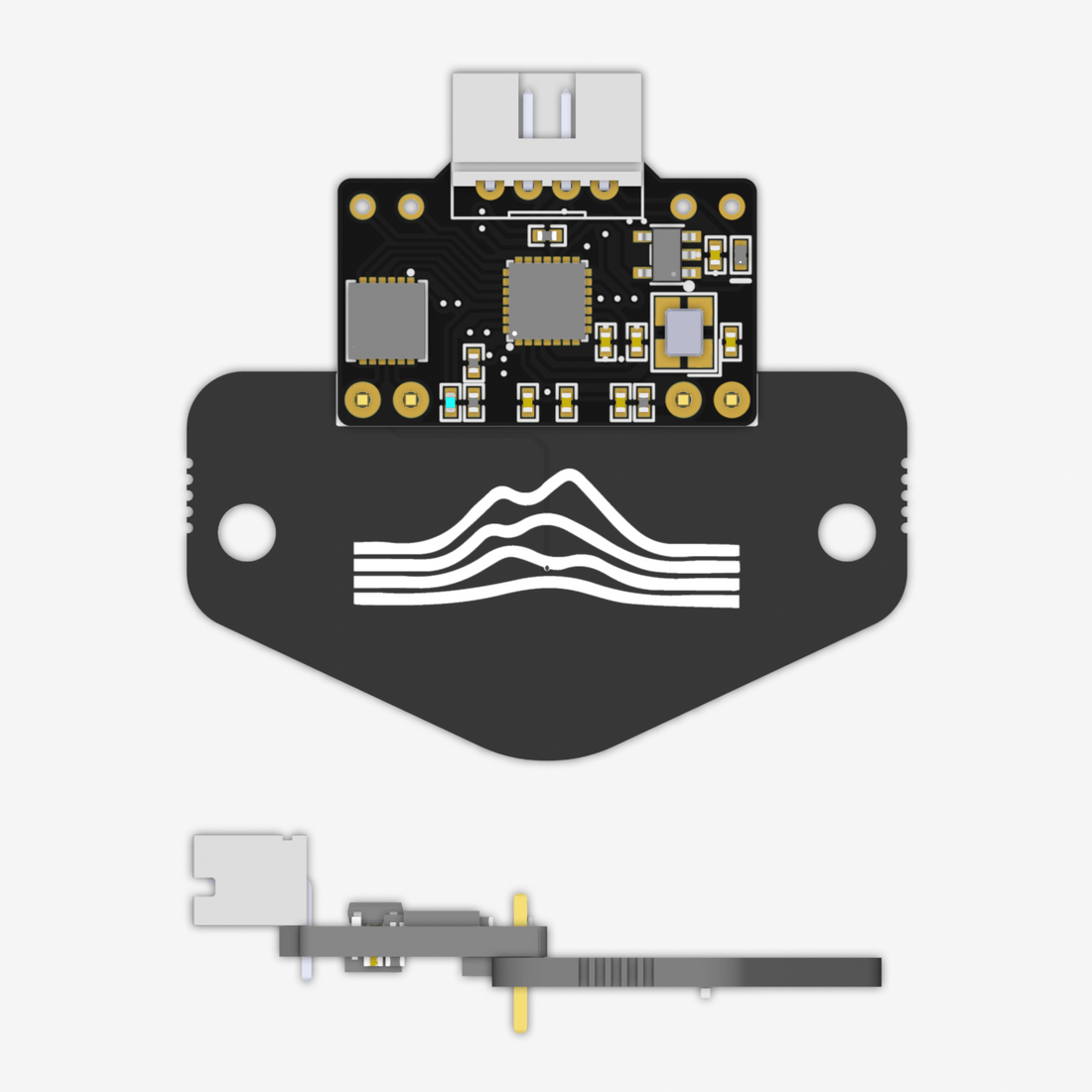

- Low Profile Edition - Perfect for VzBot and RatRig Printers
- Right Angle - TBC (Or you already know you need right angle variant)

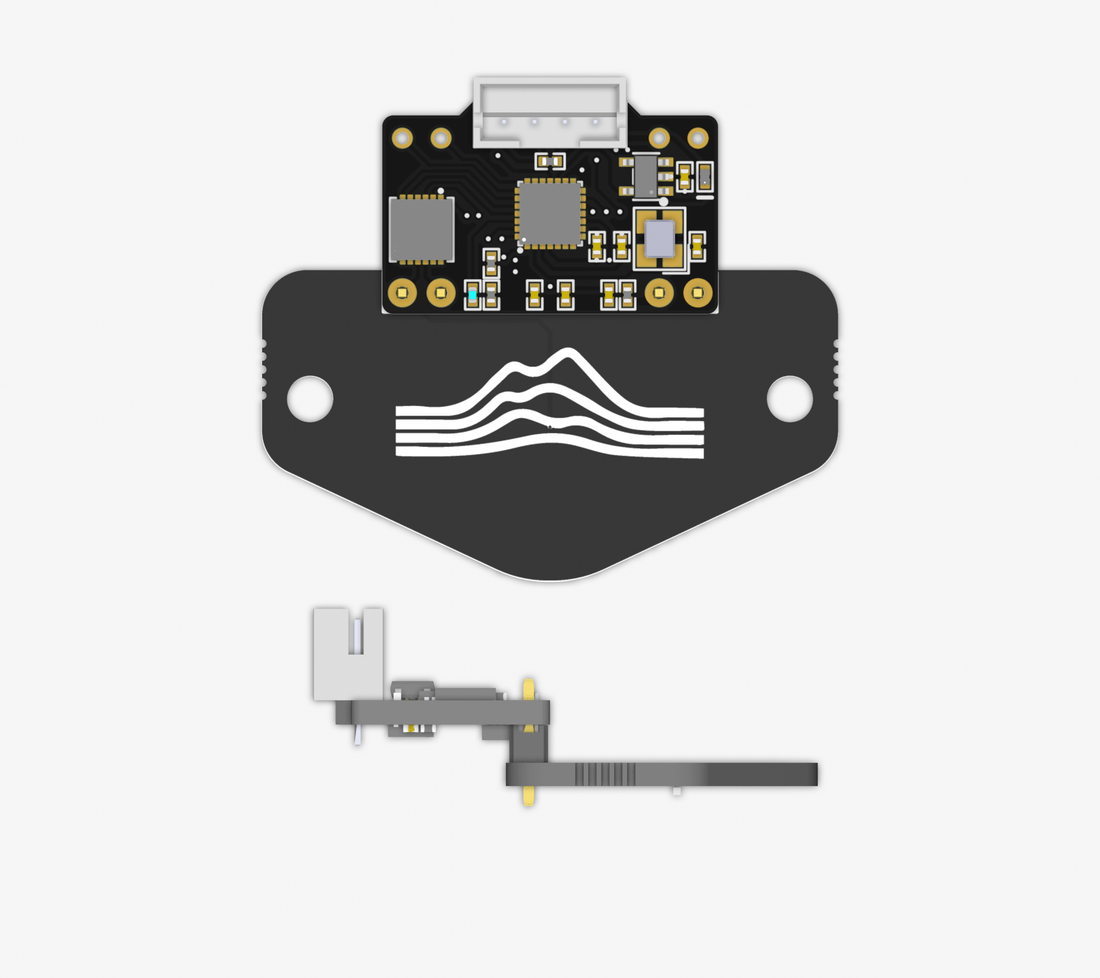

- Flat Pack - Unsure right now? Maybe Flat Pack is the best option, assemble it as you wish when you decide what you want, and also if you don't feel comfortable with soldering would suggest selecting pre-solder in specific set-up above (depending on selection).
Currently Cartographer do not support delta printers.
Documentation:
Official: https://docs.cartographer3d.com
(Ensure you read through documentation, for any questions or concerns, feel free to reach out to us or join Cartographer Discord)
For K1 Specific Guide: https://support.dremc.com.au/en/support/solutions/articles/51000437619-creality-k1-root-firmware-cartographer-

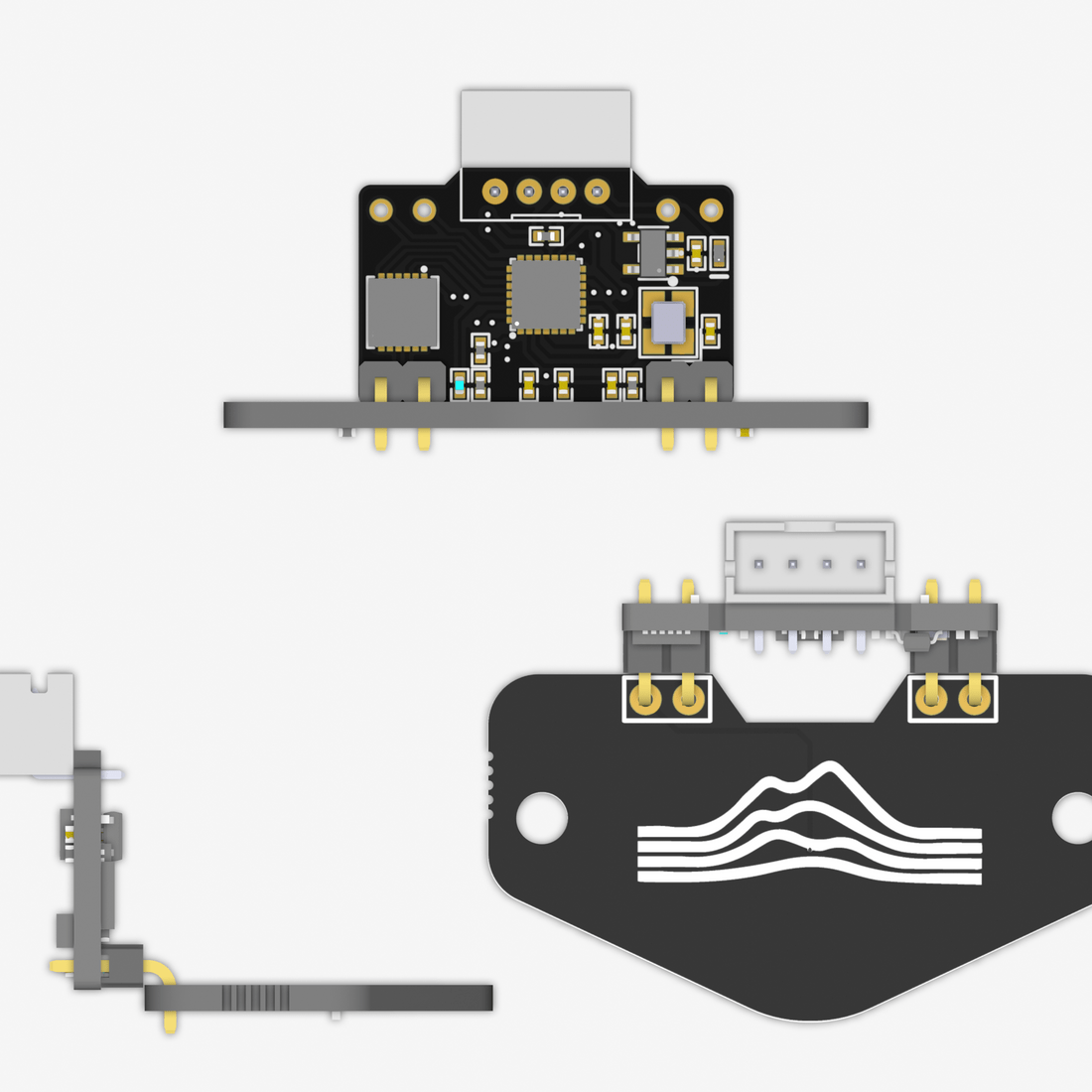

Note: Right angle PCB set-up, you may need flip/re-pin orientation of the USB wiring to match pin out on board to wiring pin out. Please double check out pin out especially if you're using your own wiring or modifying provided.
CAN:
It is recommended to run your CAN network at a baudrate of 1,000,000.
Cartographer CAN Probe is recommended for use on BigTreeTech CAN Boards, it does and will work on Fly/Mellow & Fysetc Toolboards, but only BigTreeTech provide a CAN output, making wiring significantly easier.
Note - We observed that some AFC-Lite Boards (Box Turtle controller) can output 24 Volt on CAN L/H lines (Carto runs at 5 volts) for unknown reason. Therefore we don't recommend running both on the same CAN network as there is a chance of frying your Cartographer. Running either over USB is fine or on different CAN networks. Its possible that your AFC-Lite is not affected and that there are other environmental variables at play.
