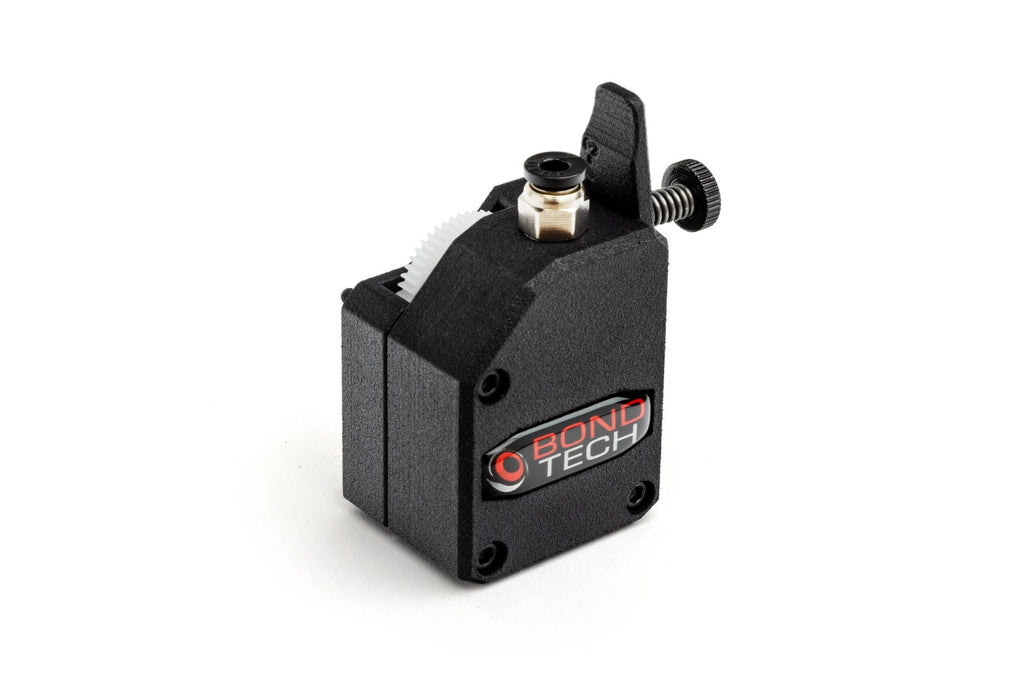

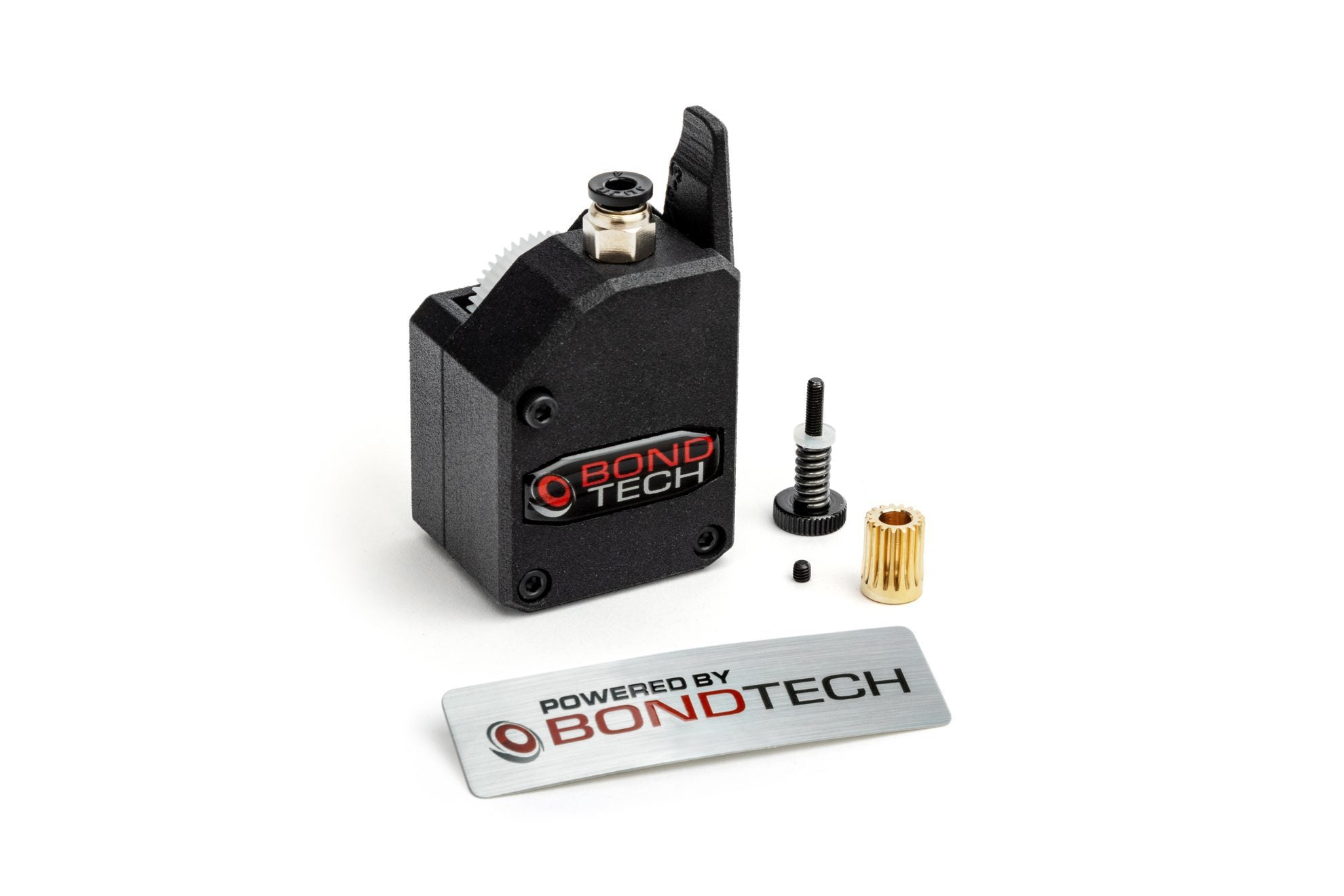

Bondtech BMG Extruder IDGA

BondtechSKU: EXT-BMG

Price:
Sale price$145.95 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 2 units left (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

New Version WITH IDGA Shipping Now!

with new white plastic main gear and integrated drive gear for lower run-out

Now including the new white plastic main gear and assembled with a new method to reduce run-out and improve 3D print´s surface quality.

The Bondtech BMG® extruder combines high performance and resolution with low weight. Together with our proven and highly celebrated Dual-Drive technology you can expect problem free material feeding.

The BMG® works in both bowden and direct driven applications. Built-in fitting for the E3D hotend and fits Nema17 stepper motors. Please mind the bowden adapter is not included.

The housing parts are professionally SLS printed in nylon for maximum strength and precision.

This extruder is sold without motor.

  • Weight without motor: 75g
  • E-step value: 415

Bondtech Mini Geared Features

The Bondtech BMG® utilizes an internal gearing ratio of 3:1 together with precision cnc-machined Nickel coated Hardened Steel drive gears to give you a compact powerhouse for all your applications. Whether you require high resolution prints with small nozzles or high-flow prints with big nozzles the optimized gearing ratio combined with our industry leading drive gears provides unparalleled pushing power and lightning fast retractions in a lightweight and compact package.

Bondtech Dual-Drive

Our unique Dual-Drive technology delivers uninterrupted material flow without fear of grinding or slipping in even the most demanding conditions. Bondtech users the world over will attest that even in prints with thousands of retracts our extruders perform flawless, with unmatched precision, and zero damage or degradation to the filament.

Multi-material capability

Our BMG® extruder feeds all material with high reliability, from slippery nylons and soft TPU/TPE filaments to highly rigid and sometimes brittle carbon-filled high-strength materials. The extruder is designed for 1.75 mm filaments, but has been tested to ensure performance of filament from 1.5mm up to 2.0mm allowing for high reliability regardless of the tolerance of the filament used. The filament path is fully guided throughout the extruder body and the housing maintains tight tolerances to the drive gears mitigating the chances of Filament Misfeed when the hotend experiences increased back-pressure or highly flexible filaments are used.

Adjustable tension

The thumbscrew tensioner allows the user to fine-tune the pressure exerted by the drive gears onto the filament. This gives you the power to adjust according to your preferences and to optimize for the type of material you are using.

Quick-Release

To be able to do material changes in a snap, simply activate the Quick-Release lever to release the tension and pull the material to be changed out of the extruder, keep it activated and insert the new material.

Multi-application design

This extruder can be used in a Bowden or direct setups and gives you the flexibility to choose what works best for your application. In addition it features an integrated hotend retention method compatible with the E3D-V6 hotends or others using the Groove Mount standard. Mounting your hotend is simple, secure, and wobble free by means of just two bolts.

Flexible mounting options

We have designed a standard mounting bracket, both in CNC and as a 3D printable part that you can download from our stl-archive for free. Our standard mount is CNC-machined in 3 mm aluminum for maximum stability. Please see below for available mounts.

The extruder fits any Nema17 stepper motor with a standard 5 mm shaft. For suitable stepper motors, please select one of the below or use your own motor.

New Design Features

The Motor Gear is now made of Brass
The corrosion resistant material will stop the very low frequency of oxidation issues that happened to the steel gears.

The POM Gear attached to the Main Shaft is now Black
This is a pure aesthetical upgrade to mask out the dirt that shows too much on white.

The Push-Fit is now threaded
It can be removed and/or replaced to make it easier to solve clogs without ruining the BMG®’s housing.
