Bigtreetech Manta M8P v2.0 Control Board Klipper

BIGTREETECHSKU: 1020000442

Price:
Sale price$135.00 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (4 units), (Australia Stock)

Buy from the experts, who use and repairs 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

The BTT Manta M8P allow the ability to run 8 stepper motors makes it perfect for coreXY Printers using 3 or 4 independent motors to drive their Z axis in compact form factor with commute module built onto same board and profile of Octopus Board.

CB1 Core Pad can be purchased separately here: https://store.dremc.com.au/products/bigtreetech-cb1-alternative-to-raspberry-pi-cm4 or CM4 Raspberry Pi Compute Unit (we recommend CM4). As the CB1 can lack some features like DSI/CSI which CB1 does not support, and pricing for CB1/CB2 has increase recently in 2026 and lack of availability.

Features:

  • Uses a 32 bit STM32H723ZET6 ARM Cortex M7 MCU running at 550MHz.
  • The TPS5450 5A power chip supports 12/24V DC input and delivers up to
  • 5A/6A peak for powering a Raspberry Pi.
  • A BOOT button is provided for DFU firmware updates.
  • The thermistor circuit is protected to prevent MCU damage from shorted
  • heated bed and heater cartridge connections.
  • PWM fans support 24/12/5V voltage selection without external transformer
  • module, reducing failure points.
  • The thermistor resistor can select the pull up resistor value through a
  • jumper to support PT1000 without an external module, which is convenient
  • for customers to use for DIY purposes.
  • The MCU firmware can be upgraded through an SD card or through the
  • "make flash" command in Klipper to update the MCU firmware via
  • The BTB connector allows use of CM4, CB1, or other core boards.
  • The onboard TMC driver works in SPI and UART modes, and the onboard
  • DIAG function pin can be used by simply plugging in a jumper.
  • Connectors for filament sensor, auto power off, BLTouch, RGB, I2C, servo,
  • 5V power detection, etc.
  • High performance MOSFETs reduce heating.
  • Replaceable fuses for easy service.
  • 3x 4 pin fan headers usable for water cooling.
  • Proximity switch header supports NPN and PNP (24/12/5V).
  • SPI expansion for accelerometer based resonance compensation.

Documentation:

Github M8P: https://github.com/bigtreetech/Manta-M8P

Estimate shipping

Deliveries within Australia

For shipping prices, please use the above estimated shipping costs. Shipping costs depend on your location, order size, and desired courier service and provider. Orders are dispatched within the same or by next business day for in-stock products from local Brisbane Queensland warehouse depending on courier. Courier Please/Aramex rates are calculated only at checkout.

We highly suggest using AusPost Express for urgent deliveries or AusPost Standard for remote/rural areas. If you want us to manual quote freight for large complex order, please contact support for quote. As larger flat items and long product are shipped separately compared to general spares/filament to ensure those arrived safely. We suggest you pick a carrier and service you have good previous experience with for best delivery experience.

Aramex, CourierPlease, and AusPost Tracked Letter are excluded from same-day dispatch and will be dispatched within 1-3 business days. See our full policy and expectation: https://store.dremc.com.au/policies/shipping-policy

Our domestic shipping rates start at:

  • from $9+ AusPost Standard Post (typically 2-10+ business days*, tracked)
  • from $10 + AusPost Express Post (typically 1 to 4+ business days*, tracked)
  • from $9+  AramexCourier Please) (typically 1-7+ business day* within Metro SE QLD/NSW/VIC/ACT, 3-12+ business days interstate, tracked) (We don't recommended this service for WA/TAS or urgent orders)

Pricing will depends on order size (weight/cubic size) and delivery location.

Please note that we do not offer any courier transit time guarantees or compensation if the item arrives later than expected. The provided ETA reflects the courier's estimated transit time after the item has been picked up. Please also account for an additional 1-3 business days for rural or remote areas or potentially delay with delivery network outside their controls such as localised weather events.

Please use below as shipping time frame expectations for metro area. All order will be ready to be pick up by courier by next business day or same day for some couriers, on rare occasional outside our control miss pickup by courier can occur, if that occurs item may be delay by 1-2 business day and we will make other arrangement to have item dispatch in a reasonable time frame.

https://auspost.com.au/service-updates/domestic-delivery-times

https://www.dhl.com/au-en/home/get-a-quote.html

https://www.aramex.com.au/media/2406/

Delivery Method

QLD

NSW/ACT

SA/VIC

NT/WA/TAS

AusPost Express Parcel

1-2

1-3

1-3

2-6

AusPost Standard Parcel

1-3

1-5

3-7

3-10

DHL Express

1-2

1-4

1-5

2-6

Courier Please / Aramex 1-7 2-7 3-7 10 - 15



Deliveries to New Zealand / World

All delivery to New Zealand / World is calculated based on selected service. Depending on situation, if we unable to send to country due to current world events, we may cancel your order. Please refer to below links for service updates/potential delays.

Please refer to AUSPOST Website for latest news and postage delivery time estimate to your area. https://auspost.com.au/service-updates/international-delivery-times

  • Standard (Signature On Delivery & Extra Cover):  7-14+ Business Days to Metro Area
  • Express (Signature On Delivery & Extra Cover): 5-10+ Business Days to Metro Area
  • DHL: 1-5+ Business Days (Contact us for quote) For select region DHL pricing is available at checkout for general spares.
  • Fedex/DHL are quoted at checkout, delivery time will depend on service and delivery location.

Please note that shipping rates/total order are not inclusive of any local taxes, duties or import fees when the shipment passes through customs in the country of delivery (unless specified at checkout). You may require to pay additional tax or custom duty, we cannot adjust order value.

Payment & Security

Visa Mastercard American Express PayPal Google Pay Shop Pay Apple Pay Zip Afterpay

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • 5 stars: 0 (0%)
  • 4 stars: 1 (100%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
E
Edcbb3 (Sydney, AU)
Bloody capable 🤌

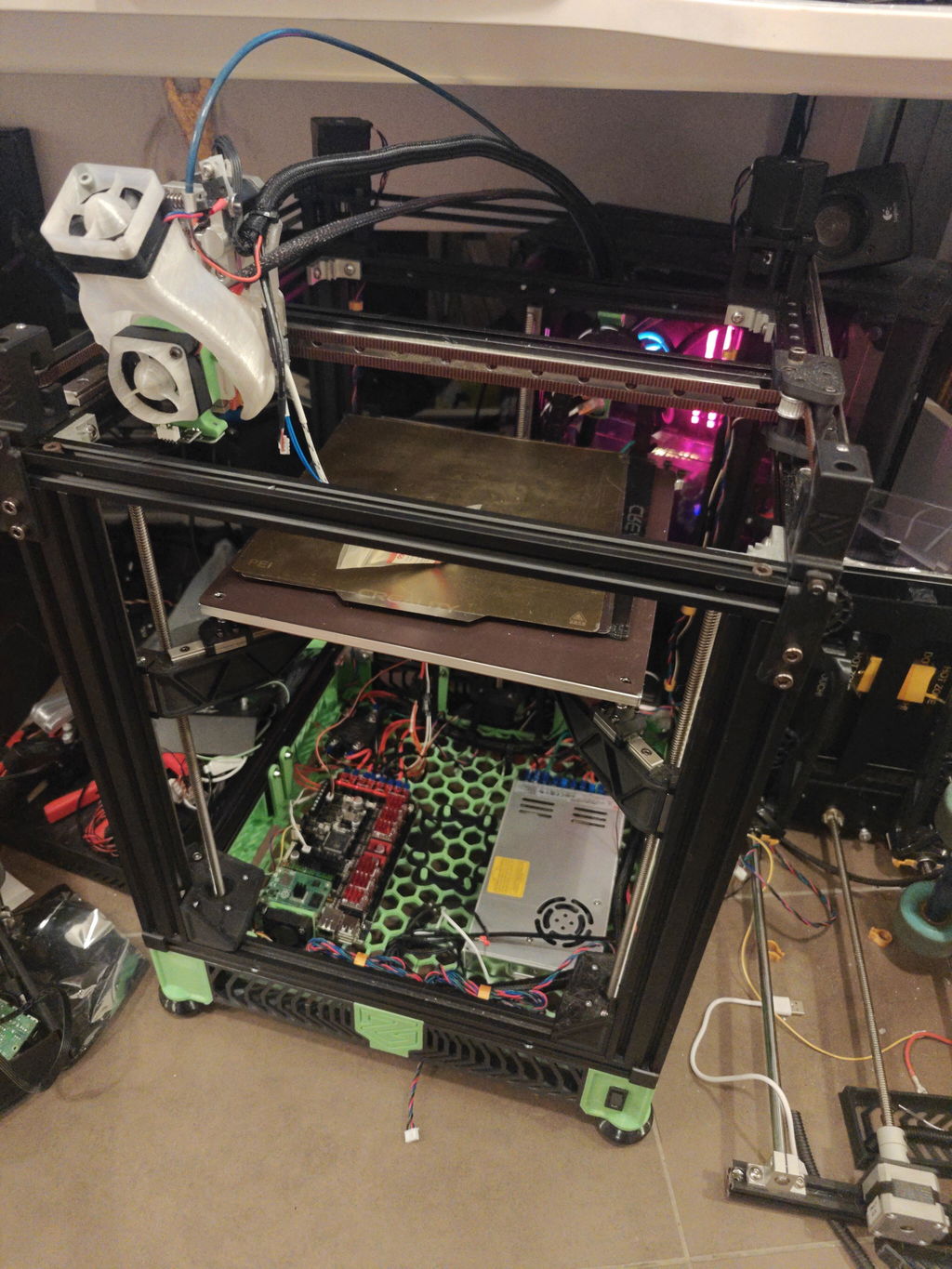

TLDR; with a CM4 the processing speed for package updates is seriously surprising in the best way. Am yet to print on it, but heaps of customisation options for hardware and software. Just make sure you check the board as soon as it arrives!

So this is a rewrite of my original review as that was a bit biased from me spending 2 weeks of swearing and tearing hair from head then finding out that it wasn't a skill issue (I'm still a filthy casual tho) but a small smd resistor was knocked off the underside from the factory

Dremc support was amazing though and they sorted everything out for me with the warranty and the replacement worked on the day I got it.

B
Bryden Q.

Its a shame the Exp1 and Exp2 connector is so delicate it doesn't hold the cable properly and breaks extremely easily making the board Useless.

DREMC STORE 3D Printing Supplies

Hi Bryden, Sorry to hear about the experience with thin flex connector, those are delicate. As future reference if you have trouble with clip holding in place or retaining clip has broken off you can use small amount of electrical tape keep flex cable in place. You should still able to control the board over WIFI via phone/tablet/desktop or you can opt for BTT PI Touch Screen either DSI version or HDMI version depending if you're using CM4 from raspberry PI or CB1 for physical interface.

If you have further questions, please contact us @ https://support.dremc.com.au/support/tickets/new
