Description

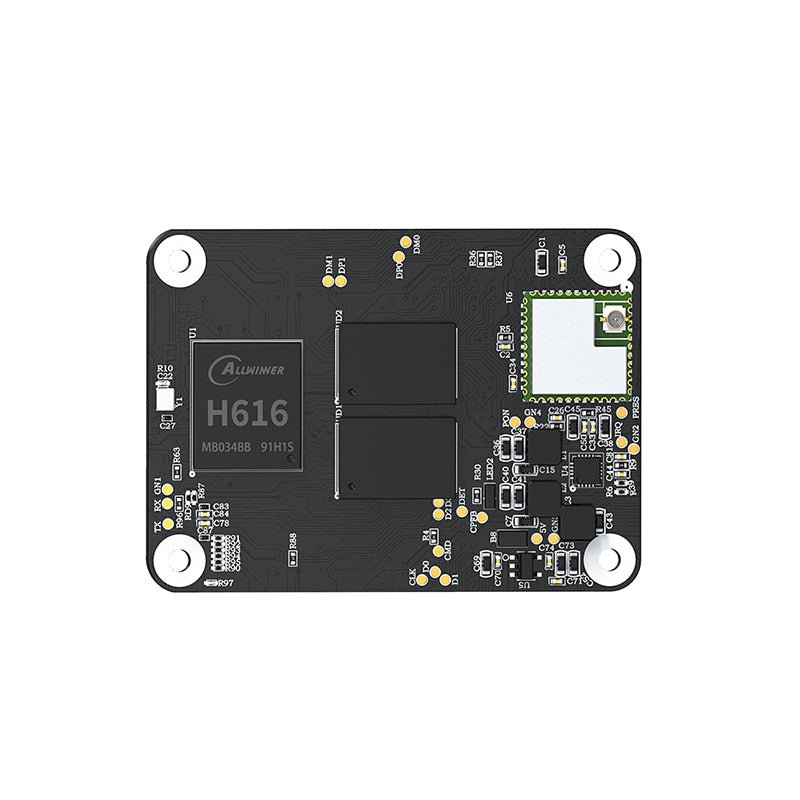

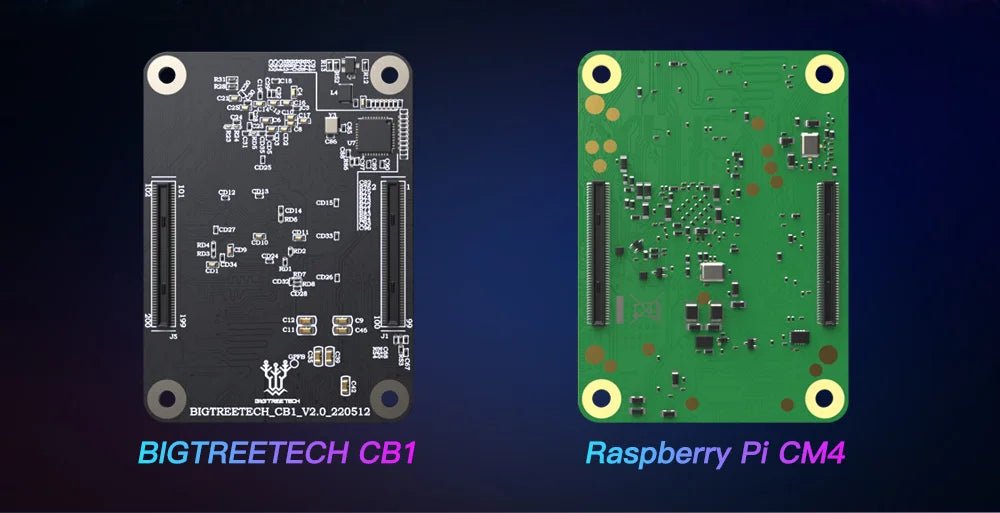

BIGTREETECH CB1 is an alternative to Raspberry Pi CM4.
https://github.com/bigtreetech/CB1

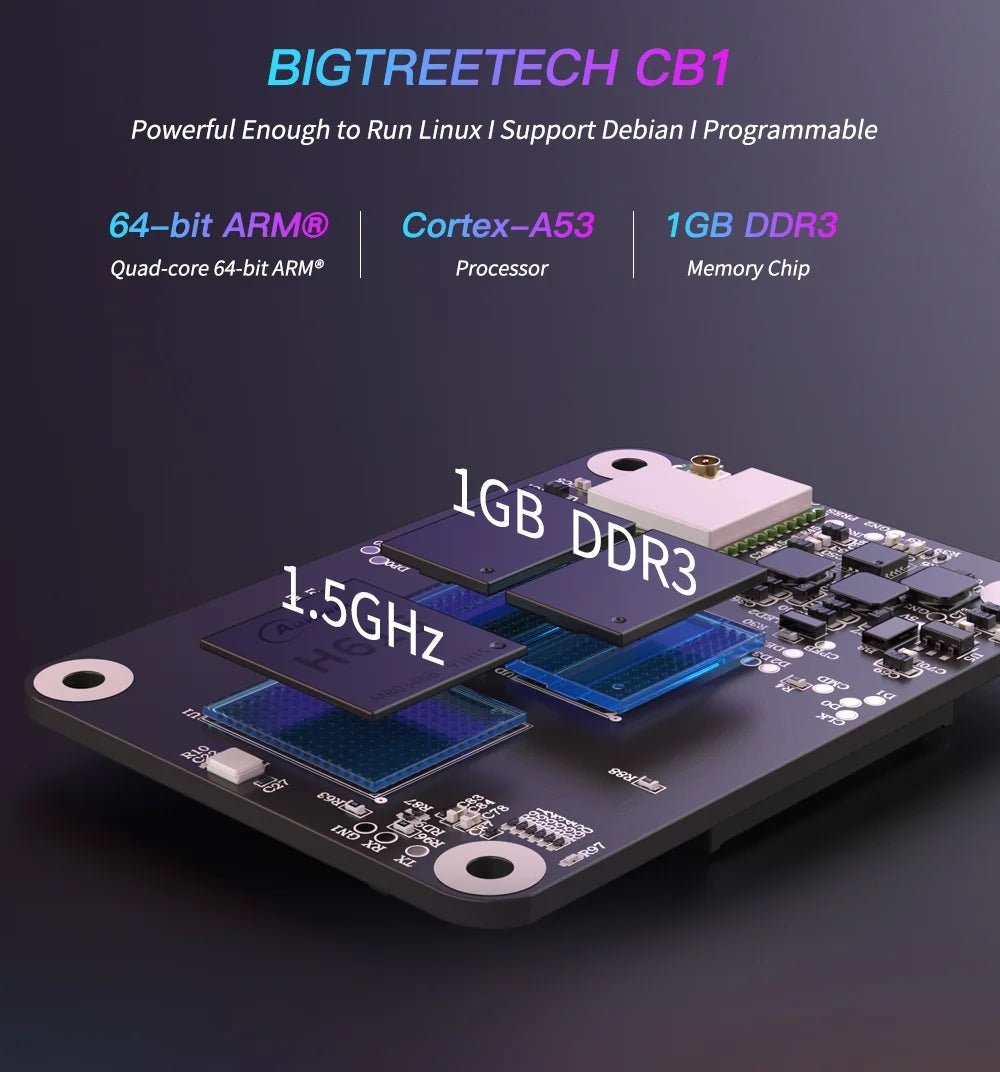

CB1 Main Features
- CPU: Allwinner H616, Quad-core Cortex-A53 @1.5GHz
- GPU: Mali G31 MP2, support OpenGL3.2
- RAM: 512MB/1GB DDR3L SDRAM
- Display: HDMI2.0A interface, support 4K display
- USB 2.0 port
- 100M Ethernet + 100M WiFi

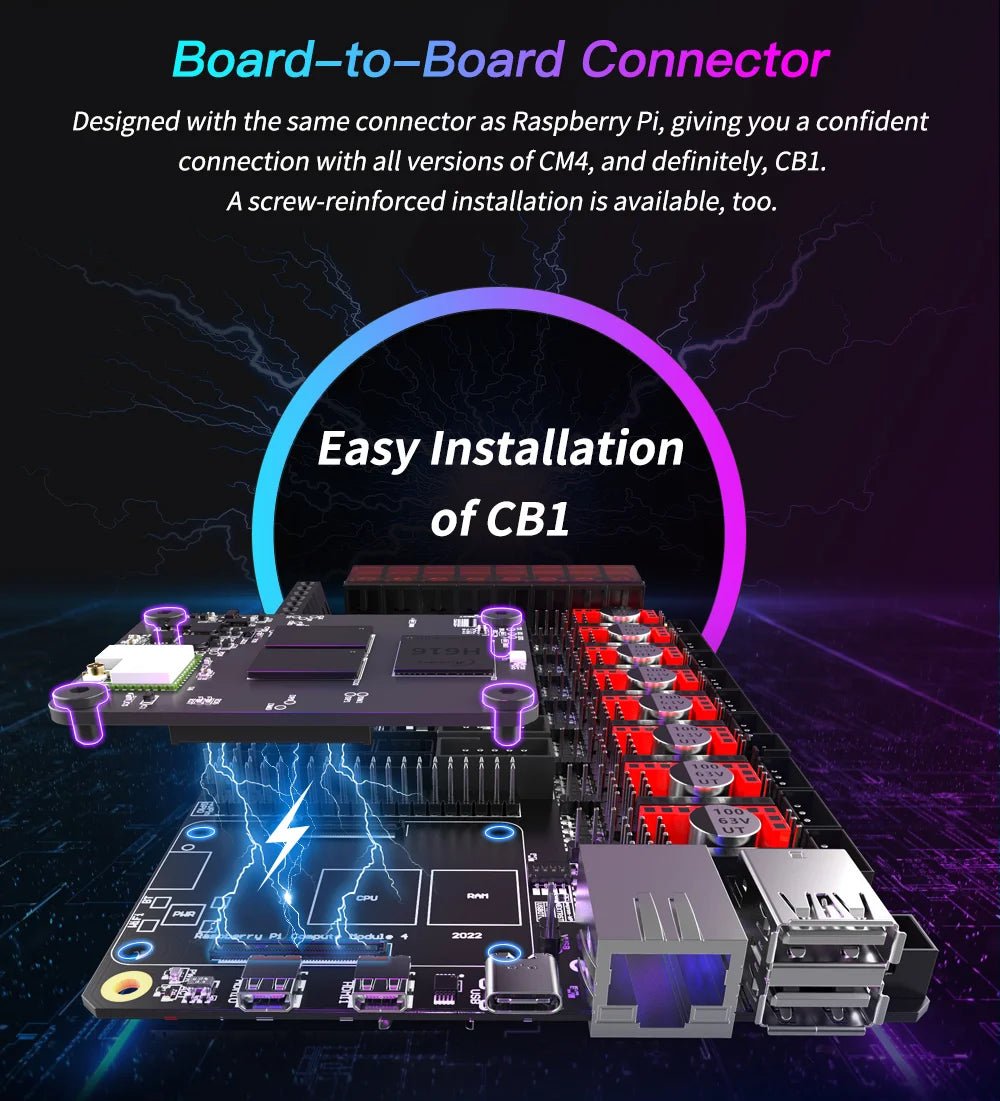

- The same BTB header as the Raspberry Pi CM4

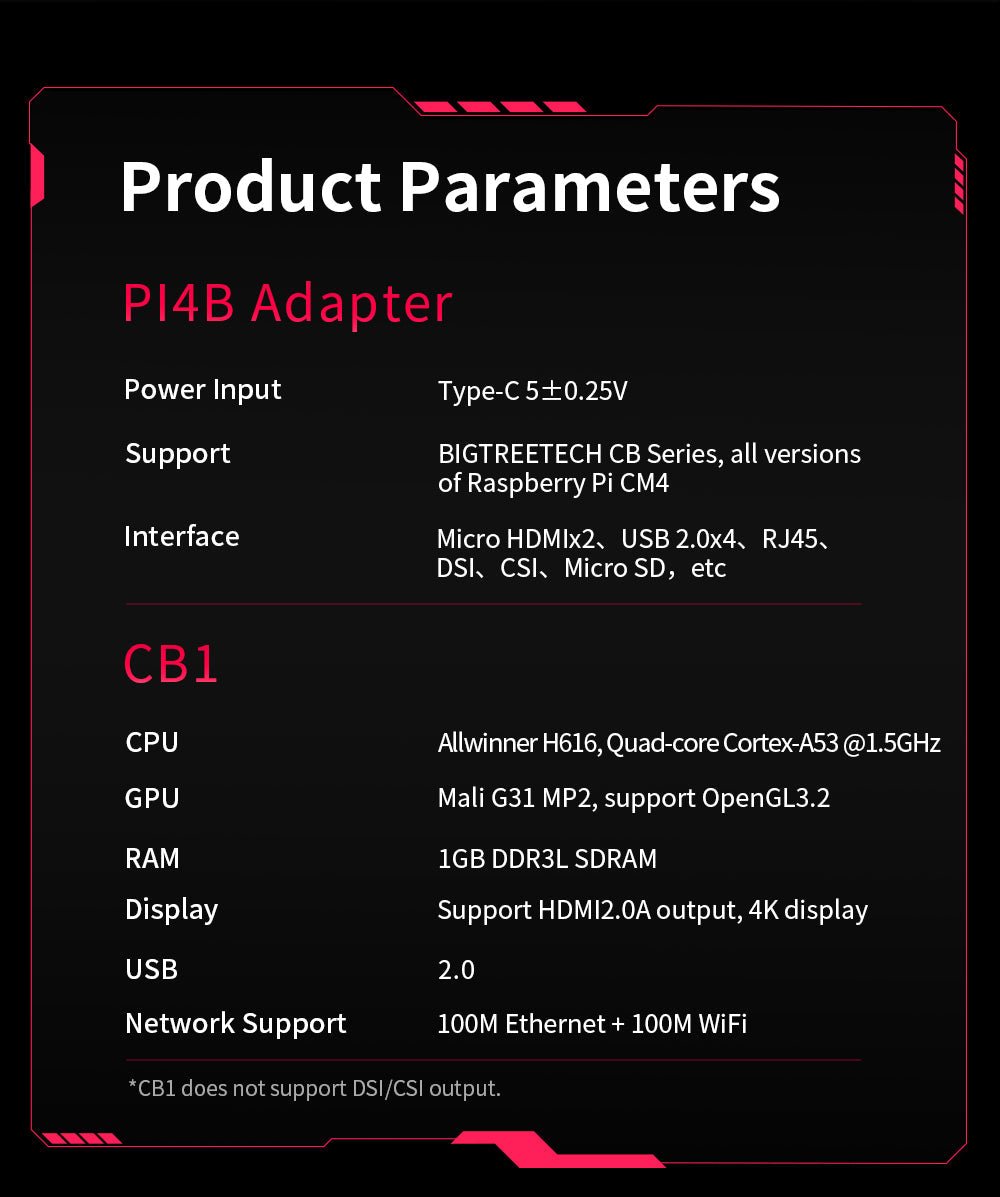

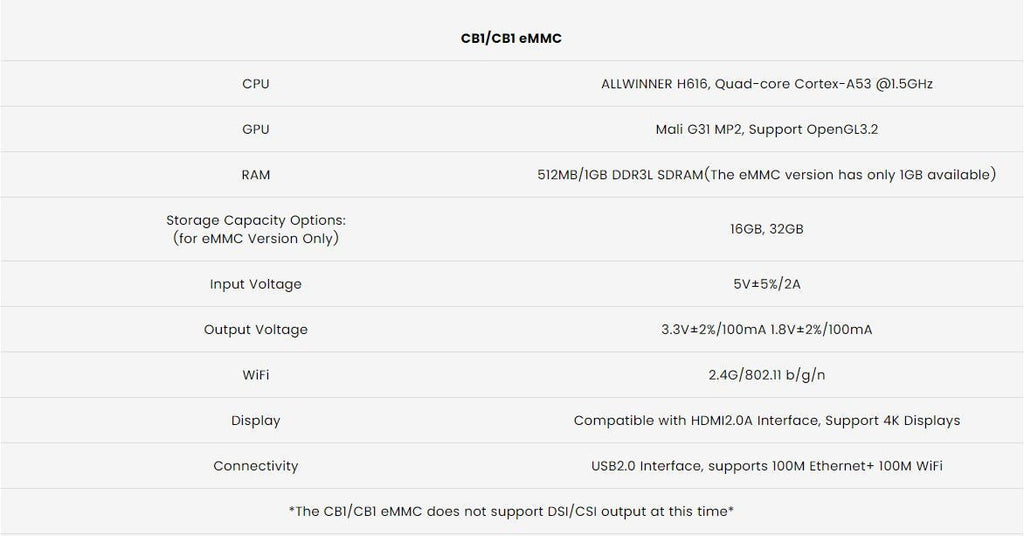

Technical details:
| Product size | 55x40mm |
| Installation size | 48x33mm |
| CPU | Allwinner H616, quad core Cortex-A53 |
| GPU | Mali G31 MP2, also supports OPENGL3.2 |
| R.A.M. | 1GB DDR3L SDRAM |
| Screen | supports HDMI2.0A, 4K display |
| Interface | USB2.0 |
| Network connection | 100M Ethernet + 100M WiFi |
Note:
- The CB1 cannot be connected to the PI TFT screen. The DSI/CSI port will only work while using CM4. (If you need touch screen, you would need HDMI version: https://store.dremc.com.au/products/bigtreetech-lcd-display-touch-screen-ips-for-klipper-raspberry-pi)
Product History:
Note: Order after 7/04/2026, will be shipping standard (without eMMC - EOL).
Note: Order after 23/01/2025 and before 7/04/2026, will be shipping with eMMc version (1GB RAM + 32GB eMMc).
