Description
- Tighter tolerances;
- improved build quality:
- sturdier 2 parts housing design;
- precise stepper motor centering.
- extra mounting point;
- increased resistance to heat;
- micro form factor, featherweight and small footprint;
- enhanced filament grip;
- Use your own motor (check product alerts);
- and that Bondtech black Look : )
Includes full size LGX Large Gears, maintenance windows and filament tension lever with 3 presets (open; rigid; flexible).
This extruder only supports 1.75 mm size filament.
IMPORTANT NOTICES
* Use the LGX® Lite only with a 36mm Round stepper motor featuring a 10 teeth motor gear like this: (LDO Motor 36mm Stepper) - Sold Separately (DREMC is a Official LDO Motor Resellers) - Same stepper model as replacement motor on bondtech website or LGX Lite (with Motor).
Otherwise you may cause damages in the extruder that are NOT covered by warranty.

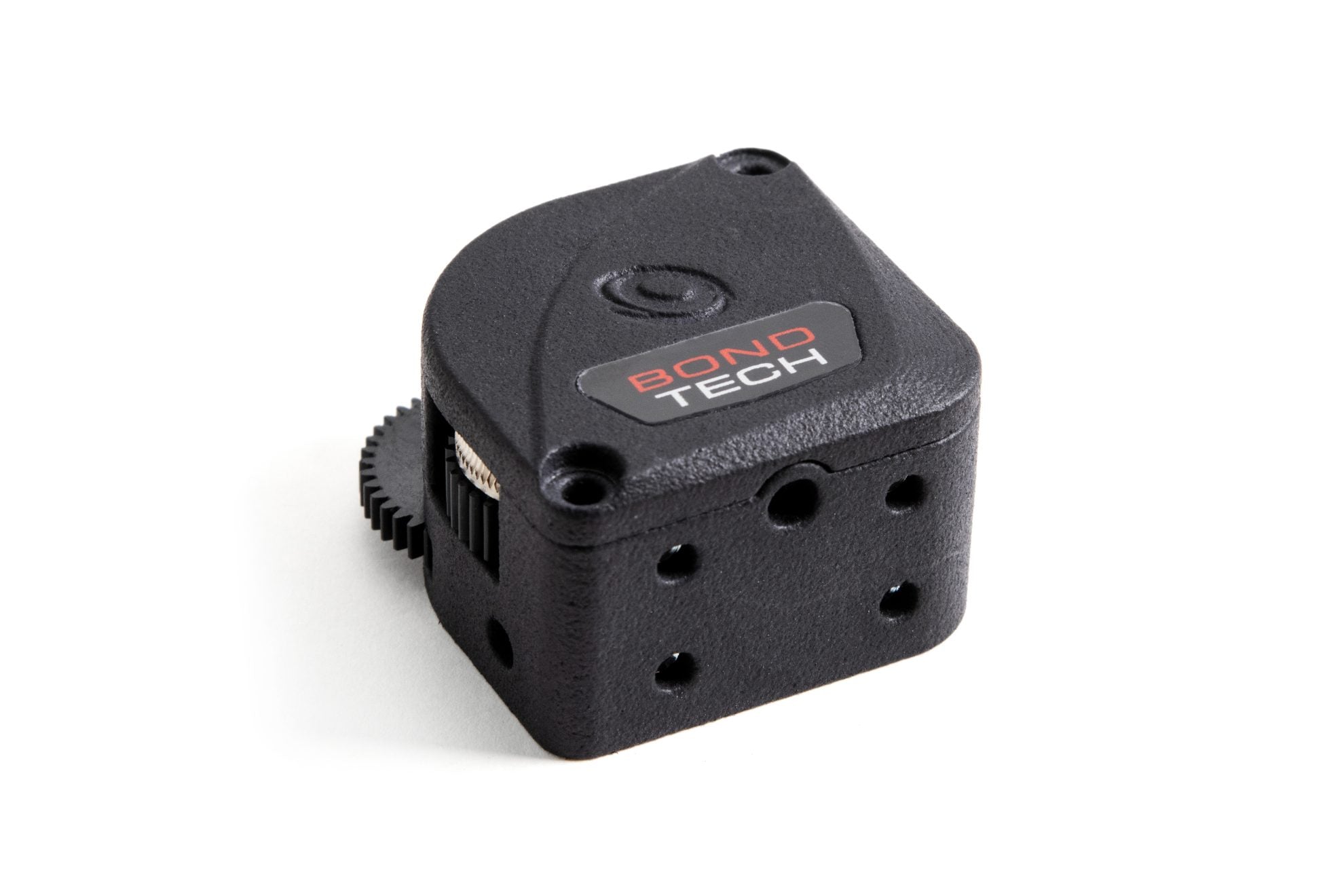

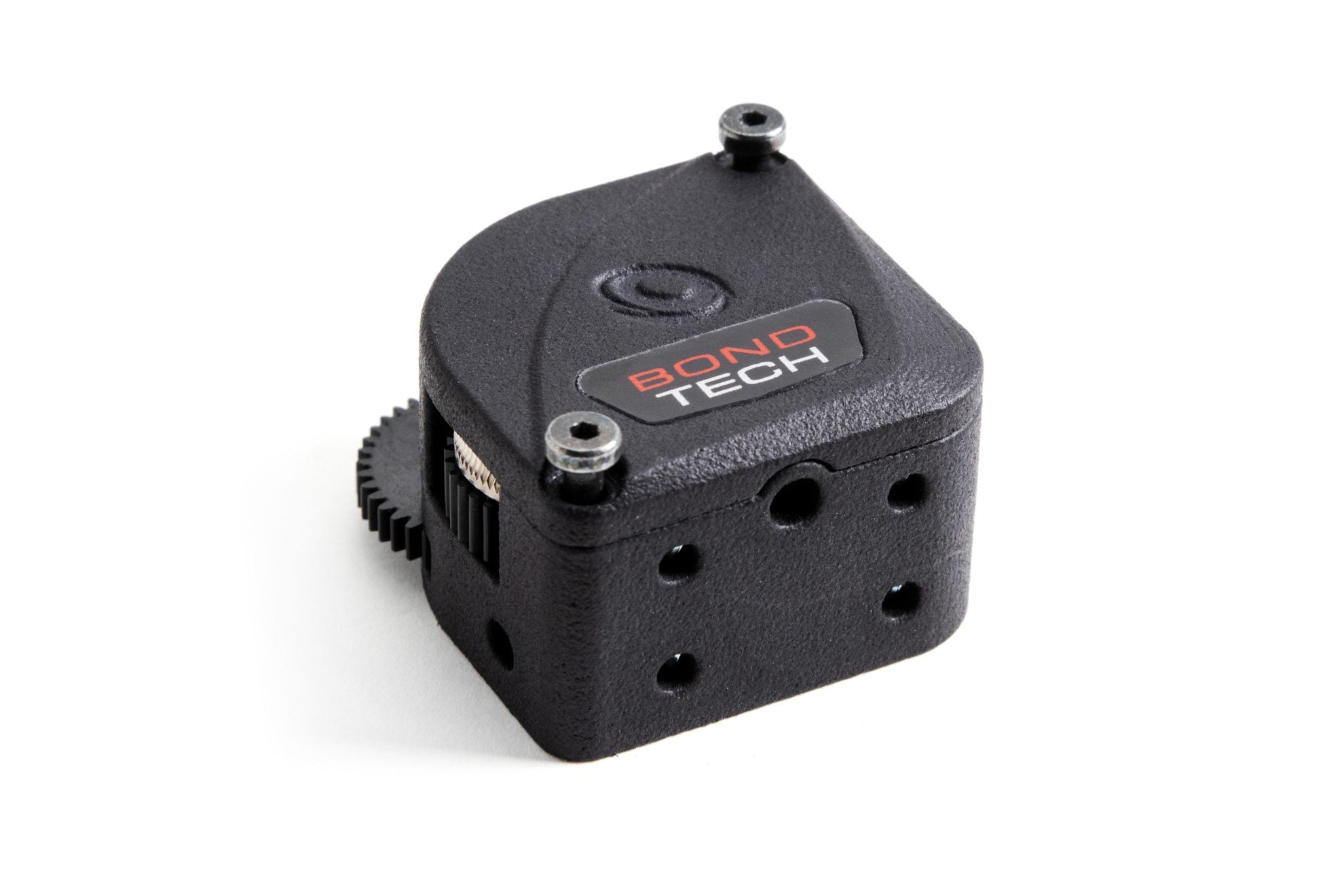

The Bondtech LGX® Lite is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtech’s new Dual Drive Technology based on larger drive gears.
What is Included:
Each LGX® Lite extruder is supplied with:
- 1x LGX® Lite feeder;
- 1x 2mm Hex Key (recommended tool);
- 1x Powered By Bondtech sticker.
Also shipping with additional accessories:
- 1x Push-fit collar
- 1x 30mm PTFE tube to use in the PTFE Tube Adapter.
- 8x M3 square nuts for reinforcing mounting holes.
8 features of this Bondtech eXtruder:
- Larger drive wheels, for increased filament grip;
- Filament pre-tension lever, for repeated results;
- Drive wheels’ maintenance windows, for easy cleaning;
- Compact, light & centered filament path, for increased performance and compatibility;
- Multiple mounting hole patterns, for easy and flexible setup;
- Compatible with Nema14 round stepper motors;
- Craft boxes without bleaching & no coating.
- Nylon housing with no dyeing or other chemical post processing.
3D Printed Housing using PA12
The housing parts are professionally printed with polyamide 12 for maximum strength, precision and higher temperature resistance.
To lower our ecological impact we are reducing our use of chemical dyes. This part is supplied with a wax protective coating to lower sensitivity to moisture and grease, while remaining fully functional.
Documentation:
Technical Information: https://support.dremc.com.au/en/support/solutions/articles/51000302927-lgx®-lite-extruder
Product Revision History:
- Orders from onwards 8/03/2024 will shipped with LGX Lite V1 + Upgrade Kit or Lgx Lite V2
