Bigtreetech Manta E3EZ V1.0 & 5x EZ2209 For Ender 3

BIGTREETECHSKU: 1020000407+1050000040-5

Option: E3EZ V1.0 + 5x EZ2209
Price:
Sale price$130.63 AUD

Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 2 units left (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

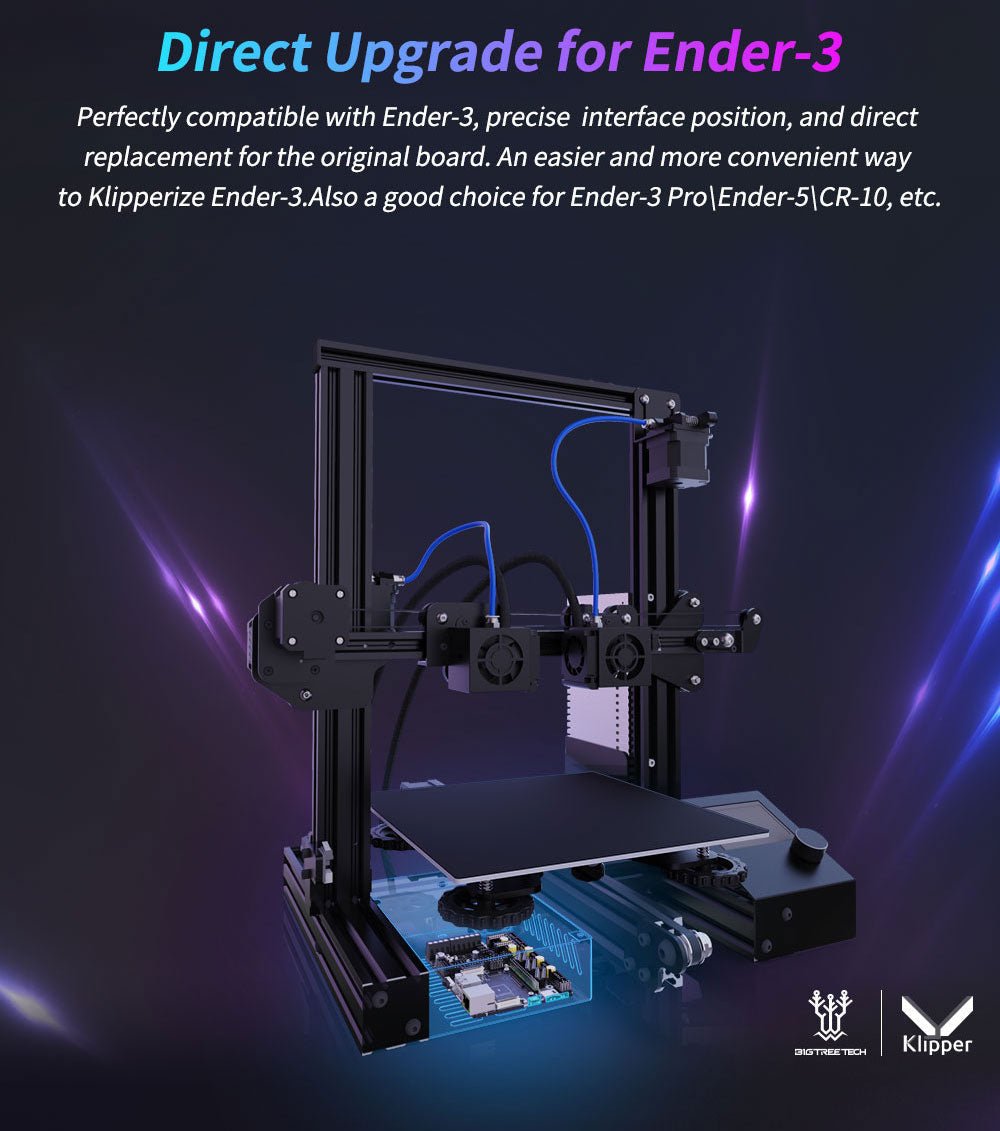

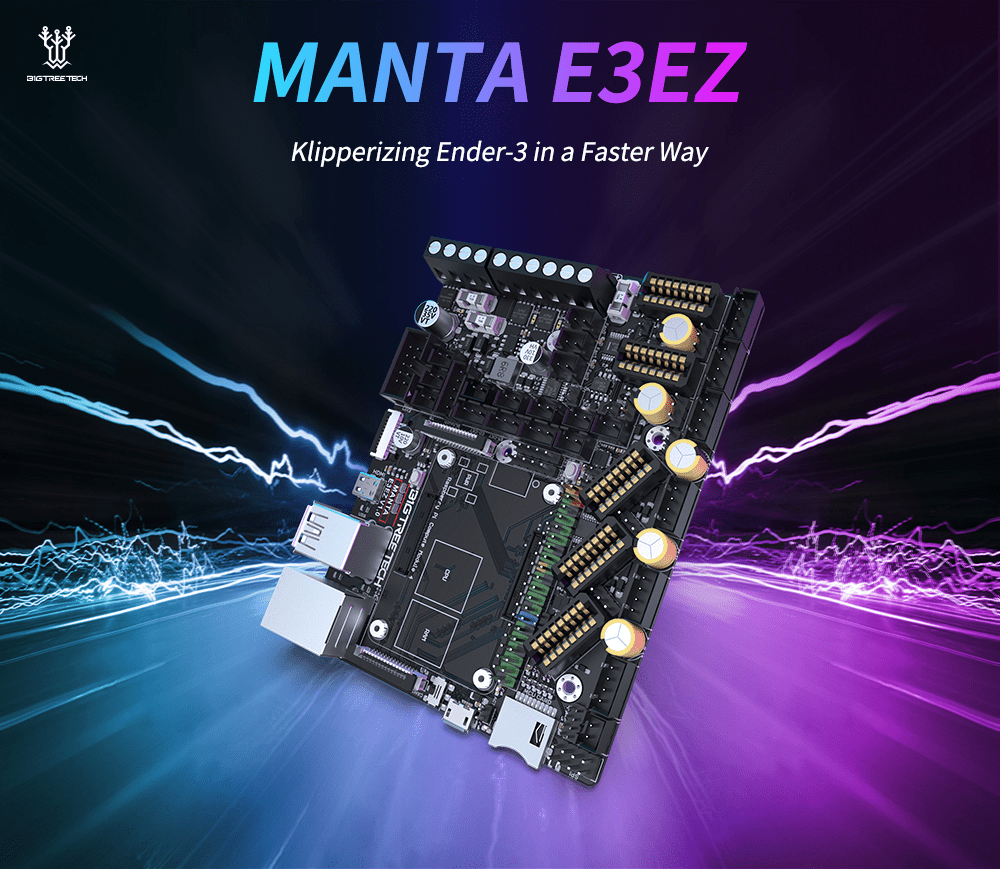

The BIGTREETECH MANTA E3EZ V1.0 motherboard for Ender 3 integrates a CM4 style core board and EZ2209 drivers, enabling a streamlined Klipper upgrade. It reduces wiring complexity and saves space by directly connecting components, enhancing printer performance efficiently.

What is Included:

Kit Include: [Depending on your selection]

  • 1x Manta E3EZ Control Board
  • 5x TMC2209 EZ

Kit Include: [Depending on your selection]

  • 1x Manta E3EZ Control Board
  • 5x TMC2209 EZ
  • 1x CB1

CB1/CM4 is not included in option 1, you can source CB1 here: https://store.dremc.com.au/products/bigtreetech-cb1-alternative-to-raspberry-pi-cm4 or Source CM4 from official raspberry pi distributor (Support Klipper only).

Note 1: Please ensure you have enough clearance for the CB1/CM4 sd card when closing up case, for Ender 3 Pro you will be break the one the support tab. Please refer to more information/video overview.

Note 2: CM4/CB1 are mounted using M2 bolt (not the M2.5 included in heat sink for CB1). (M2x10)

Documentation:

More Information: https://github.com/bigtreetech/Manta-E3EZ

Install Overview: https://www.youtube.com/watch?v=1GVJOlPipb0

User Manual: https://github.com/bigtreetech/Manta-E3EZ/blob/master/BIGTREETECH%20Manta%20E3EZ%20V1.0%20User%20Manual.pdf

Pin out: https://github.com/bigtreetech/Manta-E3EZ/blob/master/Hardware/BIGTREETECH%20Manta%20E3EZ%20V1.0-PIN.png

Klipper Firmware Config Example: https://github.com/bigtreetech/Manta-E3EZ/tree/master/Firmware/Klipper

Printed Bracket (ender 3 v2): https://github.com/bigtreetech/Manta-E3EZ/tree/master/Ender3%20V2%20STL

Printed Mount (Ender 5): https://github.com/bigtreetech/Manta-E3EZ/tree/master/Ender5%20STL

Features:

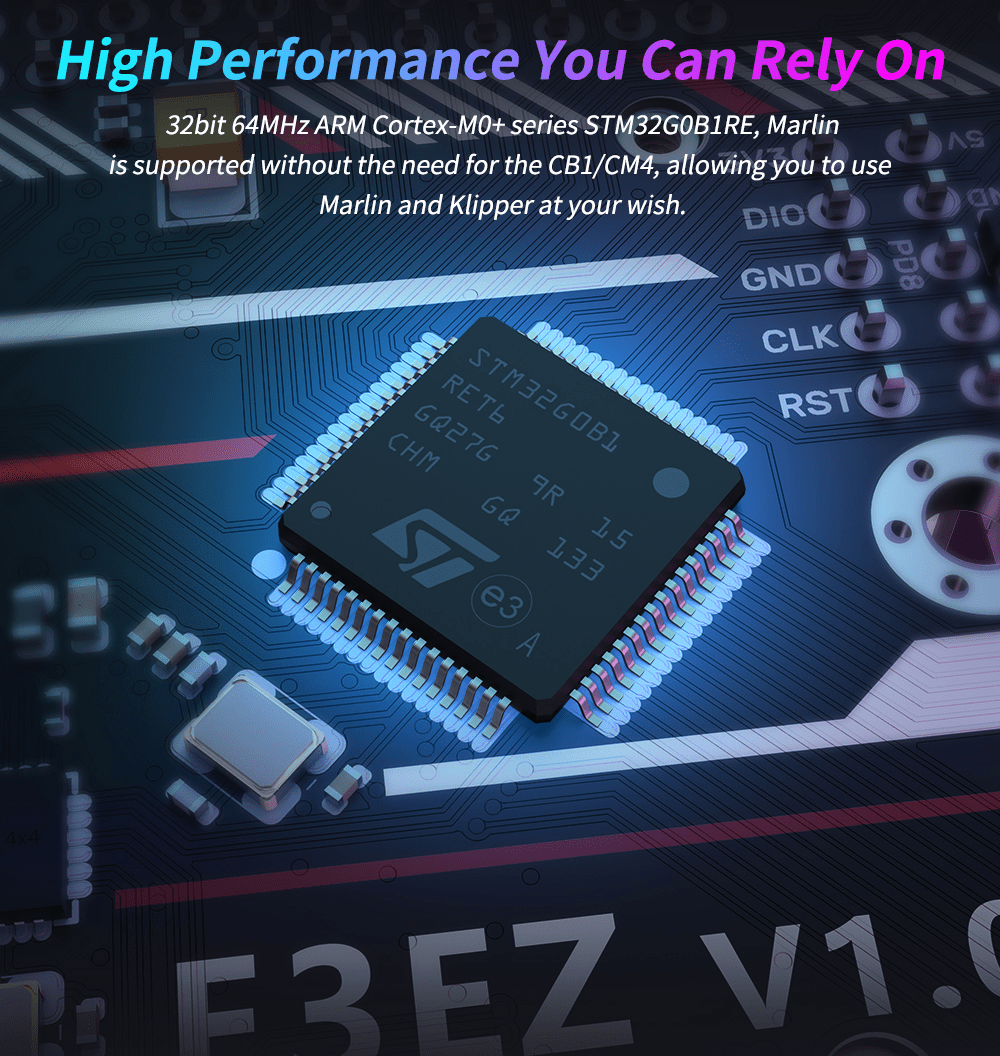

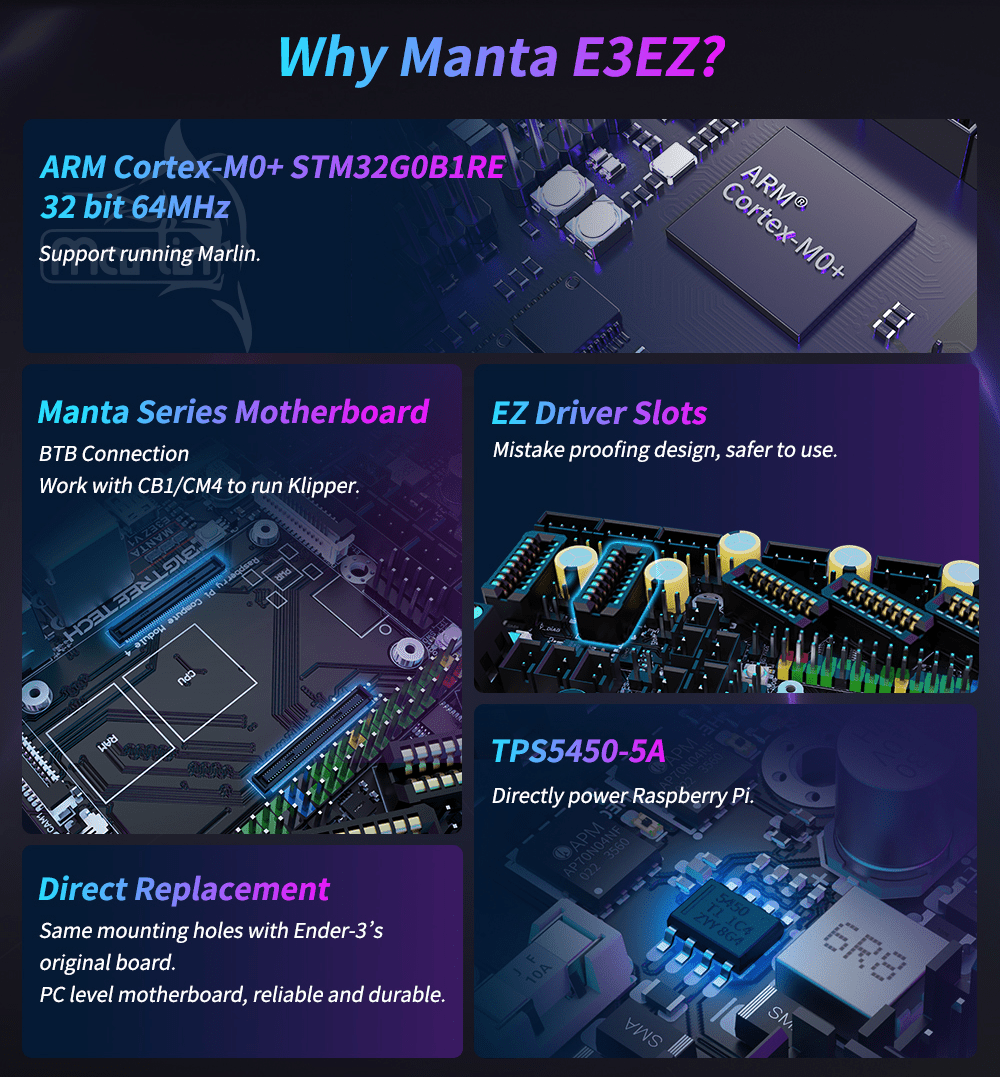

  • 32bit 64MHz ARM Cortex-M0+ series STM32G0B1RE MCU.

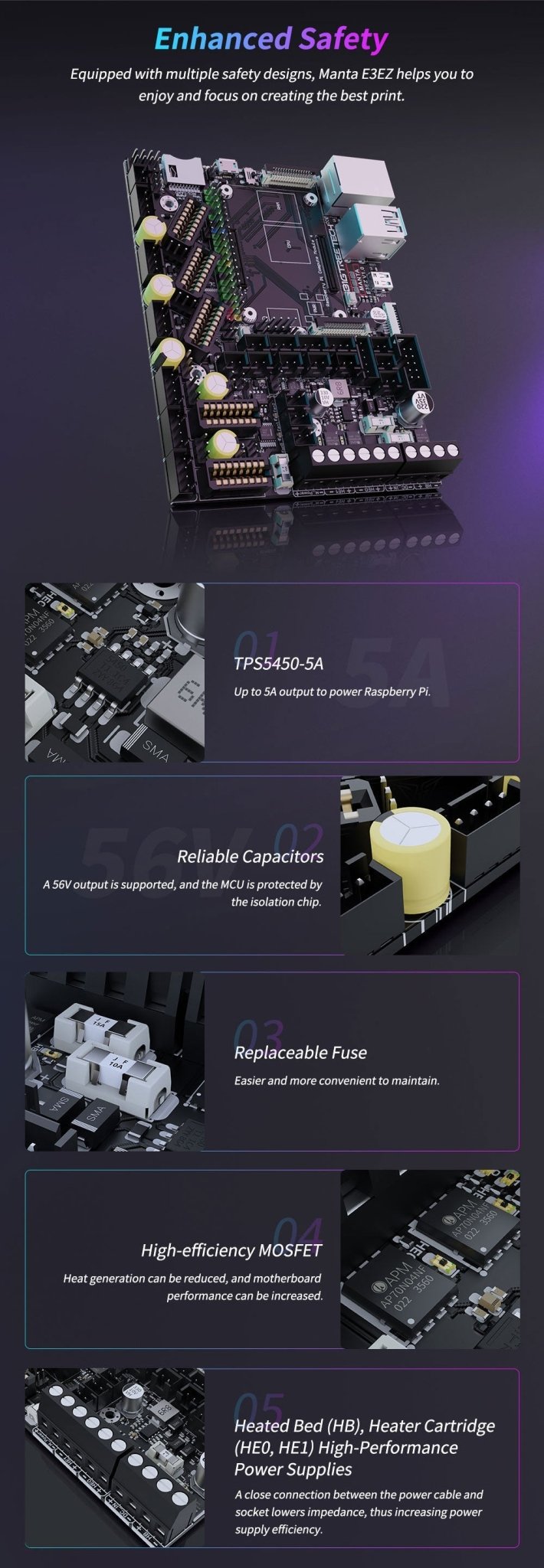

  • TPS5450-5A power supply chip supports DC12/24V power input, current output rated at 5A max continuous and 6A max instantaneous, sufficient power supply for Raspberry Pi.
  • The thermistor circuit is protected to prevent MCU damage from shorted heated bed and heater cartridge connections.

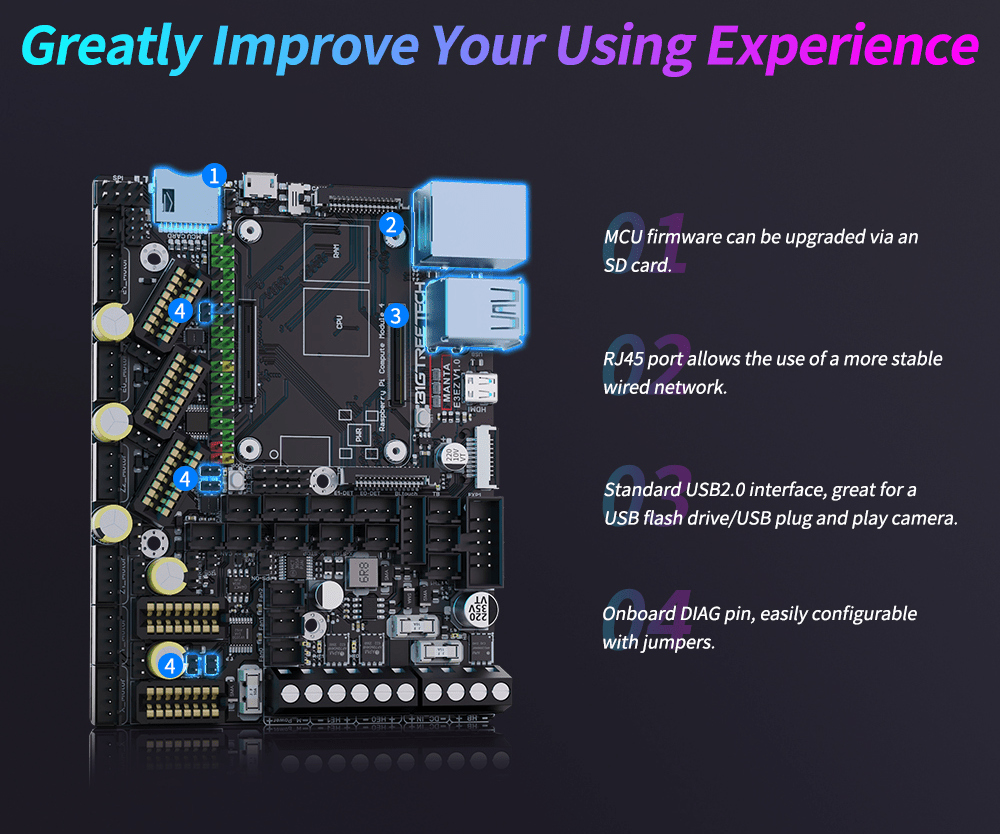

  • MCU firmware can be upgraded via SD card, or use DFU via Klipper’s make flash command.

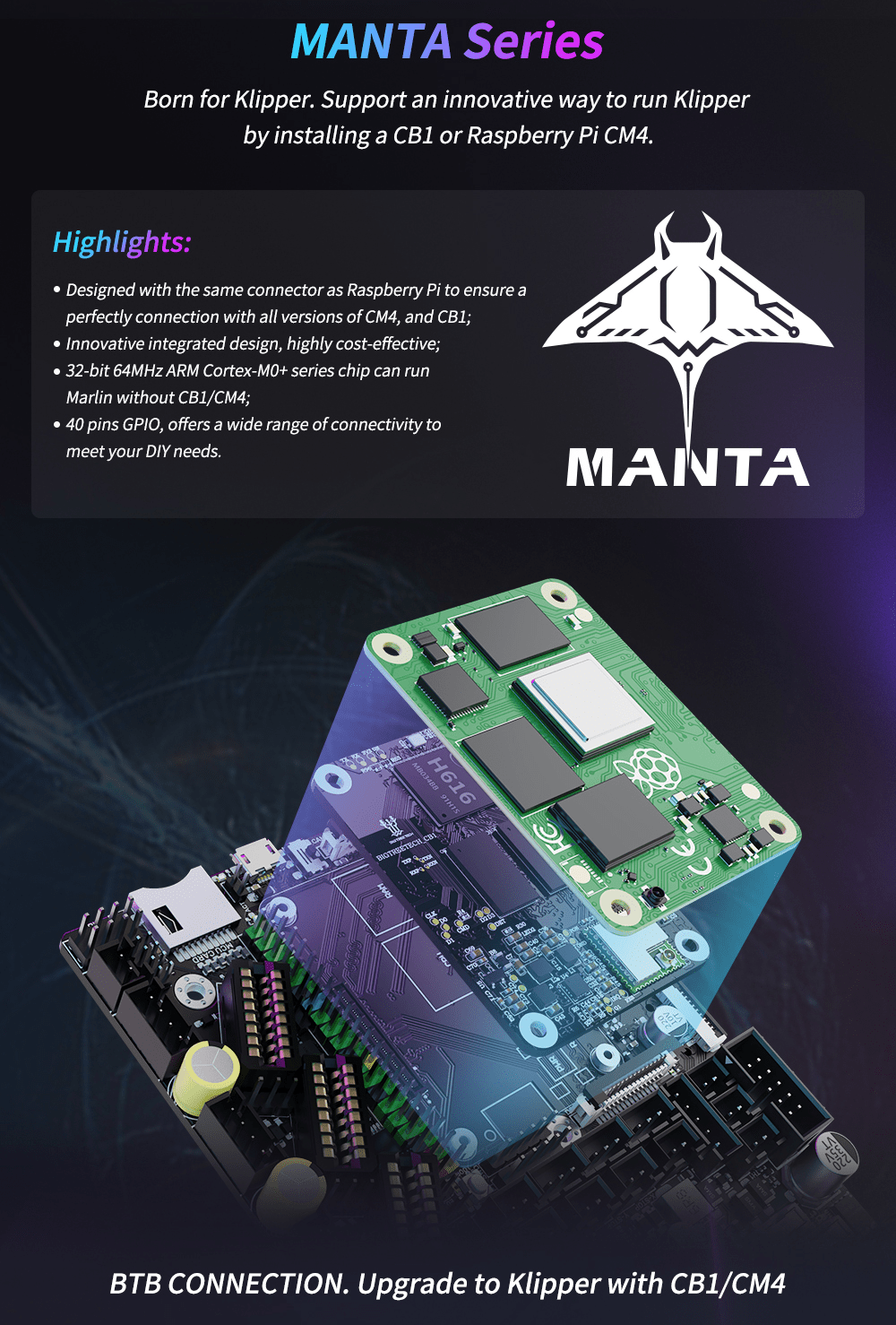

  • BTB connectors are adopted between the motherboard and core board, allowing the choice of other core board solutions in addition to CM4.

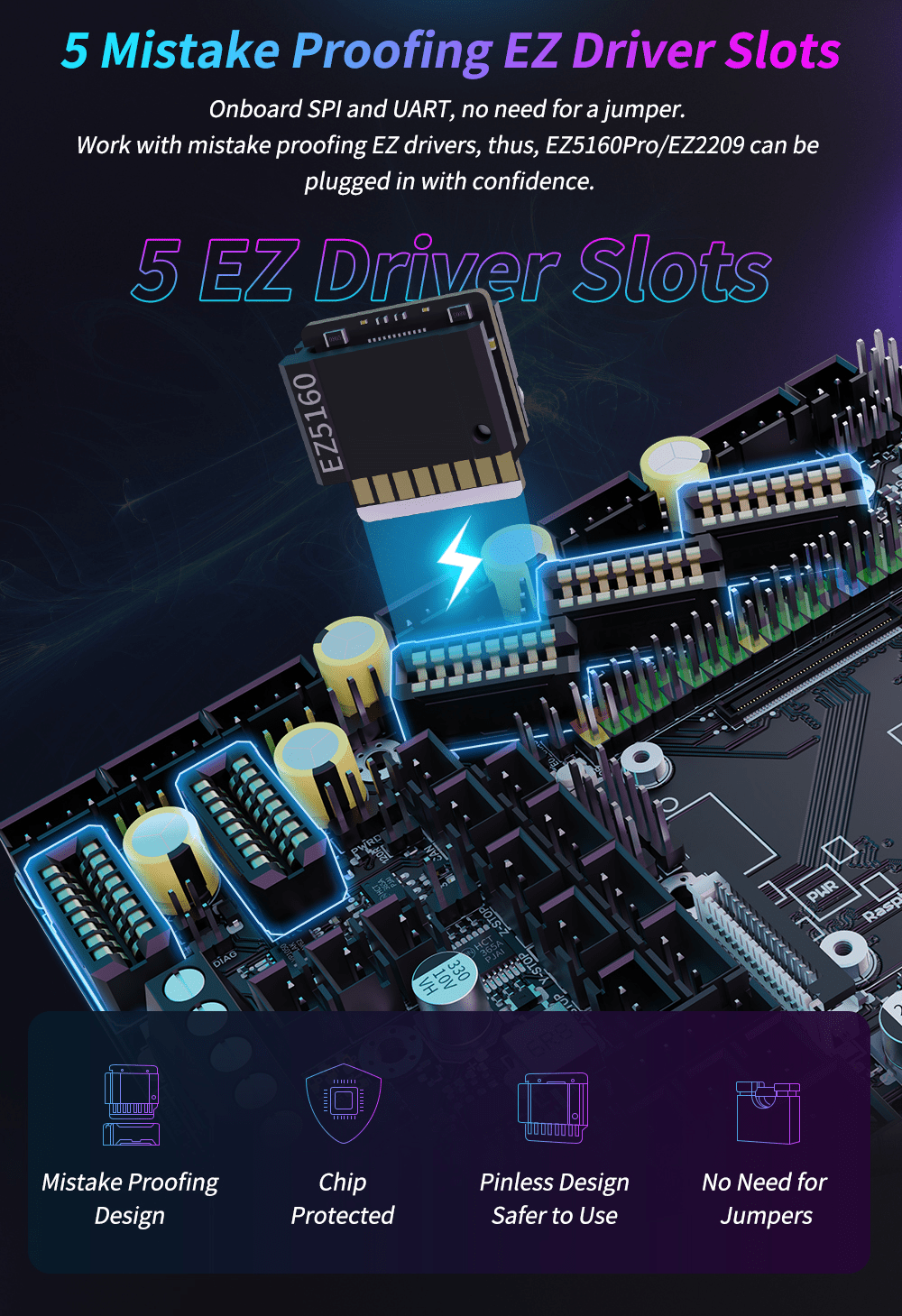

  • Onboard SPI and UART mode of EZ driver, which can be used directly without a jumper.
  • Onboard DIAG pin, easily configurable with jumpers.

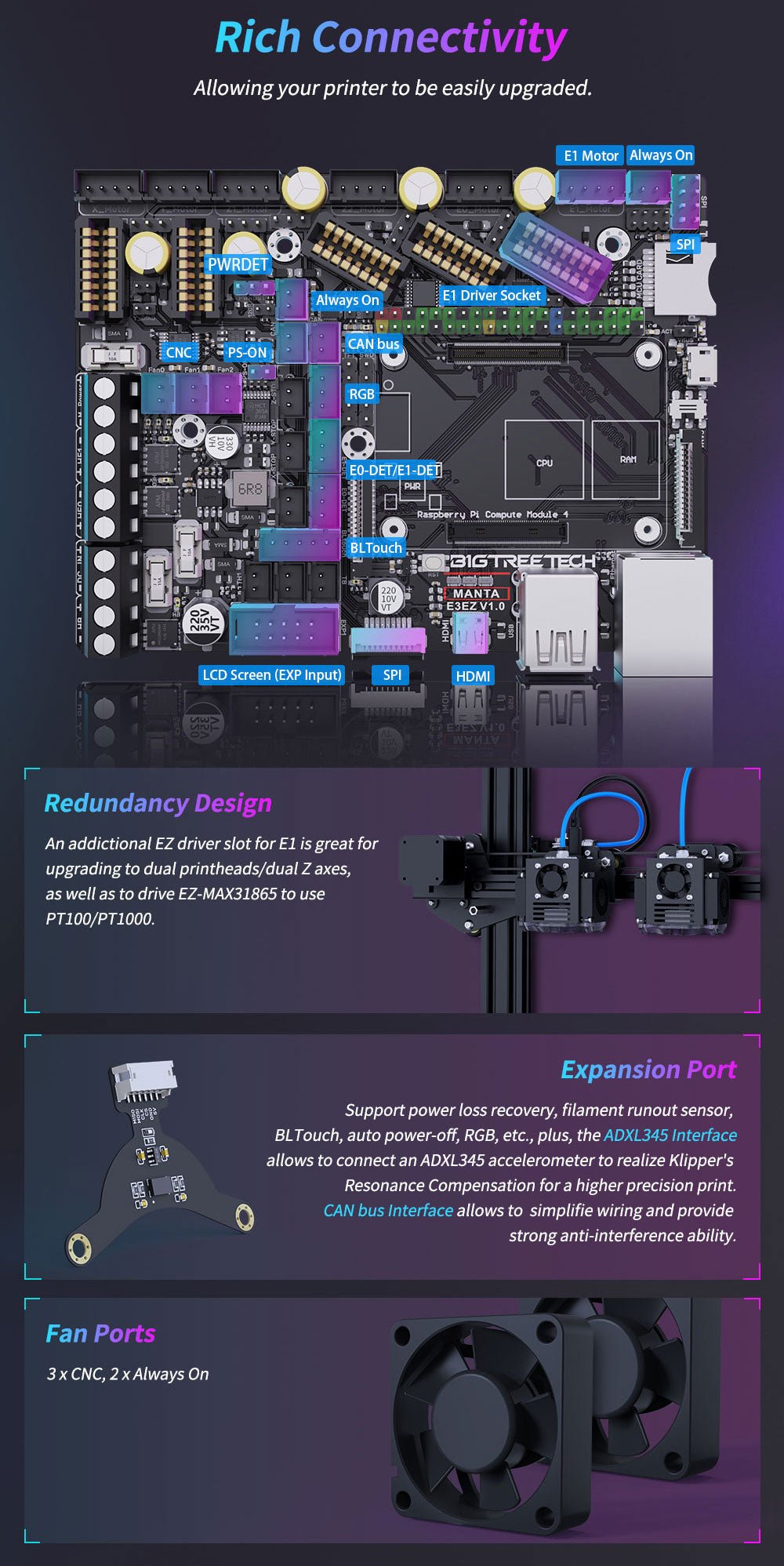

  • Support power loss recovery, filament runout sensor, auto power-off, BLTouch, RGB, etc.
  • High-efficiency MOSFET for less heat generation.
  • Replaceable fuse for easy maintenance.
  • Onboard SPI interface for connecting acceleration sensor to enable Klipper’s input shaping.
  • The temperature sensor interface adopts a high-precision pull-up resistor.
  • Each motor driver module can select the corresponding motor voltage by jumper caps
  • The motor power supply supports up to 56V, and for the larger voltage when using EZ5160, an isolation chip is used to protect the main control from shorts
