Trianglelab Rapido Ace™ Hotend UHF (PT1000) Black

TrianglelabSKU: TL-RAPIDO-ACE-PT1000

Price:
Sale price$165.00 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 1 unit left (Australia Stock)

Buy from the experts, who use and repairs 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

The Trianglelab Rapido Ace™ Hotend UHF represents a significant advancement in compact hotend design. Despite its reduced footprint, it maintains full compatibility with legacy Rapido and Dragon mounting systems through included spacers. This hotend delivers exceptional performance through an extended melt zone and elevated flow capacity within its diminished envelope. The replaceable ceramic heating element reduces long-term maintenance costs while the integrated PT1000 temperature sensor provides precise, stable thermal readings for consistent extrusion control. The innovative split stainless steel flange minimises thermal conductivity losses from the heating block and protects the filament pathway during assembly. A dual-stage insulated heat sink design effectively isolates the heating block from mounting hardware, preventing unwanted heat transfer up the assembly and maintaining optimal thermal management throughout extended print sessions.

Note: You can run either HF or UHF by removing the MZE extender. This listing is only for UHF Edition PT1000

Features:

  • Smaller heat sink size, but still compatible with previous Rapido or Dragon mounting parts using a spacers. Multiple mounting holes on the top allow for multi-angle mounting of your print head.
  • Longer melt zone and higher flow rate in the even smaller overall size.
  • Ceramic heating element is replaceable and more cost-effective to maintain.

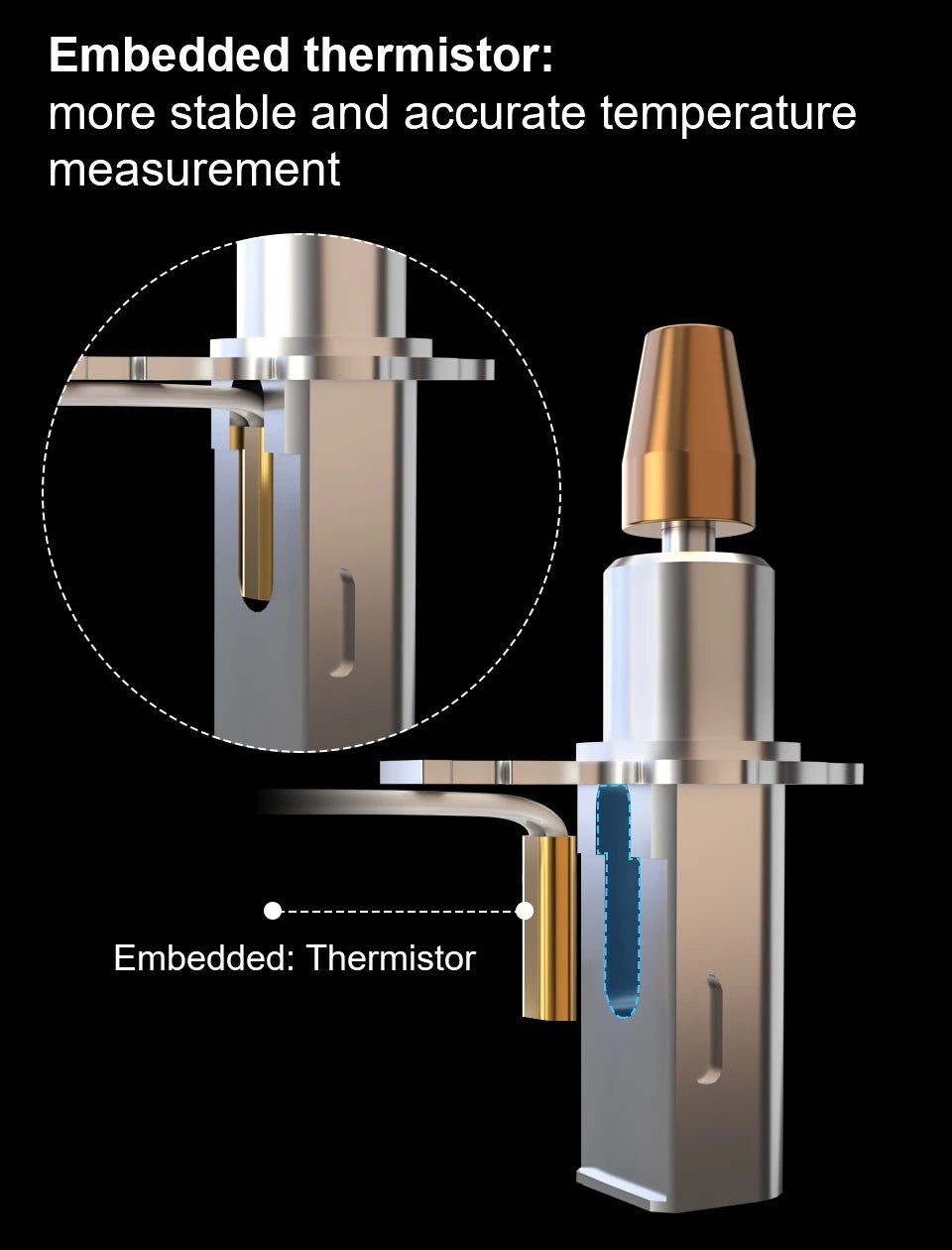

  • Carefully designed internal temperature sensor for more accurate and stable heater block temperature readings.
  • The split stainless steel flange design reduces heat loss from the heating block and also reduces the potential for damage to the filament capillary path during tightening.

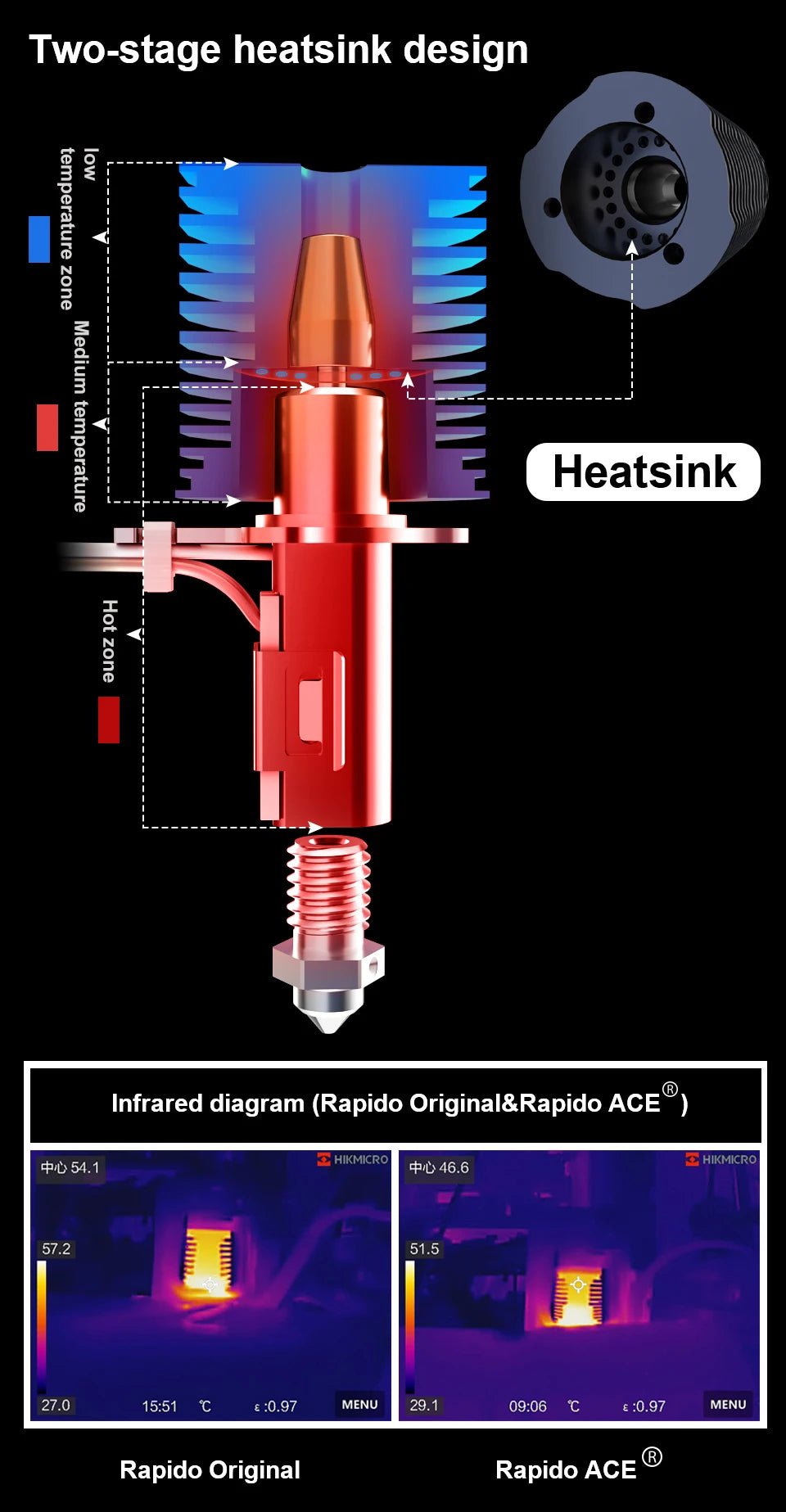

  • Two-stage insulated heatsink design prevents heat from the heating block mounting screws from being conducted further upwards. (See infrared image)
  • The tapered heatsink cooling section ensures effective and tight contact. The cold end of the heat breaker only comes into contact with the coldest top of the heatsink, ensuring that the cold end temperature of the heat breaker is as low as possible, reducing the likelihood of heat creep.
  • Maximum practical flow rate of 65mm³/S. (PETG@265℃ φ1.2mm nozzle)

For detailed documentation:

please see the following link:

https://drive.google.com/drive/folders/1JpKY0K64ezeTtLR7X6bPHKADfP-oV6TX

Spare Part Listing: https://store.dremc.com.au/products/trianglelab-rapido-ace%E2%84%A2-hotend-spare-parts
