Revo™ ObXidian / ObXidian 500 Nozzle (HF / SF Edition)

E3DSKU: RC-NOZZLE-OBX-0250-AS-SPK

Material: ObXidian (SF)
Nozzle Kit: 1 Nozzle (0.25)
Price:
Sale price$105.45 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 1 unit left (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

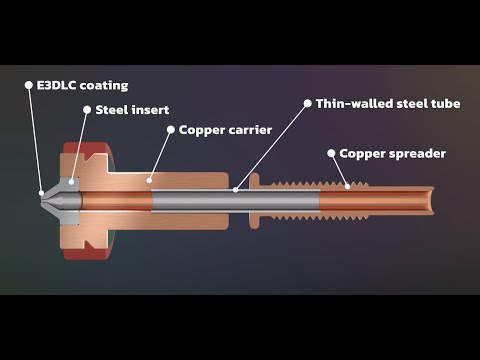

The ObXidian nozzle offers wear resistance far surpassing any other E3D nozzle, exceeding the hardness of Nozzle X and all other standard hardened steel nozzles by several orders of magnitude. This exceptional durability comes from combining a tool steel insert with the innovative E3DLC™ coating. This unique coating also provides built-in non-stick features, significantly reducing plastic buildup around the nozzle during use.

Note: For filled filaments such as CF/GF, we do recommended larger than 0.5mm nozzle.

What is Included:

  • 1x E3D Revo ObXidian Nozzle (HF or ST depending on your selection) (ObXidian 500 or ObXidian depending on your selection)

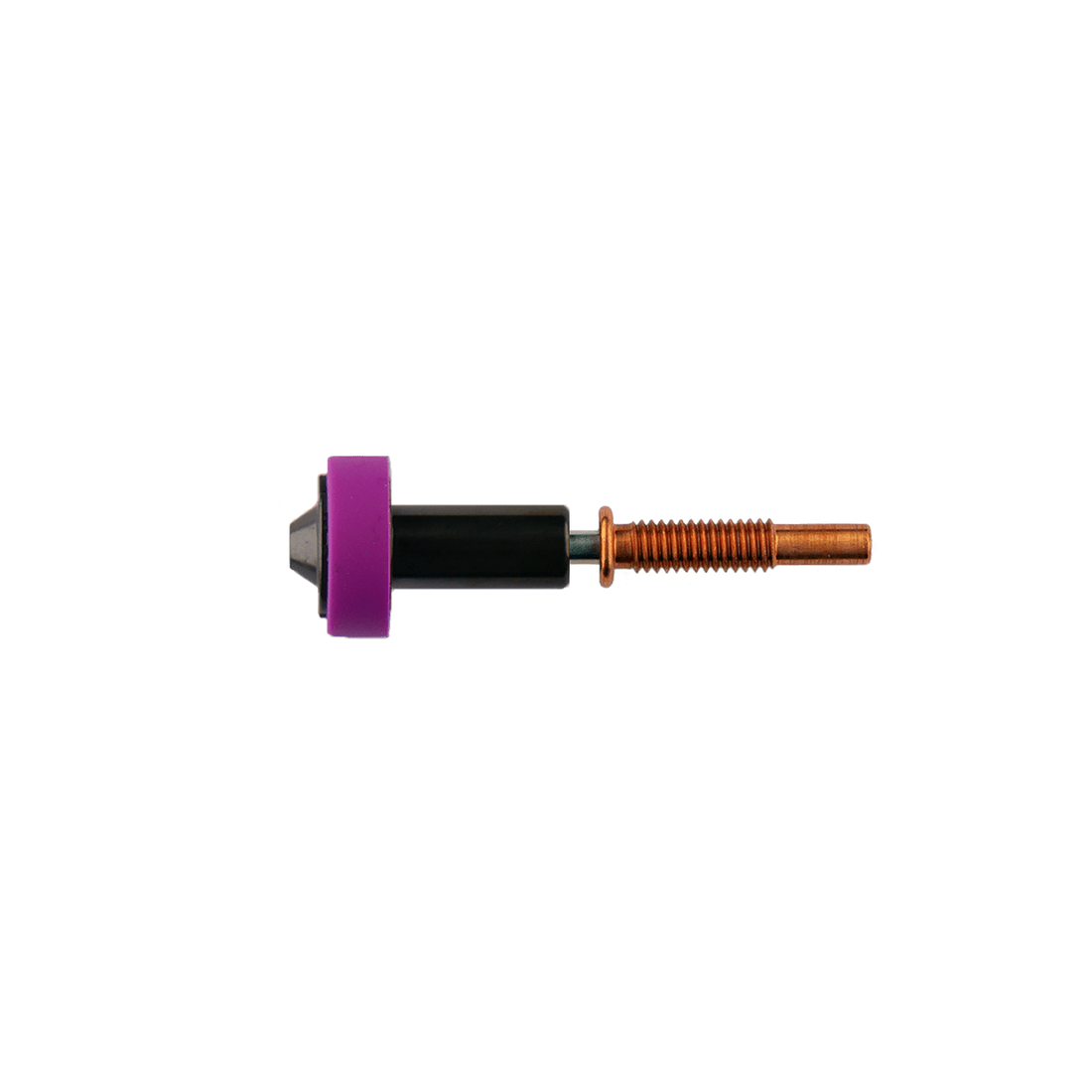

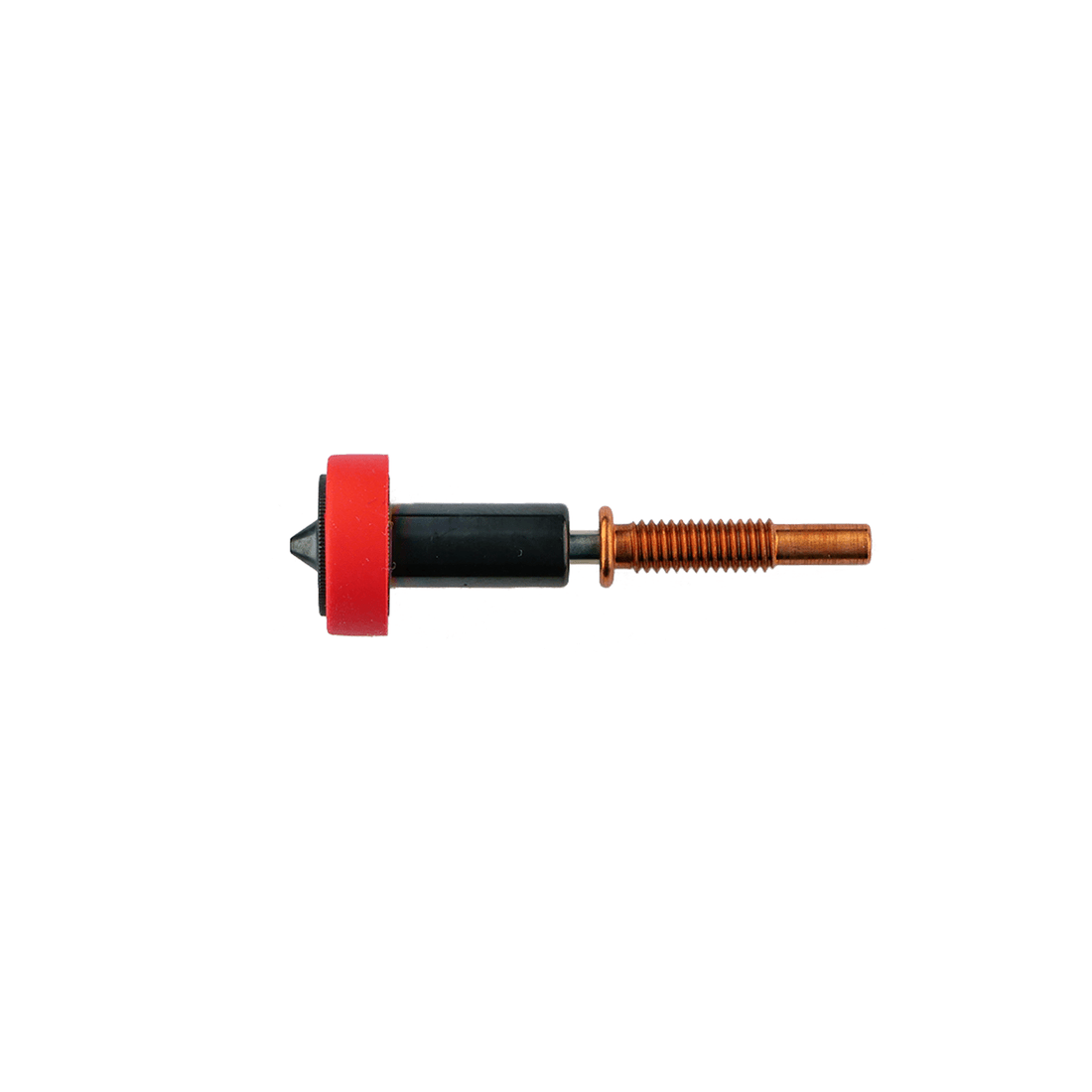

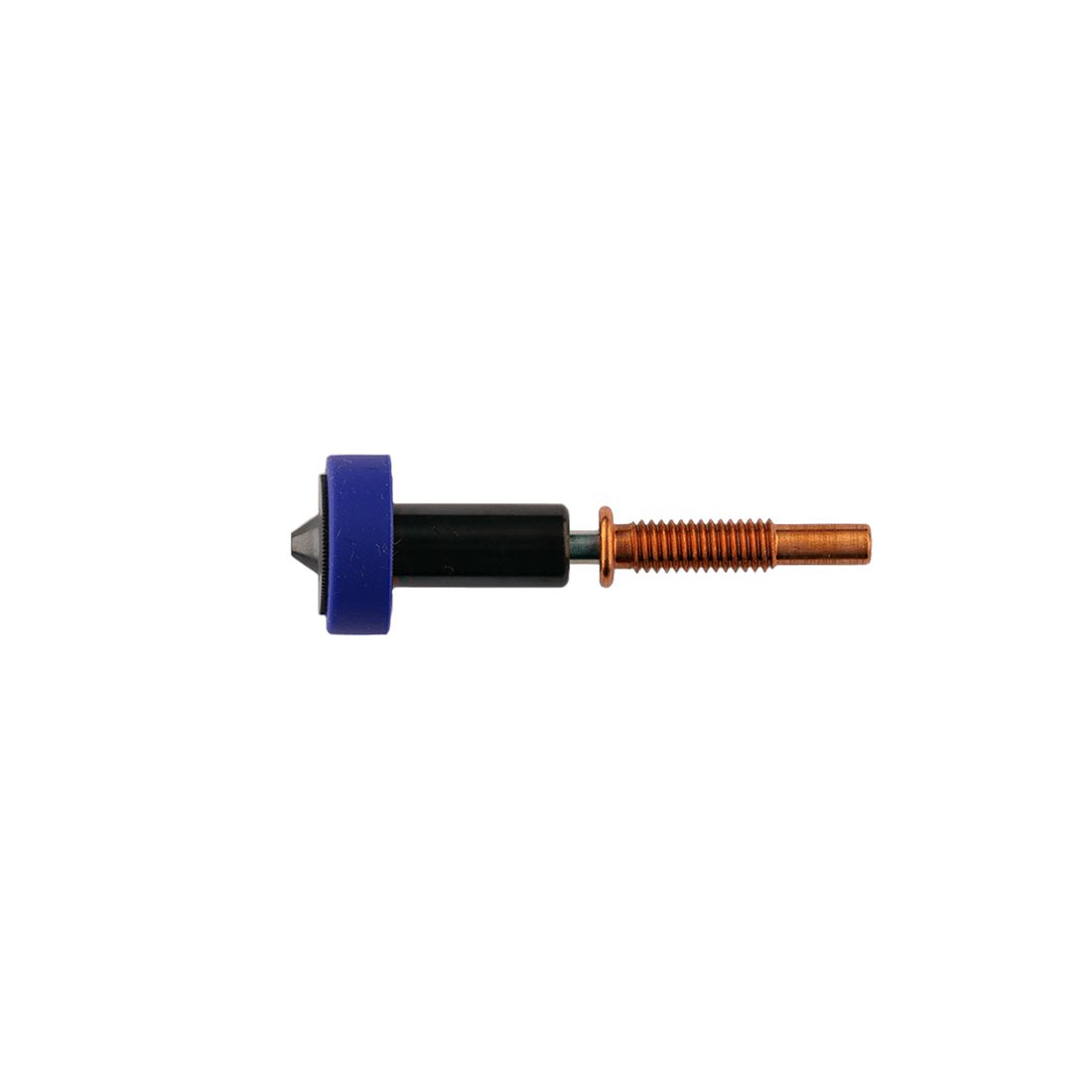

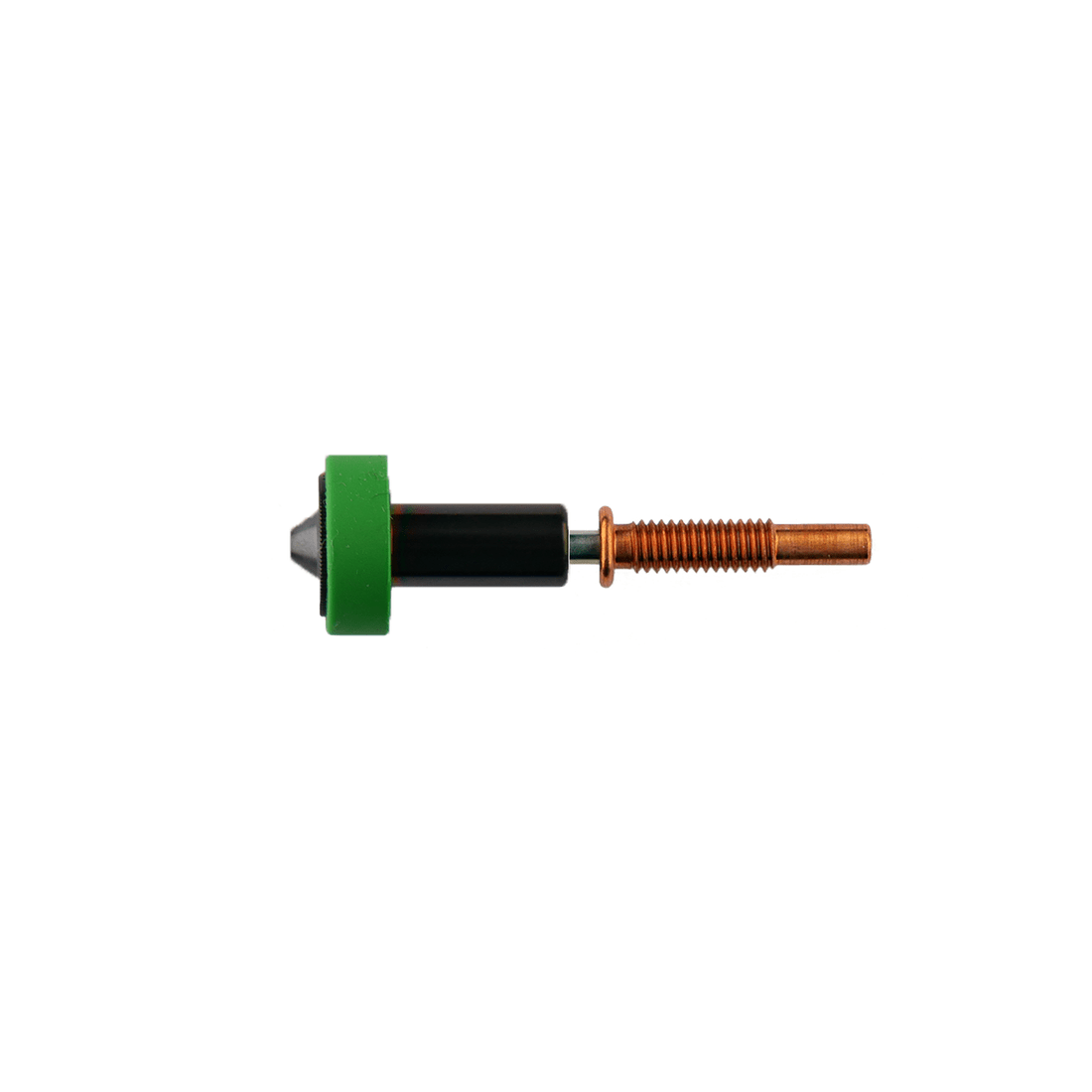

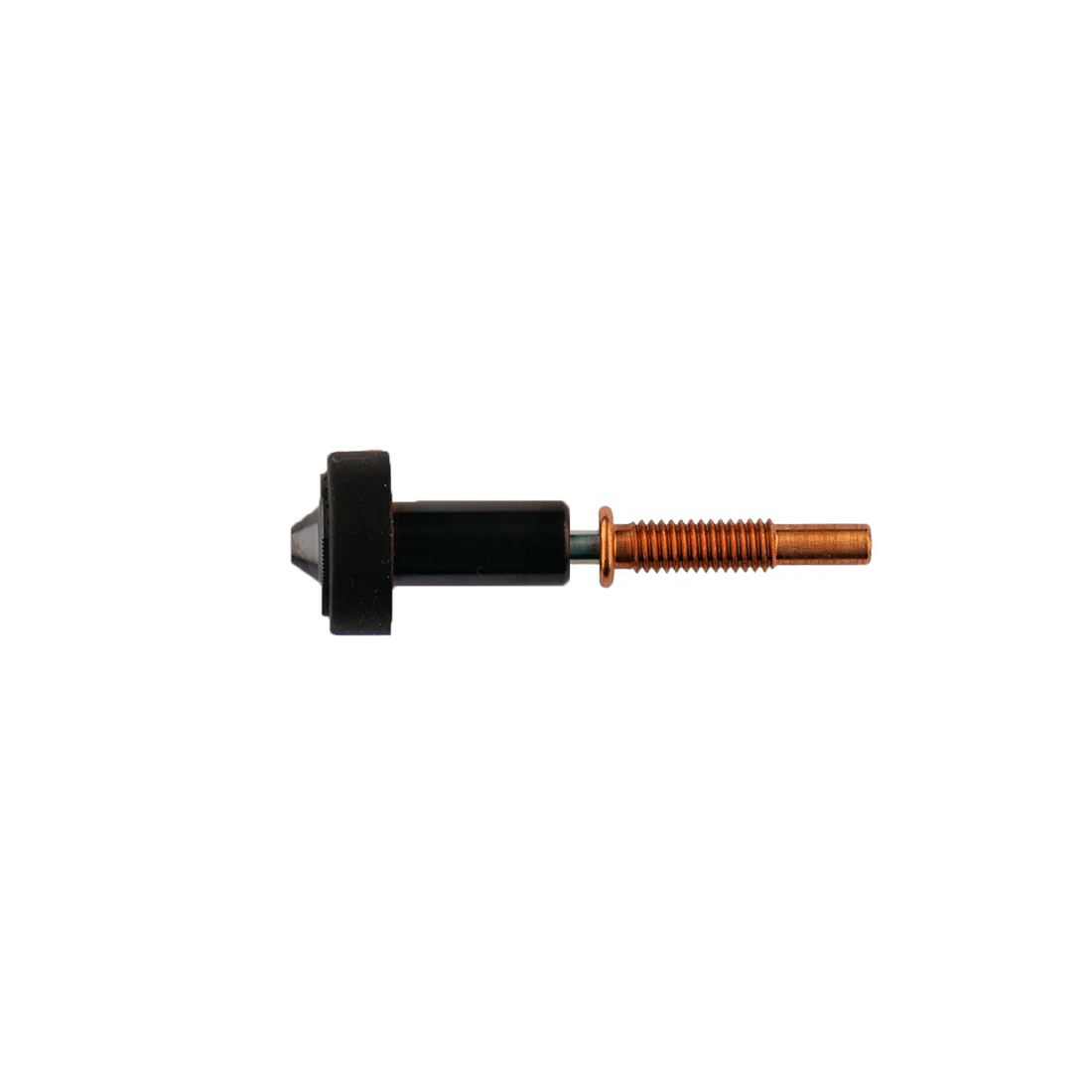

HF Edition Features:

Higher Flow.

Revo ObXidian™ High Flow increases your setup's volumetric flow rate, enabling you to print abrasive materials faster!

How does this work?

Revo™ High Flow maintains the exact same form factor as standard Revo HotEnds; this means there is no need to adjust your pre-existing mount and fan duct setups! These High Flow nozzles use a unique custom internal geometry to increase the surface area for improved thermal transfer to the filament.

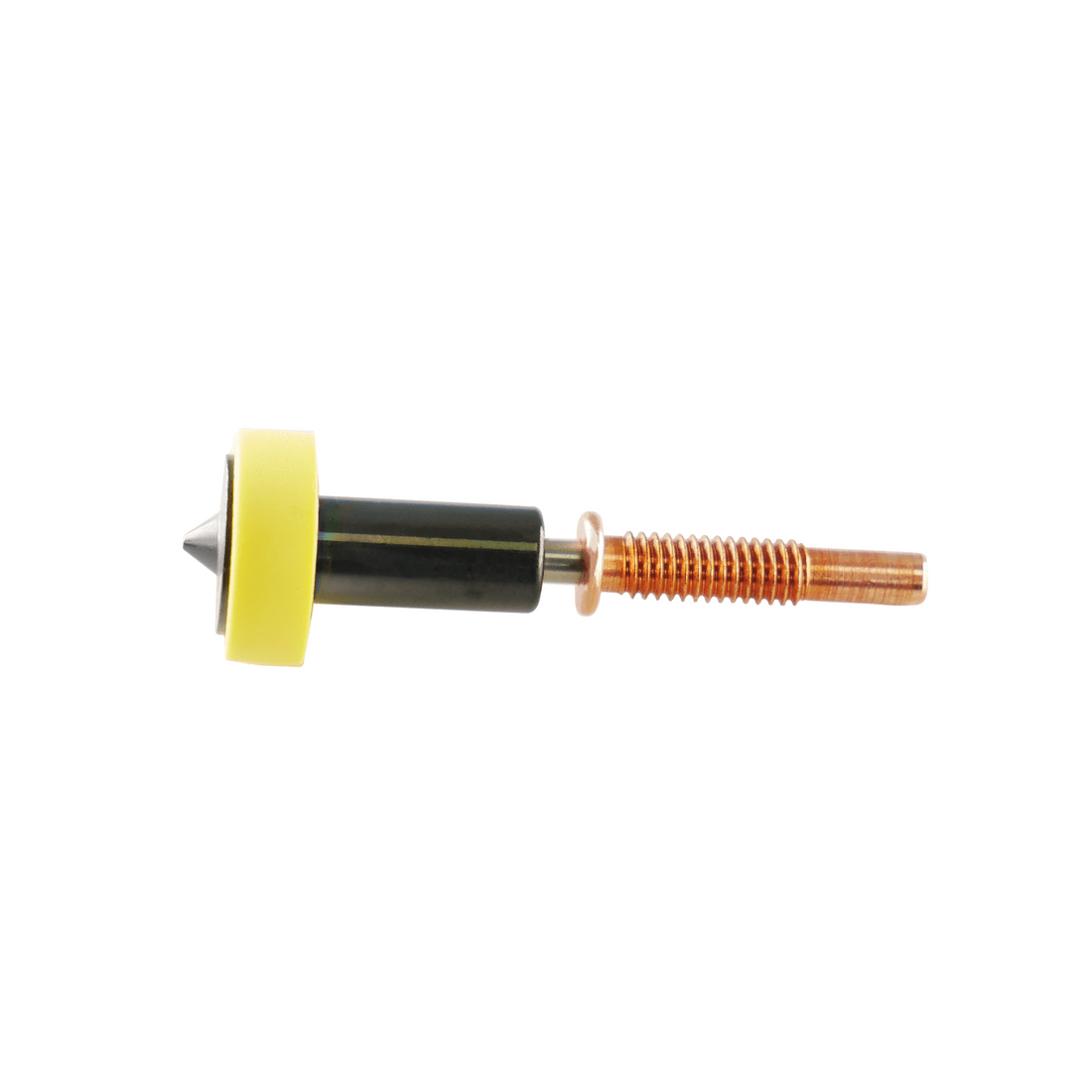

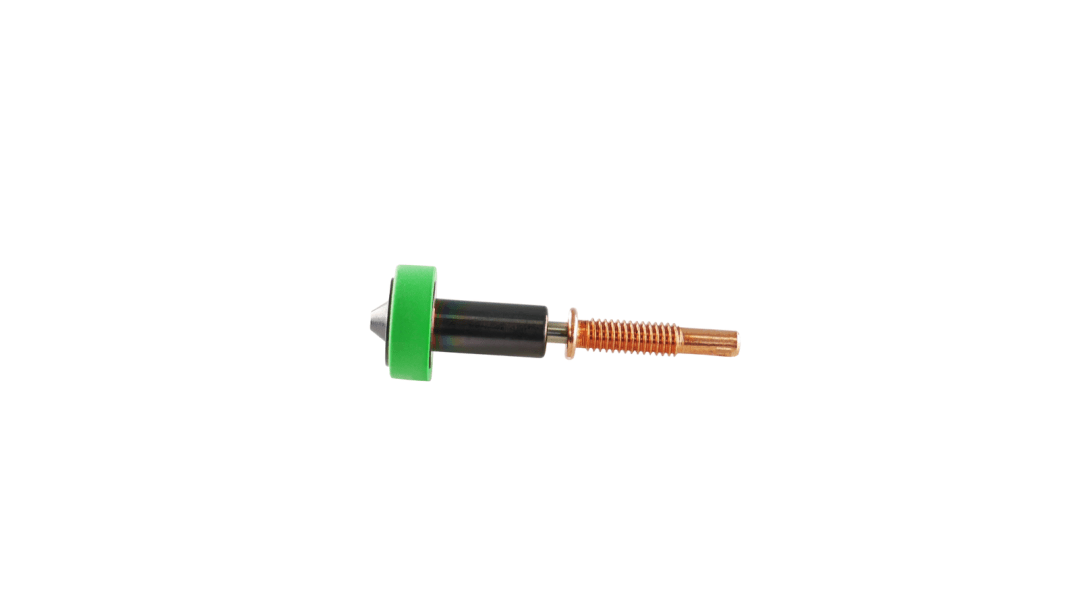

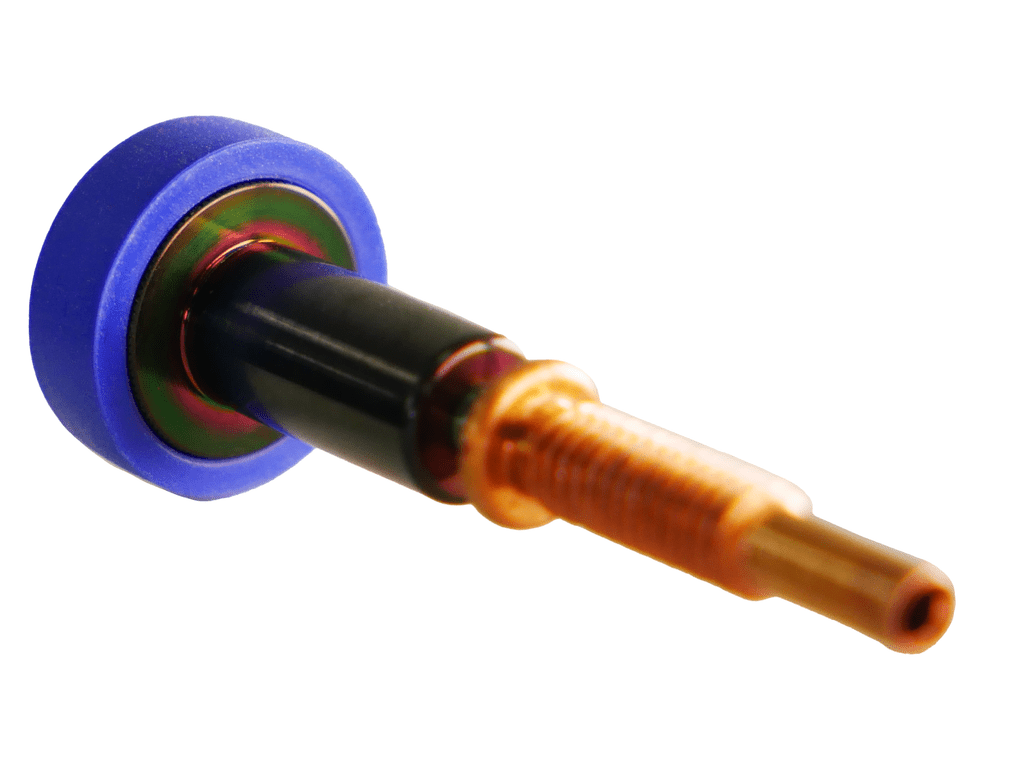

SF Edition Features:

Experiment freely.  With nozzle swapping this easy, you’re free to experiment with nozzle sizes you might not have used before. Set your 3D printer up for ultra-fine or ultra-thick extrusion widths in no time at all. Print large objects in less time or tiny objects with high resolution.

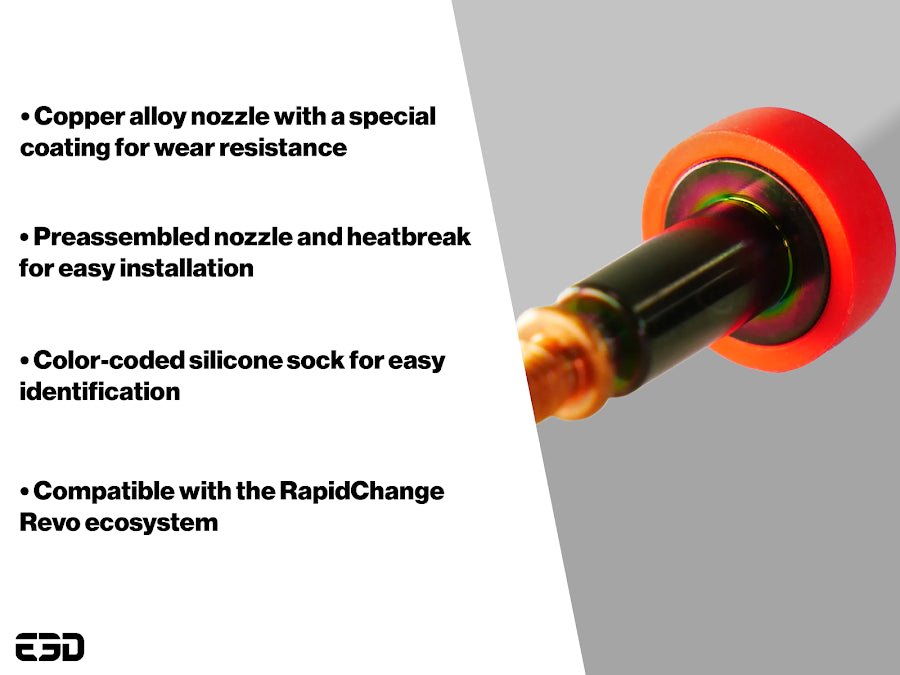

Frustration-free.  Each Revo Nozzle is a preassembled nozzle and HeatBreak in one unit, so there’s no hazardous hot tightening and no chance of incorrect assembly. Say goodbye to frustrating HotEnd leaks and enjoy reliable 3D printing!

Rapid identification.  Identify nozzle sizes at a glance, thanks to a colour-coded silicone sock. Plus, each Revo Nozzle has its size engraved into it with easy-to-read numbers, so there are no confusing identification markers to learn!

An expanding range.  We’re ready to make RapidChange Nozzles in any size. Currently, we have brass nozzles in 0.15mm, 0.25mm, 0.4mm, 0.6mm and 0.8mm, with many more compatible nozzles to follow later. Wear-resistant and high-flow variants are already on our roadmap and will follow over time.

Please note:

  • Revo™ Nozzles are not compatible with V6-style heaterblocks
  • You may need to adjust your Z offset when changing nozzles.
  • ObXidian™ coated nozzles are exceptionally wear resistant compared to other products on the market and significantly outperform other hardened nozzles. Improvements in ‘exotic’ engineering filaments mean that some new materials which include aggressive fillers, including but not limited to Polymaker’s PolyMide range (PA612-CF, PA6-CF, PA6-GF and PA12-CF), can cause significant wear on even ObXidian nozzles. E3D is actively developing even more specialist solutions for these materials. In the meantime please be aware that even the rainbows and unicorns in your ObXidian nozzle are not everlasting under extreme material conditions.
  • Some filled materials contain particles that are close to, if not larger than, some of the smaller industry standard nozzle sizes, including up to 0.4mm. Attempting to print such materials through these nozzle sizes significantly increases the risk a jam. Please check your filament manufacturer’s datasheet for recommended minimum nozzle orifice diameter to ensure that the nozzle/hotend you choose is suitable for your use case.

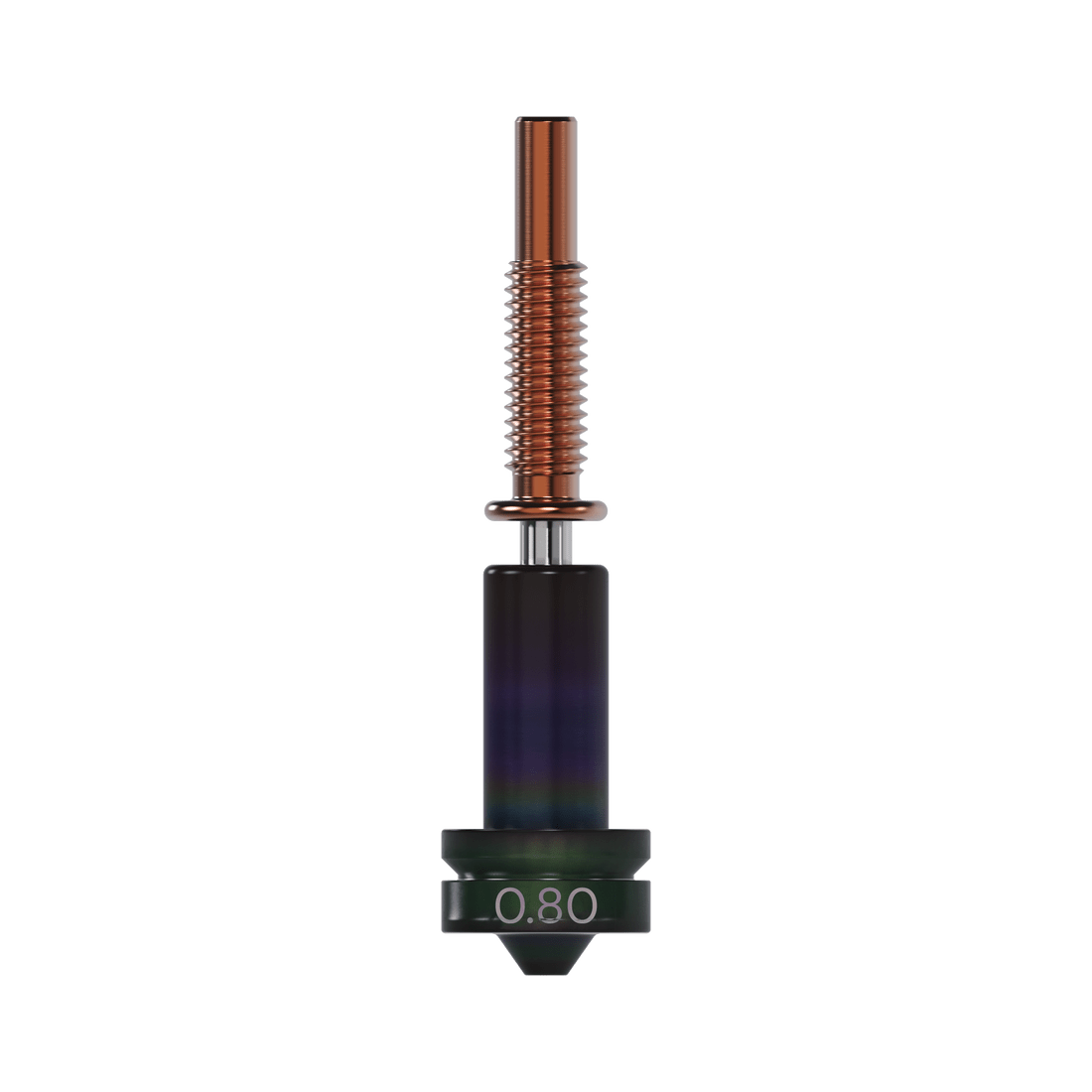

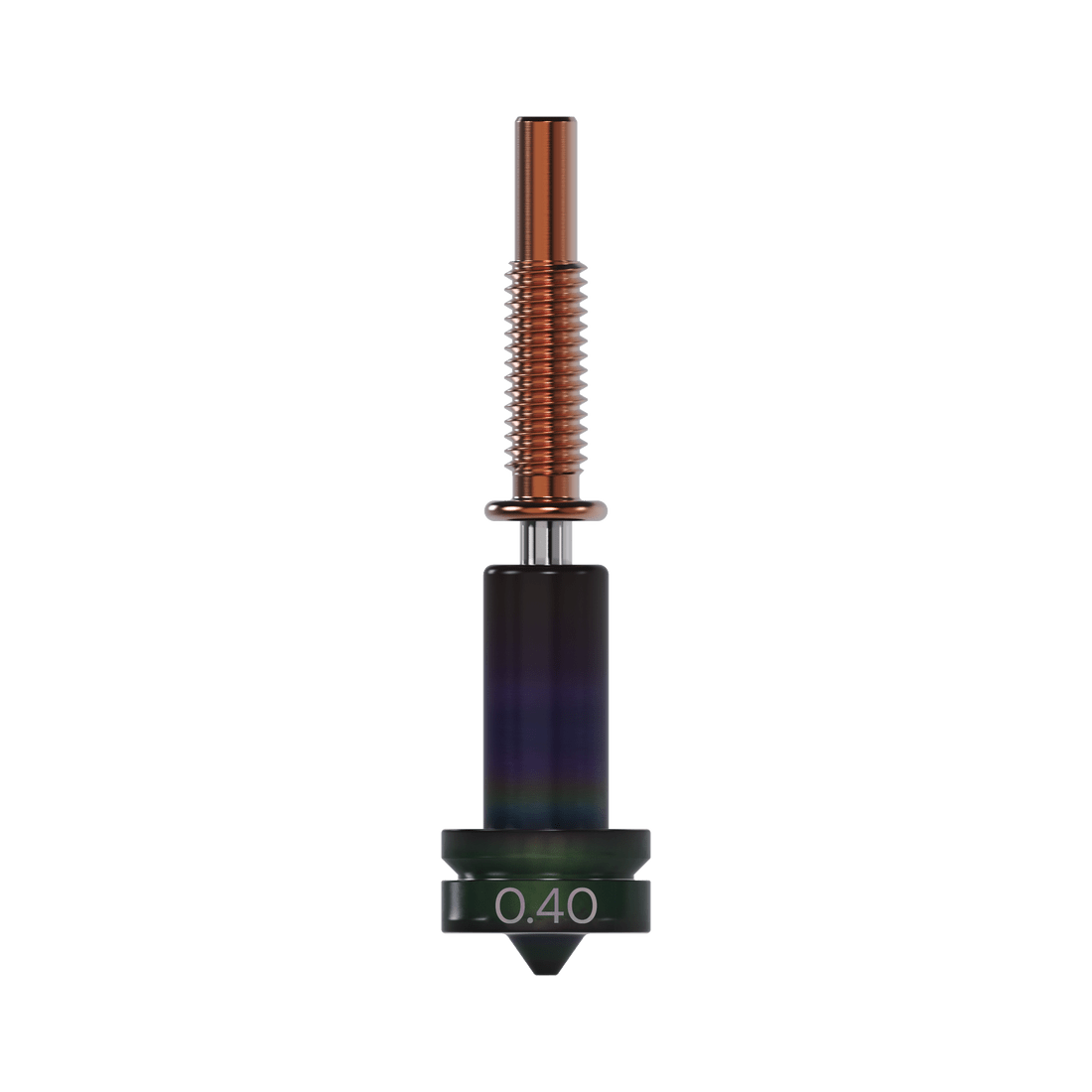

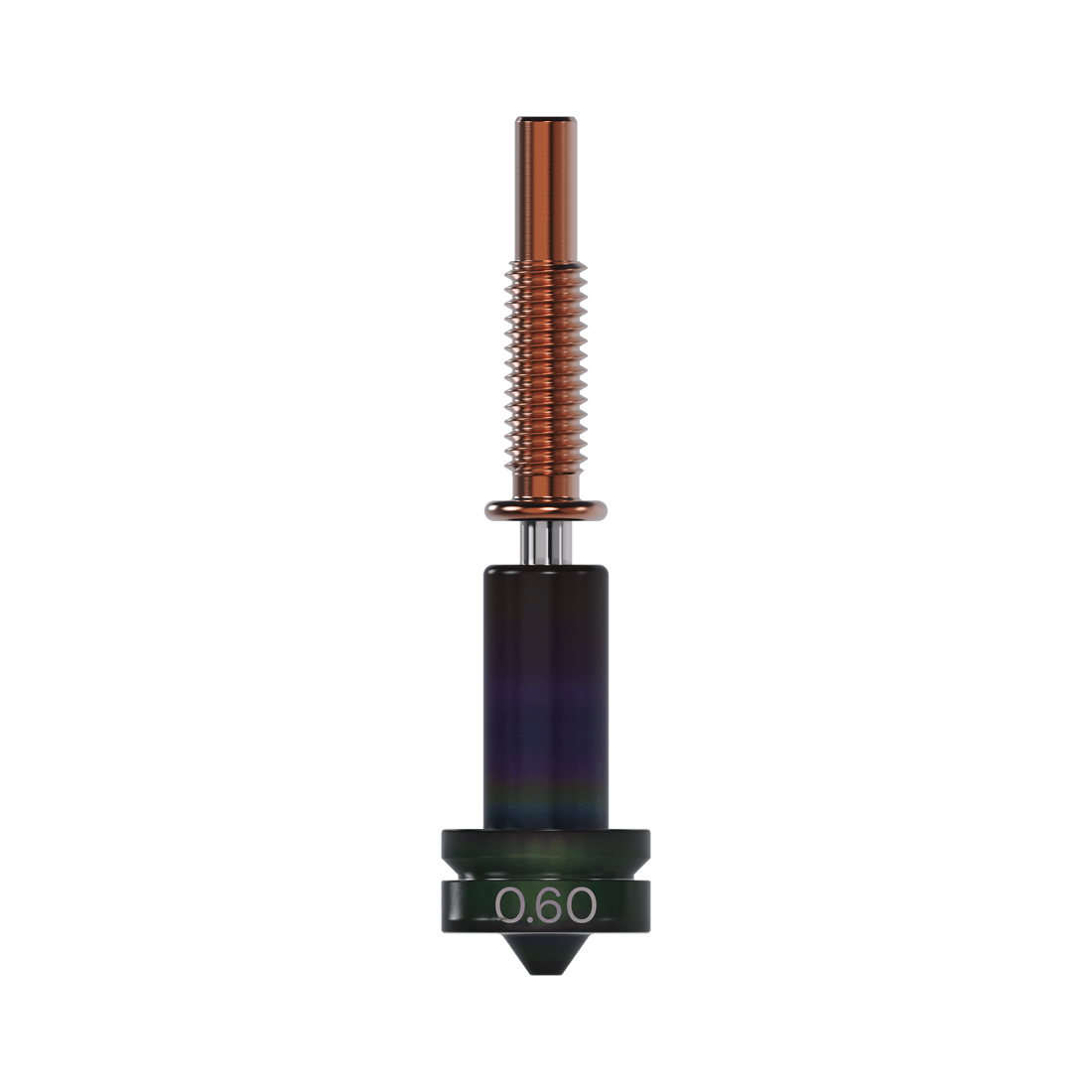

Should I choose the ObXiDian 500 Version or the ObXidian version?


This comes down to a question of longevity and intended use case. To give a comparison, ObXiDian 500’s wear performance is increased over ObXidian by at least a factor of five so it will last much longer and therefore need swapping out a lot less often. Also, a lot of popular abrasive materials simply won’t wear an ObXiDian 500 nozzle whereas they would eventually wear an ObXidian nozzle (albeit slower than a hardened steel nozzle). Also, the printing temperature of the ObXidian variants are limited to 300°C whereas with ObXiDian 500 you can print up to 500°C (depending on the maximum temperature of your printer).


Will the nozzle ever wear?

Yes, given enough time the nozzle may exhibit wear, but will do so considerably slower than a Hardened Steel nozzle. Expected product life is difficult to quantify due to the numerous variables involved, including base polymer, additive, brand, temperature, and print speed.


Can I still print with normal filament like PLA?


Absolutely! Even using the standard print profiles, you will notice more consistent visual consistency due to improved thermal performance and flow boosting of the high flow variants, enabling you to have stronger, better-looking parts.


What’s the benefit of this product if my printer doesn’t actually reach 500°C?

You will always be restricted by the maximum printing temperature of the machine that you have installed Revo on so please ensure you double check this before you start printing. However, even printing at lower temperatures you will still get all the other benefits of the product such as the extreme abrasion resistance which enhances longevity, and the non-stick coating on the nozzle which makes it easier to clean and reduces plastic build-up/print defects.
