NiteHawk 36 Toolhead by LDO (Rev C)

LDOSKU: LDO-NH36-KIT

Price:
Sale price$80.00 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 1 unit left (Australia Stock)

Buy from the experts, who use and repairs 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

The NiteHawk-36 by LDO is a toolboard with an RP2040 MCU, TMC2209 stepper driver, ADXL345 accelerometer, and USB port. Its USB Hub/Header connection simplifies setup and supports adding a webcam or eddy current probe.

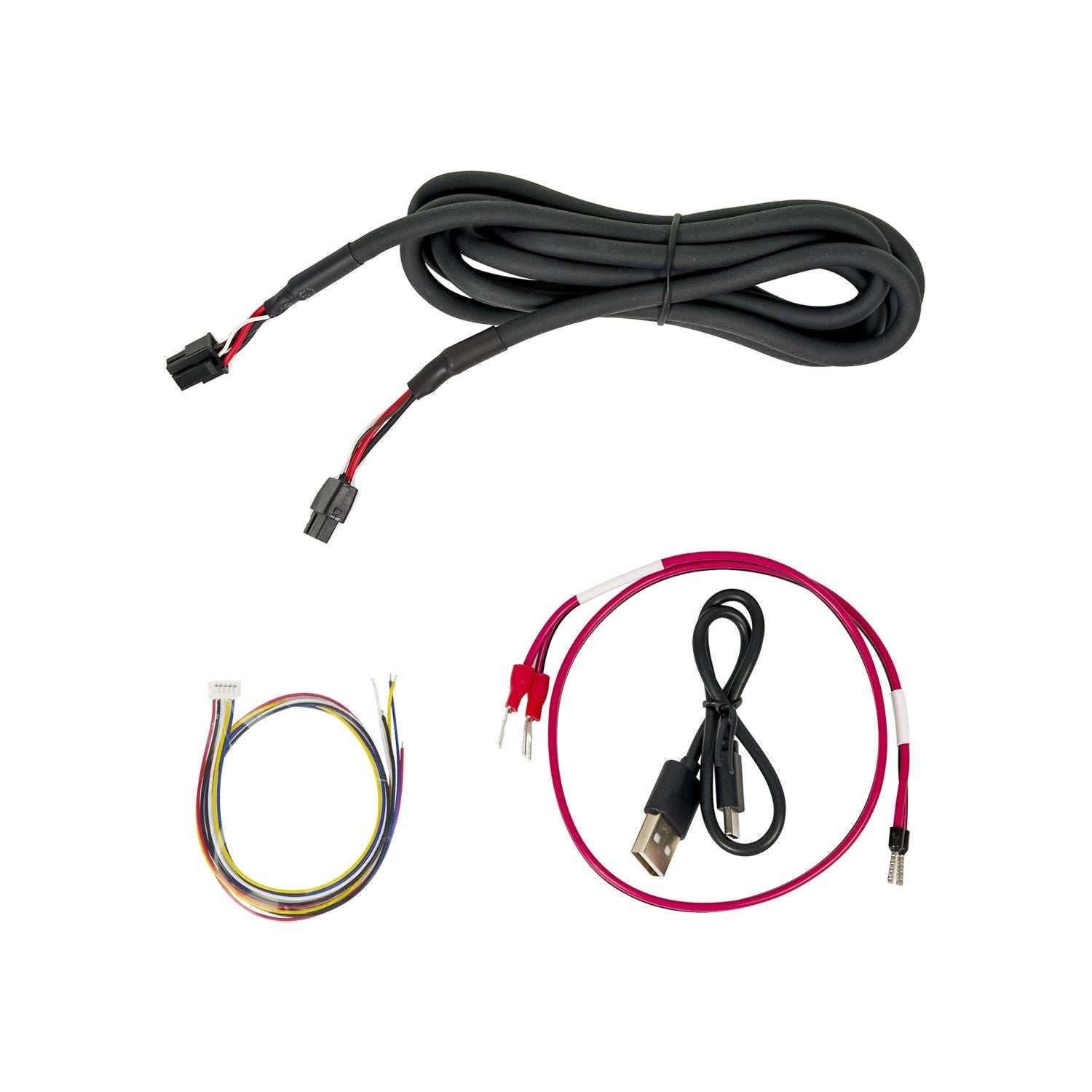

Note: Current in stock is Rev C board with Rev A accessory as shown in picture #2 with fully moulded cable, orders from 3th April 2025.

Documentation:

Github: https://github.com/MotorDynamicsLab/Nitehawk-36

LDO Doc: https://docs.ldomotors.com/en/Toolboard/nitehawk-36

The LDO Nitehawk36 (NH36) USB Toolhead board has received (finally) a revised version, the v1.4, which addresses the issues present in earlier versions while maintaining its core features, including the integrated USB hub

Major Differences in v1.4

  1. New Toolhead Board:
    • A redesigned toolhead board with improved functionality while keeps almost the same layout and size format.
  2. New USB Breakout Board:
    • The USB breakout board has been updated, possibly for better connectivity or compatibility.
  3. Metal Shield on the Toolhead:
    • A metal shield has been added to the back of the toolhead. This encapsulated shield is designed to:
      • Protect the core components.
      • Improve durability.
      • Potentially enhance electromagnetic interference (EMI) shielding.
  4. More Mounting Points:
    • The revised design includes additional mounting points on the bottom of the board for better stability and compatibility with various setups.

Features

  • Convenient wiring, no more complicated and error prone breakout cables - nitehawk only requires 24V power and a USB connector to the RPI host.
  • USB Klipper connection, no additional software or hardware setup compared to CAN.
  • Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable.
  • Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be used in umbilical configuration.
  • Convenient Input Shaping, run input shaper calibration at anytime with an onboard accelerometer.
  • Tacho enabled HEF, the hotend fan port is three pin tachometer compatible, allowing for additional diagnostics and safety.

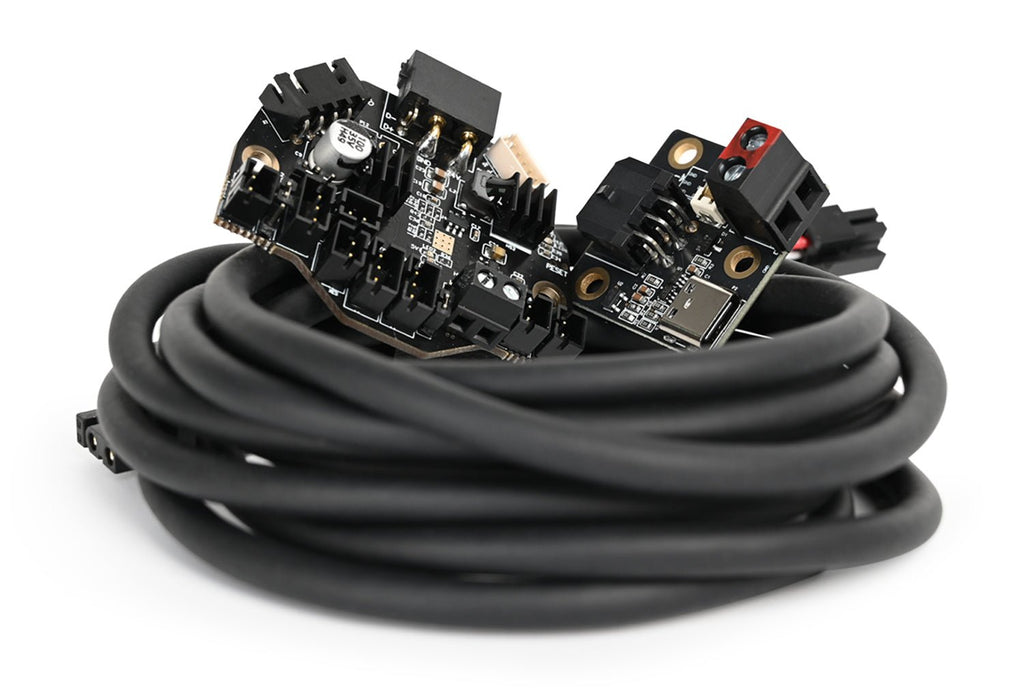

What Included In Kit:


QTY

Toolhead PCB

1

USB Adapter PCB

1

USB Umbilical Cable 2.15m

1

USB-A to USB-C Data Cable, 0.4m

1

24V Power Cable

1

USB Hookup Cable

1

Self-Tapping Screw, M2x10

3

Machine Screw, SHCS, M3x8

2

Machine Screw, SHCS, M3x12

4

MicroFit3 style Male Connector, 3x2pin

1

MicroFit3 style Female Crimp Terminal

8

XH2.5 Female Connector, 4pin

1

XH2.5 Female Crimp Terminal

8

PH2.0 Female Connector, 2pin

5

PH2.0 Female Connector, 3pin

3

PH2.0 Female Crimp Terminal

30

Ferrule, 1008

4

Ferrule, 0508

4
