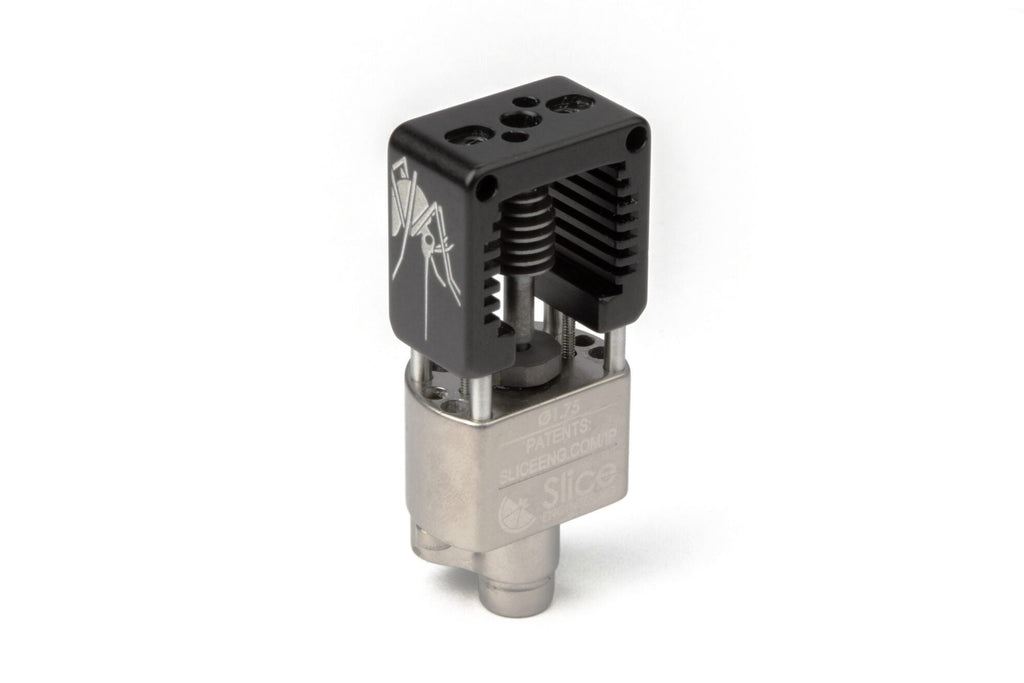

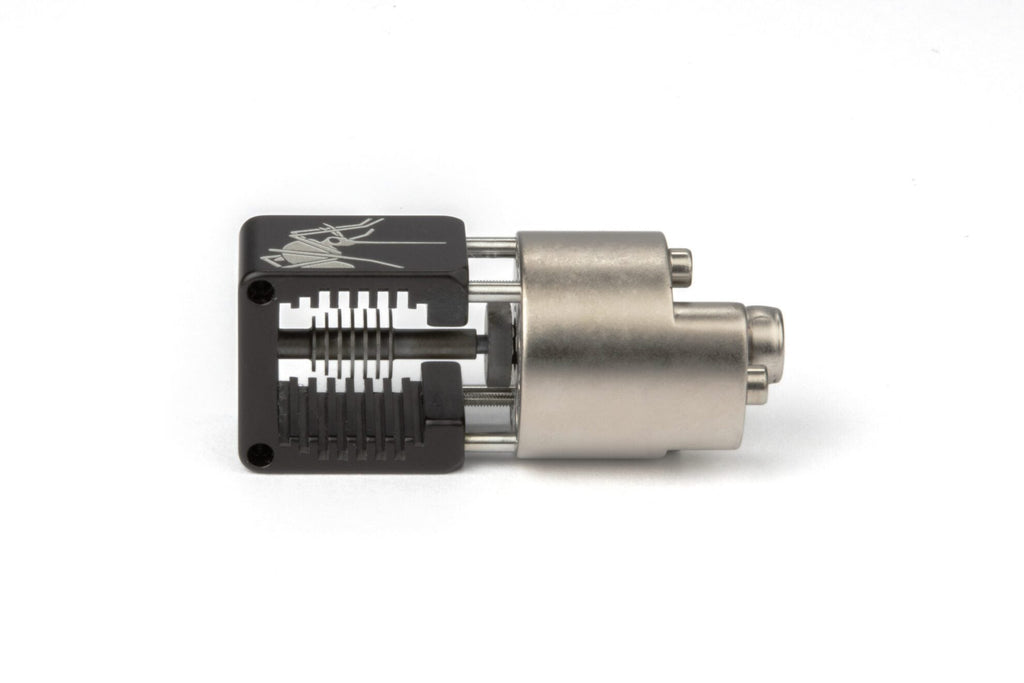

Mosquito Magnum+ Air 1.75mm

The Mosquito Magnum+ Liquid is the High Flow Mosquito hotend for industrial and high flow applications.

Mosquito Magnum+ supports up to 2 heater cartridges and 2 temperature sensors.

 Assembly Guide: https://support.sliceengineering.com/portal/en/kb/articles/test-26-5-2021

 Note: Does not include nozzle, heater, thermeristor

Industry Leading Hotend

Includes all of the industry-leading benefits of the Mosquito® product line, such as Bimetallic Heat Break™ technology, a 500 °C temperature rating, ability to print all filaments from basic PLA to medical-grade PAEK, and the rigid roll cage structure that enables our famous One-Handed Nozzle Change™…

Thermally Optimized

• Filament contacts the hot block directly for maximum heat transfer efficiency
• Enhanced structural strength, ideal for large format printers, and non-planar printing
• Print PLA up to 88 mm3/s and ABS up to 91 mm3/s*
• Boost speed without losing resolution†
• Tips the scales at just 30% heavier than a standard Mosquito, but with 3.5x the output

Highly Configurable

• Expandable heater capacity, up to 100W
• Redundant temperature sensor sockets
• Optional 500 °C-rated nozzle insulator
• Uses standard-length (12.5 mm) Vanadium™ and Bridgemaster™ nozzles for both Ø1.75 or Ø2.85 filament sizes

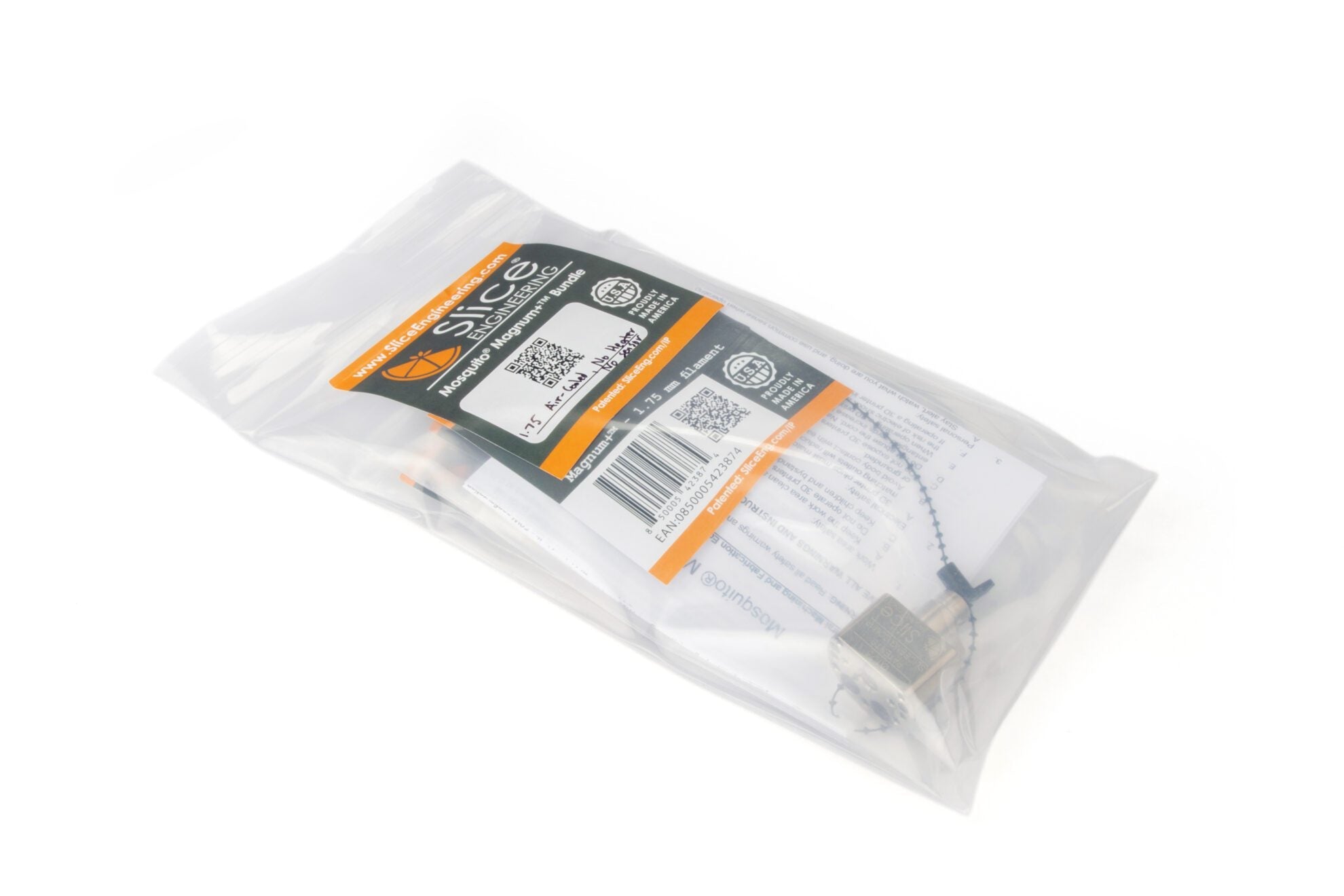

Included in the “Mosquito Magnum+ Air 1.75mm” hotend kit:

• Mosquito® Heat Sink – Magnum+ (x1)
• Hot Block Magnum+ – 1.75 (x1)
• Mosquito® Heat Break – Standard – current (x1)
• Hot Block Hardware – Magnum+ (x1)
• Hotend Mounting Hardware (x1)
• Boron Nitride Paste (x1)
