Description

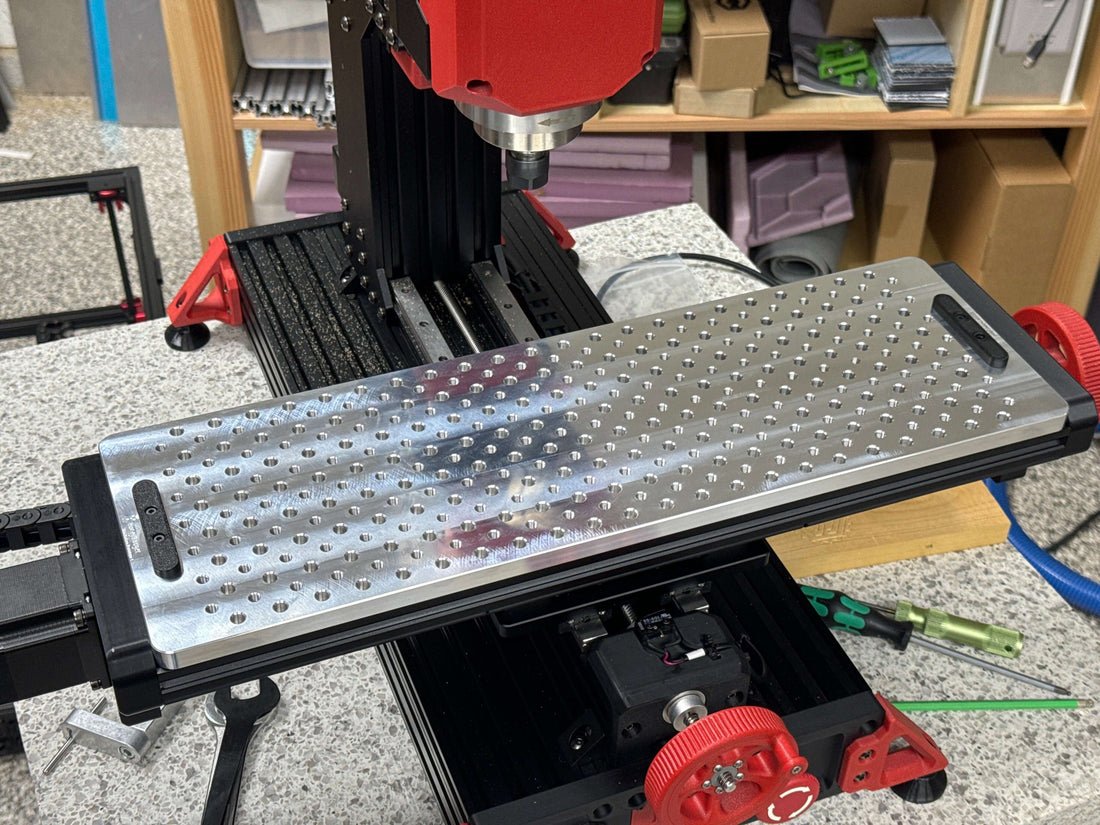

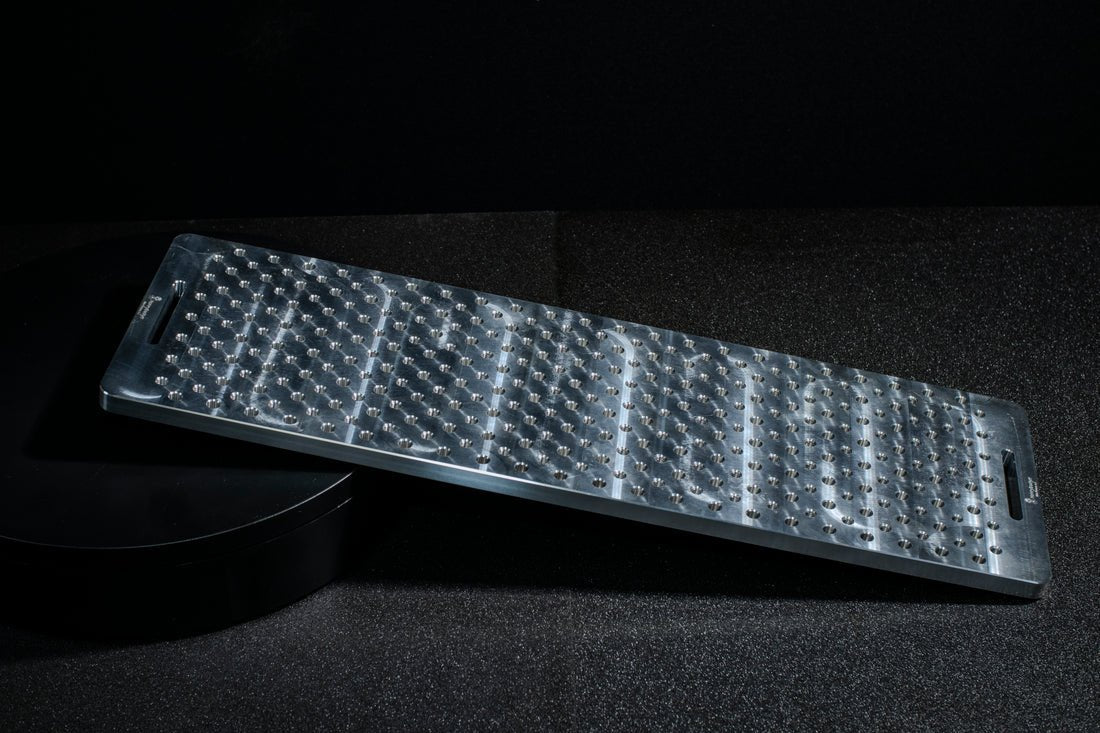

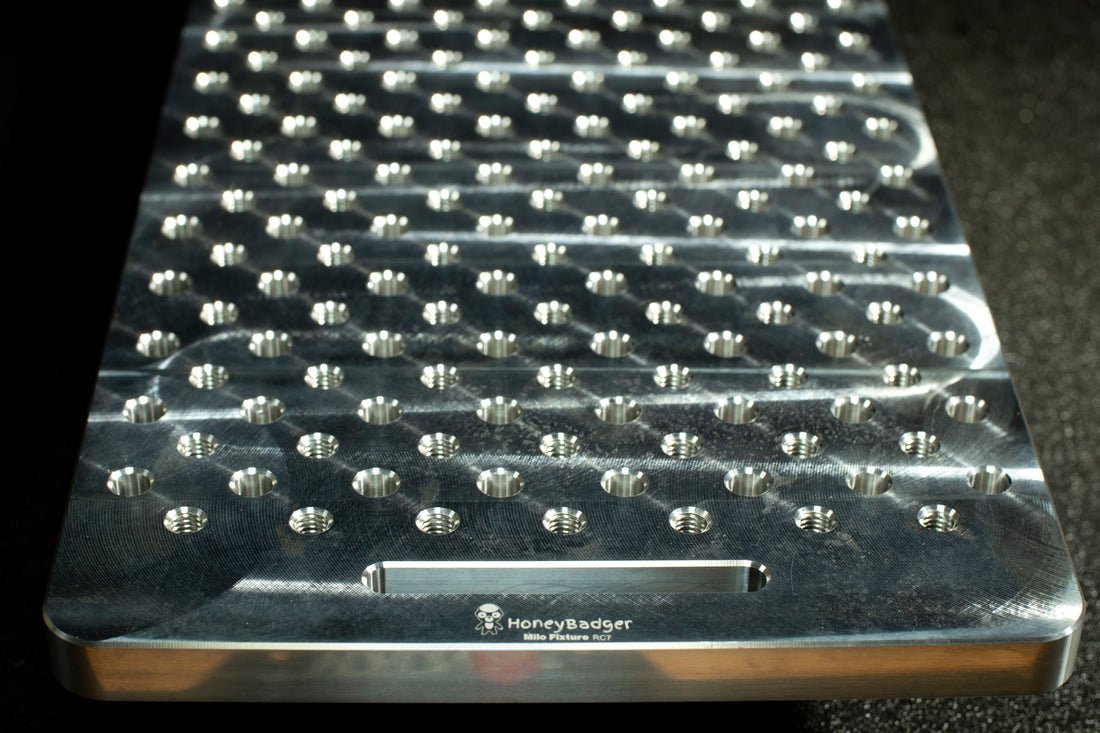

Fabreeko take on a fixture plate for the Milo V1.5, this plate is M6 tapped and 20mm hole spacing to allow the use of a Saunders machine work mod vise hobby and also has 1/4-inch precision bore holes for pins to be used as work stop. includes 2 steel pins with tight tolerances.
Now on Preorder for Version V2 RC1- 2
Expected in Q1 2025, Sign up for restock notification for interest
Specs:
- Made out of 6061 aluminum.
- 160 M6 tapped holes.
- 168 1/4-inch precision bored holes to be used with included pins.
- Work stop pins repetitive tolerances of +-.001 in
- 2 high precision steel pins
- 19.69 x 6.3 x .6 inches dimensions
- V2 has M5 integrated mounts in 3 points and comes with tnuts + M5 screws
Notes:
This is now in stock and shipping, minor revisions will be made as feedback from customers comes in.
Revision History:
- RC1 initial release sent to closed beta testers.
- RC2 same as RC1 but with a second facing op at the end
- RC3 Tweaks order of operations for improved threads on M6
- RC4 More tweaks to the order of operations, bigger chamfer on M6 holes
- RC5-7 changes to order of operations for surface finish improvement.
- V2 RC1- 2 passes when surfacing for even flatter surface, thicker .6 in plate with built in M5 mounts in both sides and center location. <Shipping soon>
