Millennium Machines Milo V1.5 Kit by LDO

LDOSKU: LDO-Milo-V1.5

Price:
Sale price$2,300.00 AUD

Include GST Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Please note is a pre-order / back order product. Please read product description for lead up time and return policy.

Description

After a year of R&D we are finally able to offer this amazing LDO kits for the millennium machines Milo V1.5.

Does not include Printed Parts
Note: Include Spindle + Inverter (220v)


Pre Order Batch 3 - Open - Dispatch from LDO on 31th May 2024 (Order after 23th April 2024)
Batch 3 - Pre-Order is Open. Batch 3 is expected to dispatch from LDO end of May 2024 and take roughly 30-40 days to reach us via sea.*.
Batch 3 Pre-Order Bonus: 3x Extra End Mills (Randomly Selected)

Pre Order Batch 2 - Closed - Dispatch from LDO on 22th April 2024 (Batch arrived, all order shipped on 25 May 2024) (Order before 22th April 2024)
Pre-Order Information: The Batch 2 is expected to dispatch Early-Mid April 2024 from LDO and take roughly 30-40 days to reach us via sea.*
 Batch 2 Pre Order Promo: During Batch 2 Pre Orders, you will received free 2x 1kg ABS Filament with your pre order. (Filament will be shipped separately once your Milo has shipped)

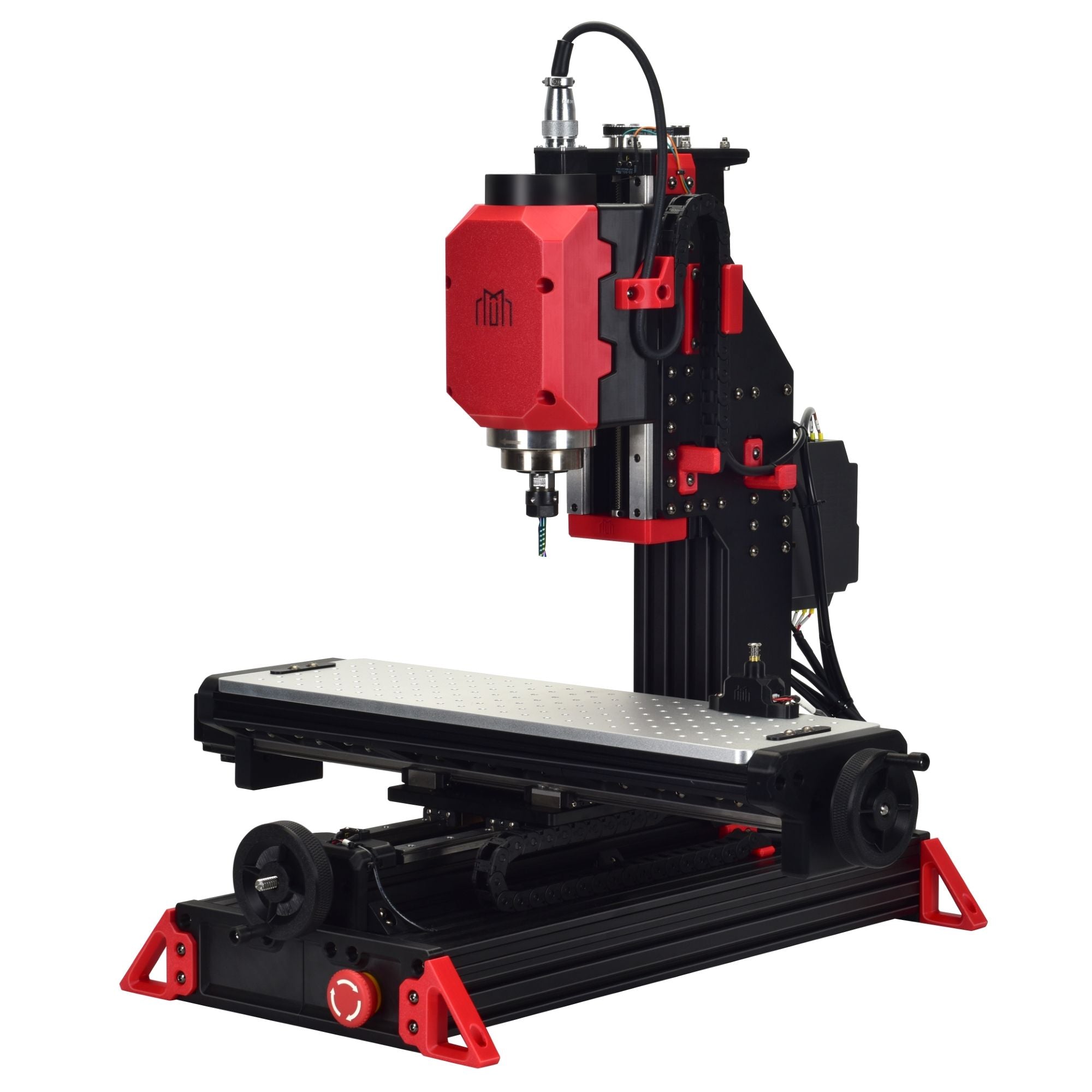

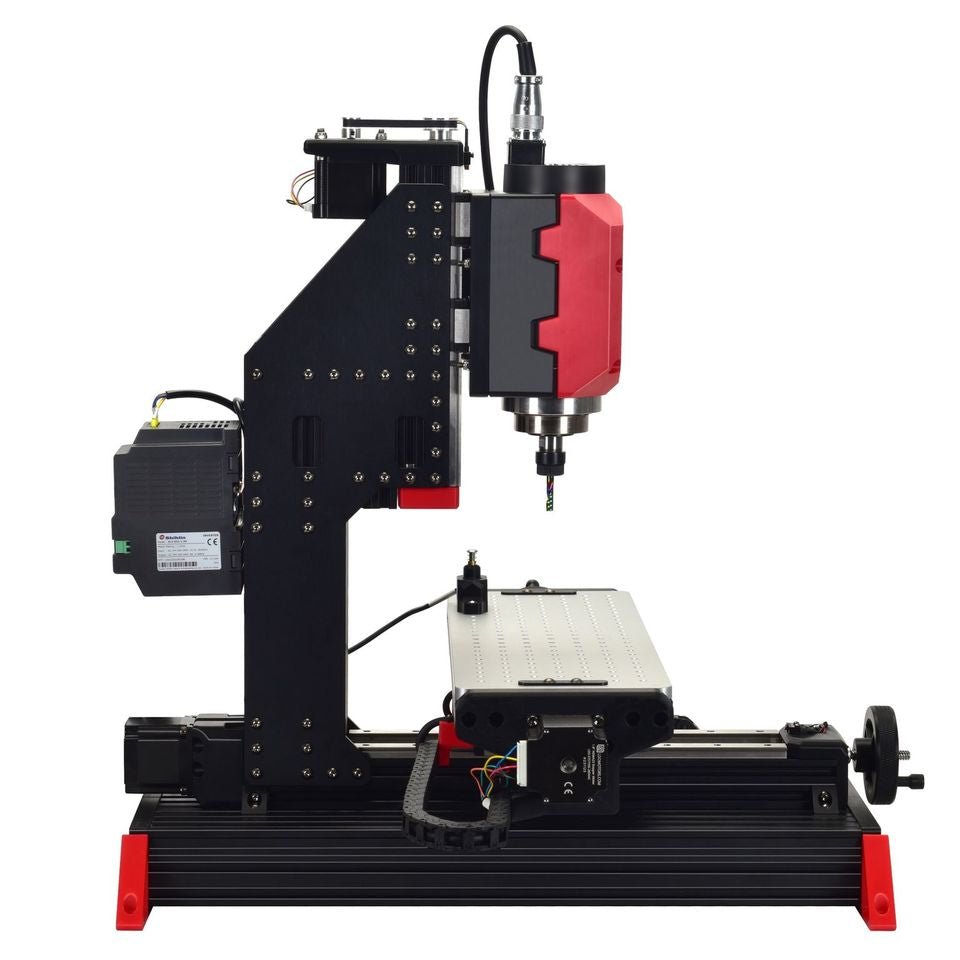

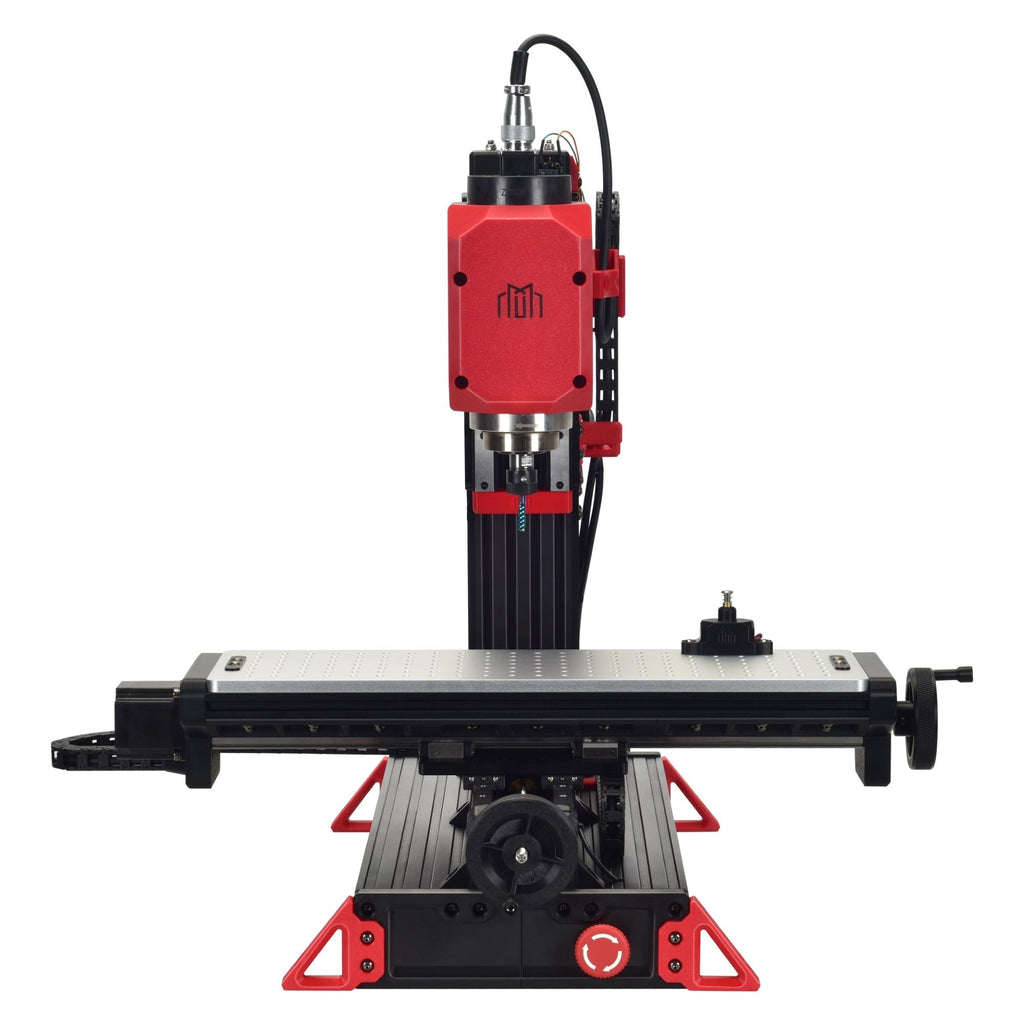

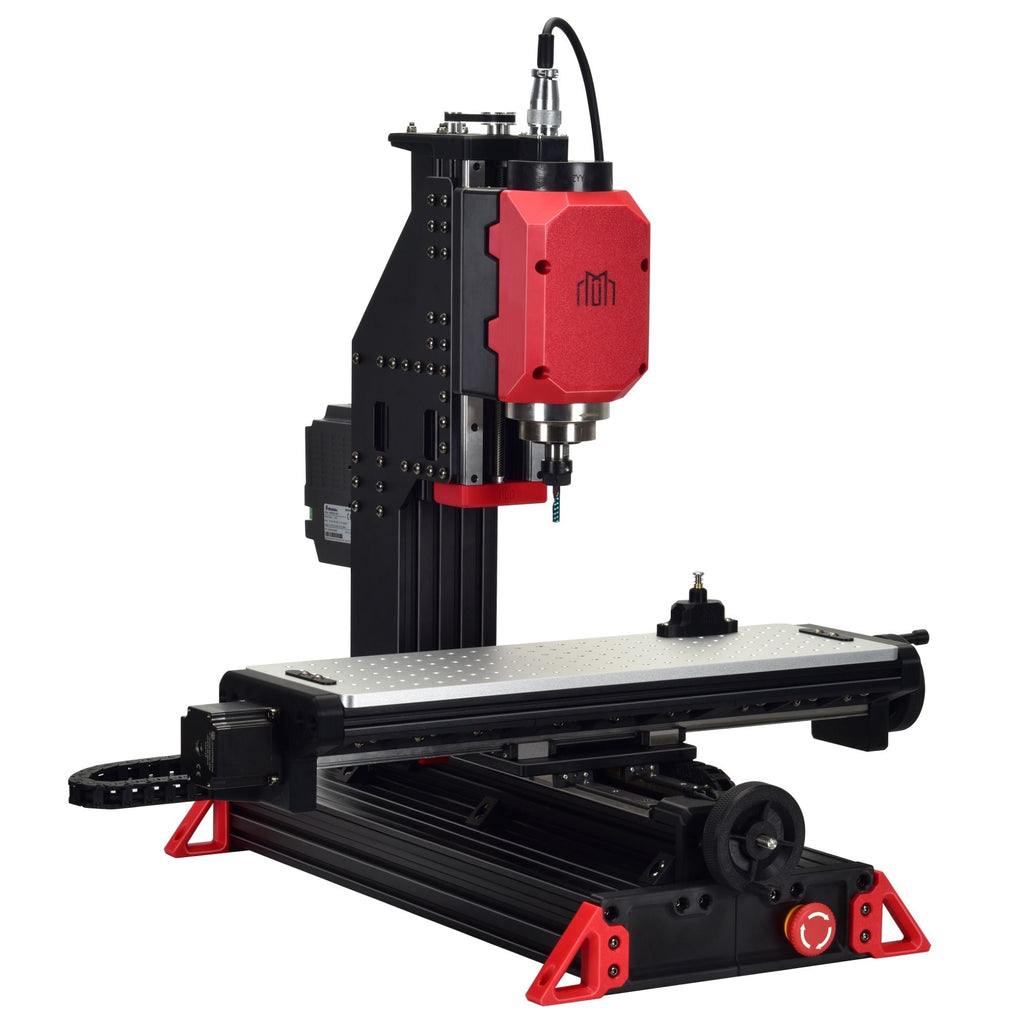

Based on the OpenBuilds MiniMill, the Millennium Machines Milo is an open-source project for DIYers to create a reliable, low cost and powerful desktop CNC mill on their own terms. The mill is designed to have the ability to cut aluminum but is also capable of cutting a vast range of softer materials such as composites, woods and plastics.

Whats included:

A detailed BOM list will be included soon, this kit comes with everything needed to build the Milo V1.5 including mods like FMJ for rigidity and a pre tapped Fixture bed. the only parts missing are Printed parts

Bom: https://docs.ldomotors.com/en/milo/milov15/BOM

What you need t​o source or need:

  • Printed parts
  • Vice or work holding equipment.
  • Preferable dedicated outlet/circuit for spindle and inverter

Kit contents:

  • 120mm clearance Milo V1.5 parts (Including spindle & VFD)
  • 120mm Aluminium FMJ plates
  • Aluminium XY plate
  • Aluminium Z plate
  • End mill starter set
  • 123 Blocks
  • Dial indicator
  • Safety specs

Useful Lin​ks:


Milo dimension:
  • Storage: X: 735 mm Y: 670 mm Z: 670 mm
  • In motion X: 1,155 mm Y: 670 mm Z: 670 mm (not including any cable loops that extend beyond the rigid parts)


Features & Extras

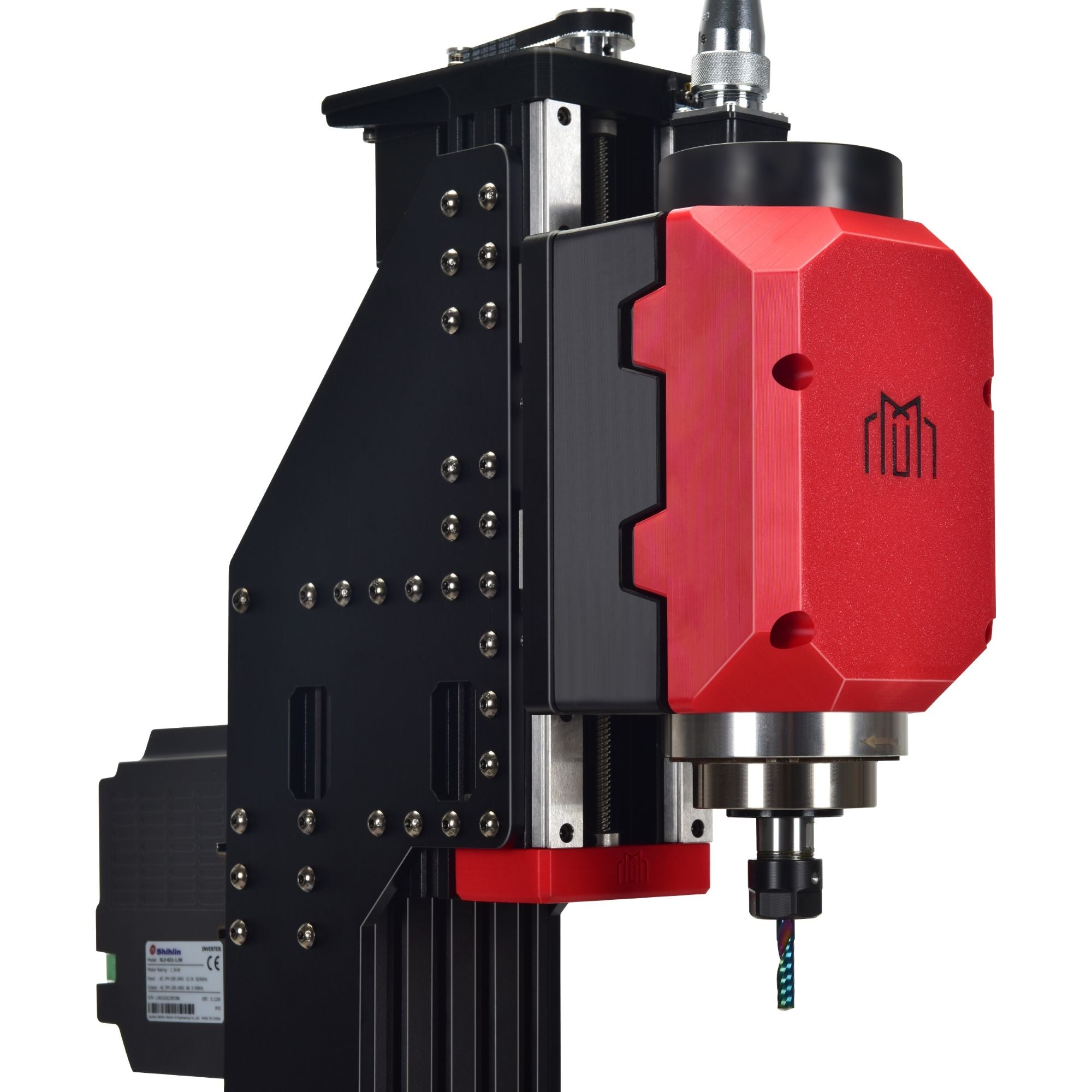

  • Full Metal Jacket (FMJ) Mod - This mod adds two CNC machined aluminium plates which increases the rigidity of main column.
  • F.I.X.A.T.E.D - Our kit includes the a fixture plate from the FIXATED mod that covers the entire work surface. The version included is the Continental Breakfast.

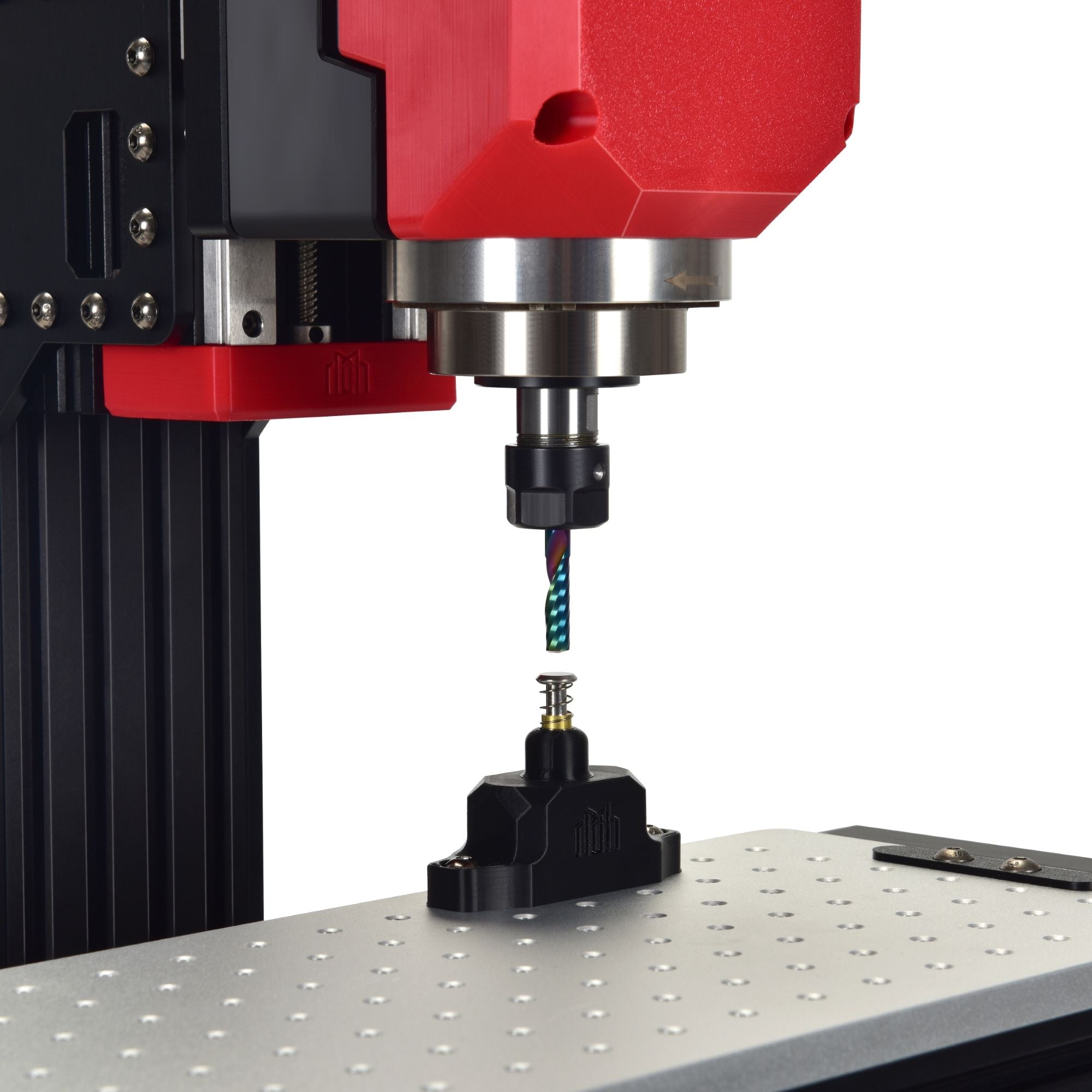

  • Long John Toolsetter - Our kit includes a modified version of the Long John Toolsetter mod. The mod allows for easy tool height setting.
  • Brass Heatset Insert Tool - We've included custom machined brass tips for your soldering iron, use it to install heatset inserts with ease! Check here for more information.
  • Pre-cut & Pre-wired - Our kit includes all necessary wiring: cut to the right length and pre-crimped or soldered to their respective parts. See our detailed wiring guide here.
  • Small Tools - We include a set of tools for all the fasteners used in the build (Preparing your own set of good quality hex wrenches is still recommended). Also included are wrenches for the spindles.

Tips

Guides

  • Printed Parts Guide (LDO supplement) - Are you planning on printing parts before the kit arrives? Read our supplementary print guide to see which parts to print/replace/omit.
  • Wiring Guide - We created this supplementary wiring guide to go along with the included cable kit. We recommend reading the guide ahead of time: Some cable routing is required while you assemble the mechanical components.

Acknowledgements

LDO would like to give our sincere thanks to the Millenium Machines team, beta testers, and members of the community for helping us constantly improve our kits:

  • Beta Kit Testers (V2.4-300): Jake, DaveFrom3DPandMe, Tinman, Camerony.

*All timelines above are our best estimate and do not guarantee an arrival time, until order has arrive and pass local customs.
