Description

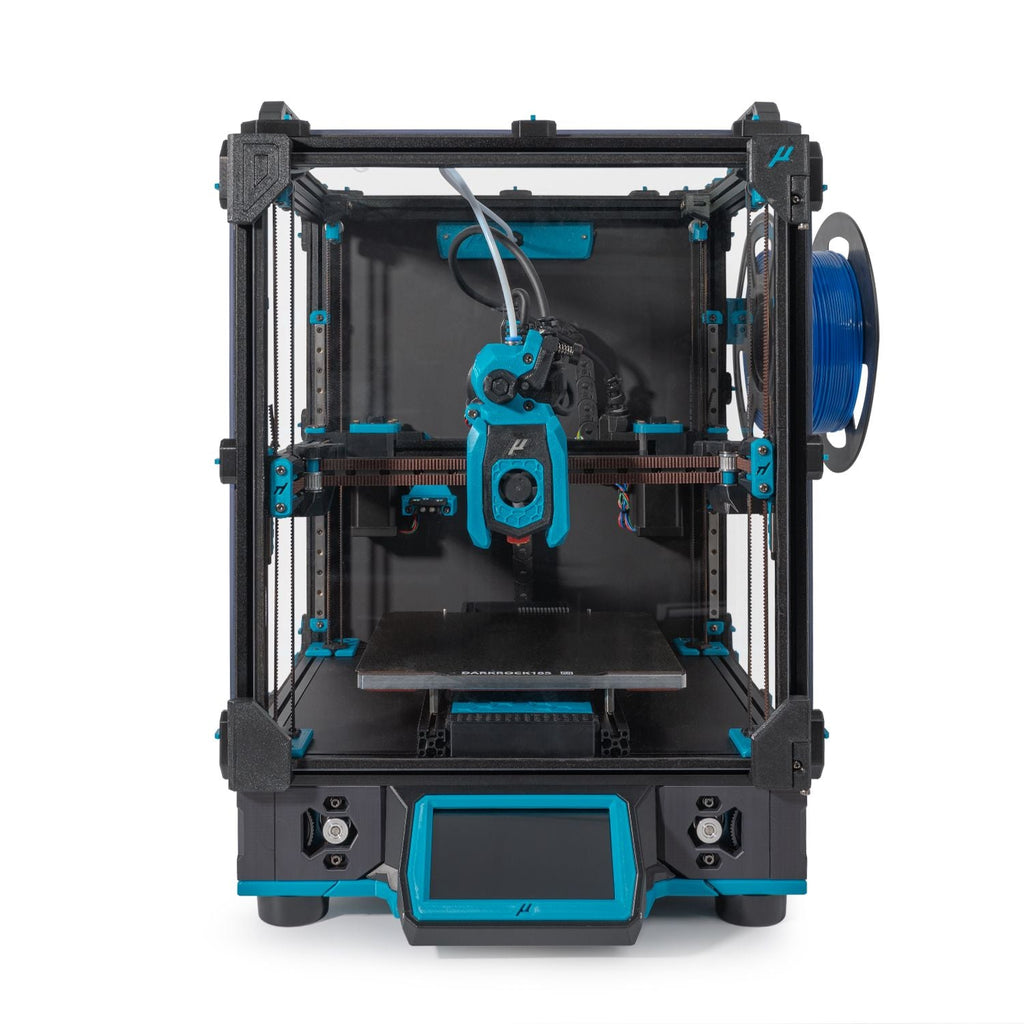

The LDO Micron Plus kit: small size, big performance. This tiny Voron v2.4 packs a punch with high-quality components, precision motion, and compatibility with a variety of filaments. Don't let its size fool you – the Micron Plus is a 3D printing powerhouse.
Does NOT include any 3D printed parts or Hotend
Bom: https://docs.ldomotors.com/en/Micron/BOM (Raspberry Pi 4B Included)
Next Batch
We are expected next batch towards Early September 2026. (If current listing is out of stock)
(This is not pre-order, but if you're interesting in reserving a unit in next batch, contact us or sign up for restock notification when next batch has arrive in, if there spare units) (This message will updated as stock get reserved in each batch)
Features:

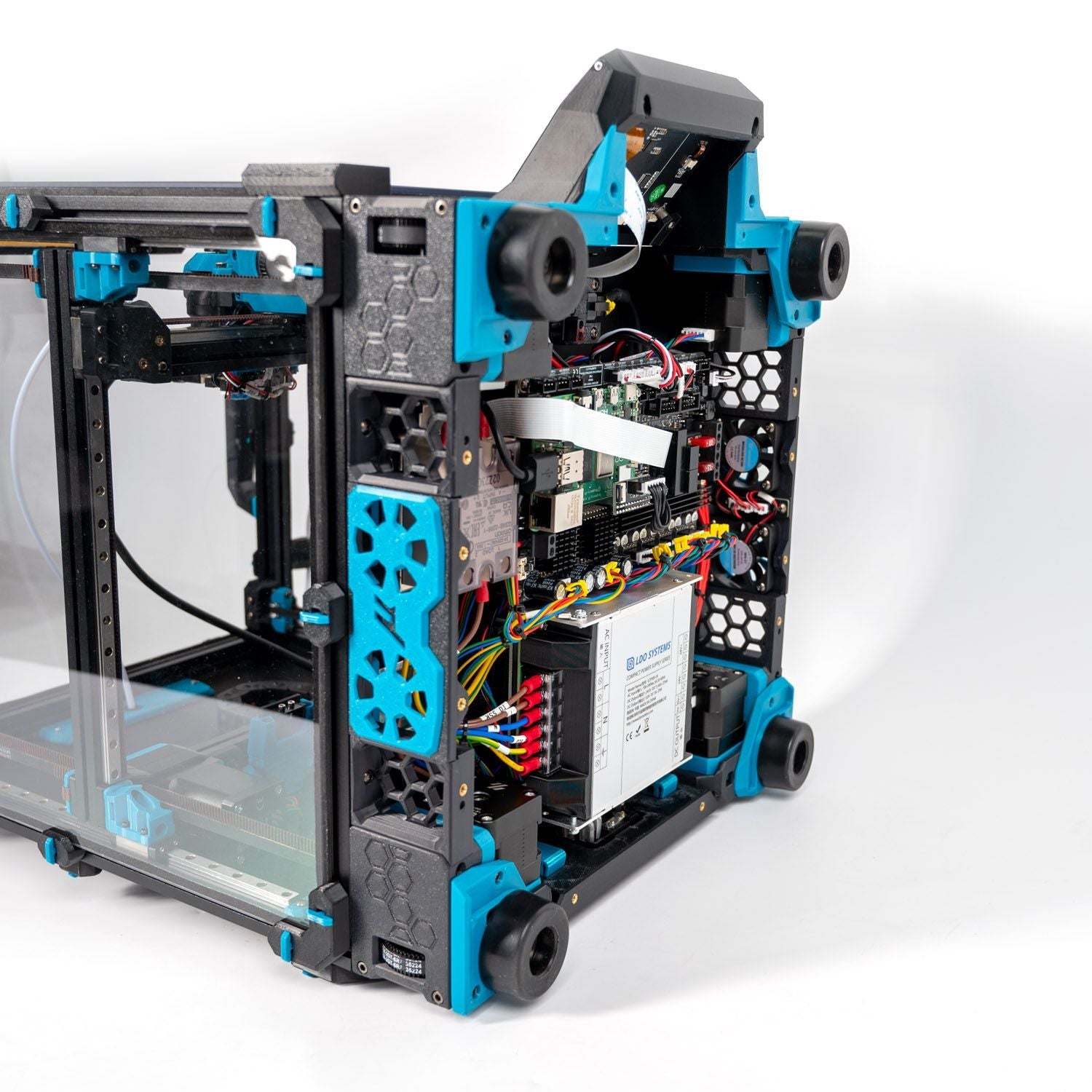

- Electronics: LDO Leviathan board, with Nitehawk-36 toolhead board
- Double Shear motor mount, with long shaft motor LDO-35STH52-2004AH(S35)
- Live Idlers for X/Y joints, precision pins for ABZ pulleys
- Custom under bed PCB for Bed fans and filter
- 300-watt bed heater, heat fast
- Brand new LDO Compact PSU, with 275w 24v & 25w 5v outputs
- Latest R1 version, tested by original designer HartK and several community members
What you need to source:
- Hotend
Documentation:
https://github.com/PrintersForAnts/Micron
Specification:
Printer Type |
FDM 3D printer DIY Kit, self-assembly |
Model |
LDO Micron Plus R1 |
Printing Size* |
180*180*165 |
Construction |
Core XY |
Mother Board |
LDO Leviathan V1.3 |
Weight |
11.06 KG |
Pi Board* |
Yes (Rpi 4) |
Supported Filament |
ABS/ASA/PC/PLA/PETG/TPU/ |
Filament Diameter |
1.75mm |
Printing Speed |
Depends on choice of Hotend |
Acceleration |
10000mm/s² |
Nozzle Diameter |
0.4 |
Hotend Max Temperature |
Depends on choice of Hotend |
Heatbed Max Temperature |
120C |
Levelling Mode |
Quad Gantry Leveling (QGL), Klicky |
Display Screen |
Yes (BTT pi 4.3) |
Slicing Software |
OrcaSlicer |
Firmware |
Klipper |
Packing |
