Graviflex® 200 High Strength and High Temp Magnet

SchallenkammerSKU: GRAVIFLEX-125
See Suggested Alternative Product

This product has been discontinued. It is no longer available or while stock last, but this page has been kept for reference or while stock last.

Buy from the experts, who use and repairs 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

High Strength & High-temperature magnets for flexplates. Manufactured in Germany with exceptional flatness. comes with pre-applied Lohman glue and is ready to install
Note: This is have been EOL due to high cost, if you're interested, those can be special order customised to size. Please contact us.

Specification:

  • Self-adhesive (1-sided)
  • Material thickness: 1.0 mm
  • Remanence Br: 243-263 mT
  • Coercive field strength HcB: 179-203 kA / m
  • Coercive field strength HcJ: 211-257 kA / m
  • Energy product (W × H) max .: 11.1–13.5 kJ / m³
  • Adhesive force: approx. 130 g / cm²
  • Peak operating temperatures of over 200c
  • Sustained operating temperature of 120c

Payment & Security

Visa Mastercard American Express PayPal Google Pay Shop Pay Apple Pay Zip Afterpay

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

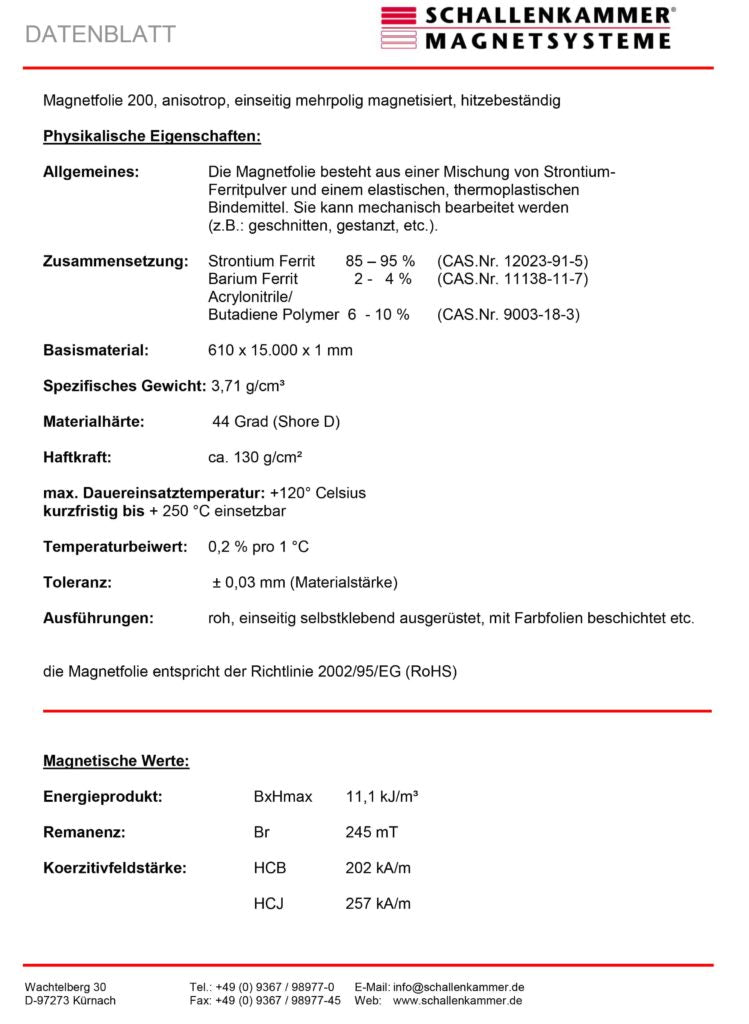

TDS / SDS

Technical Data SheetSafety Data Sheet
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Tom B. (Central Coast, AU)
125x125mm
Great magnet

Got it for my voron 0.2 so it was ever so slightly oversized but a knife trimmed it down nice and easily. Holds on to the build plate so much better than the stock formbot one! Very impressed for such a relatively low cost upgrade
