E3D Revo™ Six Hotend Kit

E3DSKU: REVO-SIX-175-24V-AS-FL

This product has been discontinued. It is no longer available or while stock last, but this page has been kept for reference or while stock last.

Description

Discontinued Product - This product has been discontinued. It is no longer available, but this page has been kept for reference or while stock last. As Revo are sold in bundle which offer better value, click on search option below.

Search for an alternative

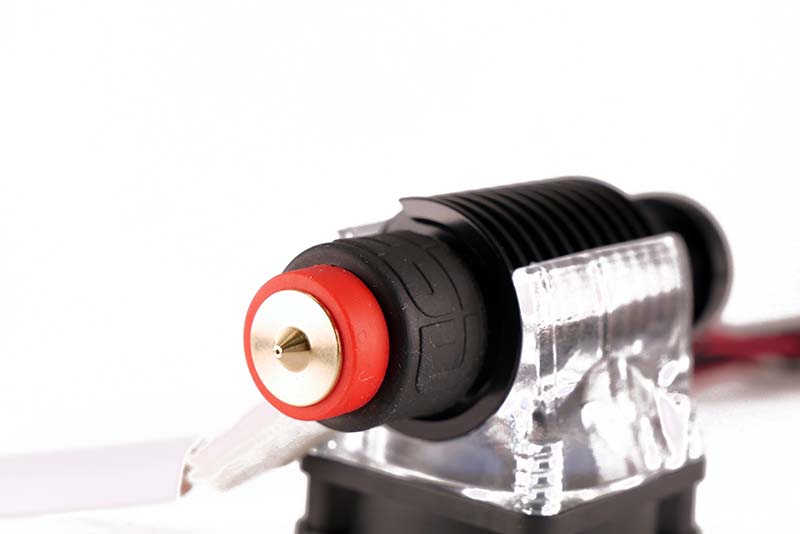

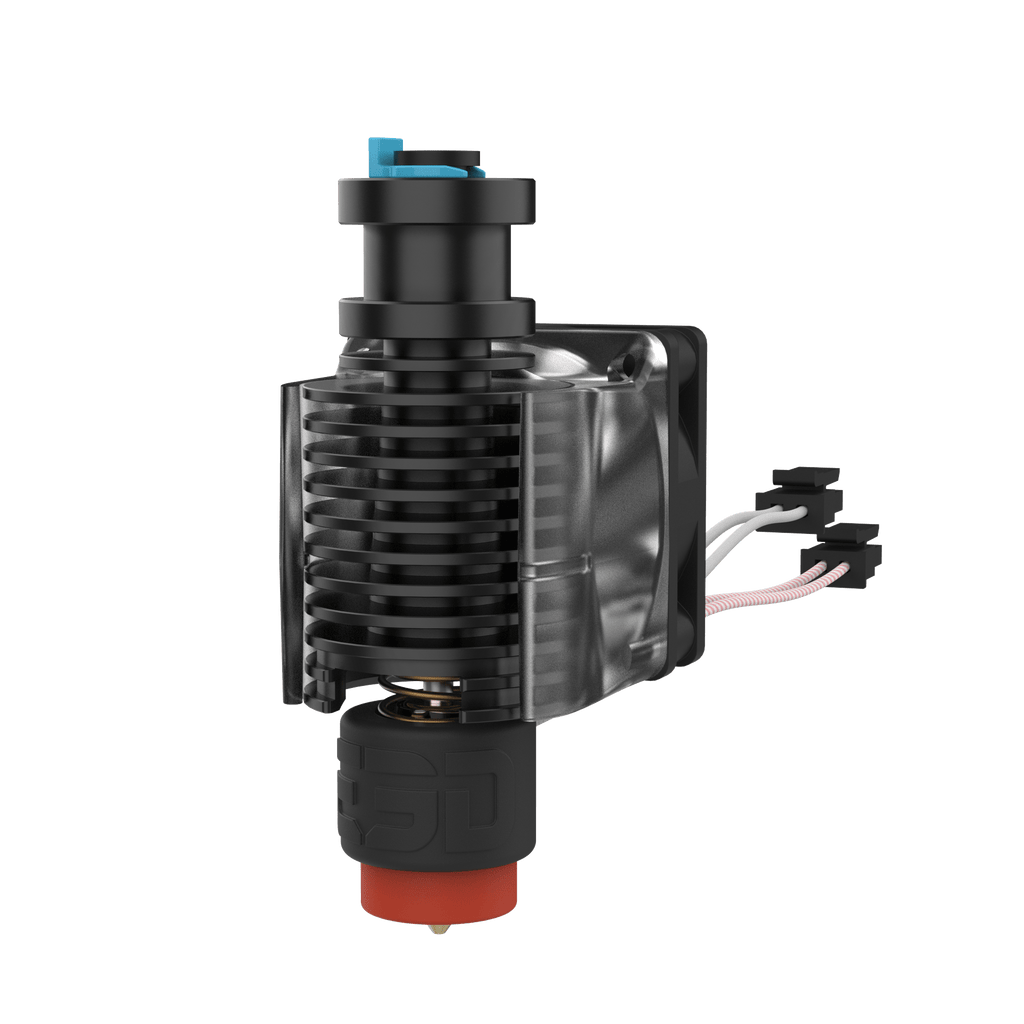

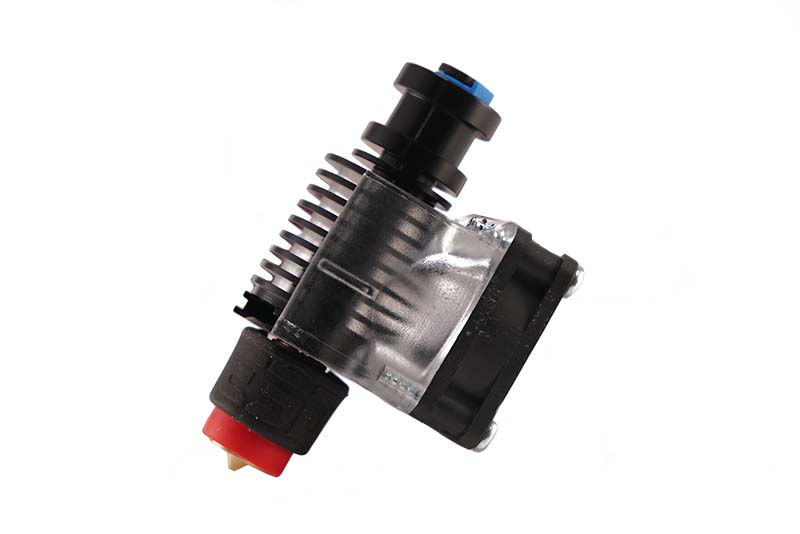

Revo Six is a drop-in replacement for your E3D V6 HotEnd, giving you all the benefits of E3D’s RapidChange Revo ecosystem in an easy-to-upgrade package.

  • Same height, diameter, and mounting as the E3D V6 all-metal HotEnd
  • No machine redesign needed - drops right into your existing setup
  • Compatible with Revo Nozzles – swap nozzles at room temperature without tools or hot tightening
  • Anodised black sink and crystal-clear fan mount with fan included
  • Revo HeaterCore included for faster, safer heating



No machine redesign. Revo Six is a top choice if you want to update your old E3D V6 setup to the latest generation of E3D HotEnd technology. It has the same height, the same diameter, and the same groove mount as the E3D V6, so it drops straight into V6-fitted machines without the hassle of redesigning print head mounts and accessories. Just fit it, connect the Revo HeaterCore, and you’re ready to 3D print.



Ready for Revo. Revo Six is designed to work with Revo Nozzles, so you can perform nozzle swaps with your fingers at room temperature without complex tools or hot tightening. Each Revo Nozzle is factory sealed, making it much simpler to use and more reliable than most HotEnd technology available today.



Enhanced performance. Revo Six uses a Revo HeaterCore, our latest HotEnd heating and sensing architecture. It reaches temperature much faster than a traditional aluminium heaterblock, and it’s much safer: a positive temperature coefficient (PTC) means the HeaterCore can’t melt at extreme temperatures, reducing hazards in the event of a thermal runaway.



A new look. An anodised black heat sink distinguishes Revo Six from its predecessor, and every unit ships with a premium crystal-clear fan duct so your machine will stand out from the crowd.



Variants

Revo Six + Revo Nozzle

Revo Six Fully Loaded



Key features

  • Max temp: 300C
  • Works with Revo HeaterCore and Revo Nozzles
  • Mounting system: Groove mount
  • Dimensions:
    • Diameter: 16.2mm
    • Length 62.4mm
  • Voltage: 12V or 24V
  • Material compatibility: 1.75mm



Kit includes:

1 x Revo Six heatsink

- 1 x Revo HeaterCore 12V or 24V

- 1 x Spring

- 1 x Extension cable kit

- 1 x 100mm PTFE tube

Single nozzle kit:

- 1 x 0.40 Brass Revo Nozzle

Fully loaded nozzle kit:

- 1 x 0.25, 0.40, 0.60 & 0.80 Brass Revo Nozzles


Composer Export910987546321DescriptionBOM IDQtySelf Tapping Screws143010 Fan21Fan Duct31Revo Six Heatsink41Collet Clip51Collet61Revo Spring71HeaterCore81Revo Socks92Nozzle101tooltip
