Description
The PanelDue Displays are full-colour touch screen controllers for the Duet and other 3D printing electronics that support it.

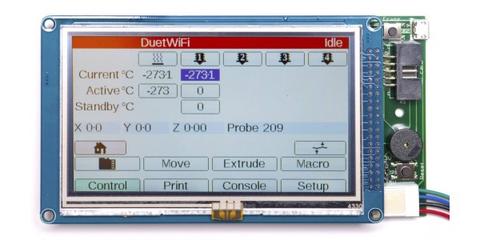

The PanelDue 7i is a colour touchscreen interface designed for Duet and compatible 3D printing electronics. It features a bespoke, high-quality 7-inch or 5-inch TFT LCD panel with an 800 x 480 pixel resolution from a top-tier manufacturer, seamlessly integrating the PanelDue controller directly onto the LCD’s PCB.
The control board without a screen is now End of Life, and orders will be fulfilled on a first-come, first-served basis. In this case a SSD1963 LCD panel is required in one of 3 screen sizes/resolutions: 4.3″ (480×272), 5″ and 7″ (800×480 pixels).
FEATURES
| Resolution | 5i and 7i = 800x480 pixels |
| Connectivity | A 300mm long ribbon cable (maximum recommended length) is supplied for the on board SD card, power and serial data. Alternatively if the onboard SD card is not required then a 1m long 4-wire cable for the serial and power connections is also supplied |
| Voltage | 5V power from the host 3D printer controller. 2-wire async serial interface with 3.3V signal level (5V tolerant input) |
| Firmware | Runs PanelDue firmware: PanelDueFirmware |
Documentation
| Hardware Overview | GO TO DOCUMENTATION > |
| Configuration | GO TO DOCUMENTATION > |
