Description
Official Supported Printers: CR-5 Pro, CR-5 ProH, Ender 6, CR10s Pro Series [ Other printer is supported but will require you recalibrate your e steps ] Such as Ender 3, Ender 5 and CR 10 Series.

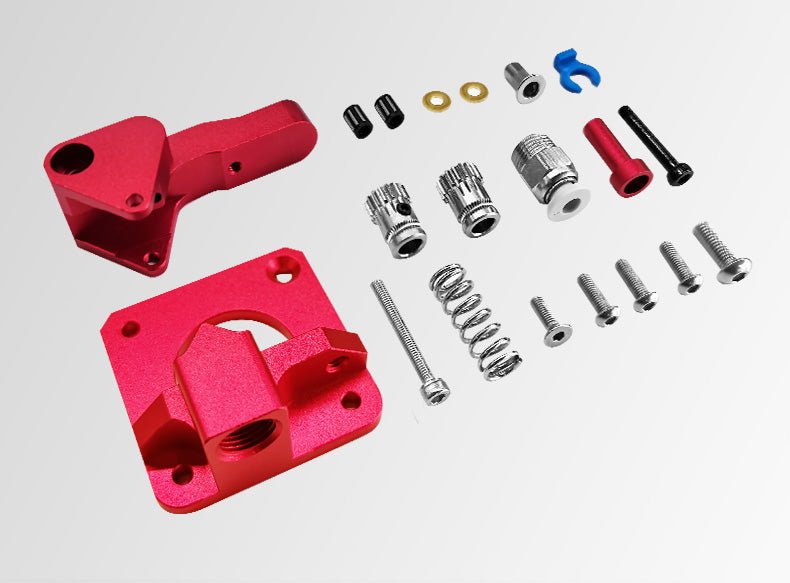

Kit include washer to fix grinding issue with other "clone" dual gear extruders and offering genuine Bondtech gears.

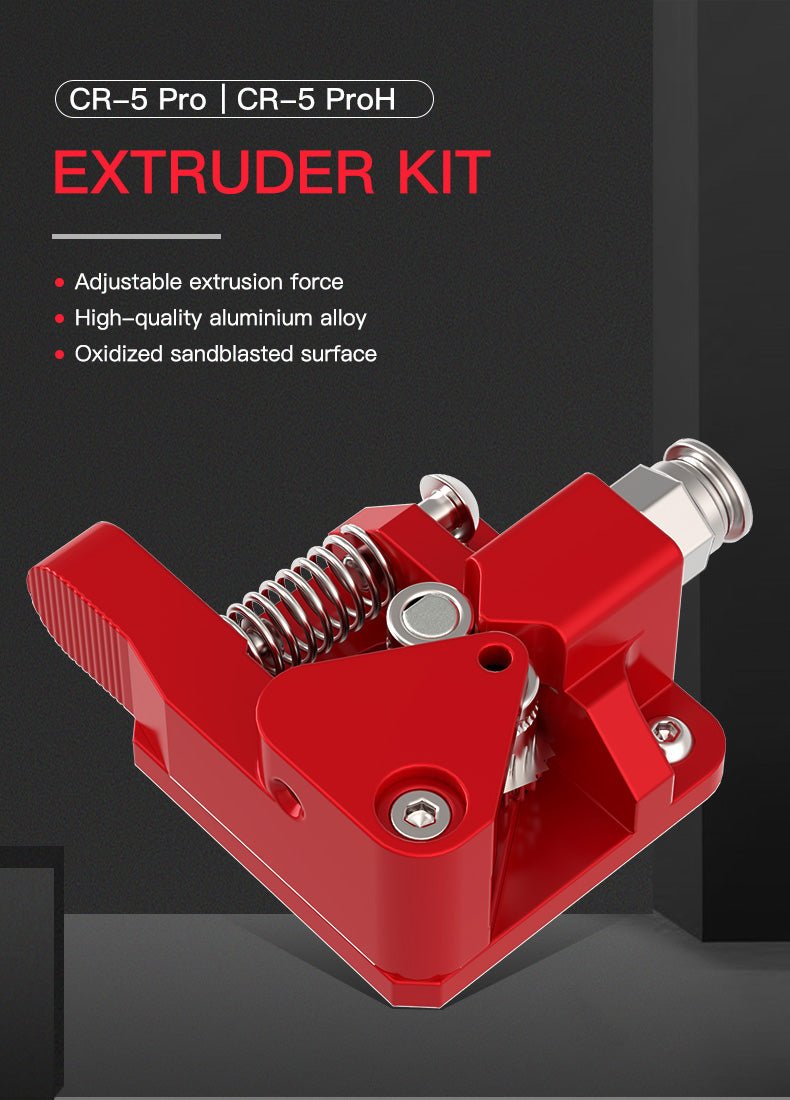

- Genuine Bondtech Gears

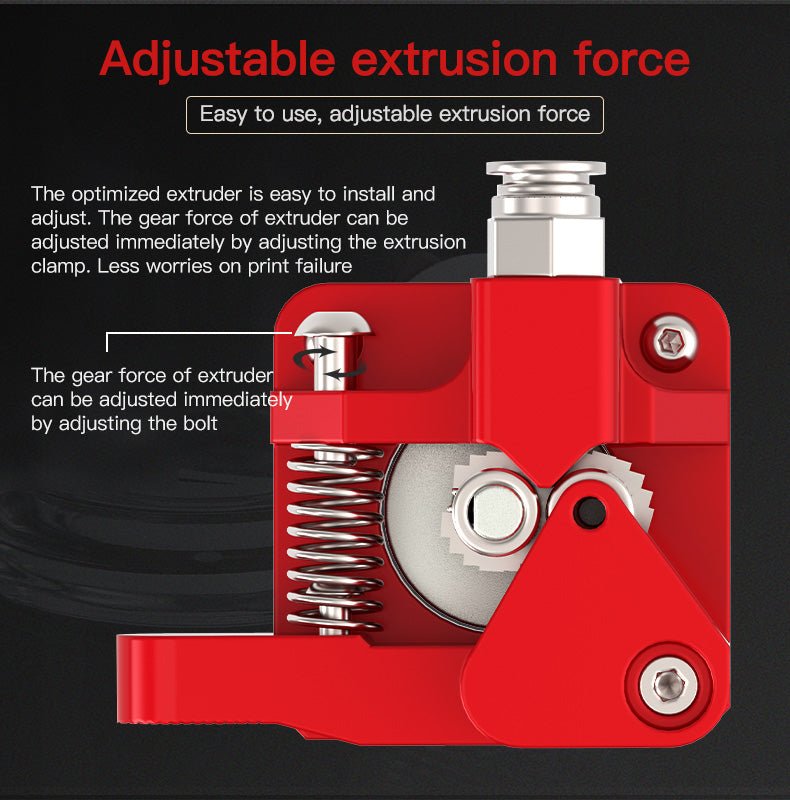

- Adjustable Extrusion Force

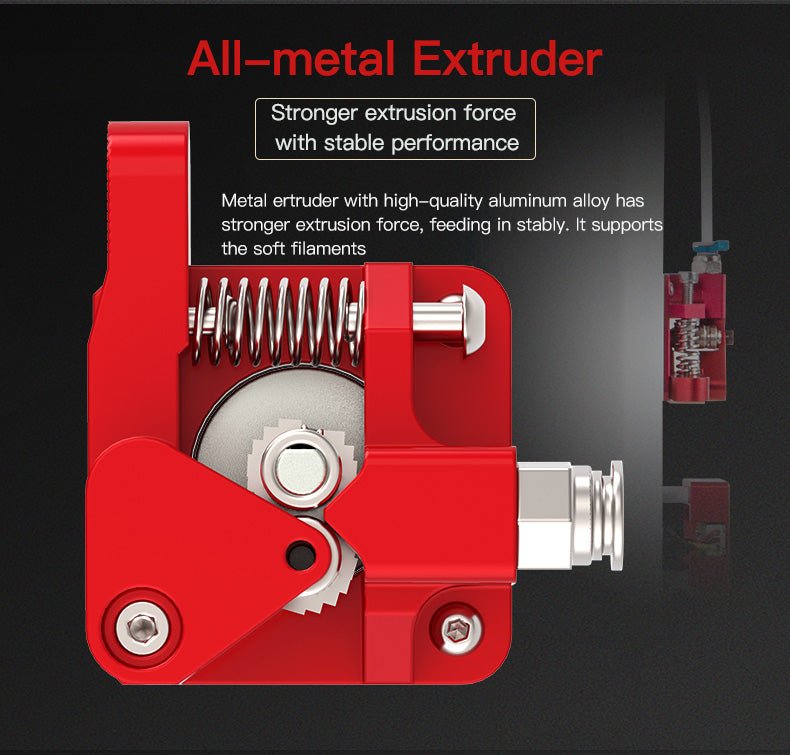

- High-quality Aluminium Alloy

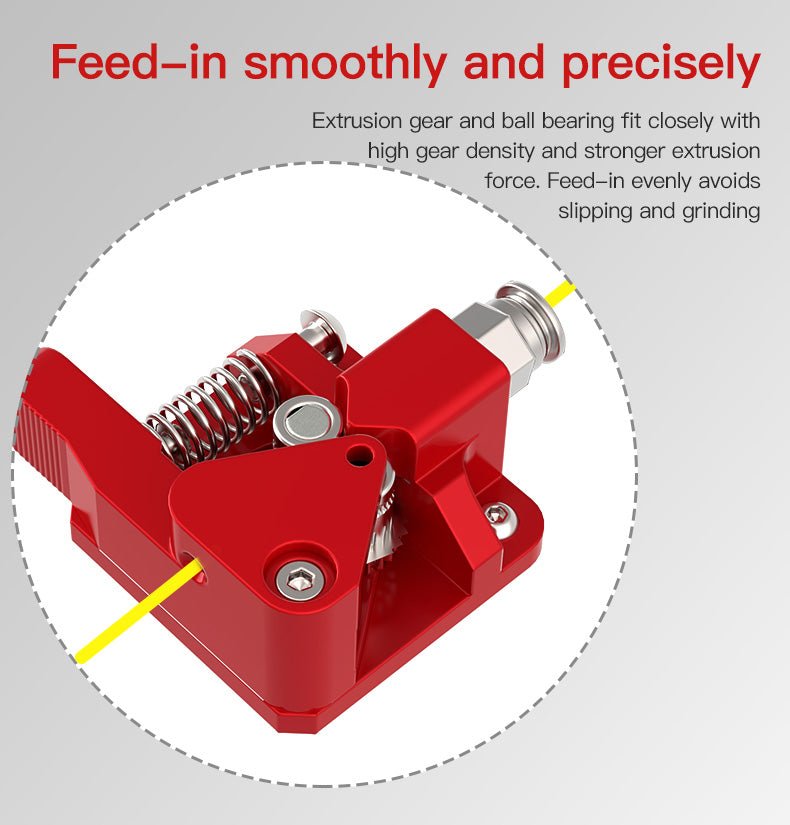

- Dual Gear Extruder
- Oxidized Sandblasted Surface
Note: You are required to recalibrate your estep after install this extruder if you not using above listed supported printers. [Extruder E-Steps Calibration - External] For instance Ender 3/5 series or CR10 Series printers
Note: Mounting bracket/spacer may be require if you're using filament detector to ensure smooth filament path.
Note: Pressed Extruder will require you remove brass extruder or source a new 40-42 stepper motor.
Support Printers:
- Bowden extruder machines
- Fits NEMA 17 size stepper motors
E-steps value: 140
We recommend calibrating e-step yourself after install to ensure e-step is correct.You can find tune flow rate after per filament basis.
