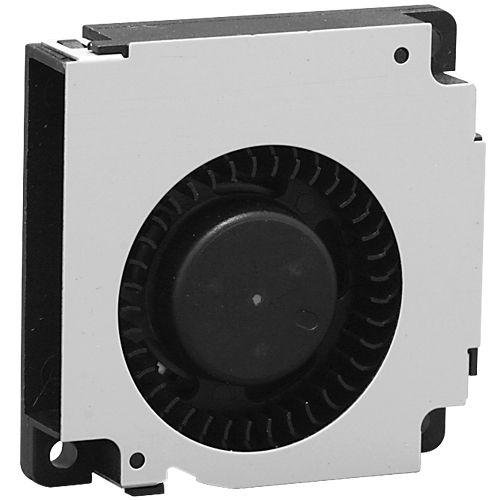

Delta Electronics 4510/4512 -12V - BFB04512HHA-C- Refurbished

12V 4512 Blower Fan for Dirtybird Toolhead

Resources: https://github.com/makerbogans/dirtybird

Note: Do note, as this is refurbished fan but the fan model is known for long service life and performs on par or better on some new fans. Product may have light visual marks on fan housing and should not effect the performance and reliability. Fan will be cover within 6 month of failure, a replacement will be sent if fan fails within 6 months.

Life Time Report: https://www.delta-fan.com/Download/MTBF/MTBF-BFB04512HHA-C.pdf

Parameter:

• Dimensions:45x45x12mm

• Rated Voltage: DC 12V

• Rated Current: 0.13±10% Amp (Max 0.26a)


• Rated Speed: 5900±10%rpm

• Air flow: 3.496 CFM (Min: 2.834 CFM)


• Noise: 35.5±10%dBA (Max: 40.5 dB-A)


• Bearing Type: Two Ball bearing

• UL: Class A

• Weight: 18g/pc

• Power :1.5W

• Air Pressure: 0.560 In H2O (~14.22mmH20)
