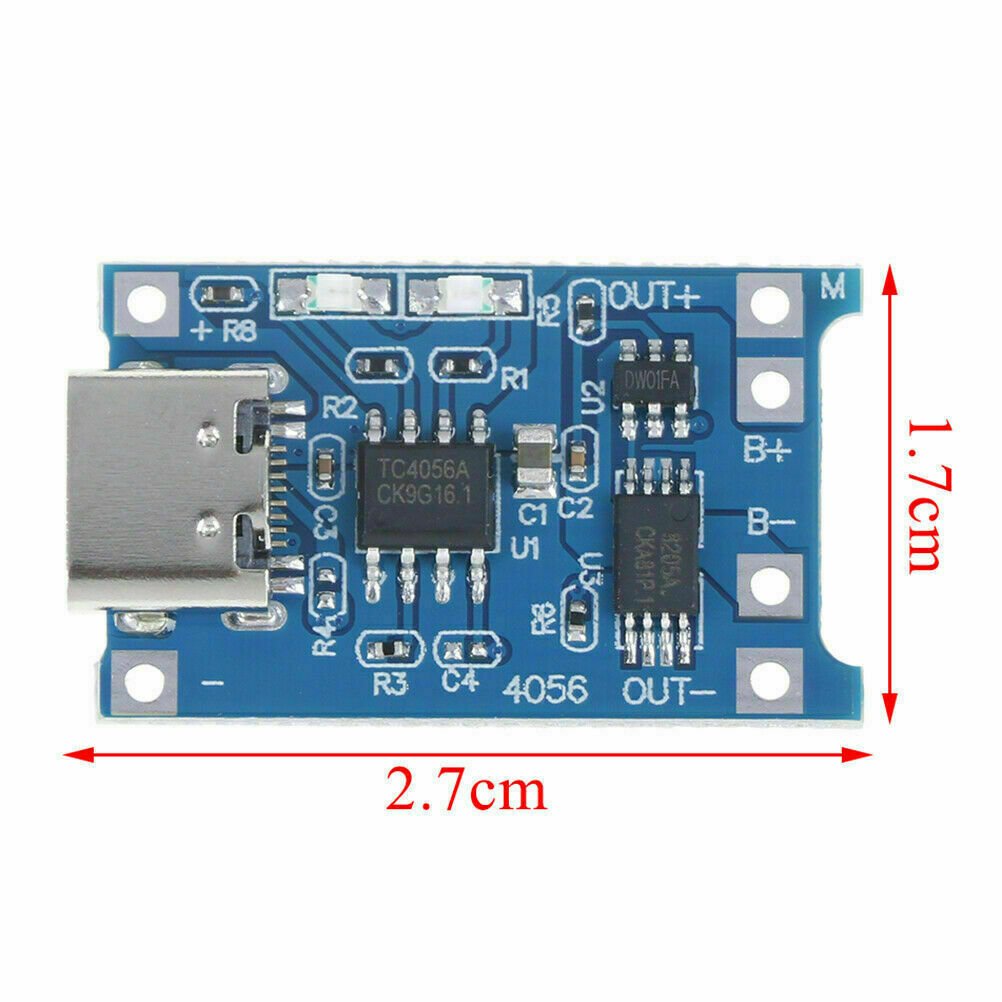

Type C USB 5V 1A 18650 TP4056 Lithium Battery Charger W Protection

DREMCSKU: TP4056-C

Price:
Sale price$3.35 AUD

Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 1 unit left (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

Basic attributes:

Module name: Lithium battery charging board

  • Charging method: linear charging
  • Charging current: 1A (adjustable)
  • Charging accuracy: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charge voltage: 4.2V
This Module is NOT Reverse Polarity Protected


NOTE: Due to the nature and characteristics of lithium-ion batteries DREMC-STORE is not responsible or liable for any damages, malfunction, injuries, fire, burns, or any other consequences or results that may occur with incorrect or correct use of this module or any battery, device, or item this module is used with, including following or using any instructions, guidance, or direction of any kind from DREMC-STORE or others. You should never charge unattended, when charging unattended ensure battery and device are within fire rated cabinets/enclosure for battery charging. Ensure you have proper WHS in place for handling with Lithium Ion batteries.

By purchasing this product you accept the preceding.

  • Two versions of the module: blue full red full or red full green full
  • Input interface: TYPE C
  • Working temperature: -10 ℃ to + 85 ℃
  • Weight: 1.8g
  • Peripheral size: 25 * 19 * 10mm

Features:

1. This module uses a very mature charging chip TP4056, with simple peripheral circuits, good protection performance and high charging accuracy.

2. This module is fully mechanically automated and manufactured with full-chip components.
3. The current of this module can be adjusted by itself. As long as the fixed resistance in the circuit board is changed, the output can be changed to 100mA-1000mA, which is very convenient.
The 1.2K resistor controls the adjustment current!

This module is used for single-cell lithium battery or multi-cell parallel lithium battery charging, and the charging port can draw power from USB.



Instructions for use / cautions:


1. The ammeter for testing current can only be connected in series to the 5V input terminal of the charging board.
2. The charging current is preferably 0.37C of the battery capacity, which is 0.37 times the capacity.
For example, a 1000mAH battery charging current is 400. If the charging speed is too large, the effect will be poor, and the battery voltage will drop after the charge is over!
3. The charging connection lead must not be too thin or too long. This way the connection resistance is high. If it is too thin, the battery voltage will drop after the battery is washed out.
4. It is best to make good contact with the battery. Otherwise, the battery voltage will drop more after the battery is washed out.
5. If the input voltage of 5V is too high, such as 5.2 or 5.5, it will cause the charging current to be less than 1000mA, which is normal. When the voltage is high, the chip will automatically reduce the charging current when the chip is heated, so that the chip is not burned. It is normal for the chip to heat up around 60 degrees during operation. After all, the charging current is large.
6. The reverse connection of input has no effect on the chip, but the reverse connection of output (battery terminal) will burn out the chip. This Module is NOT Reverse Polarity Protected
