Bondtech LGX™ Large Gears eXtruder

BondtechSKU: EXT-LGX

Price:
Sale price$198.81 AUD

Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 2 units left (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

The Bondtech LGX™ Large Gears eXtruder is Bondtech’s first filament feeder to incorporate their new Dual Drive Technology, featuring larger drive gears for enhanced performance.

7 new features on a Bondtech eXtruder:

  • Larger drive wheels, for increased filament grip;
  • Filament pre-tension lever, for repeated results;
  • Multi-function interface socket, for tool or application quick swap;

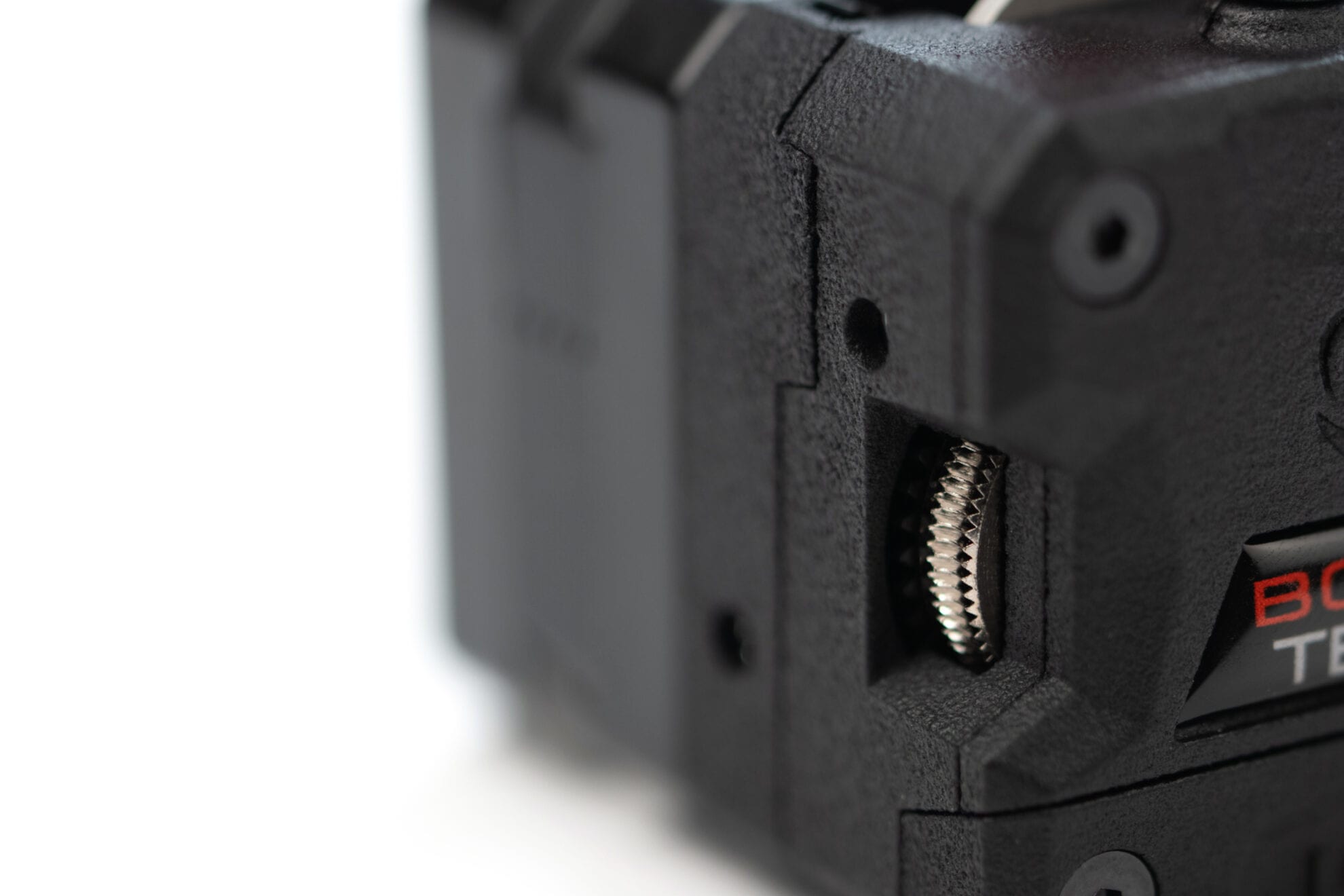

  • Drive wheels’ maintenance windows, for easy cleaning;
  • Compact, light & symmetric design, for increased performance and compatibility;
  • Multiple mounting hole patterns, for easy and flexible setup;
  • A small step for a greener Future, craft boxes without bleaching & no coating.

You can read more about the new features by clicking here.

Each LGX™ extruder is supplied with:

  • 1x LGX™ feeder;
  • 1x Custom LDO Nema17 25mm pancake stepper motor;
  • 1x Bowden Interface Plug (with threaded metal push-fit);
  • 1x Direct Drive Interface Plug (for Slice Engineering hotends);
  • 1x 2mm Hex Key (recommended tool);
  • 1x Product Line Information Brochure;
  • 1x Powered By Bondtech sticker.

Now also shipping with additional accessories:

  • 3x M3x30 mm Low Head screws;
  • 4x M3x18 mm Stud with 5mm Hex with M3x4 thread;
  • 30mm PTFE tube to use in the Direct Drive Interface Plug.

4 ADDITIONAL MOUNTING POINTS

  • Use the supplied studs to replace the 4 screws of the stepper motor and use them as additional mounting points.
  • You can find these studs on the accessories bag in your LGX™ package.
  • They have a M3 thread with 4 mm depth.

Technical Specification

LGX extruder

  • e-steps value : 400 using 16 microsteps; 800 using 32 microsteps.
  • Drive wheels : hardened steel;
  • Materials compatibility : abrasive; rigid; semi-flexible; flexible; and soft.
  • Mounting holes : M3
  • Mounting patterns : bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points)
  • Holes on the sides of the LGX™ : 5 mm depth
  • Holes on the bottom of the LGX™ : 12 mm depth
  • Max tightening torque on the extruder screws is 0.3 Nm

Using a plate between the extruder and the stepper motor

  • Max thickness : 2.6 mm
  • Optimal Thickness : between 0.3 and 2.3 mm;

Optimal Thickness allows full teeth engagement between the motor gear and the main double gear.

For Klipper users

rotation_distance = full_steps_per_rotation * microsteps / steps_per_mm

rotation_distance = 200 * 16 / 400
rotation_distance = 8

The above calculation assumes the following parameters:

  • stepper motor is a 1.8 degrees motor hence 200 as full steps per rotation;
  • microsteps are set to 16;
  • e-steps value recommended for the LGX is 400.
  • PTFE tube lengths:
    • Old Mosquito/Mosquito Magnum : 10 mm
    • New Mosquito/Mosquito Magnum : 11 mm
    • Copperhead screw mount : 30 mm
    • PTFE tube should be cut straight on both ends.
    • Slight chamfer inside is recommended, but not mandatory.
  • retraction speed : 35 mm/s
  • retraction distance (bowden) : ~5 mm (0.4 + tube length[mm] x 0.015)
  • retraction distance (direct drive) for rigid materials : 0.4 mm
  • retraction distance (direct drive) for soft materials : 3 mm
  • Max Environment operating temperature : 70°C
  • Max stepper motor running temperature : 85°C
  • LGX™ DD net weight : 218.6 g
  • LGX™ B net weight : 224 g
  • Package measurements : 80x103x73 mm
  • Package weight : 269 g
  • Download the LGX Technical Drawings here.

Custom Stepper Motor for Bondtech LGX

  • PH-06AWJ connector
  • 2 phases
  • DC 5.5 V
  • Max 1.0A/phase

    To use the LGX, run the stepper motor with currents between ~0.45 and ~0.65A:

    Be vigilant regarding the stepper motor surface temperature.
    Keep it cool enough to touch. Lower Vref otherwise.

  • Class B motor, rated up to 130°C
    • Max recommended environment : 70°C
    • Max temperature at this environment temperature can go up to 130°C on account of the self heating.
  • Download the stepper motor Technical Data Sheet here.

How to change the Current using Vref

It is very hard to read the current being fed to stepper motors. To determine that current we rely on the Vref value. The Vref value is a voltage reference measured in VDC that can be read using a multimeter. It helps us setting the current output of the stepper motor driver.

Different 3D printer mainboards use different stepper motor drivers. Each type of stepper motor drivers has its own formula to calculate the required Vref to get a specific current. Here are some examples:

  • TMC stepper drivers.
    The formula for these drivers is Vref = ( I * 2.5 ) / Imax
    Where I is the target current value measured in A; and Imax is 1.77 on regular mode and 1.2 on SilentStepSticks mode.
  • Pololu A4998.
    The formula for these drivers is Vref = I * 8 * R
    Where I is the target current value measured in A; and R is the Sense Resistor value, that depends on what board are you using. Melzis use 0.1,the Creality Silent boards use 0.15, ...
