Carbonara CF X Beam (For Voron / Monolith)

DREMCSKU: DR-CARBONARA-330

Length: 250 (330mm)
Price:
Sale price$90.91 AUD

Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
Only 1 unit left (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

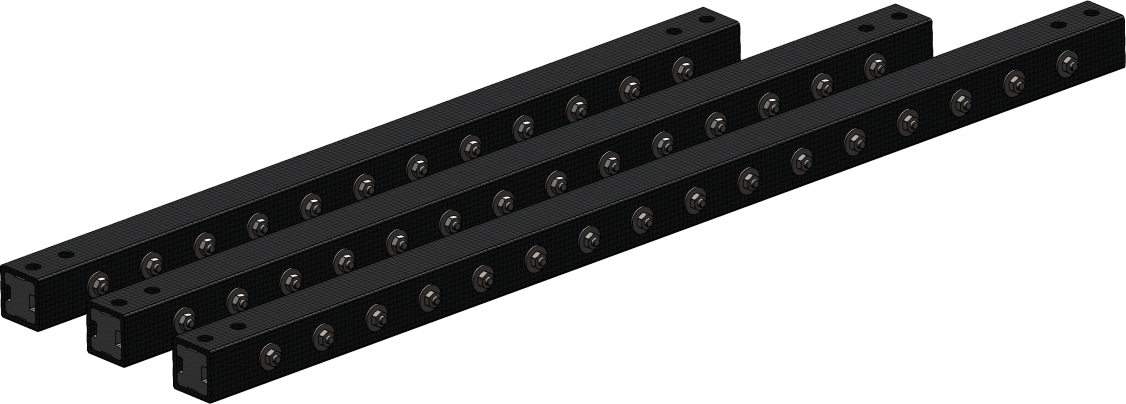

Carbonara is a high-endurance, high-quality carbon fibre X beam for Voron and Monolith 3D printers using the stock build sizes of 250,300, and 350.

Note: Hardware kit are included. Printed Part are not included. Only Included Carbon Fibre Tube and hardware kit.

Printed Parts as add-on - Printed Parts (STL available here)

Key features

  • High torsion resistance
  • Made with high temperature resin. 110°C short term temperature resistance, good for 90°C chamber.
  • Ultra light, up to 58% weight reduction from a standard 2020 aluminium extrusion (before hardware and inserts).
  • Smooth 3K carbon strand finish.
  • Tested for 800 hours at VERY high speeds, 500-1300mm/s @ 50.000-100.000m/s² and a 80°c chamber.

This project has been made possible by Brazuka in collaboration with the Monolith team.

Tested for 800 hours at VERY high speeds, 500-1300mm/s @ 50.000-100.000m/s² with 80ºc chamber.

Printer Build Size (mm) X Gantry Length (mm) Carbonara  Weight (g) 2020 extrusion Weight (g) Weight Reduction
250 330 64,7 157,1 58,8%
300 380 74,5 181,0
350 430 84,3 204,8


Special thanks to

Brazuka: ko-fi
Making the tube and managing the project.

Adeo: Ko-Fi, Github
For the amazing temperature and torsion testing.
(can be found in the Monolith discord)

CloakedWayne: ko-fi, github
For the incredible mounting inserts.

BOM for the inserts and mounting can be found Carbonara Bom .

Hardware Kit (CARBONARA Bom) (Suitable for up to 350mm

  • x20 M3 x 28 SHCS Screw (Stainless Steel)
  • x20 M3 Standard nut (Black Nickled Plated)
  • x20 M3 10mm OD washer (1mm thick)
  • x5 M5 standard nut (Black Nickled Plated)
  • x2 M5 15mm hex stand-off (Stainless Steel) (Batch 1: 8mm Wide, please print the 8mm version)
  • 5.5mm Wrench (For M3 Nuts)

Tools/Consumable: (You may need to sourced / not included)

  • Thread lock (Blue)
  • M3 Hex Screw Driver/Hex Key



IMPORTANT!

The printed inserts are a MUST  to ensure maximum performance.

Please make sure they are all aligned and facing the same direction.

Hollow spacers aren't mandatory, they are only used to facilitate installation.

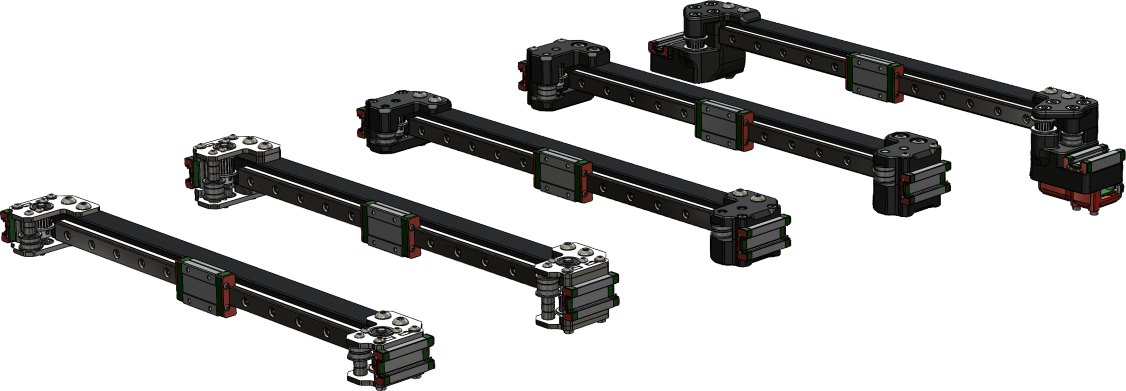

3D model or part displayed on Printables showing design detail

                         The indented part of the printed inserts is meant to face the linear rail.

Shipping Note:

Shipped in well protected long box to ensure straightness of carbon tube beam. So this item cannot be combination shipped unless item is also lead screw, so expect additional freight when bundling shipping with other items, linear rails or other lead screw are bundle shipped when applicable. If we able to bundle smaller item within same box, we update shipping total before capturing your payment, otherwise you can reach out support for customised quote.
