Description
TFT 12864LCD Based Serial Display and Touch Screen Dual Mode (Marlin)
Features:
- ARM Cortex-M3 series GD32F205VTC6 chip with 32-bit CPU 120MHz

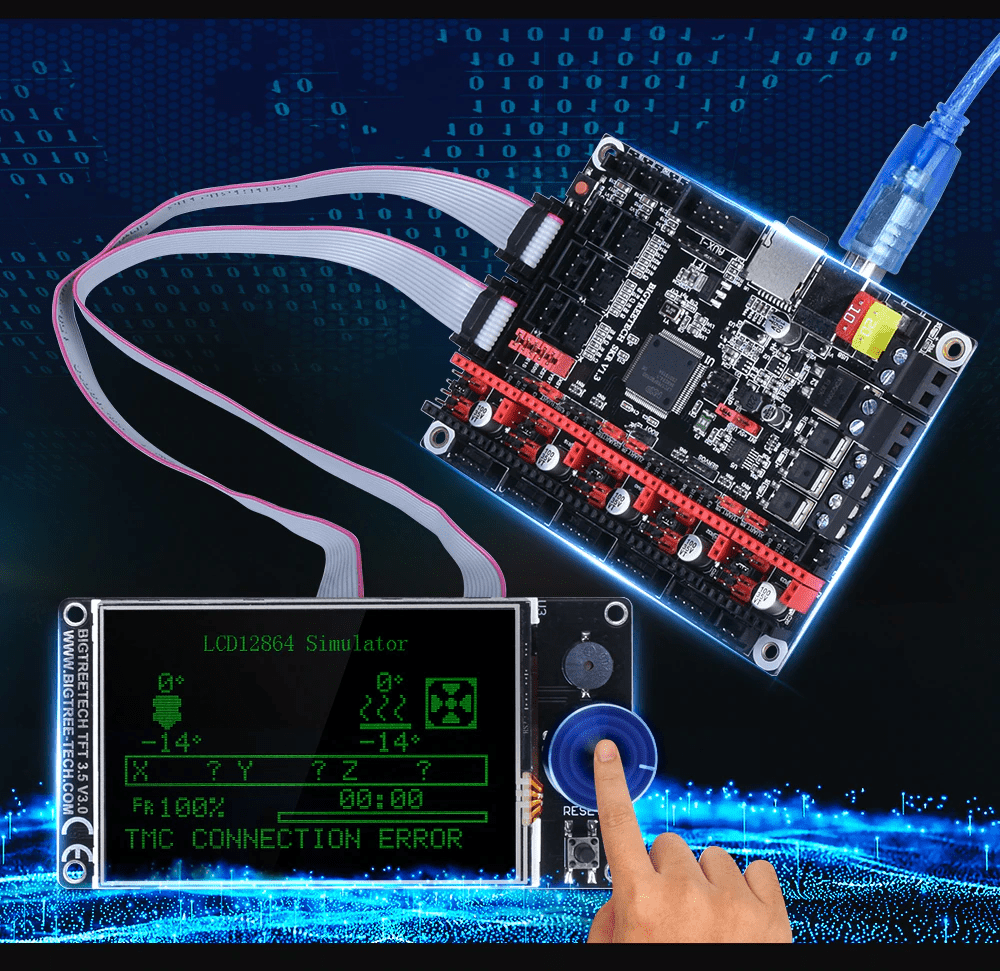

- This display board has higher compatibility. Users can select two work modes: UART serial port screen mode and 12864 screen mode

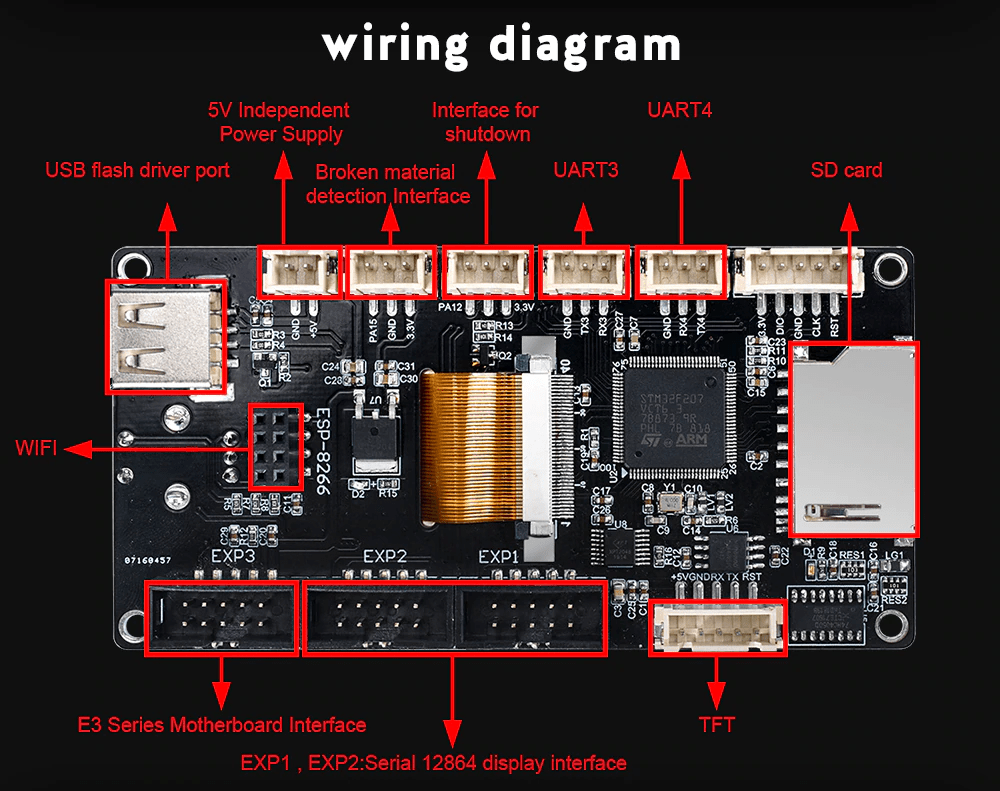

- Reserve the extension port of filament breaking detection (FIL-DET)
- Reserve the extension port of automatic shutdown after printing (PS-ON)

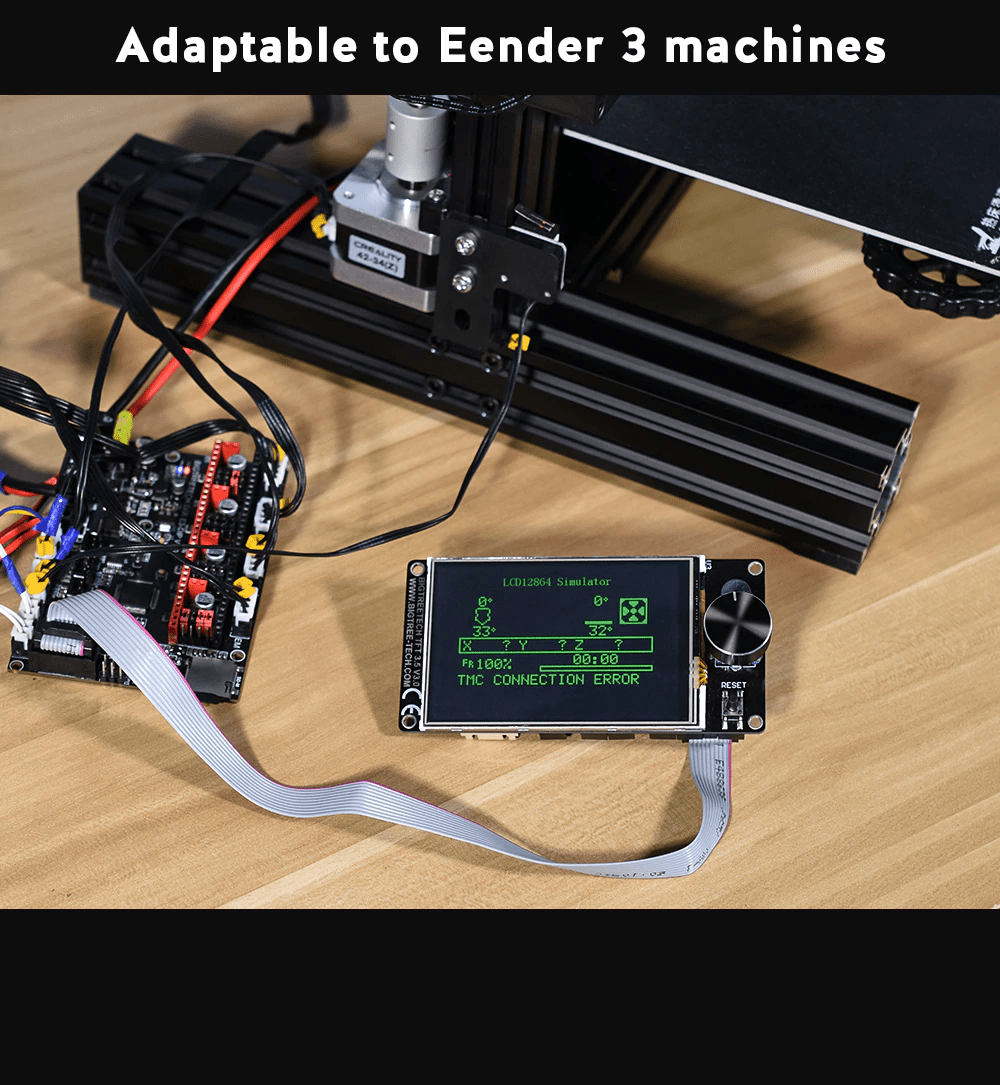

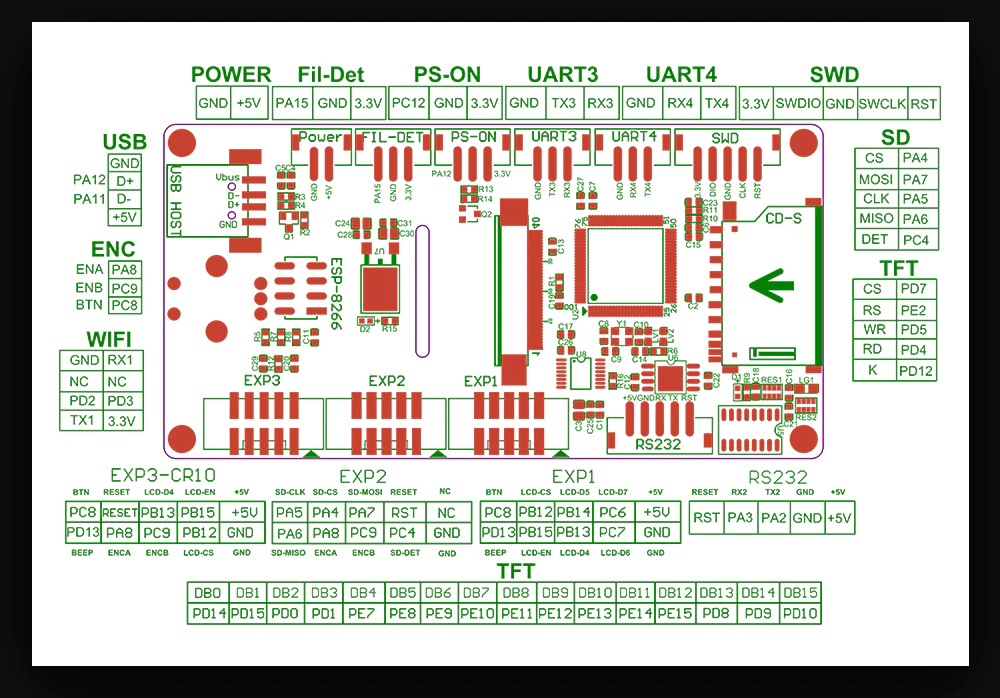

- LCD12864 mode uses EXP1, EXP2 and EXP3. EXP1 and EXP2 are LCD screen ports of normal motherboard. EXP3 is the LCD interface used by E3 series motherboard (such as SKR MINI E3 V1.2, SKR E3 DIP V1.1, etc.)
Specifications:
- Product Name: BIGTREETECH TFT35 V3.0.1 (GD) Display
- SD Card Logic Voltage: 3.3V or 5V,support MEGA2560 motherboard, with
- higher compatibility
- Power Input: DC5V
- Microprocessor: STM32F207VCT6

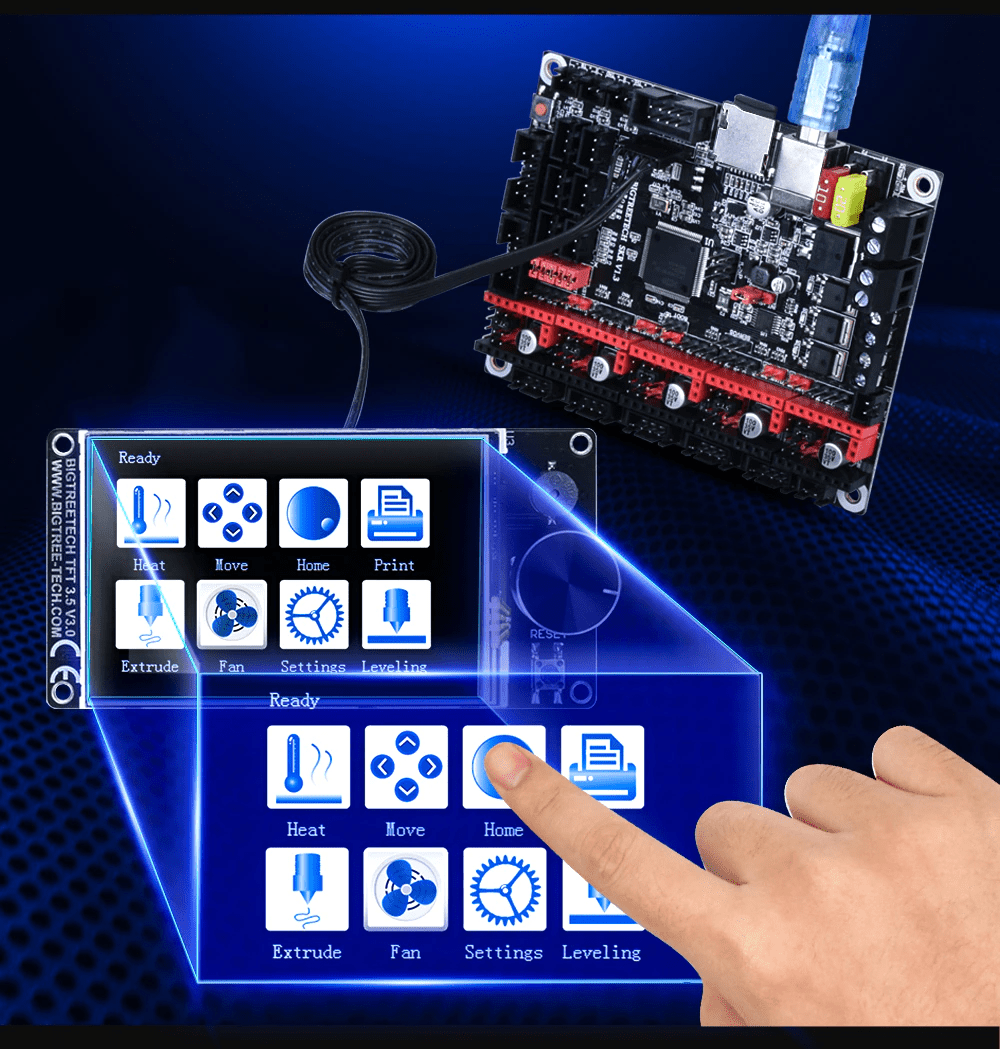

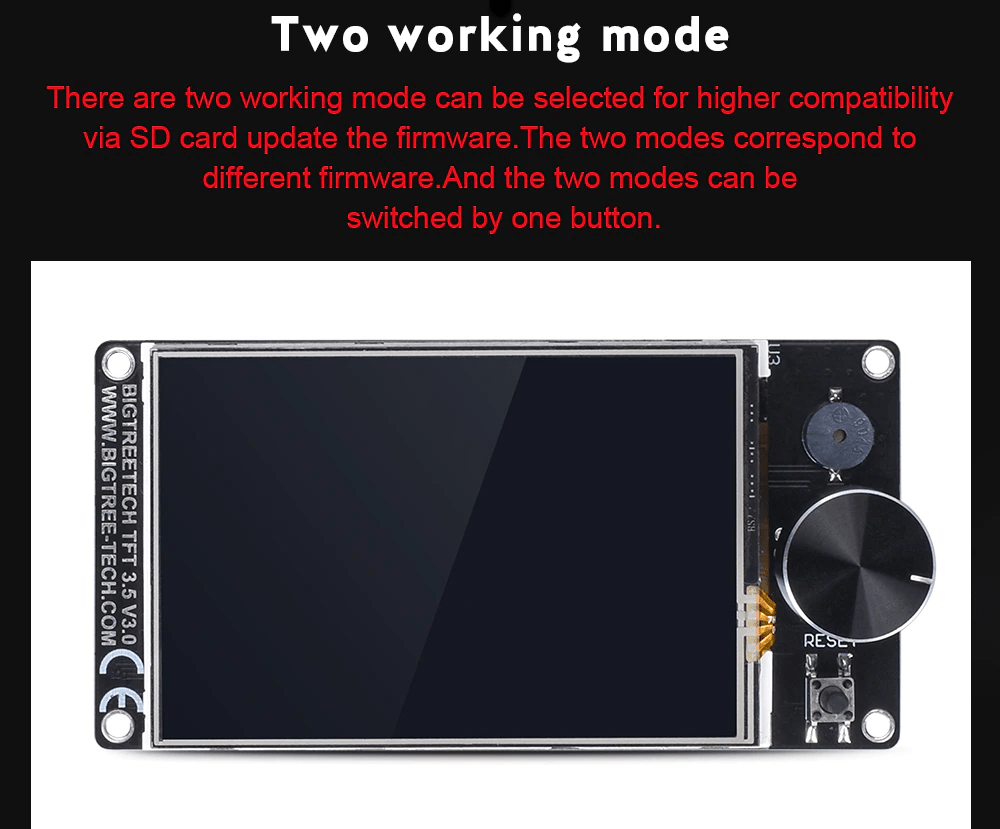

- Working Mode: Touch screen mode, 12864 LCD mode

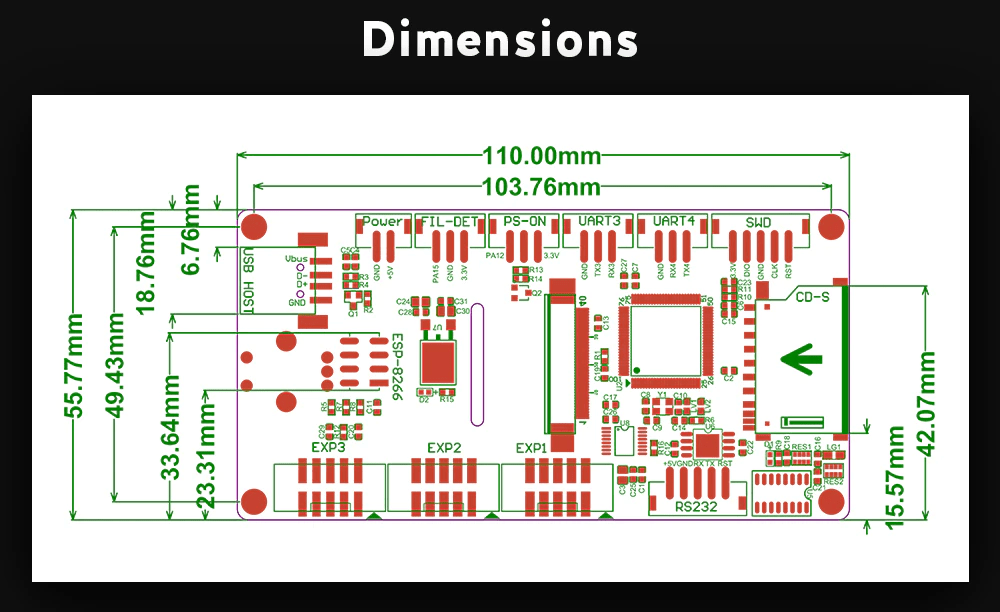

- Appearance Size: 110*58mm

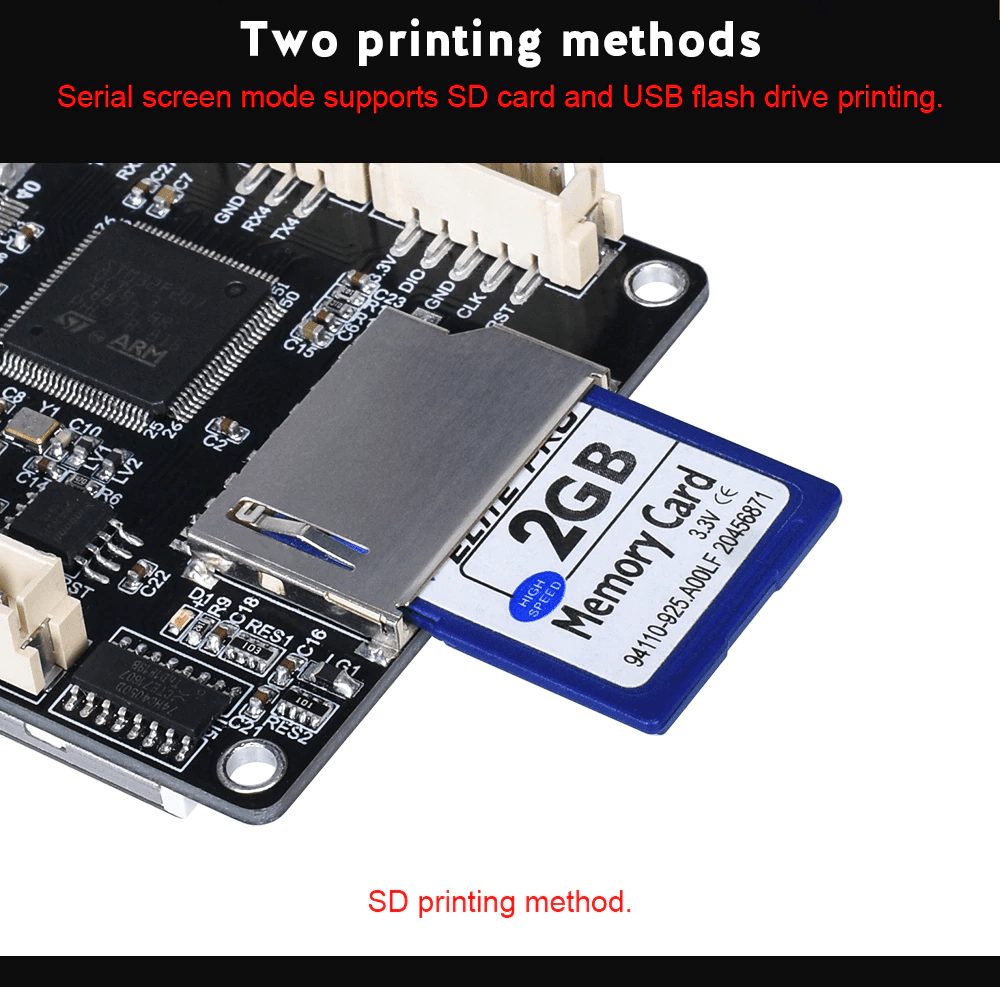

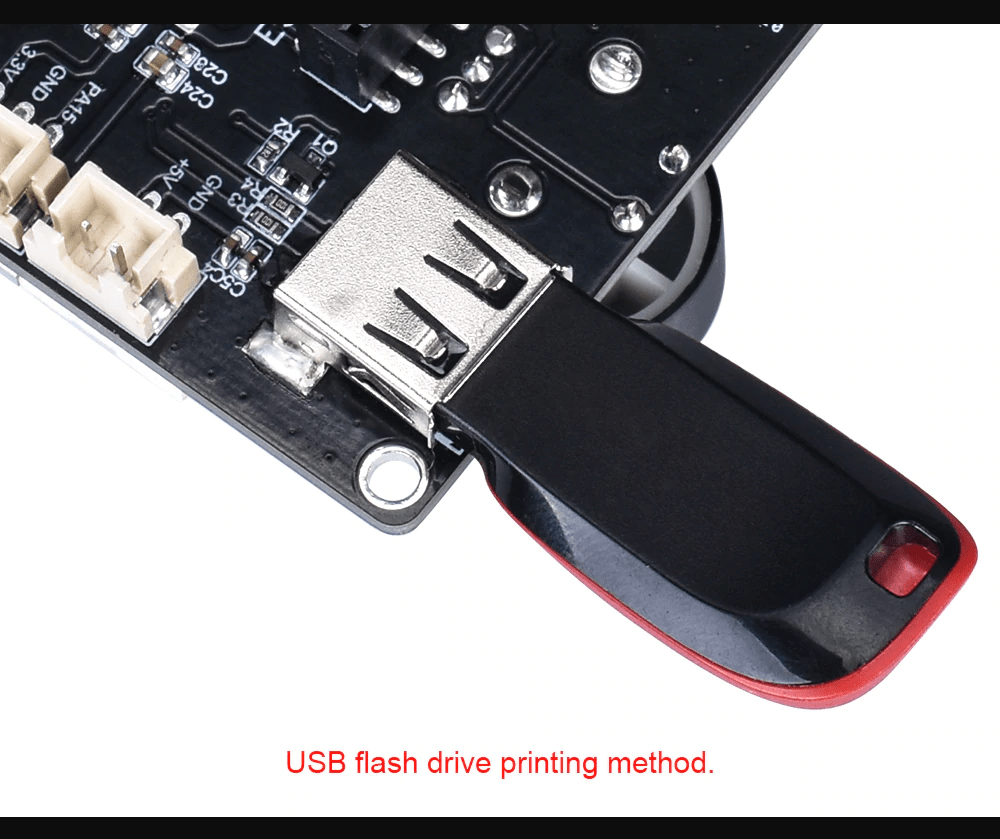

- SD Card And U Disk: Support touch screen mode
- Brand: BTT Bigtreetech

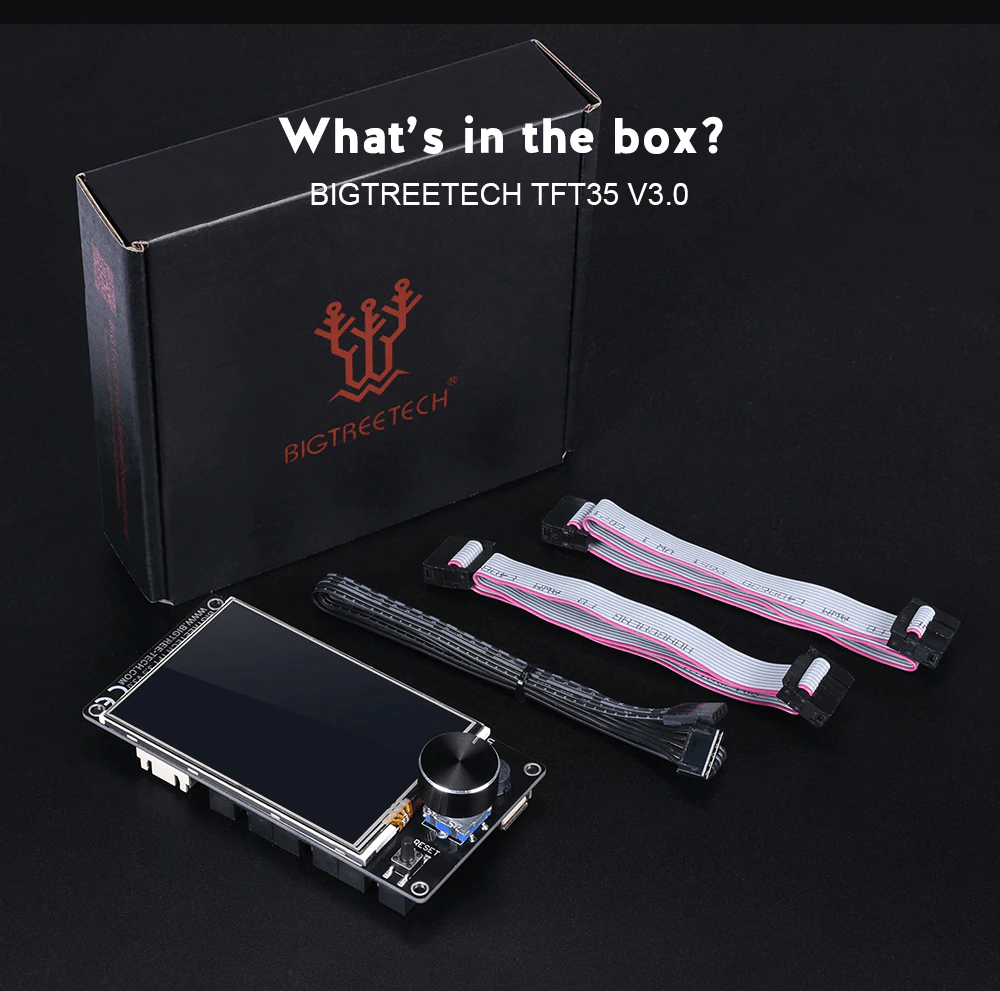

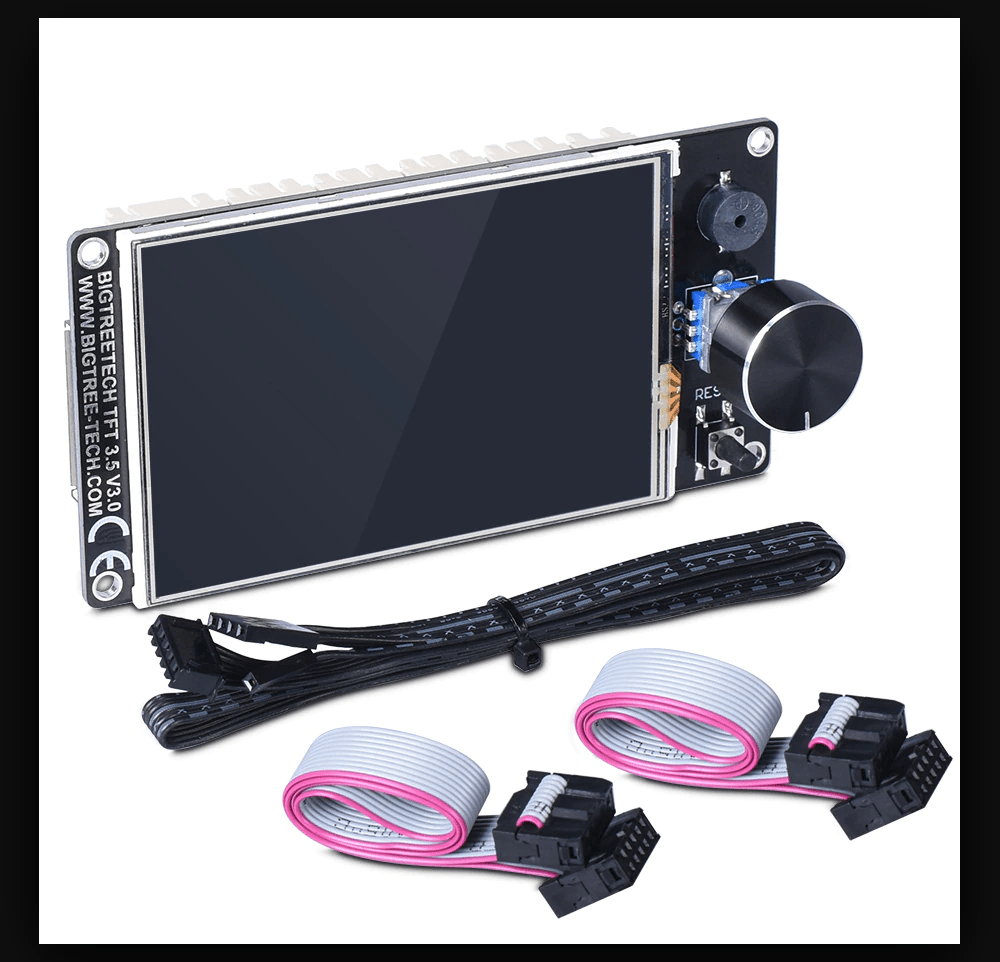

What is Included:
- 1x BTT TFT Display
- 2x EXP Display Cable
- 1x Serial Display Cable
Documentation:
Bigtreetech GitHub Link: https://github.com/bigtreetech/BIGTREETECH-TouchScreenFirmware
- Manual: https://github.com/bigtreetech/BIGTREETECH-TFT35-V3.0/blob/master/TFT35%20V3.0%20user%20manual-2019-11-28.pdf
- Black Screen: https://github.com/bigtreetech/BIGTREETECH-TFT35-V3.0/blob/master/Hardware/Explanation%20of%20black%20screen%20in%20TFT35%20V3.0.pdf

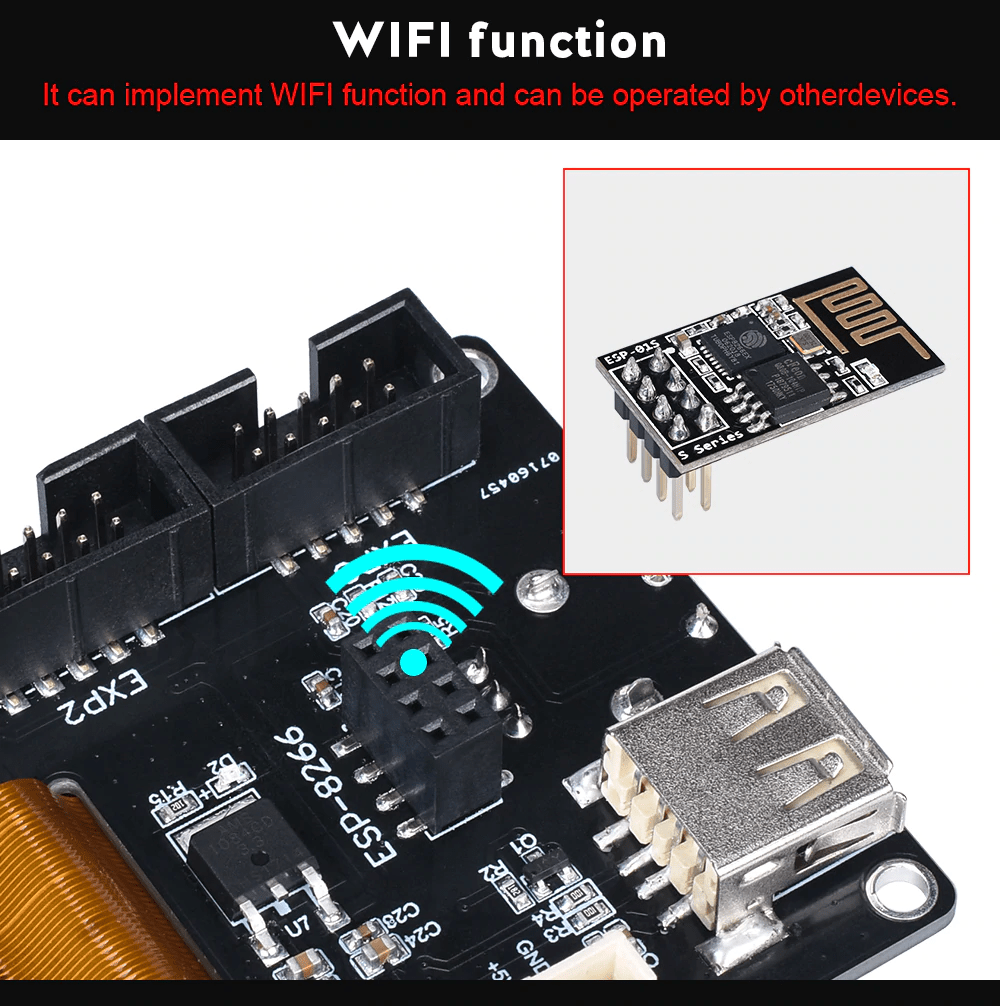

- Wifi Module: https://github.com/bigtreetech/BIGTREETECH-TFT35-V3.0/blob/master/Hardware/TFT3.5%20V3.0-WIFI%20User%20Guide.pdf
How to Update Firmware
Firmware file name:
BIGTREE_TFT35_V3.0. ( version number).bin
First copy the above firmware to SD root directory, and then insert the card into the SD card slot of the board. Next please re-power the board or press the reset key, and wait for about 10 seconds before the update is completed.
Notice: The name of the firmware file in the SD card cannot be changed. (including capital and small letters)
For V3.0.1, please flash GD version from GitHub or confirm the make of MCU before flashing.
Pre Configured Firmware (5.07.21) (English) Download link (Tested 2021) Only on V3.0 not V3.0.1 (GD) TFT35
The display firmware get frequent updates and fixes, we recommenced flashing new firmware using above Github. The pre-tested is working firmware to get you starting if you have issue flashing your own firmware. If you need further assistance please contact our support.
