Bigtreetech TMC2209 V1.3 Stepper Motor Driver

BIGTREETECHSKU: 1040000053

Option: 1x
Price:
Sale price$11.87 AUD

Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (30 units), (Australia Stock)

Buy from the experts, who use 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

TMC 2209 V1.3 is an ultra-silent motor driver IC for two-phase stepper motors. Its continuous drive current is 2A and peak current is 2.8A. This is design for BTT Mainboard that support step stick with URT support (it may be compatible with other boards, but you need confirm step stick slot pinout)

Features:

Stepper Motor Driver based on a Trinamic TMC 2209

  • Hardware compatible with StepStick and Pololu A4988
  • Step/Dir interface with microstep interpolation (up to 256 microsteps)
  • StealthChop2 - for quiet operation and smooth motion
  • SpreadCycle - highly dynamic motor control chopper
  • CoolStep - current control for energy savings
  • StallGuard4 - sensorless motor load detection

What is difference between TMC 2209 V1.2 vs TMC 2209 V1.3

  • Added Protection diode

What is actual difference between these with TMC2208?

  • TMC2209 Silent Step Sticks have output drivers with a lower power dissipation and a higher current is possible.
  • TMC2209 Silent Step Sticks feature cool Step and stallGuard4(optimised for stealthChop).
  • TMC2209 SilentStepSticks can be switched between stealthChop and spreadCycle mode via a configuration pin(SPREAD).
  • TMC2209 Silent Step Sticks drivers have the v2 pinout (Vref and DIAGO swapped).

What is Included:

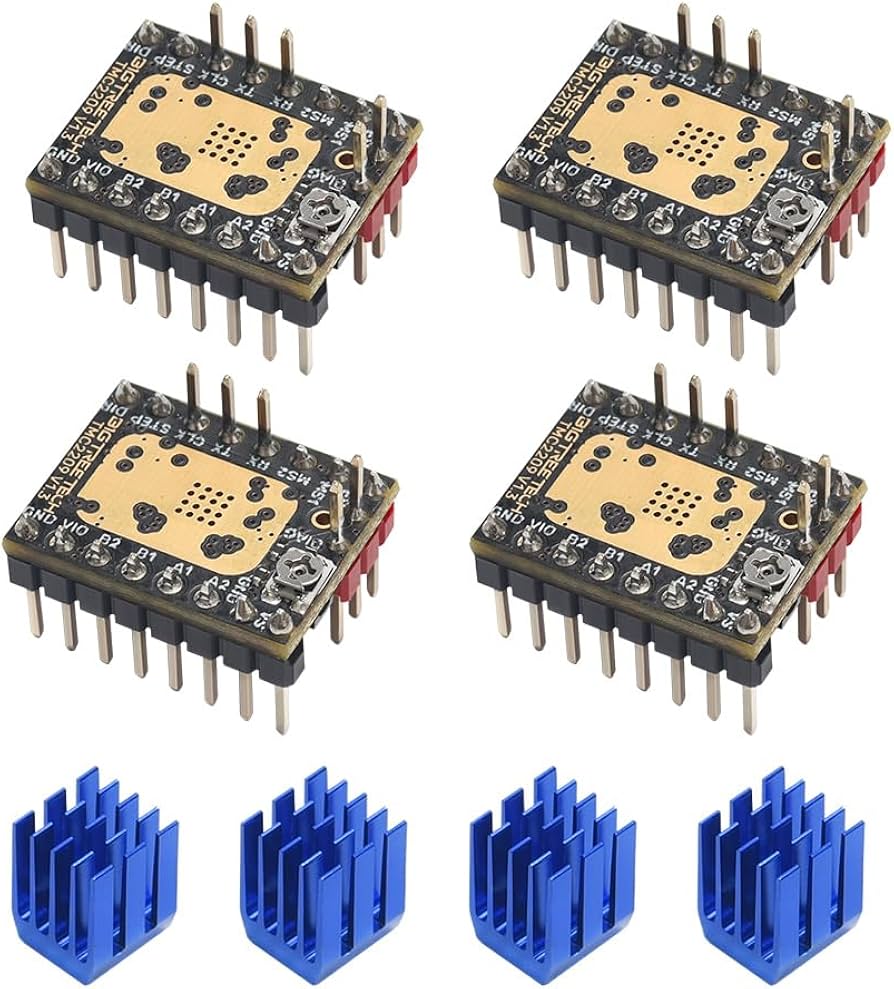

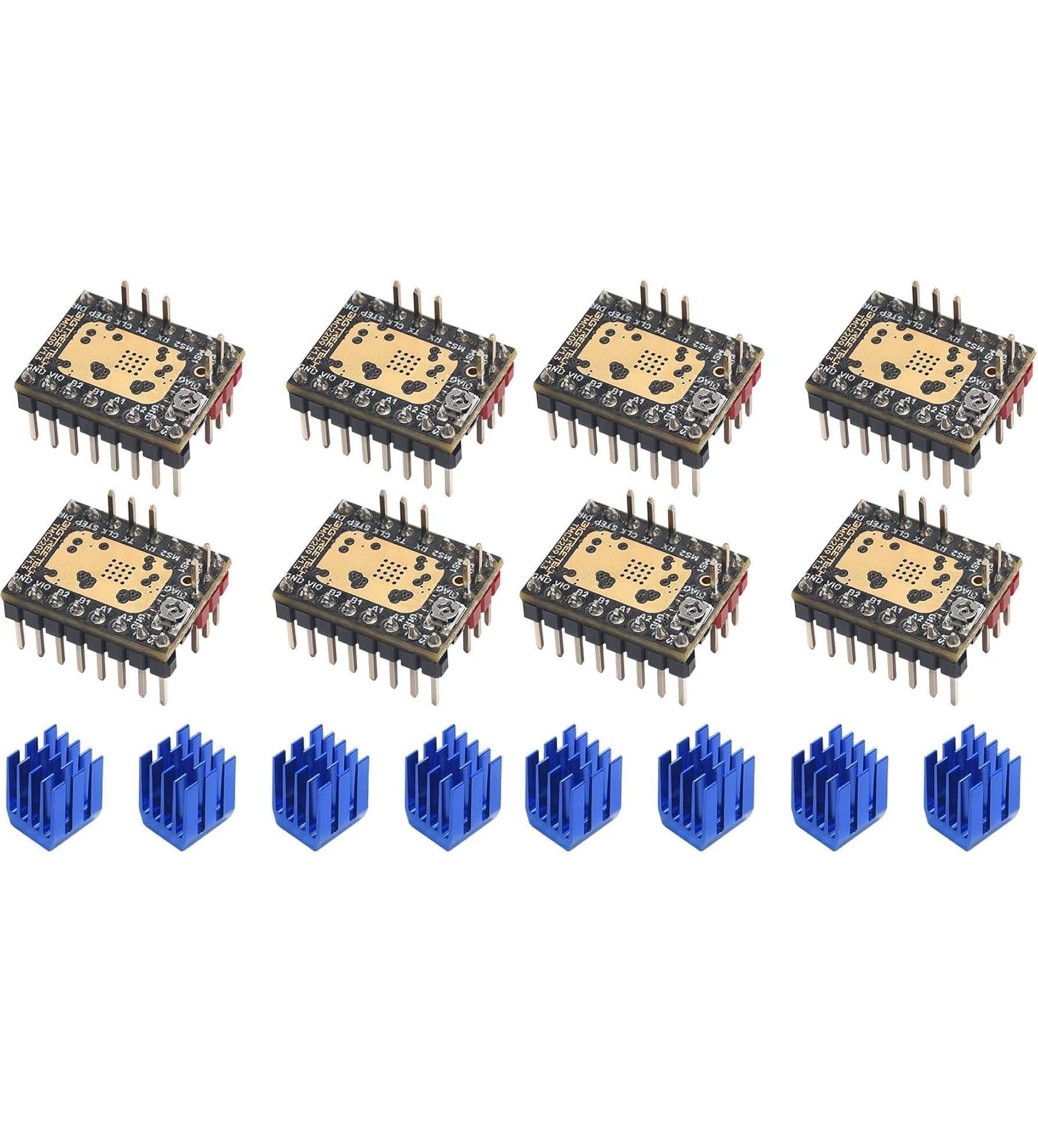

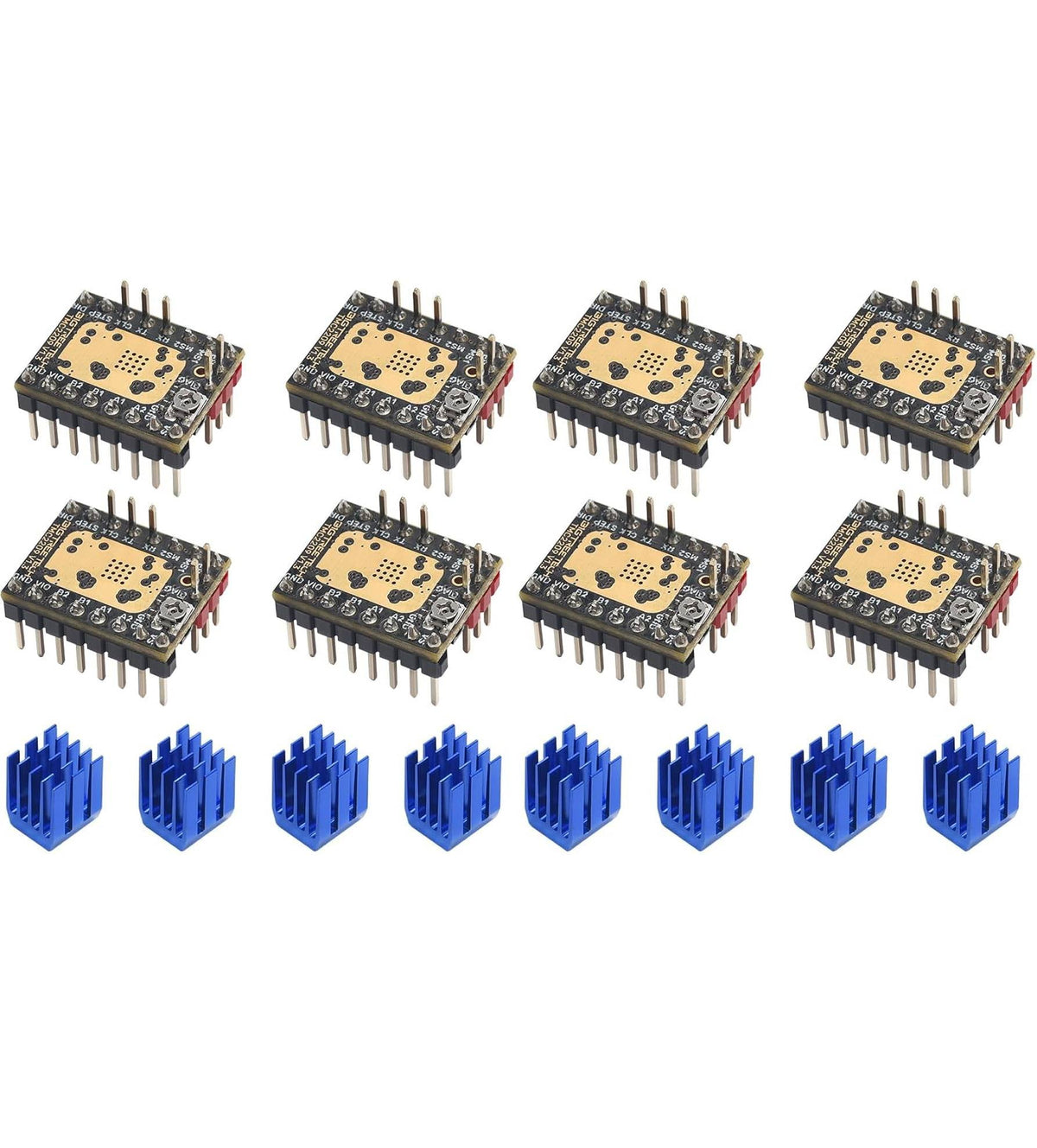

  • BIGTREETECH TMC2209 V1.3 Stepper Motor Driver (Quantity, depending on your selection)

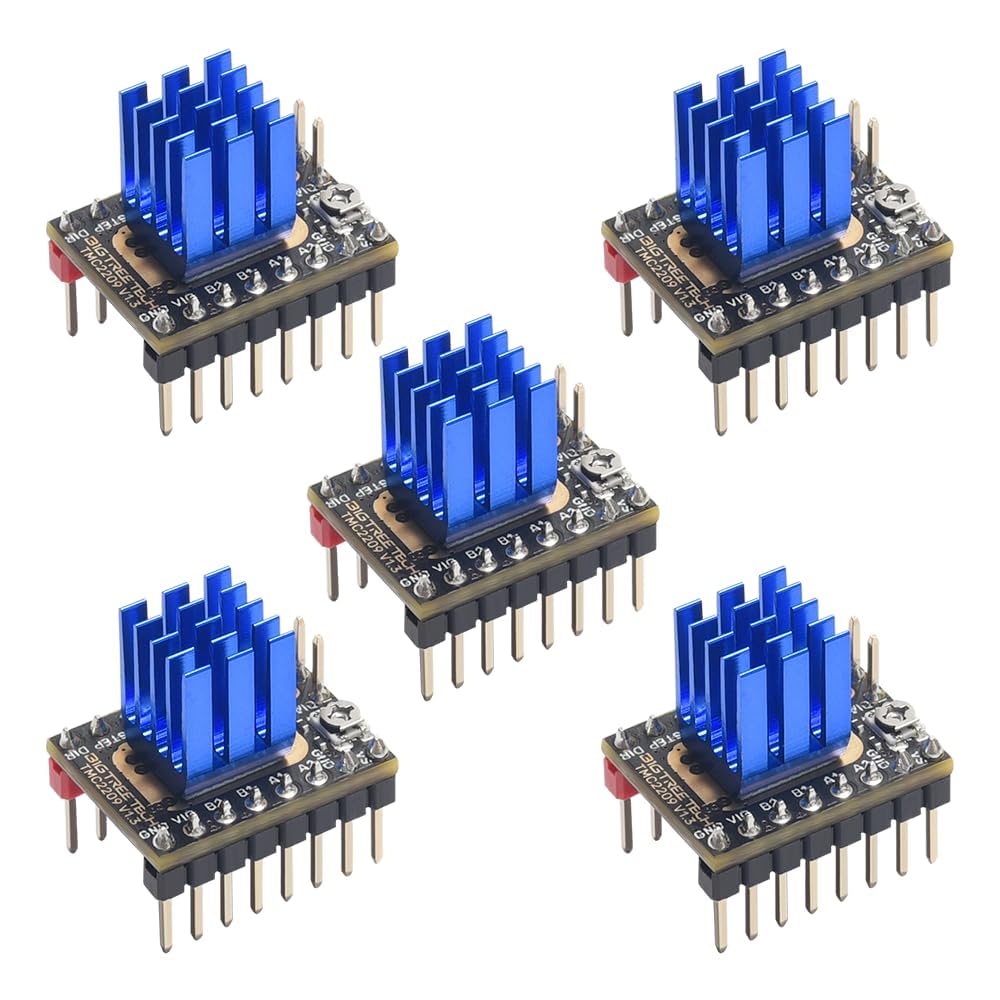

[ Item Include Heat Sinks ]

Note: If you have quantity pack is not unavailable but we have other quantity in inventory, contact support for invoice or we can update quantity on listing for you.

Documentation:

https://github.com/bigtreetech/BIGTREETECH-Stepper-Motor-Driver/tree/master/TMC2209

https://bttwiki.com/TMC2209.html
