Description
Special Thanks to designer/creator: kevinakasam: https://github.com/kevinakasam/BeltDrivenEnder3
This printed parts kit is based on this configuration: https://kevinakasam.com/snvb623-2/
A portion of these sales will directly contribute to kevinakasam and his future projects, helping bring more innovations to the community
The hardware kit include same hardware kit as full printed part kits which supports both Single/Dual configuration as long you printed correct printed parts yourself, we have include some extra fasteners required for beta bottom mounted options (untested) for the more adventurous. As the kit include both dual/single, the hardware kit does cost a bit more to cover enough fasteners for all setups and extra spares.
Note: If you're self printing, we recommenced printing in ABS/ASA when possible to ensure printed parts does not creep due to the stepper motor heat, PETG is an option but do note PETG tends to creep over time, we suggest printing parts in ABS when possible for longevity especially for enclosed printers.
What this mod design for:
To fixed bent/misaligned lead screw, there may be cheaper and easier fix but this is mod that remove any lead screw inconsistency, such as not limited to new lead screw and coupler.
Our kit designed for V-SLOT with bowden/direct drive setup, single or dual stepper. It include require fasteners for bottom beta belt, please check discord and it new version may require additional fasteners. At this stage, the latest V3 support new B2 revision.

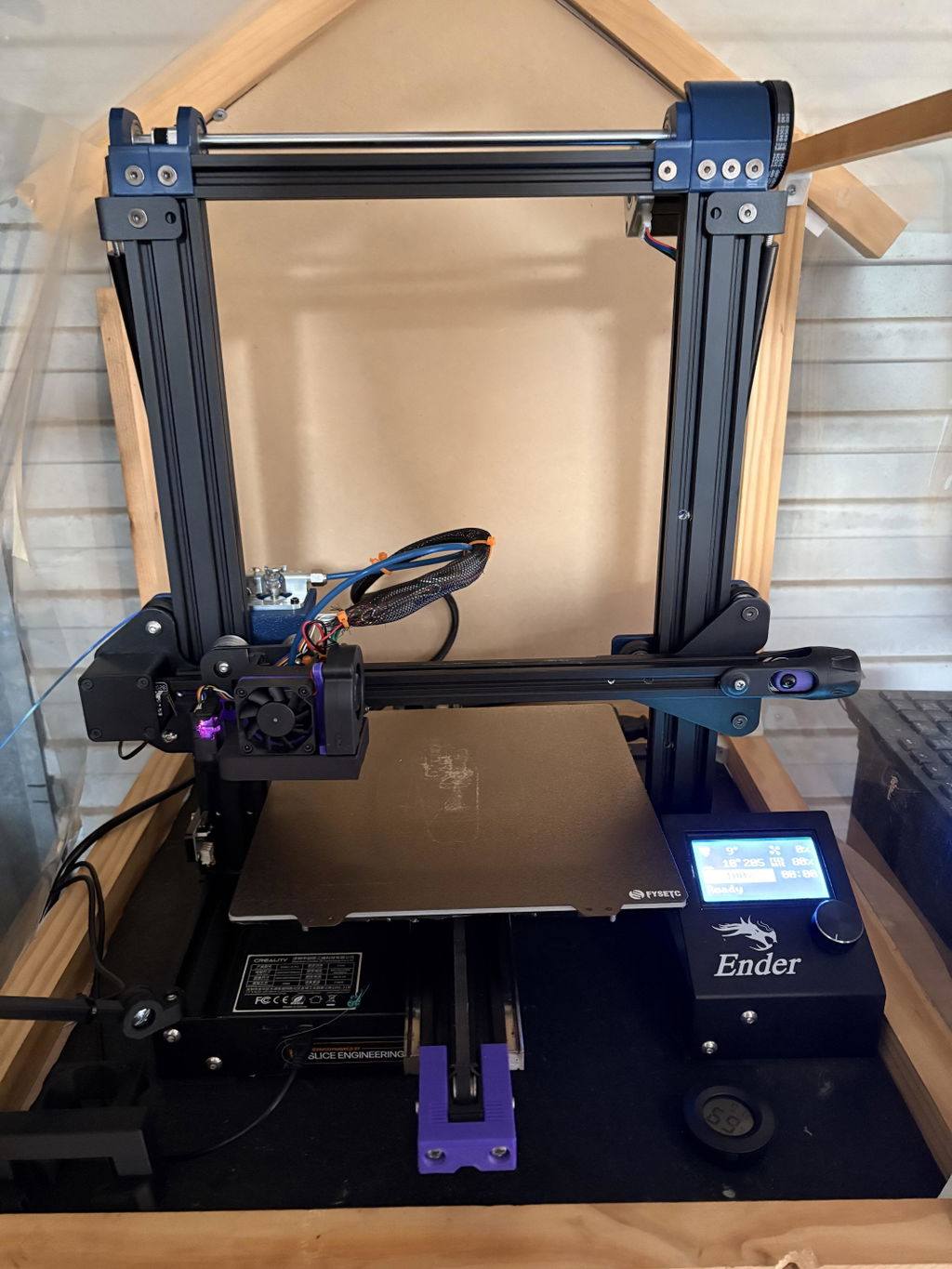

This kit is compatible with most variant for Ender 3 such has Ender 3 V2 and Ender 3 Pro. We cannot guarantee support for Ender 3 Clones or other variants. Our hardware kit and printed parts has been tested on a Ender 3 Pro.
What this Mod can’t do:
This mod can’t solve problems that are caused by an inconsistent extrusion. Inconsistent extrusion means an un-tuned Flowrate/Extrusion multiplier and causes very inconsistent layers. To get rid of that you should tune all extrusion related values, like Flowrate and Linear Advance (Marlin) / Pressure Advance (Klipper). Take a look at this tuning guide, it’s very well made (Works also for non Voron Printers and Marlin machines).
More Information: https://github.com/kevinakasam/BeltDrivenEnder3
Some Common Question and limitation: https://support.dremc.com.au/support/solutions/articles/51000327407-belt-driven-ender-3-

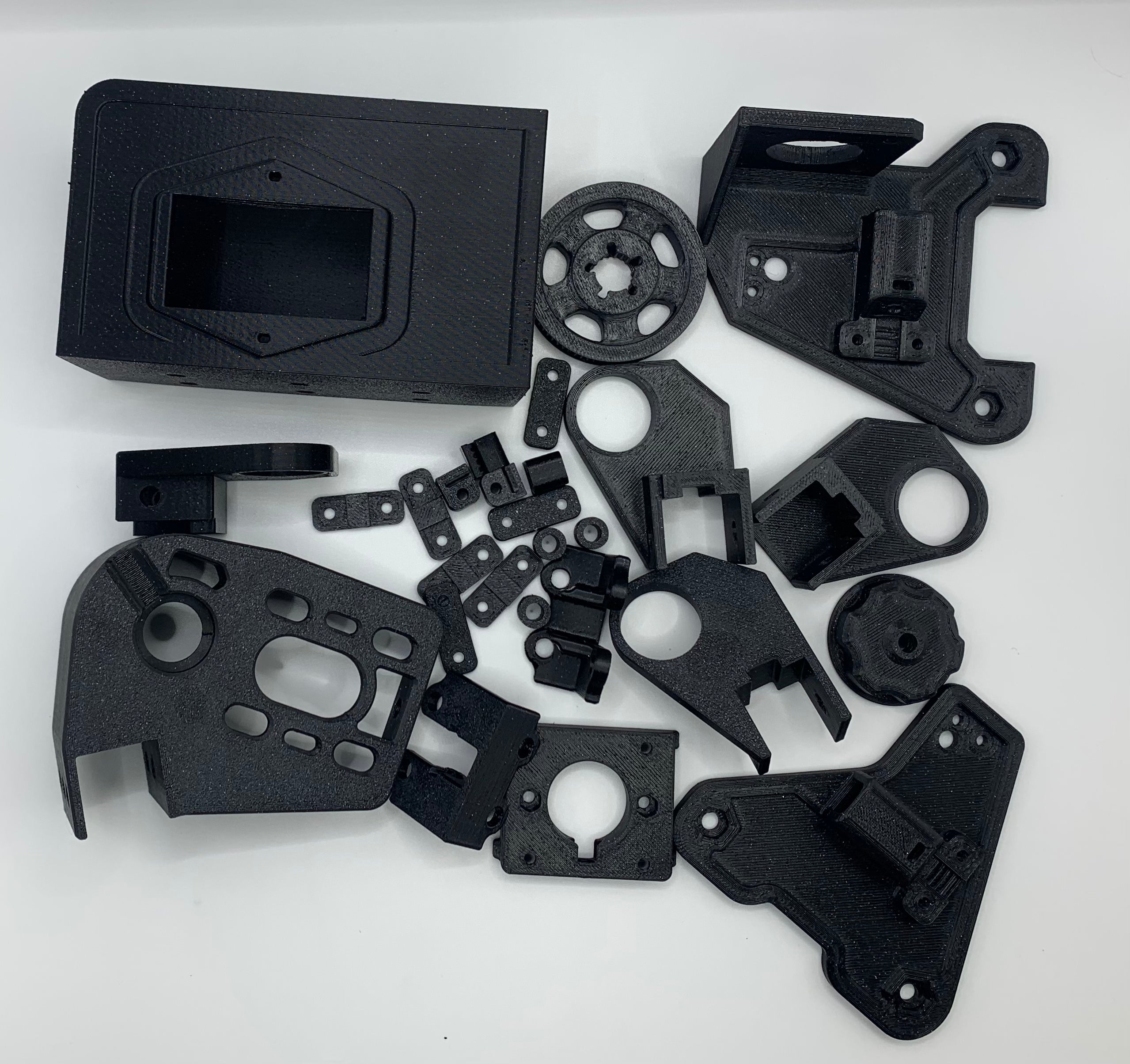

Printed Parts: Printed on Demand (4-5 Business Days Lead Time) using DREMC range Sparkle and non Sparkle ABS/ASA filament - Black is stock colour, if you require specific colour/filament please send support for custom print request for additional quote and availability. Parts are printed as stock bowden setup, if you require modified printed parts, please contact support arrange for custom printed parts, require lead time and extra cost depending on parts.
Note: Sand paper is included in kit, in case there is some variance in bearing, you may be require sand down the pin to fit bottom bearing, please ensure the bearing is not too tights when inserting into bearing. (Documentation: https://support.dremc.com.au/en/support/solutions/articles/51000421410-preparation-of-dowel-pins )
Hardware Kit Bom: (For Dual/Single) V3
Order after 10/09/2024
Update/Change log: Include Heat inserts addon, and B2 bottom mounted beta, where possible we updated fasteners to high quality carbon steel black zinc-nickel plated fasteners.
| Items | QTY | |
| Motion | 20T Pulley - 8mm Bore | 4 |
| 16T Pulley - 5mm Bore | 2 | |
| Gates RF GT2 Belt - Open Belt | 2 Metre | |
| Gates RF 188mm Closed Belt - 6mm Width | 2 | |
| 608 Bearing | 8 | |
| F623 Bearing | 4 | |
| 8mm Smooth Rod - Hardened Steel Length: 335 mm | 1 | |
| Smooth Rod M8x65mm G6 stainless steel | 2 | |
| 3mmx14mm Pins/Shaft (Class H6 or H7) | 2 | |
| Sand Paper | 2 | |
| B2 Addons | MR 148 bearings (8x14x4 mm) | 4 |
| Fasteners | M5x8mm | 30 |
| M5x30mm | 4 | |
| M5x40mm | 10 | |
| M5 lock-nuts | 8 | |
| M5 T-nuts | 30 | |
| M3x40mm | 10 | |
| M3x25mm | 6 | |
| M3x12mm | 8 | |
| M3x10mm | 8 | |
| M3x8mm | 14 | |
| M3x6mm | 14 | |
| M3 nuts | 20 | |
| M3 Washer | 12 | |
| M3 Heat Insert | 25 | |
| Electronics | Stepper Motor cable (1.5m) | 1 |
Hardware Kit Bom: (For Dual/Single) V2.2
Bom Updated On V2.1: 1.03.24
Update: Remove the toothed idler please use bearing, increase some QTY on some fastener to provide extra spare.
| Item | QTY | |
| Motion | 20T Pulley - 8mm Bore |
4 |
| 16T Pulley - 5mm Bore | 2 | |
| Gates RF GT2 Belt - Open Belt | 2 Meter | |
| Gates RF 188mm Closed Belt - 6mm Width | 2 | |
| 608 Bearing |
8 | |
| F623 Bearing | 4 | |
| 3mmx14mm Pins/Shaft |
2 | |
| 8mm 355mm Hardened Steel Rod | 1 | |
| Smooth Rod M8x65mm G6 Stainless Steel | 2 | |
| Sand Paper | 2 | |
| Fasteners (Stainless Steels) |
M5x8mm - Low Profile Screws | 30 |
| M5x30mm - Low Profile Screws | 4 | |
| M5x40mm - Low Profile Screws | 10 | |
| M5 lock-nuts | 8 |
|
| M5 T-nuts - DIN912 | 30 | |
| M3x40mm - DIN912 | 8 |
|
| M3x25mm - DIN912 | 6 | |
| M3x12mm - DIN912 | 8 | |
| M3x10mm - DIN912 | 8 | |
| M3x8mm - DIN912 | 14 | |
| M3x6mm - DIN912 | 14 | |
| M3 nuts - DIN912 | 20 | |
| M3 washer | 10 | |
| Electronics | Motor Cable (1.5m) | 1 |
Hardware Kit Bom: (For Dual/Single) V2.1
Bom Updated On V2.1: 25.08.23
| Item | QTY | |
| Motion | 20T Pulley - 8mm Bore |
4 |
| 16T Pulley - 5mm Bore | 2 | |
| Gates RF GT2 Belt - Open Belt | 2 Meter | |
| Gates RF 188mm Closed Belt - 6mm Width | 2 | |
| 608 Bearing |
8 | |
| F623 Bearing | 4 | |
| 3mmx14mm Pins/Shaft |
2 | |
| 8mm 355mm Hardened Steel Rod | 1 | |
| Smooth Rod M8x65mm G6 Stainless Steel | 2 | |
| Sand Paper | 2 | |
| Fasteners (Stainless Steels/Black Coated) |
M5x8mm - Low Profile Screws | 30 |
| M5x30mm - Low Profile Screws | 2 | |
| M5x40mm - Low Profile Screws | 8 | |
| M5 lock-nuts | 8 |
|
| M5 T-nuts - DIN912 | 30 | |
| M3x40mm - DIN912 | 6 | |
| M3x25mm - DIN912 | 6 | |
| M3x12mm - DIN912 | 6 | |
| M3x10mm - DIN912 | 6 | |
| M3x8mm - DIN912 | 12 | |
| M3x6mm - DIN912 | 12 | |
| M3 nuts - DIN912 | 15 | |
| M3 washer | 10 | |
| Electronics | Motor Cable (1.5m) | 1 |
