Hiwin Kit Features:
HIWIN Stainless Steel Precision H MGN9 Rail Pre-Load Z0 Carriage and Rail- Rail Sourced from Australia from a local HIWIN Distributor cut to order in small batches, cost reflect the higher labour and higher precision Taiwan made rails.
LDO Kit Features:
Cost effective high quality rails from LDO Motors, with Pre-Load Z1. It cost effective kit, approved by Voron team and back by LDO Motors.
More infos about Voron Tap and assembly manual are available on official Github here.
V1 Assembled PCB has sensor solder and tested.

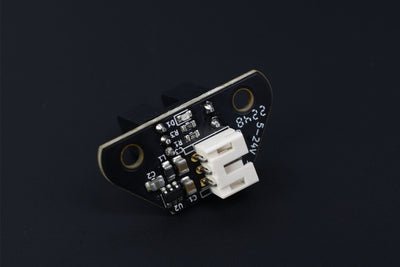

V2.1 Original 5-24v PCB with inline resistor (You must use provided wire with in line resistors to 24v)

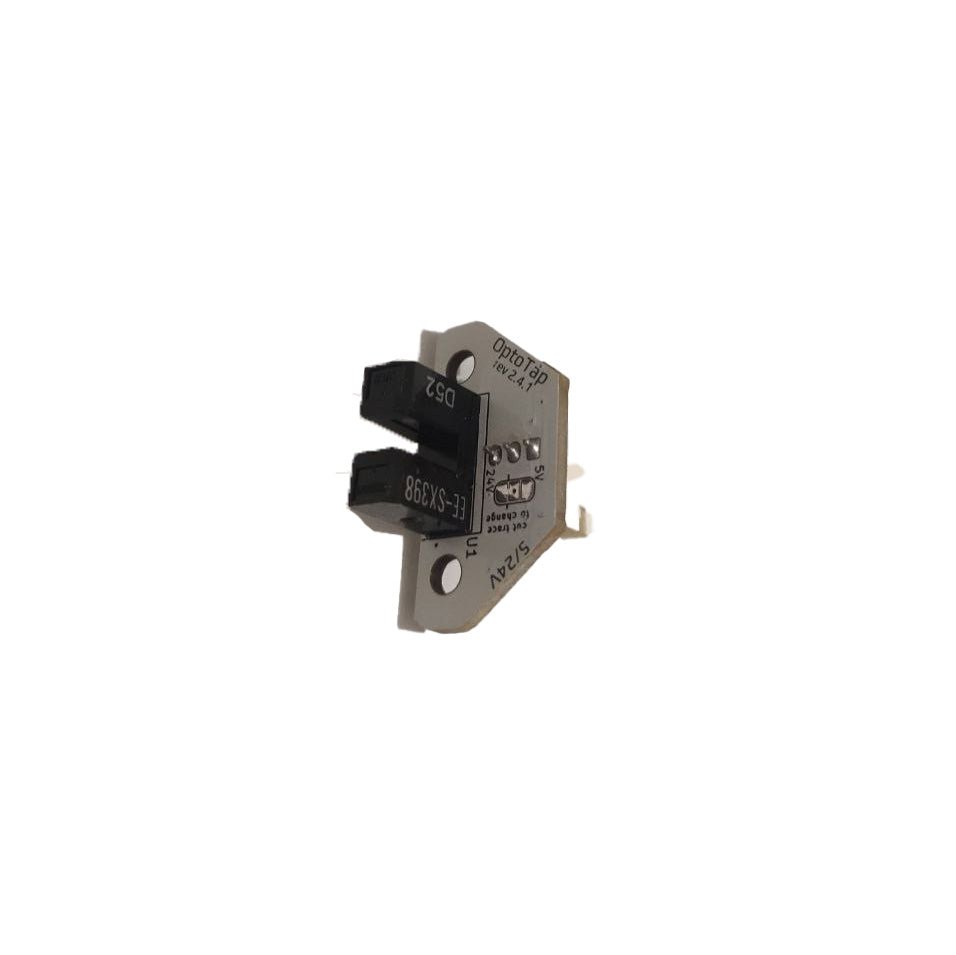

V2.4.1 Assembled PCB has sensor solder and tested.
Optical Sensor are the highest temperature spec: OPB666N (for PCB 5V and PCB 2.1) (-40° C to +100° C)
Optical Sensor are temperature spec: EE-SX398 (for PCB 2.4/2.4.1) (-40° C to +75° C)

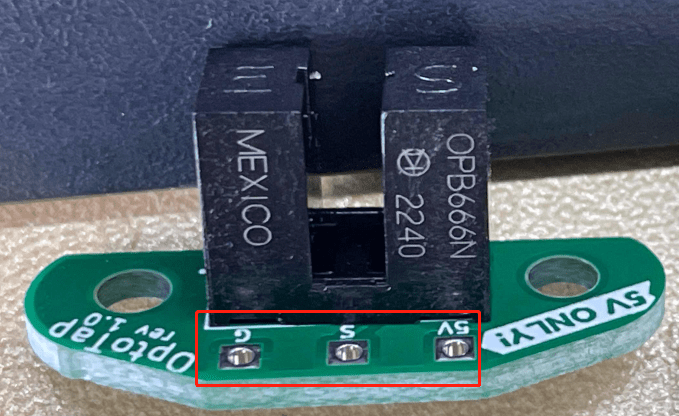

Note: Require soldering 5V/Signal/GND wiring to your break out board or back to your main-board. [ As shown in second photo, product PCB will be black silkscreen, our initial prototype is basic green batch ] [5V Only]
Note: Full Kits does not include printed parts.
Note: As usual, only transport oil is apply to rail/carriage. Please clean and apply grease/oil beforehand. Please use this printed parts to load rail: As this tight pre-load, please load carefully. Please below HIWIN datasheet page 13 on PDF doc for lubrication guide.

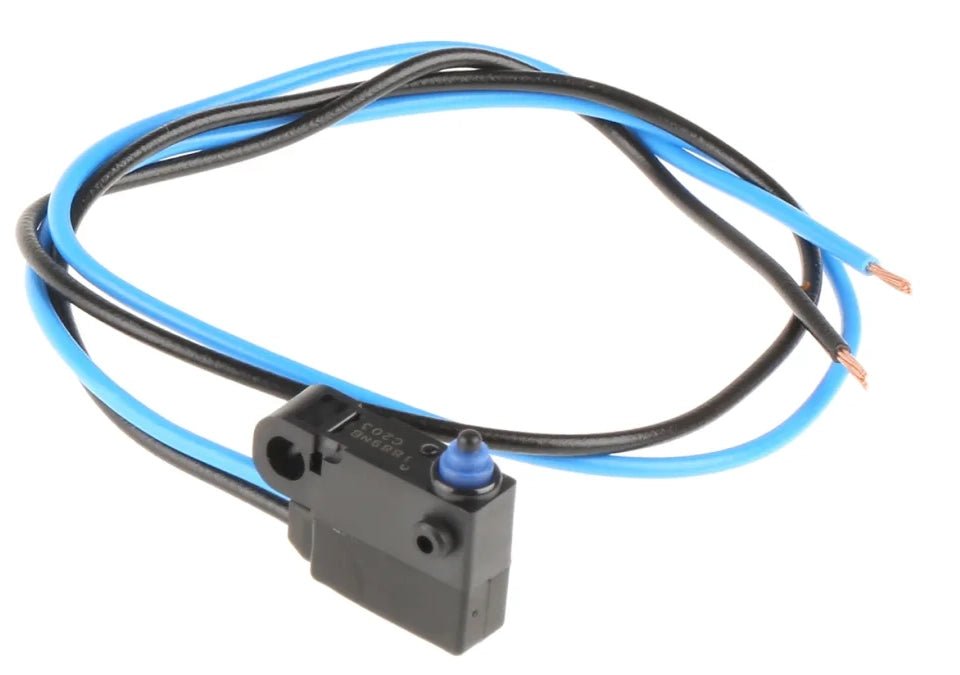

Omron Switch D2HW option is another official solution. More about this here: https://discord.com/channels/460117602945990666/1041007230239125574/1052983393383624735 and don’t forget to print this https://github.com/VoronDesign/Voron-Tap/blob/main/STLs/Tap_Upper_D2HW_r1.stl
Hiwin full kit and Hiwin rail is special order. Contact Us (Note: Due to supply shortages of OPB66N, once first batch of 5V are sold, PCB will not be sold separately after supply for optical sensor ease)
INTRODUCTION: WELCOME TO TAP
WHAT IS TAP?

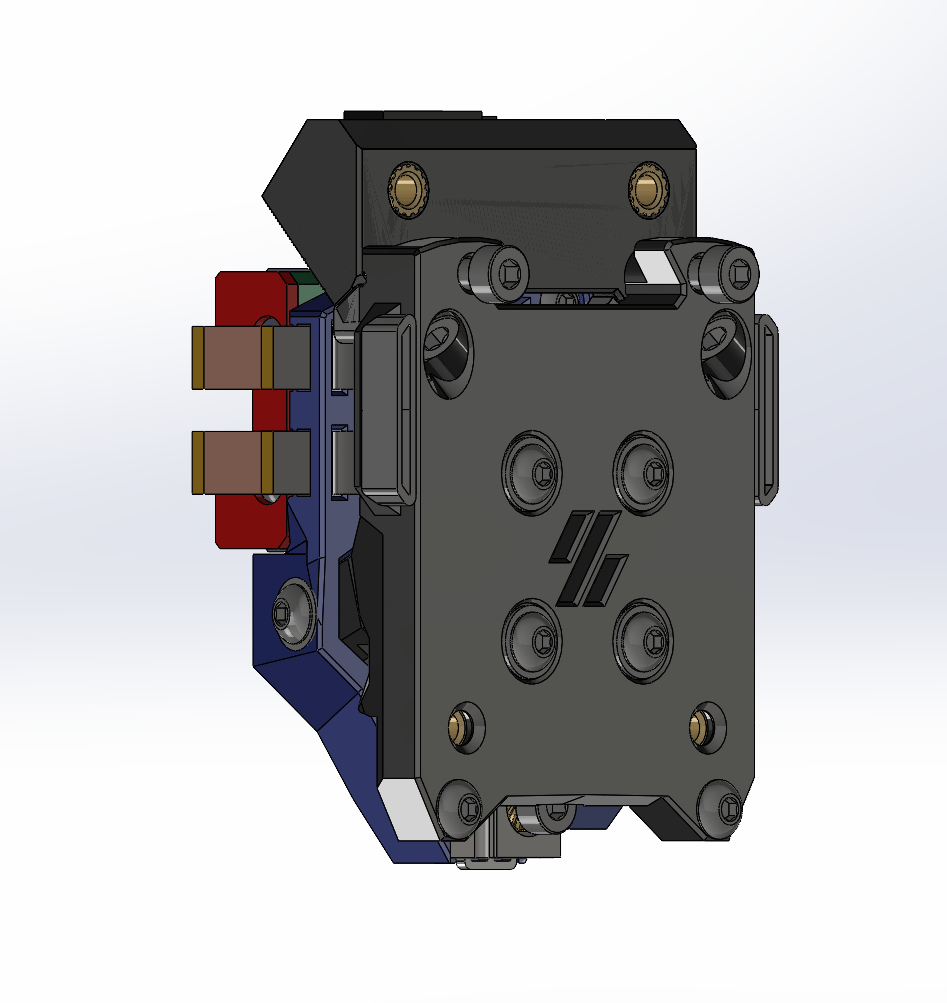

Tap is a nozzle-based z-probe for the V2 and Trident printer designs. The entire toolhead moves to trigger an optical switch. Tap offers many advantages over other z-probes;
EXTREME PRECISION
A well constructed Tap, when in service on a well-constructed printer, will be able to measure your Z position reliably with a precision of 0.4 μm (0.0004 mm). This precision will help you better use and maintain your printer.
ANY BUILD SURFACE, CHANGE AT WILL
Tap can measure any securely mounted build surface. Print on Glass, Garolite, Alumina, Moon dust...it no longer matters. Textured plates are ideal for Tap, but adhesive PEI sheets may also be used. Tap is unaffected by beds with magnetic fluctuations (note: magnets may affect the build surface Tap is sensing, such as pulling the plate tighter over the magnet). Once Tap is setup, you should not need to re calibrate after changing nozzles or build plates.
VORON DURABILITY, HIGH TEMPERATURE OPERATIONS
Tap uses light to detect movement and will never wear out. The sensor in Tap is rated to operate at 70C to 100C and will not degrade over time the way a contact switch or inductive probe can.
Hundreds of PIF quality kits were printed using Tap. Some test printers had over 1,000,000 probe cycles to test durability.
NO COMPLICATED MACROS
For consistent probing temperatures, Tap uses a single ‘activate_gcode’ macro in the [probe] config. Tap is always ready to probe and requires no docking or undocking moves.
Z ENDSTOP ELIMINATION
There is no need for a separate Z endstop. Once the offset is configured, it will hold without appreciable drift. It is normal to need slightly different offsets when switching between filament types.
CRASH PROTECTION
With Tap installed, the nozzle and bed are protected from minor crashes (such as accidentally setting your Z to 1 mm below the build surface
More Information: https://github.com/VoronDesign/Voron-Tap
TAP Probe Release Livestream: https://youtu.be/JLUDLJQXZeU
HIWIN Rails Datasheet: https://support.dremc.com.au/support/solutions/articles/51000316192-hiwin-linear-rail
Bom: Custom Rails Only
Item |
QTY |
50mm MGN9 Rail (HIWIN MGNR9RHM) |
1 |
MGN 9H Carriage (HIWIN MGN9HZ0HM) |
1 |
Bom: PCB V1 - Assembled
Item |
QTY |
Custom (OptoTap v1) PCB Board - Support 5V Only
|
1 |
Bom: PCB V2.1 - DIY Kit [EOL]
Item |
QTY |
Custom (OptoTap v2) PCB Board - Support 5-24V
|
1 |
3PIN 2.54 Pitch JST Male Header |
1 |
JST 2.54 Female Pin |
4 |
OPB666N |
1 |
3PIN 90° 2.54 JST Pitch Board Header |
1 |
Bom Hiwin: Full Kit:
Item |
QTY |
50mm MGN9 Rail (HIWIN MGNR9RHM) |
1 |
MGN 9H Carriage (HIWIN MGN9HZ0HM) |
1 |
6x3mm Magnet (LDO Source) |
2 |
M3 Heatset Inserts |
15 |
M3 Hex Nut |
2 |
M3 Washers
|
8
|
M3x20 SHCS
|
4 |
M316 SHCS
|
4 |
M3x12 SHCS
|
1
|
M3x8 SHCS
|
6 |
M3x6 SHCS
|
2
|
M3 FHCS (Black Oxide Bolt)
|
4 |
M3x10 BHCS
|
4 |
M3x6 BHCS |
14 |
Custom (OptoTap v2.1) PCB Board - Assembled
|
1 |
3 Pin JST Male Header |
1 |
JST Female Connector Pin |
6 |
Bom LDO: Full Kit:
Item |
QTY |
50mm MGN9 Rail (LDO MGN9) |
1 |
MGN 9H Carriage (LDO MGN9Z1) |
1 |
6x3mm Magnet (LDO Source) |
2 |
M3 Heatset Inserts |
15 |
M3 Hex Nut |
2 |
M3 Washers
|
8
|
M3x20 SHCS
|
4 |
M316 SHCS
|
4 |
M3x12 SHCS
|
1
|
M3x8 SHCS
|
6 |
M3x6 SHCS
|
2
|
M3 FHCS (Black Oxide Bolt)
|
4 |
M3x10 BHCS
|
4 |
M3x6 BHCS |
14 |
Custom (OptoTap v2.1 or v2.4 or OMRON D2HW-C203MR) PCB Board - Assembled
|
1 |
JST PH 3pin Cable 18cm |
1 |
Bom LDO R8 Edition: Full Kit:
Item |
QTY |
50mm MGN9 Rail (LDO MGN9) |
1 |
MGN 9H Carriage (LDO MGN9Z1) |
1 |
6x3mm Magnet (LDO Source) N52
|
4
|
M3 Heatset Inserts |
15 |
M3 Hex Nut |
2 |
M3 Washers
|
8
|
M3x20 SHCS
|
4 |
M3x16 SHCS
|
5 |
M3x12 SHCS
|
1
|
M3x8 SHCS
|
8 |
M3x6 SHCS
|
2
|
M3 FHCS (Black Oxide Bolt)
|
4 |
M3x10 BHCS
|
4 |
M3x6 BHCS |
14 |
M3x50 SHCS |
2 |
Custom (OptoTap v2.1 or v2.4 or OMRON D2HW-C203MR) PCB Board - Assembled
|
1 |
JST PH 3pin Cable 18cm |
1 |
