Description
Check out Micro Swiss latest direct drive: https://store.dremc.com.au/products/micro-swiss-ng
[This EOL, please check Micro Swiss latest NG Extruder if you're interested, please contact us for special order]

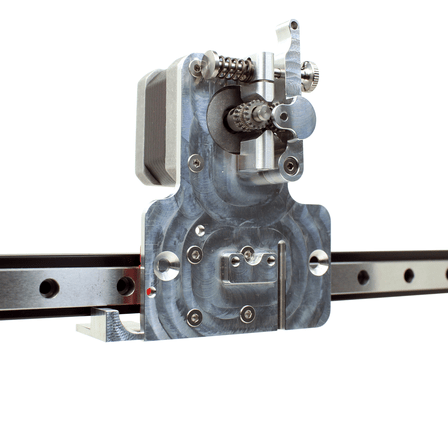

Micro Swiss Direct Drive Extruder configured for Linear Rail System
- No modification required, simple plug and play
- No printed brackets or sandwiches
- If you just need bracket (https://store.dremc.com.au/products/main-body-for-micro-swiss-direct-drive-extruder-for-linear-rail-system)
Features:
- Dual-drive train
- Hardened tool steel, CNC precision cut gears
- Adjustable filament grip
- Easy filament loading
- Short, highly constrained filament path
- Prints flexible filaments with high speed and accuracy
- Outstanding extrusion control
- Lightweight aluminum body

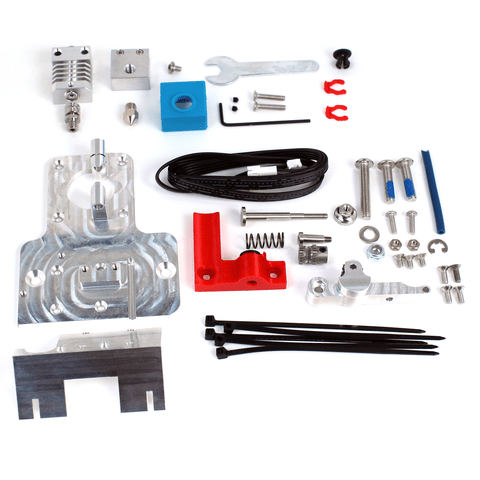

What is Include:
- Stepper motor and roller wheels are NOT included
- [Note: If you are not using Micro Swiss All metal hotend you are require to use existing PFTE tube, as provided is not long enough for original hotend from Creality. Order Capricorn PFTE Tubes Here ]
- Stepper motor, Linear Rail and Carriage Block are NOT included

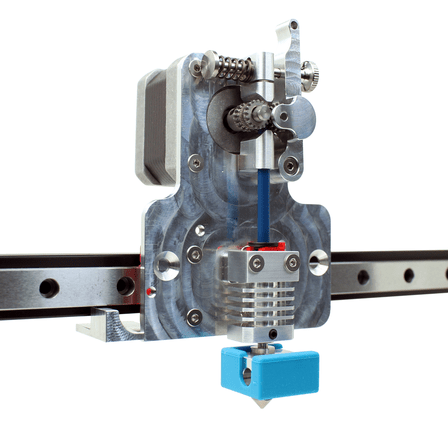

- 1x Micro Swiss All Metal Hotend (If option selected)
- 1x Main Extruder body
- 1x Linear Rail mounting bracket
- 1x Extruder Lever
- 1x Spring Pin
- 1x Spring
- 2x Gears
- 1x Tension Knob
- 1x Shoulder Pin
- 1x Extension Cable
- 3x M3 x .5 x 6mm Motor Mounting Screws
- 4x M3 x .5 x 8mm Linear Rail bracket mounting screws
- 2x M3 x .5 x 10mm Screws
- 2x M3 x .5 Nuts
- 5x Zip Ties
- 1x Printed Bracket
- 1x Beveled Capricorn Liner
Supported Devices:
- Printers with MGN12 Linear Rail with MGN12H Carriage Block
- Only for printers with bottom belt mounting position
Disclaimer:
We notice a recent extruder stepper motor update on Creality machines. Before ordering this kit, please check your extruder stepper motor. If your extruder motor gear is pressed in, you will need to purchase a new stepper motor to be able to complete the installation.
Installation:
Instructions Instructions - PDF
After the installation, X and Y origins will be off the bed.
Adjustments procedure will depend on a type of the firmware and the setup you are currently using.
Chose the setup you have:
Without any bed leveling probe installed
Leveling probe installed with generic or Creality Marlin Firmware
Extra Nozzles: [ Click Here ]
