Description

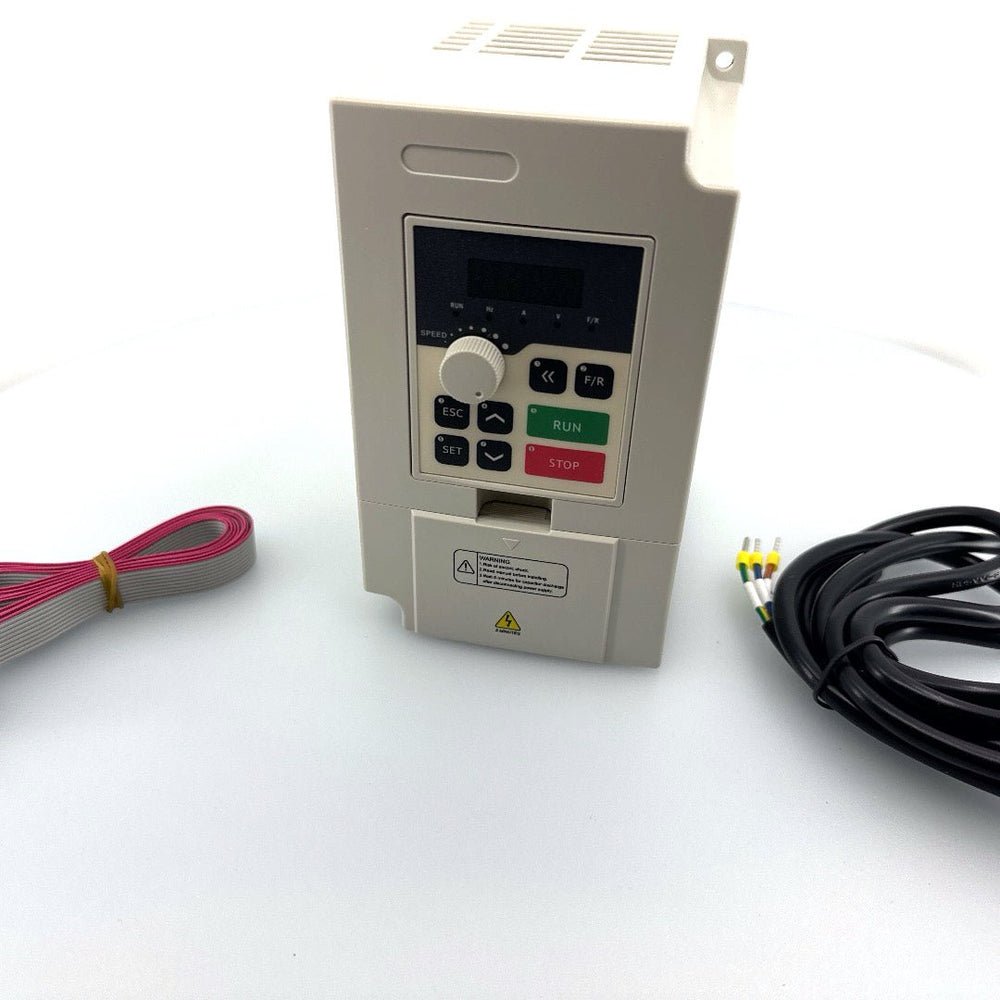

The combination of a 220v spindle and VFD is an air cooled 1.5Kw used in Milo Kit from LDO.
These are sold as kit, and its special order item. If you need just spindle/vfd contact us for firm lead time, typically 2-3 weeks.
220v spindle technical specifications:
| Model | LDO-GDZ-80F-1.5 |
| Size | 80x195mm |
| Voltage | 220V |
| Current | 8A |
| Frequency | 400Hz |
| Performance | 1.5kW |
| Rotation speed | 24 000 rpm |
| Max. Torque | 0.59Nm |
| Collet | ER16 |
| Tension clamp | 1-10mm |
| Incl. | Air cooling |
