Description

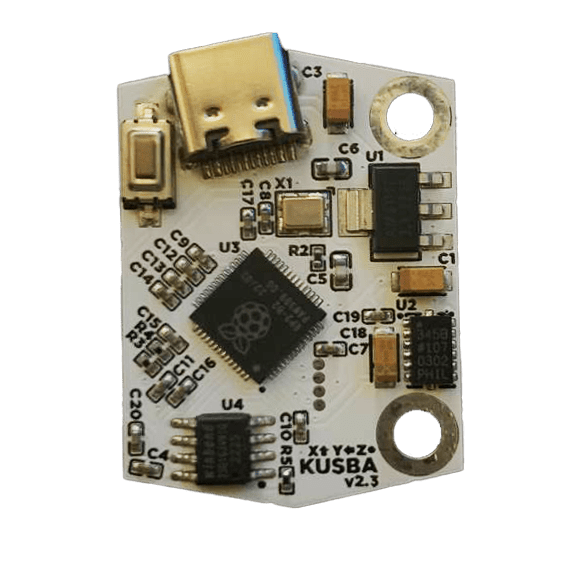

KUSBA is an all in one accelerometer solution to measure resonances for your 3D printer.
With an integrated RP2040 mcu and onboard ADXL345 diy wiring and soldering is no longer required – just a USB-C to USB-A cable (Available 1.8m with/without cable).
Designed by xbst / Isik’s Tech – every purchase directly supports his efforts for further research and development into this and other projects.
Board are pre-flashed, if not being detected on klipper please try reset the device and re-flash more update to date kipper bin. As there many be compatible changes between different klipper version. (Holding the reset button while plugging in the device).
New board is pre-flashed with "Ampon". More Info: https://github.com/xbst/KUSBA/blob/main/Docs/v2-Rampon-Firmware.md (PCB Version: V2.4)
What is Included:
- 1x Kusba USB ADXL345 Module
Optional:
- 1x 1.8m Type C to Type A USB Cable (Depending on your selection)
Note: Module is available separately without require type c to a cable or with 1.8mm cable which is suitable for most raspberry pi.
Documentation:
Written Documentation: https://github.com/xbst/KUSBA
Install Video: https://www.youtube.com/watch?v=gtrQXdAaXB4
Printed Bracket: https://github.com/xbst/KUSBA/tree/main/Mounts
Note: Mount Spacing is 30mm, if you have 30mm fan you can mount directly onto the fan using existing bolt in most case otherwise you may require longer bolt.
Cad: https://github.com/xbst/KUSBA/tree/main/CAD
How to Configure Klipper
[mcu adxl]
serial: /dev/serial/by-id/usb-Anchor_Rampon-if00
[adxl345]
cs_pin: adxl:CS
[resonance_tester]
accel_chip: adxl345
probe_points:
0,0,0
# Edit the above line with the correct probe points location. I recommend the center of your bed for X & Y, 20 for Z.
# For 350 mm printers: 175,175,20
# For 300 mm printers: 150,150,20
# For 250 mm printers: 125,125,20
# For 120 mm printers: 60,60,20
# More info: https://www.klipper3d.org/Config_Reference.html#adxl345
