Description

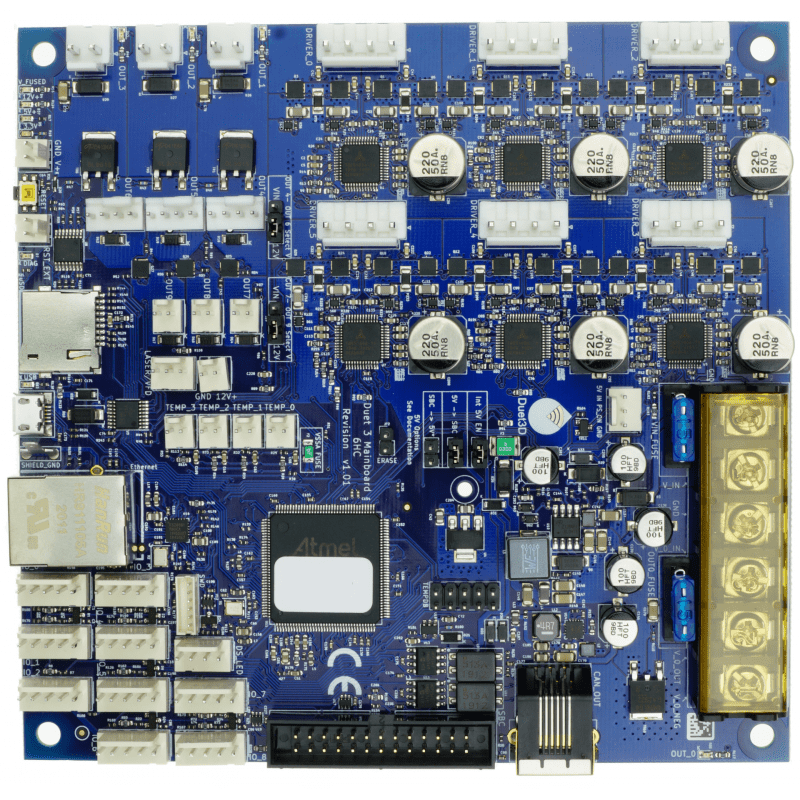

The Duet 3 Mainboard 6HC is a comprehensive, high-performance controller designed for 3D printers, CNC machines, and similar equipment. Featuring six high-current stepper drivers, four high-current outputs, six fan connections, and extensive onboard I/O, it can directly manage numerous devices. Additionally, its functionality can be expanded significantly through CAN-FD connected expansion boards.
The Duet 3 series offers unparalleled flexibility in machine design with powerful mainboards, expansion boards, tool boards, and customizable expansion modules. This sophisticated hardware is powered by the cutting-edge RepRapFirmware 3 operating on the Duet 3 Mainboard, with the option to use DuetSoftwareFramework on a single-board computer.
FEATURES
| Processor | Powerful 32bit Atmel ATSAME70: ARM Cortex-M7 microcontroller running at up to 300MHz |
| Expansion | CAN-FD BUS for connecting multiple expansion boards and tools |
| Connectivity | Dedicated SPI Bus to Single Board Computer (SBC), or, alternatively, connect over an Ethernet network |
| Stepper Drivers | 6x TMC2160/5160 high-current drivers with the latest Trinamic features. Maximum motor current 6.3A peak per phase (4.45A RMS) |
| High current outputs | 1x15A and 3x 5A PWM outputs for heated bed, extruders and similar |
| Medium current outputs | 6 PWM controllable outputs for fans or similar. 3 of these support 4 wire fans including tacho reading |
| IO | Nine I/O connectors with 3.3V output signal level and 30V-tolerant inputs |
| Temperature Measurement | 4 thermistor/PT1000 inputs. Support for two temperature daughterboards for up to 4 PT100 or thermocouple sensors |
| Supply Voltage | 12-48V |
| Firmware | Runs RepRapFirmware 3.x – Supports all common machine geometries, easily configurable for your specific machine requirement |
