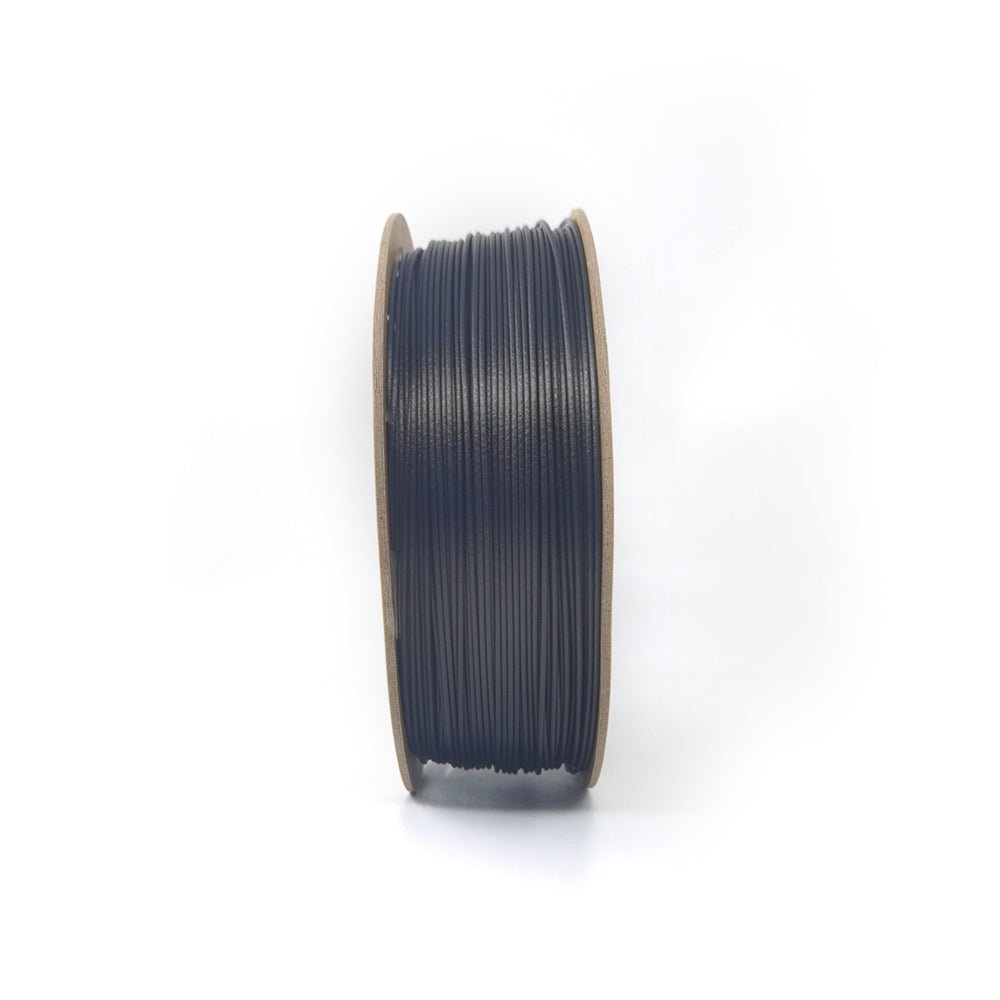

DREMC PA6 CF Filament 1.75mm 1kg

DREMCSKU: DR-PA6-CF

Colour: Black
Price:
Sale price$75.51 AUD

Shipping calculated at checkout

Visa Mastercard American Express PayPal Afterpay Zip Apple Pay Google Pay

Stock:
In stock (8 units), (Australia Stock)

Buy from the experts, who use and repairs 3D printers every day. Have a question or need compatibility check? Contact us

Do you require larger qty or commercial/education net payments or quoting? Click here for more details

Description

DREMC PA6 CF Filament 1.75mm 1kg combines the strength and durability of polyamide 6 from LUVOCOM with carbon fibre reinforcement, delivering exceptional mechanical performance. Ideal for parts exposed to moderate heat and vibration environment such as jigs and fixtures.

Materials Features/Applications

  • LUVOCOM® PA6 with added Carbon Fibre (contain chopped CF <15%)
  • Temperature resistant up to 140 °C (50% retain properties for 100,000 hours)
  • Good electrical properties
  • 3D prints with high dimensional accuracy and increased layer adhesion

Materials/Spool/Packaging Information:

  • Cardboard spool and packaging
  • Vacuum sealed bag with an additional re-usable mylar bag
  • Highly sensitive to moisture and require enclosure and its recommended annealing parts after printing for better strength under constant load.
  • Diameter: 1.75mm (+/- 0.05mm)
  • Net weight: 1KG
  • Density:  1.25g/cm3
  • Empty Cardboard Spool: ~145g

Printing Settings

A wear resistant nozzle must be used, carbon fiber material is abrasive and will wear standard brass nozzles and >0.5mm nozzle is recommended.

Nylon is highly sensitive to moisture, we recommended a proper dryer and dry before and during printing, some older dryer without fans and exhaust outlet or cannot reach high enough temperature will not dry nylon thoroughly. You need a dryer that can reach at least 60°c+, we recommend using filament clamp when drying above 70c to avoid spool splitting due to glue adhesive or avoid dryer with heater element is at core (Eibos X Dryer). We also recommended you ensure you store filament well during storage and re-dry before use.

For best results, dry filament using a filament drier before use or print from dryer running or dry box. Keep in an airtight container or included mylar bag for medium/long term storage with silica desiccant. [If you hear popping or inconsistent extrusion while purging filament, suggest drying before printing for best results] Filament Drying Guide

Print Profile Example: https://support.dremc.com.au/en/support/solutions/articles/51000343310-dremc-filament-3d-printing-profile

Avoid printing from AMS for better reliability, print from dry box or dryer, see above printing specific tips.

Brittle Materials Guide: https://support.dremc.com.au/en/support/solutions/articles/51000492353-print-tip-brittle-materials-carbon-fibre-glass-fibre-sparkle-glow-in-dark-

Nozzle Temperature 260°C - 290°C (~280°C & Low/no part cooling is recommended for strength parts)*
Build Plate Temperature 60°C - 90°C
Build Surface Material Works well with most common build surfaces. We recommended PEI Build Plate (Texture suitable), smooth PEI with PVA/Bed Adhesive such as Magigoo.
Build Surface Treatment Typically none required. Some surfaces such as glass work best with PVA glue stick or Magigoo.
Cooling Fan LOW-MEDIUM for better surface quality
OFF-LOW (<10%) for better strength
Enclosure / Heater Chambers

Recommended for complex larger geometries.
50-90˚C+ may be required for higher density and larger geometries.

Recommend VOC/Air Filtering or print in well ventilated room

Printing Speed 30 mm/s - 150 mm/s
Retraction The ideal retraction settings vary from printer to printer. If you find the retraction settings are causing gaps in your part, the following settings may help.
Direct Drive: Retraction distance of 0.5 - 1mm with retraction speed of 20mm/s
Bowden: Retraction distance of 2 - 3mm with retraction speed of 20 - 40mm/s
Drying Recommendation  ~70°c for 8-12hr (Only dry if filament is wet, over drying/repeat drying can damage filament) REQUIRE PRINTED CLAMP WHEN DRYING (Filament Dryer Guide)
Storage Keeping filament in an airtight container or provided Mylar bag with new/dried desiccant
Support Material Single Extrusion:
Self Support

Note: Due to the low co-efficient of friction please ensure you have smooth filament path from filament box/dryer. We recommended 3x4mm PTFE to be used for reverse bowden.

Based on 0.5/0.6 mm nozzle. Printing conditions may vary with different printers and nozzle diameters.

* As always you should do temperature to tower as each machine printing temperature may vary depending on hotend/printing speed etc. (Test Sample on Dragon HF 0.5mm Gamma Master with VZ Extruder)

Sample print STL : https://www.printables.com/model/351504, https://www.thingiverse.com/thing:1984879

Spool Size:

  • Spool Diameter: 198mm (+/-1mm)
  • Spool Hub Diameter: 53mm (+/-1mm)
  • Spool Width: 65mm (+/-4mm)
