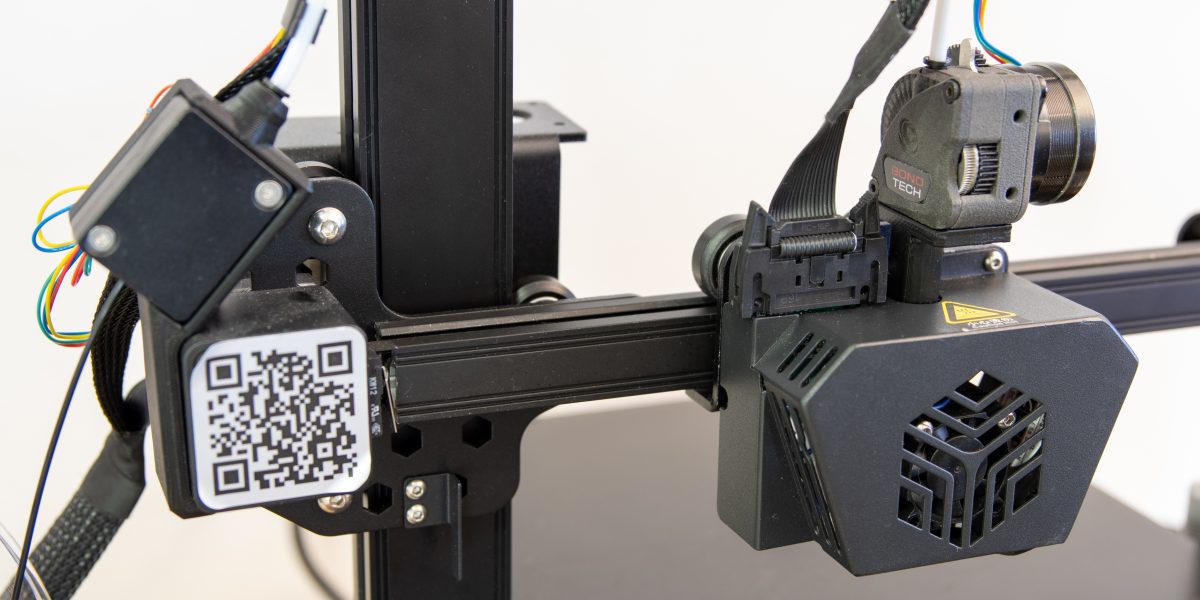

Bondtech latest LGX Lite installed on Creality strain gauge printer such as CR-6SE, CR-6 Max and CR-10 Smart is high quality upgrade your printer to direct drive. Bondtech have design a easy direct drive mount. The mount kits can purchased here for CR-6SE or CR-10 Smart (Printing using Nylon SLS Process) or Bondtech provide printable STEP file and require sourcing your own part listed below.
Note: This is only compatible with older LGX Lite V1, not suitable with V2 without adjustment to printed files due to changing to housing.
Detail Documentation:
Help Article(Detail Install Guide): https://support.dremc.com.au/en/support/solutions/articles/51000309215-lgx-lite-extrude-cr-6se-smart
CR-6: STEP Files for mount
CR-10 Smart: STEP Files for mount
Other Part required.
- 85mm Capricorn Tube
- 1x M3 square nut
- 1x M3x27 mm Low Head 2mm Hex Socket Screw
- 2x M3x10 mm Button Head 2mm Hex Socket Screw
- 4x M3x6 mm Low Head 2mm Hex Socket Screw
